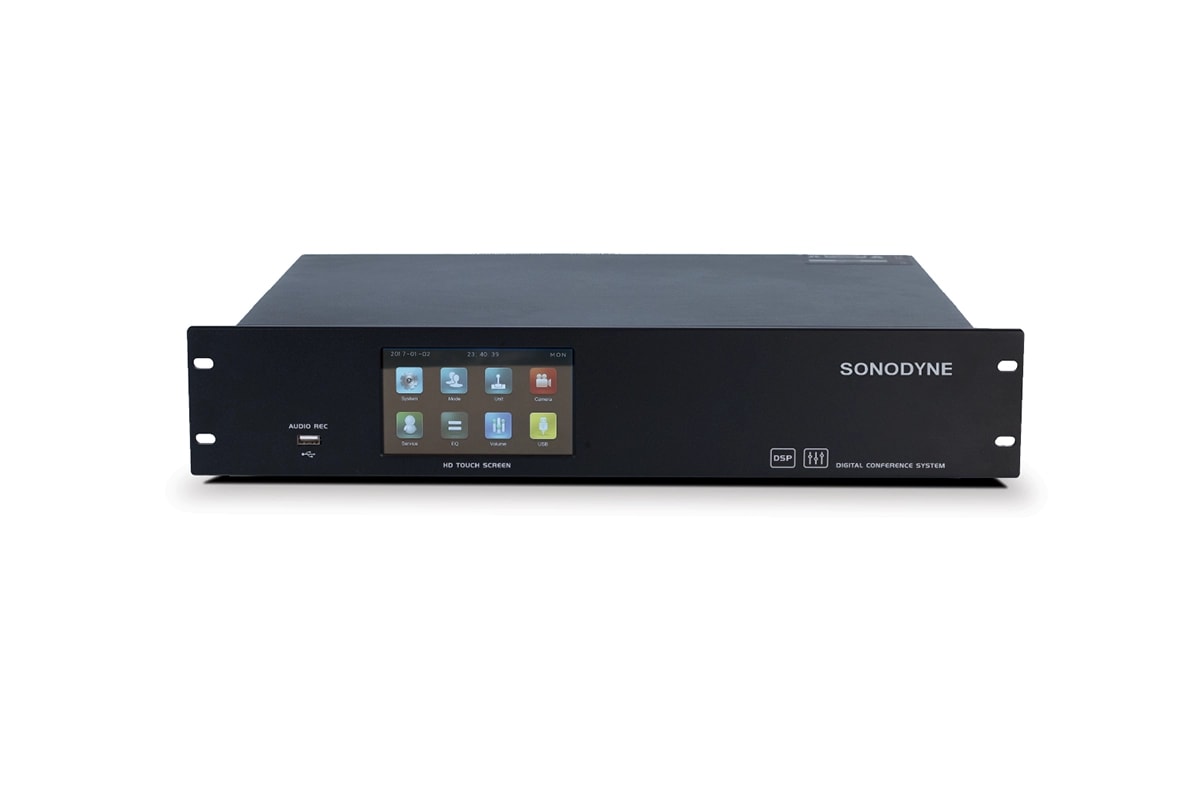

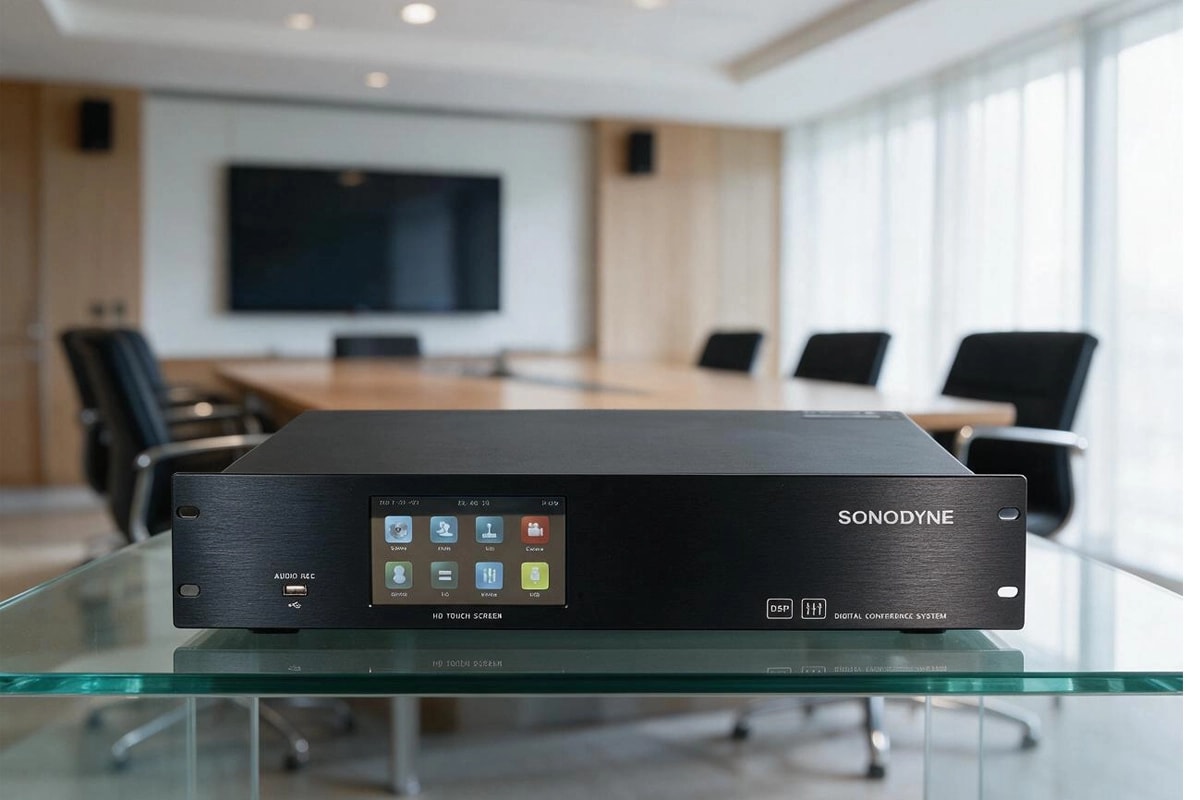

SYNC 1001
Main Controller Unit
This is the main controller of the IP based Conference System. It allows for seamless conferencing of up to 180 conference microphones in conjuction with the SyNC 4001 power extender. By connecting a separate data extender unit with SyNC 1001, up to 1000 conference units can be connected. It supplies power to all conference units and is also the connection and control bridge between the system hardware and the system application software. The system controller can set the IP address, has a TCP/IP network interface, can connect to a wireless router, and use computers in the same local area network to set the operation of the host. It features a built-in high-performance CPU processor with fast processing speed and high quality audio. It has a host of DSP enabled functions for setup and can control upto 8 cameras. With USB based recording and host of IOs, the rack mountable SyNC 1001 forms the core of modern day digital conferencing.
Warranty
2 Years
Supports discussion, video tracking, sign-in and voting functions.

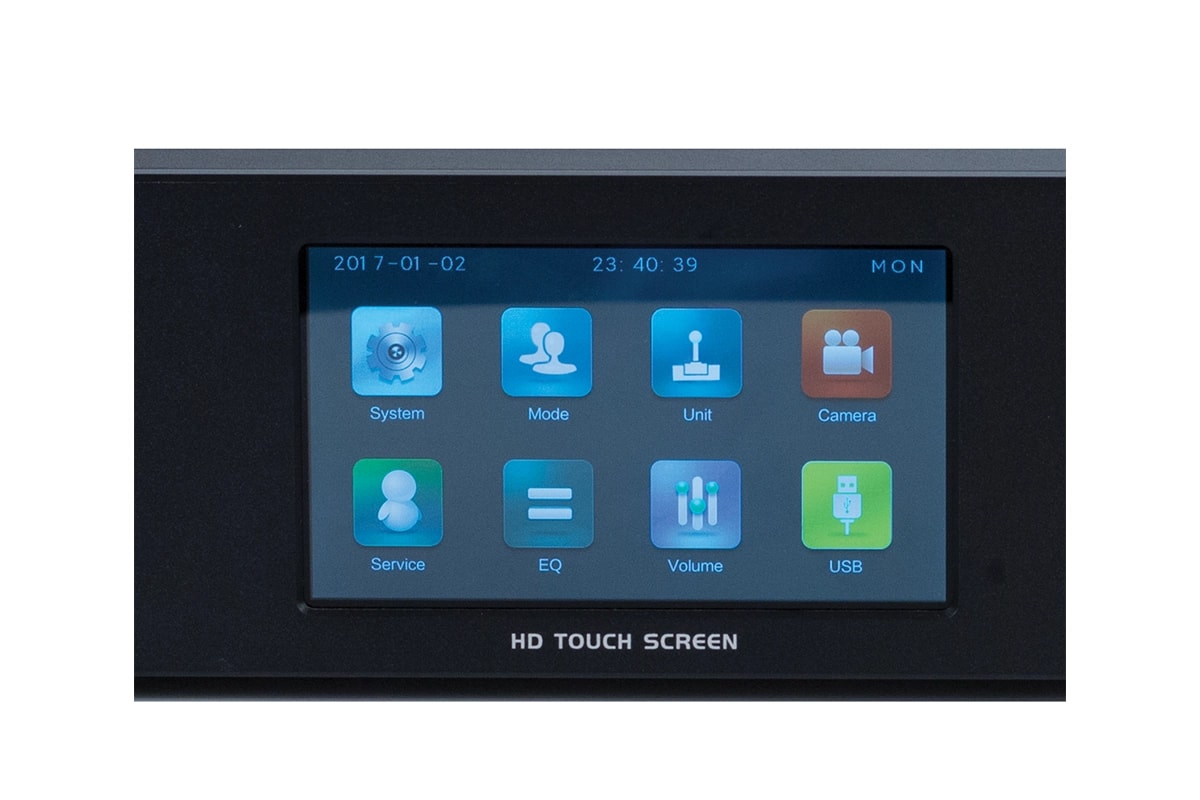

5” full-view IPS capacitive touch screen, intuitive display and easy adjustment of system parameters
Connections can be done by 8-core T- cable or CAT6 network
The main unit supports upto 120 microphones on 8 core T cable and 60 microphones on CAT-6 cable . It supports bilateral power supply of microphone units, and supports hot-plugging of microphone units. Transmission will not have any impact on sound quality
The main unit can be connected to power extender units to increase the no. of conference units. The power extender unit SyNC 4001 can drive up to 45 conference units through 8-core T-cable. 4 such power extender units can be connected, allowing up to 180 conference units to be connected to a single controller. By connecting a separate data extender unit with SyNC 1001 up to 1000 microphone unit can be connected.
The unit adopts “hand in hand” connection mode, which supports hot plugging. This is convenient for installation and maintenance
Settings for various discussions modes can be done based on 5 available modes - FIFO (first in, first out mode), APPLY (application mode), FREE (free mode), LIMIT (restricted mode), VOICE (voice control mode)
It features a speaker limit function and a speaking time limit function. The speaker limit function can limit the maximum number of units that can speak at the same time (can be set to 1-8 different numbers), with the exception of the chairman unit. The Speaking time limit function can limit the speaking time of the speaking unit (can be set to 0-1000 seconds), with regular shutdown and automatic shutdown, with the exception of the chairman unit.
Headphone and microphone volume of all conference unit can be adjusted from main controller unit at a time.
Automatic Camera tracking can be done via “SONY VISCA, PELCO P, PELCO D” communication protocols through built-in RS232/RS-485 ports via 3-PIN Phoenix connector
Up to 8 Cameras can be connected. Automatic switching of camera is supported for 4 cameras by connecting video output of cameras to 4 HDMI inputs. The switched HDMI output can be connected to monitor. If no of cameras exceeds 4, external video switcher needs to be used, with control through special protocol available from RS232 PORT
Effective voting can be realized via display screen on microphone unit with no need of external computer or visual aid (“yes/abstain/no”)
Service function is built-in. The speaking unit can apply for tea, coffee, paper, pen, service personnel and other services
The anti-interference circuit design prevents all mobile phone signal interference
There is a DSP-based 32-band on board parametric equaliser for room calibration and also automatic feedback suppression
Recording can be done in high quality wav format by using an external USB drive which can be plugged into USB-A receptacle on the front panel

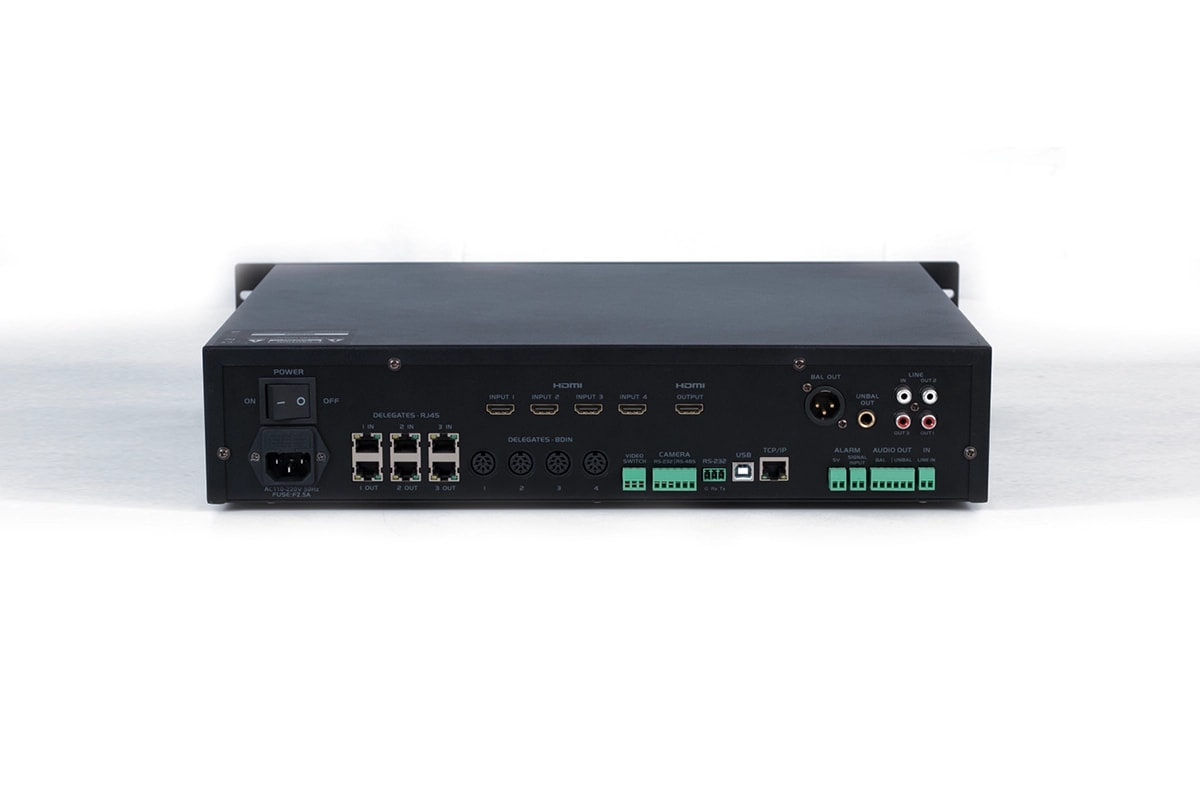

Outputs are 1 balanced 3P Phoenix connector, 1 balanced XLR connector, 1 unbalanced 3P Phoenix connector, 1 unbalanced 6.35mm phone jack and 3 unbalanced RCA jacks, for connecting to sound reinforcement or recording equipment.
Inputs are 1 unbalanced 2P Phoenix connector and 1 unbalanced RCA connectors for connecting line level output of source equipment.
There is an alarm signal input interface (alarm voltage interface +1 2P Phoenix interface alarm audio input port). When the public address alarm system starts, it can automatically pause the conference and send alarm information to the participating units.
The controller can be also controlled via a provided app running on Microsoft Windows OS computer through a USB-B type connector or via IP address
An RS-232 and RS-485 port is provided for full control of the controller through serial communication protocol. There are 22 control codes for full control of all functions.
The unit complies with IEC60914, GBT15381-94 international standards
It can be installed in a standard 2 RU 19” rack space
NOTE: Due to continuous improvements, all specifications are subject to change
