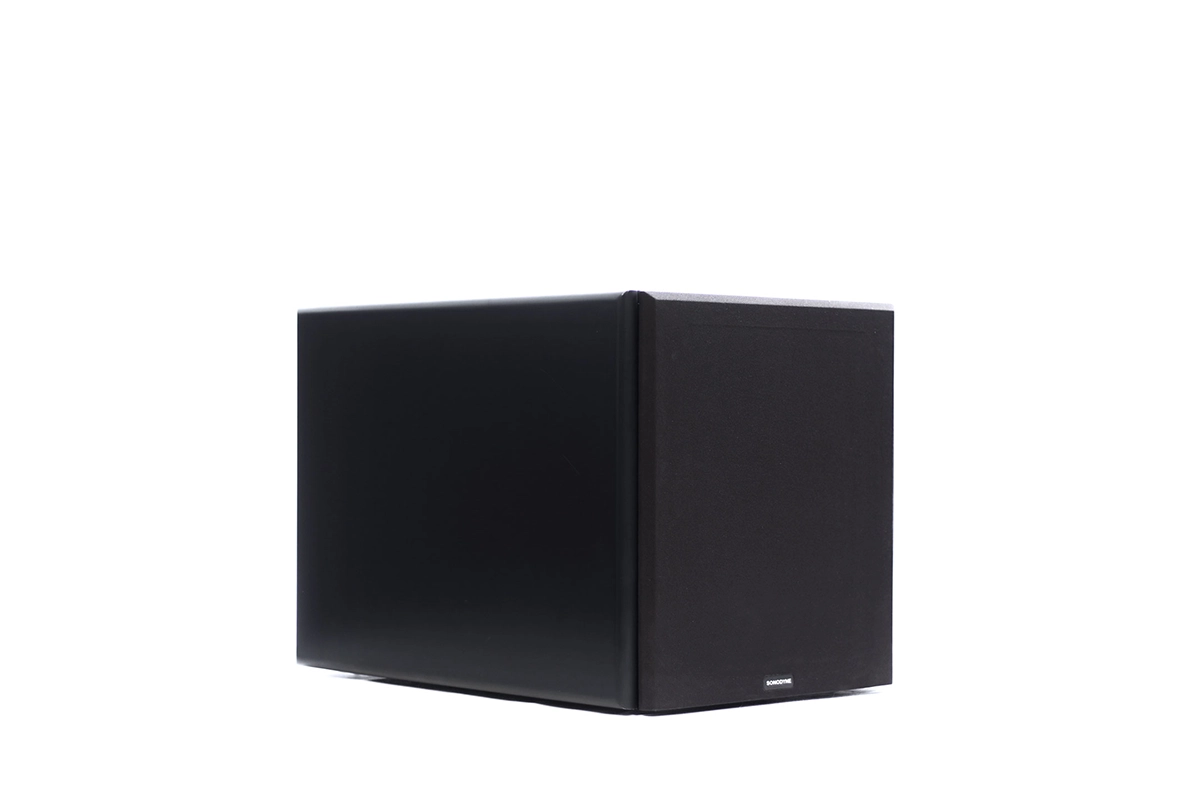

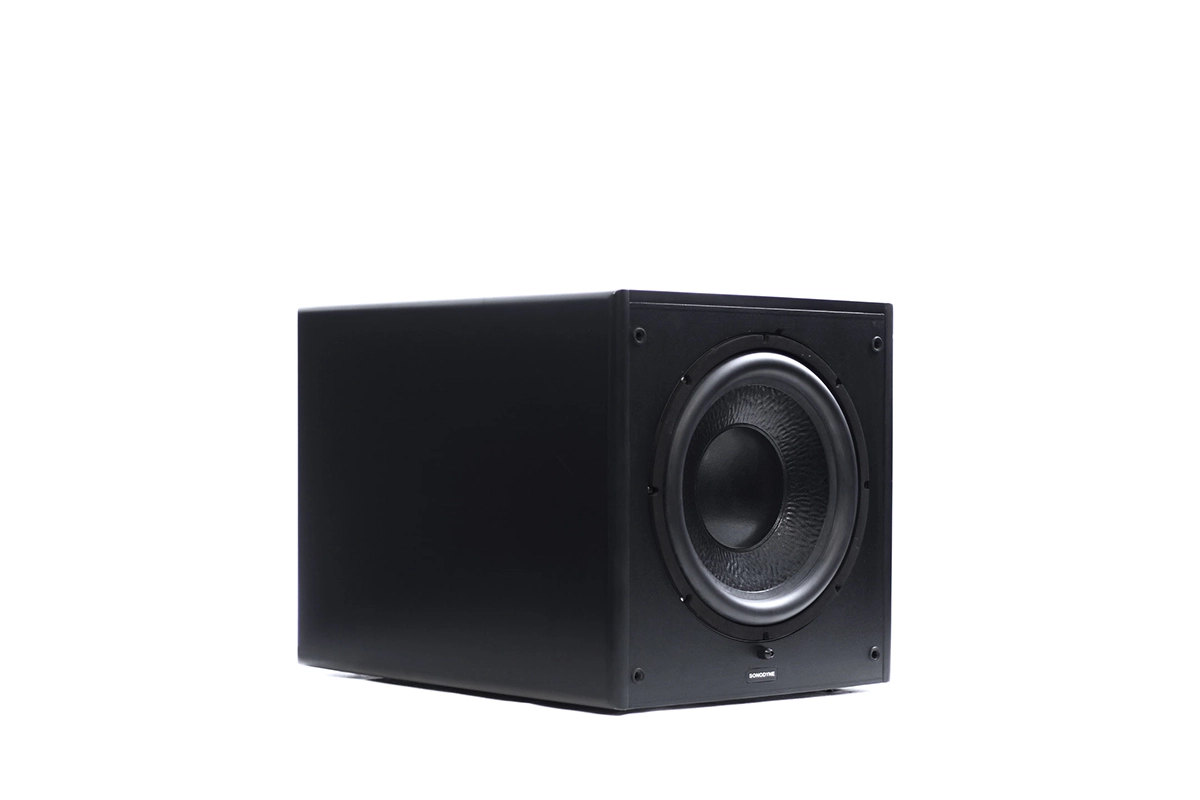

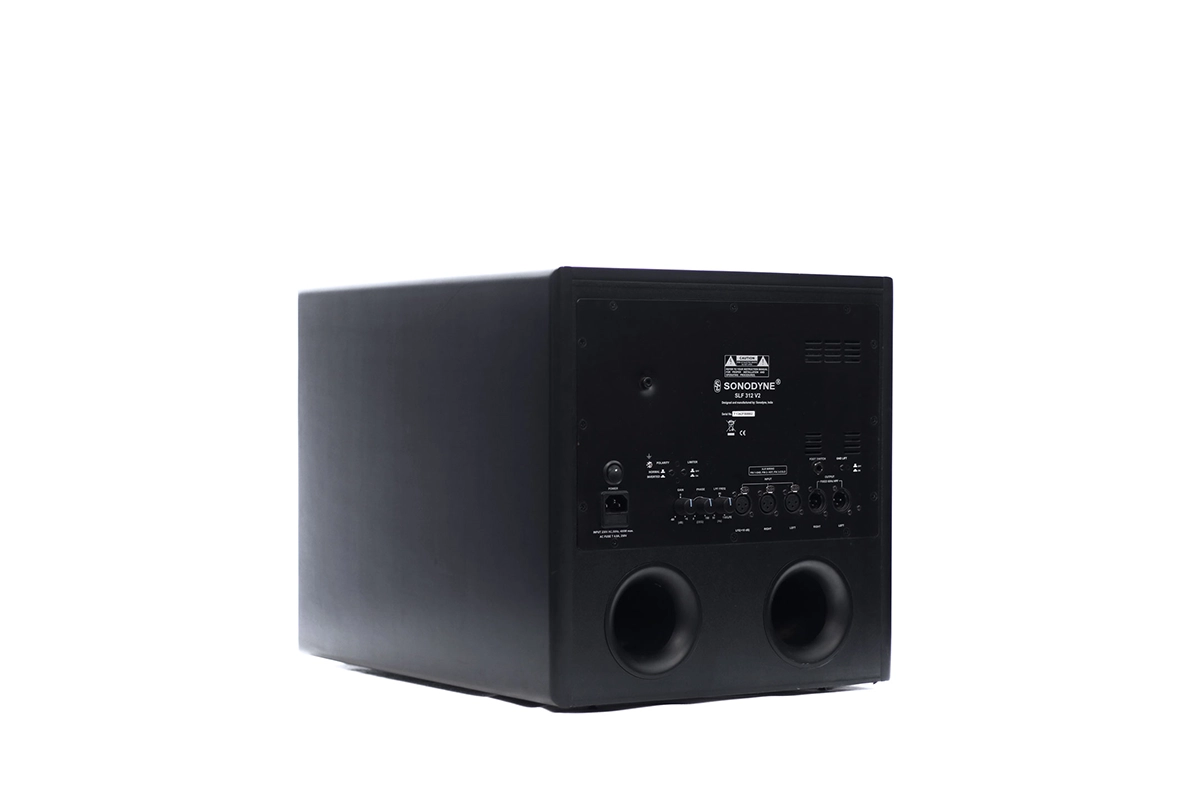

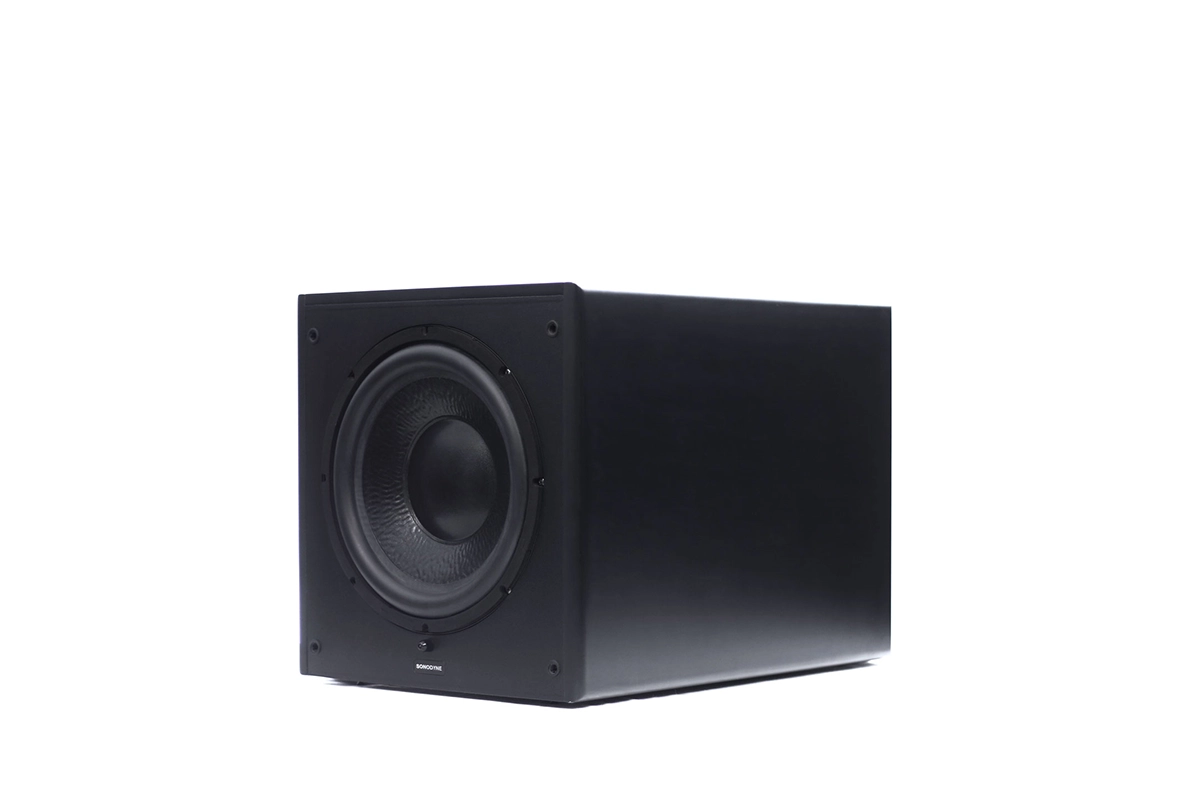

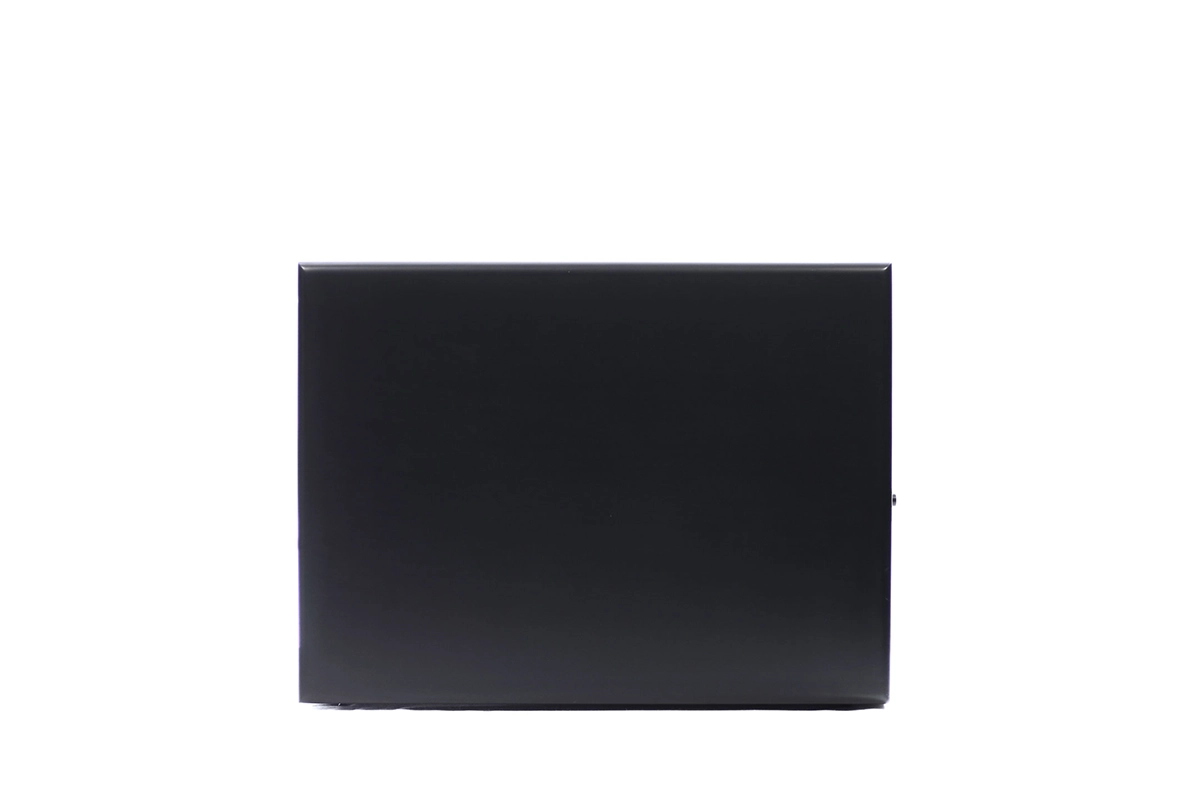

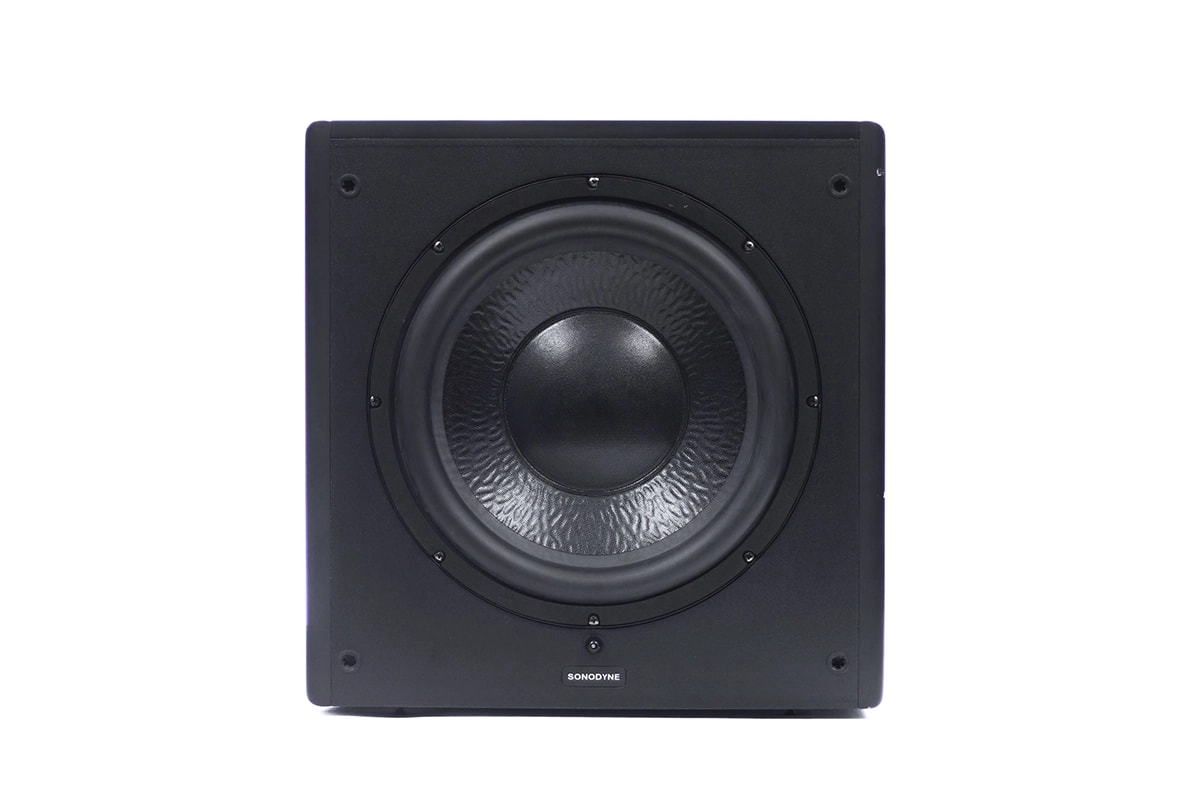

SLF 312
12" powered subwoofer
The SLF 312 is a no nonsense 12" powered subwoofer that can be used singly or in sets for large multichannel systems
Warranty
2 Years
Dimensions
555mm×398mm×402mm
12" transducer powered by D class amp
2.1 channel bass management
Discrete phase control from 0 ~ 180 deg.
Polarity switch
Ground lift switch
External (foot switch controlled) bass management
DESCRIPTION
Front firing powered subwoofer, vented
ENCLOSURE
18 mm MDF
TRANSDUCER COMPLEMENTS
1 x 12" high- excursion subwoofer
AMPLIFIER TYPE
Class D
AMPLIFIER POWER
300W
AMPLIFIER THD @ RATED POWER
0.1% at rated power
RECOMMENDED AMPLIFIER POWER
300W
MAX SPL
116dB
FREQUENCY RESPONSE
30Hz ~ Crossover frequency (-6dB)
USABLE FREQUENCY RESPONSE
25Hz (-10dB)
INPUT
Left, Right and LFE, fully balanced, through XLR socket
INPUT IMPEDANCE
22 kOhm, balanced
OUTPUT
Left and Right, fixed 80 Hz bypass, fully balanced, through XLR socket

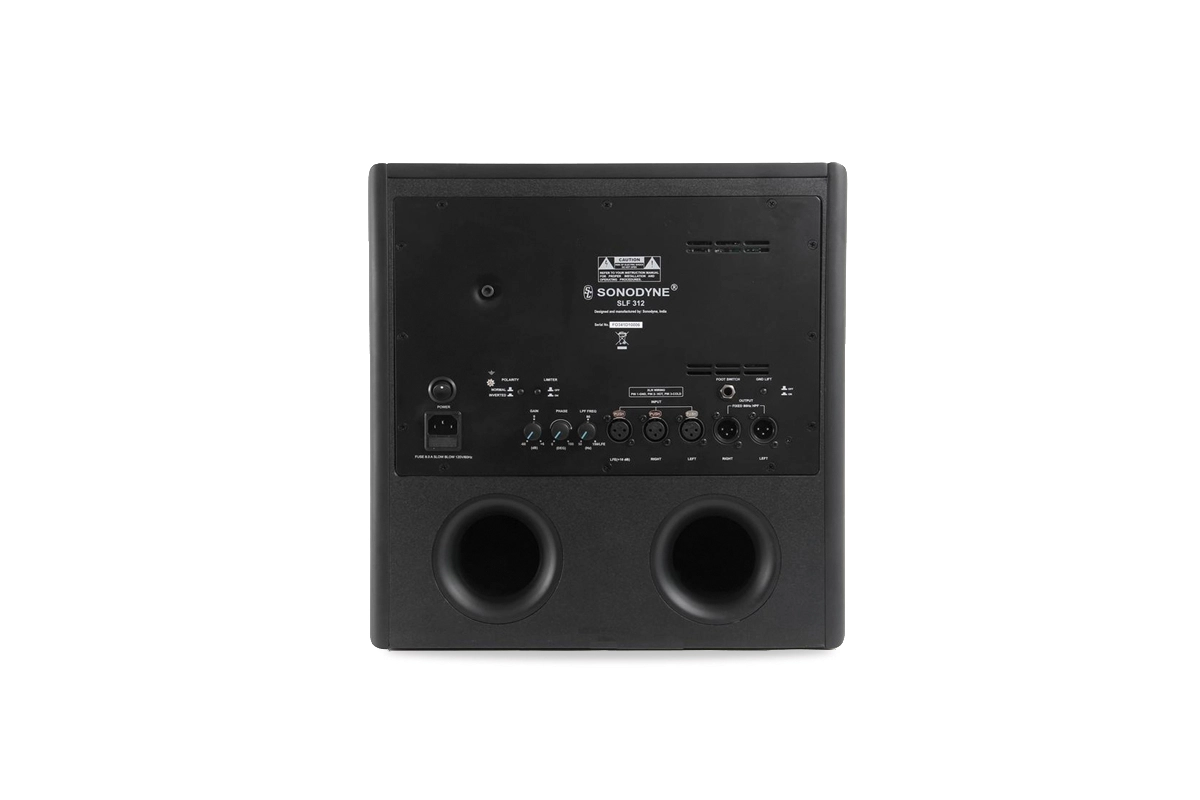

CONTROLS
1. Crossover frequency: 50 Hz ~ 150 Hz 2. Phase: 0 ~ 180 degrees 3. Gain: -60 dB to +6 dB. Rear: Polarity, Limiter On/Off, Ground Lift switch
PROTECTION
Thermal, overload, short-circuit, DC at output
SIGNAL TO NOISE RATIO
98dB (A-weighted)
FINISH
Black painted
GRILL
Black grill cloth stretched over wooden frame
COLOURS
Black
POWER
230V AC, 50Hz, via fused IEC inlet/ 115V optional
POWER CONSUMPTION
380VA max
DIMENSIONS (WxHxD)
398mm x402mm x 555mm
NET WEIGHT
29kg
NOTE: Due to continuous improvements, all specifications are subject to change
