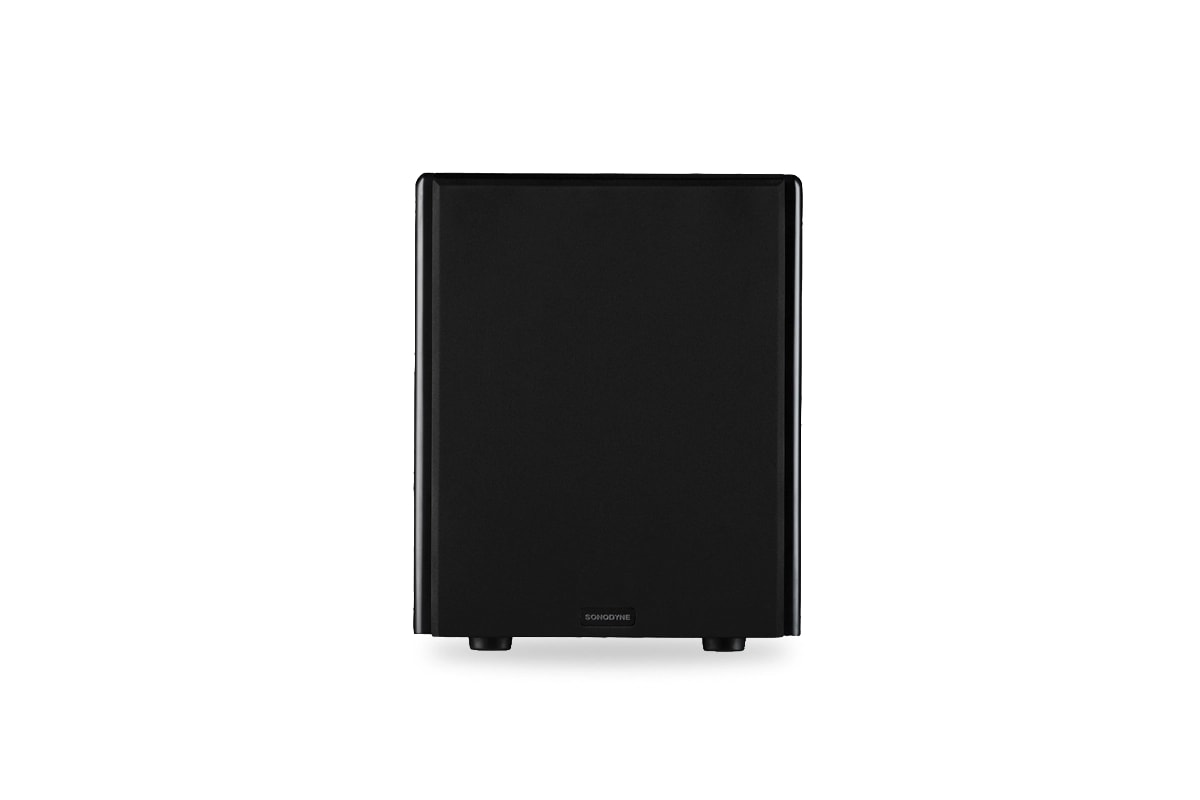

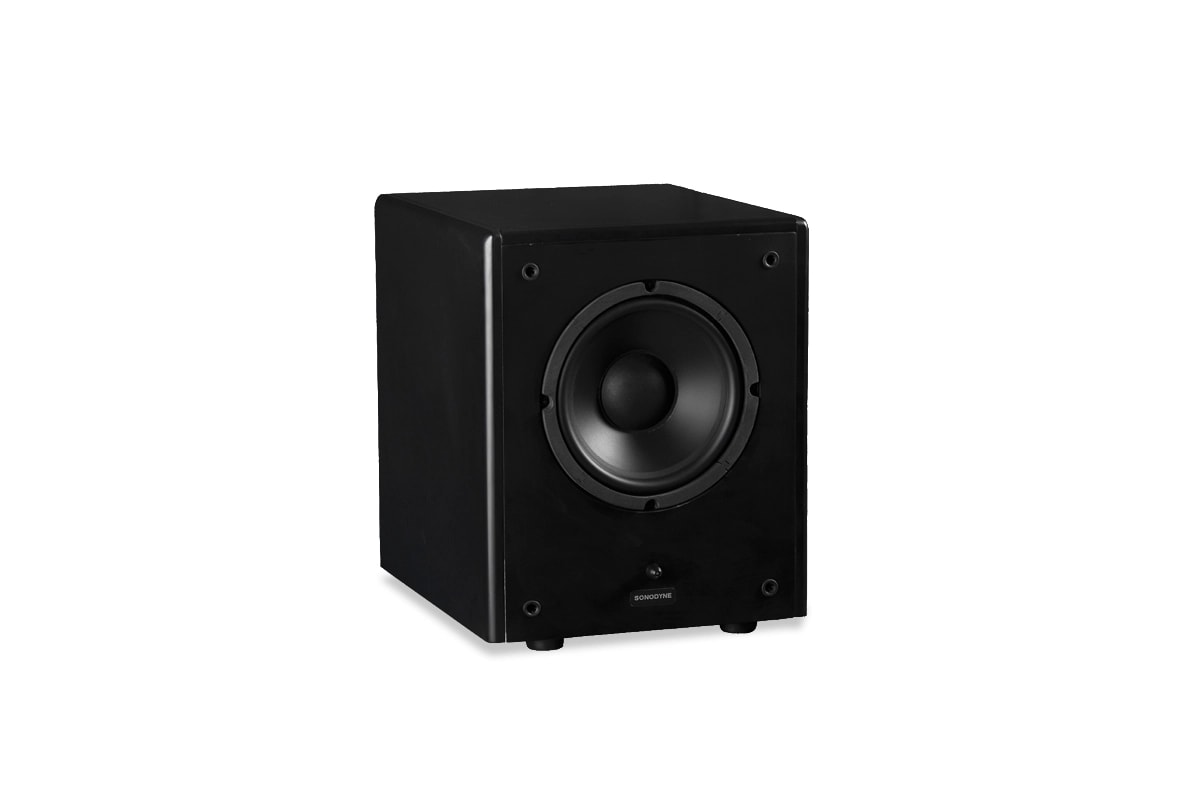

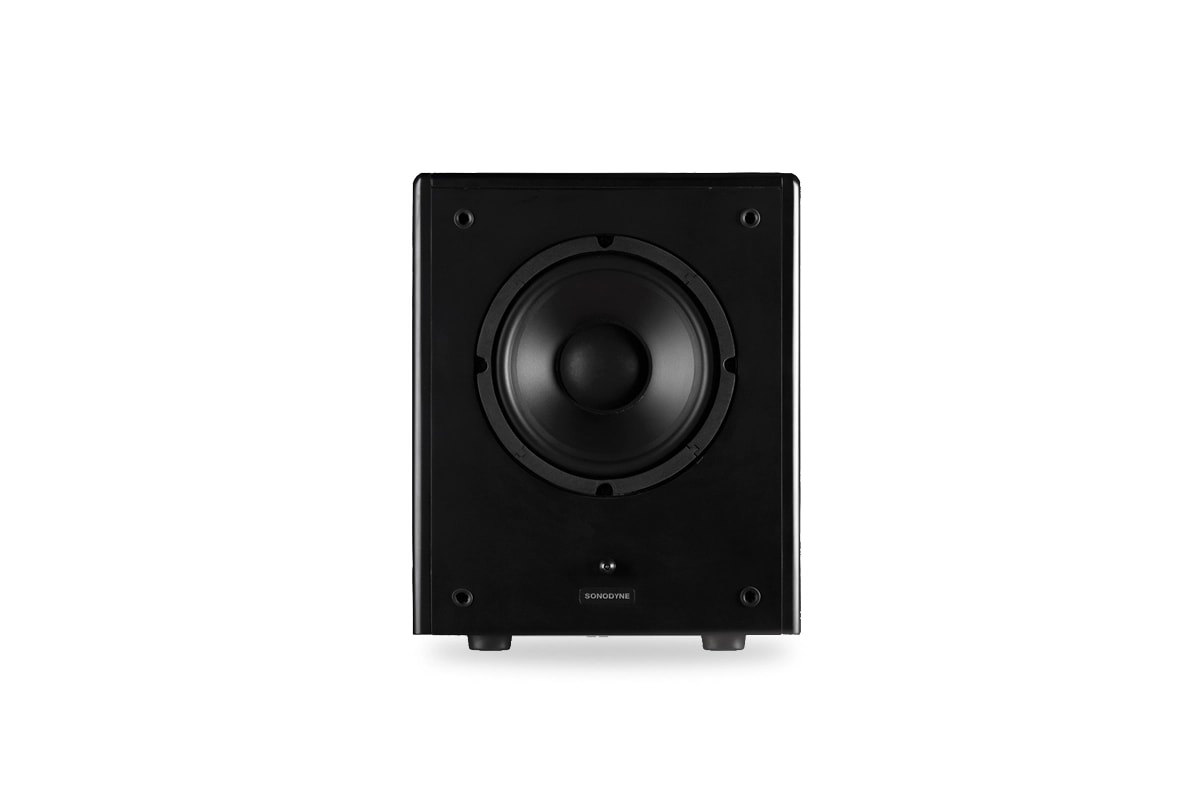

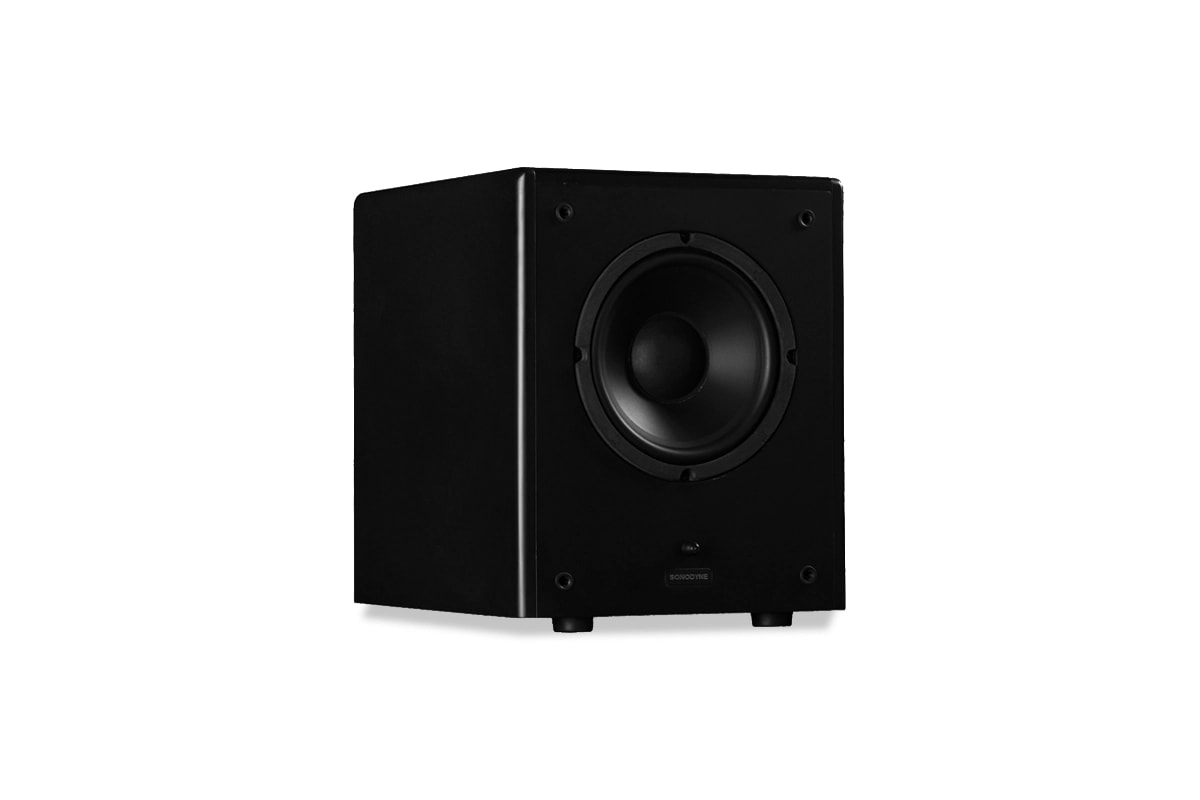

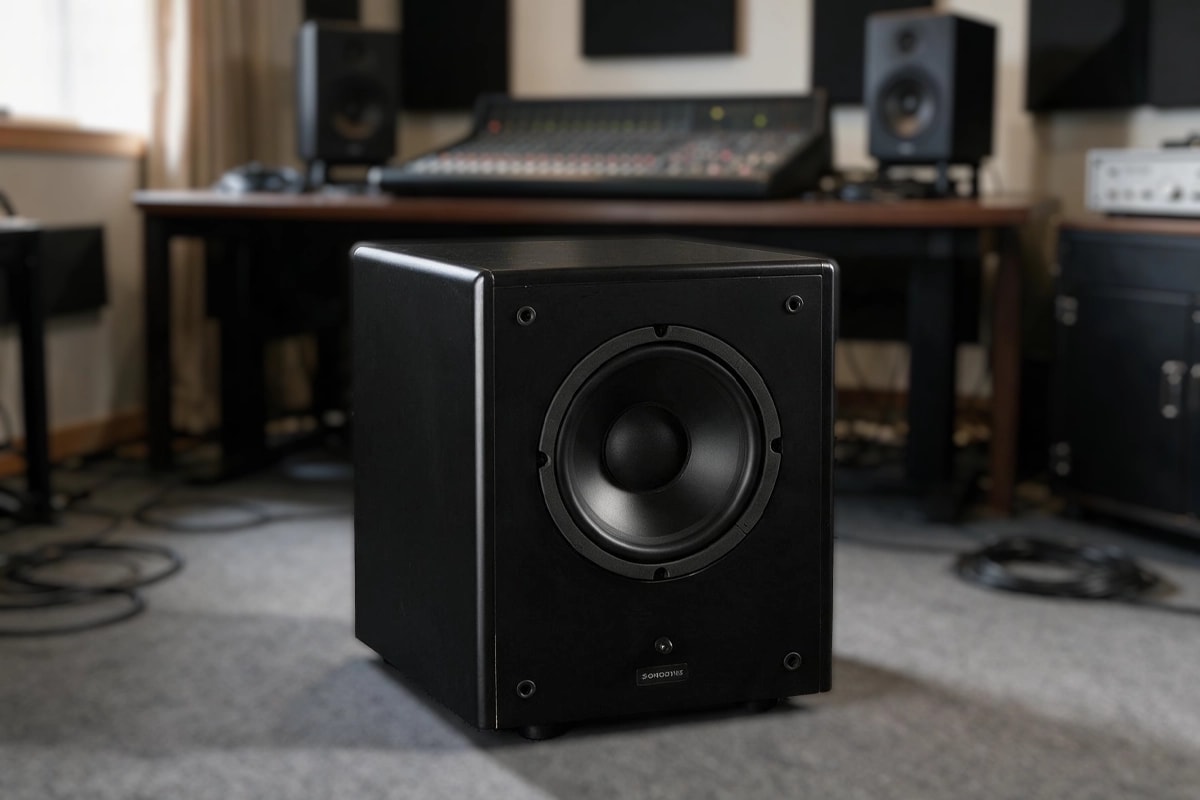

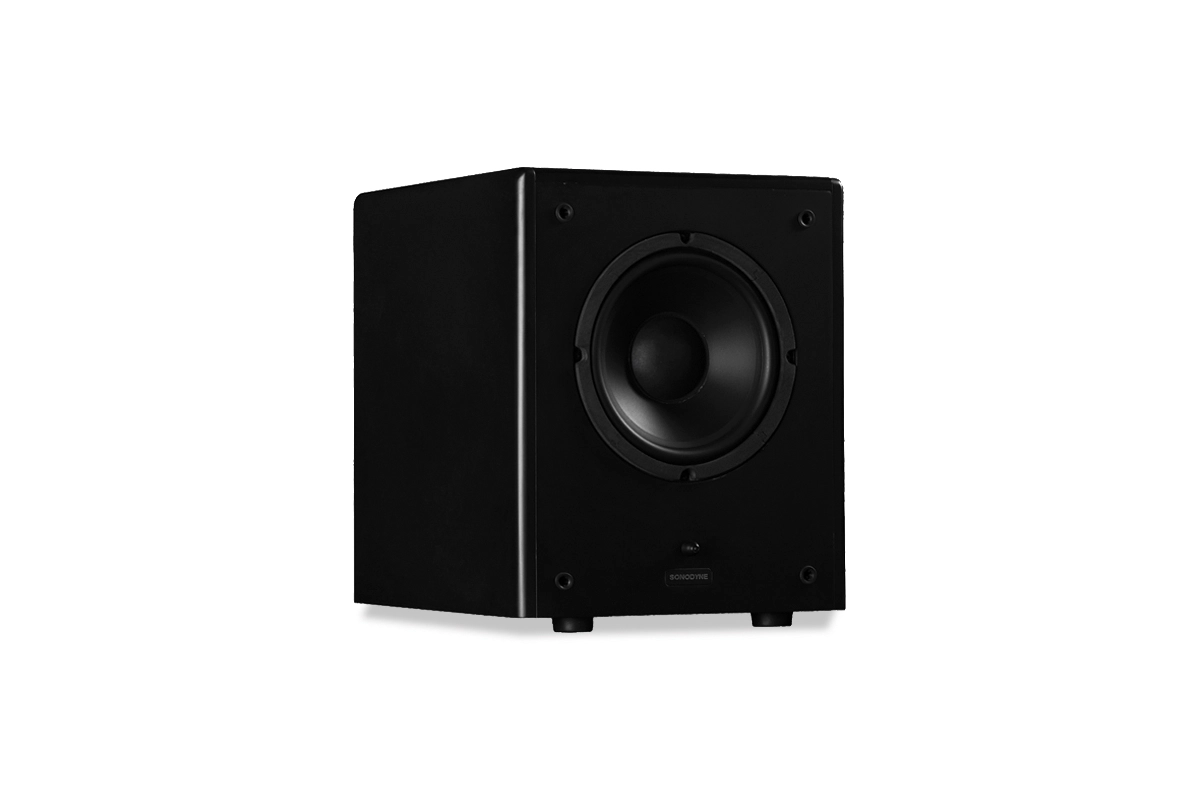

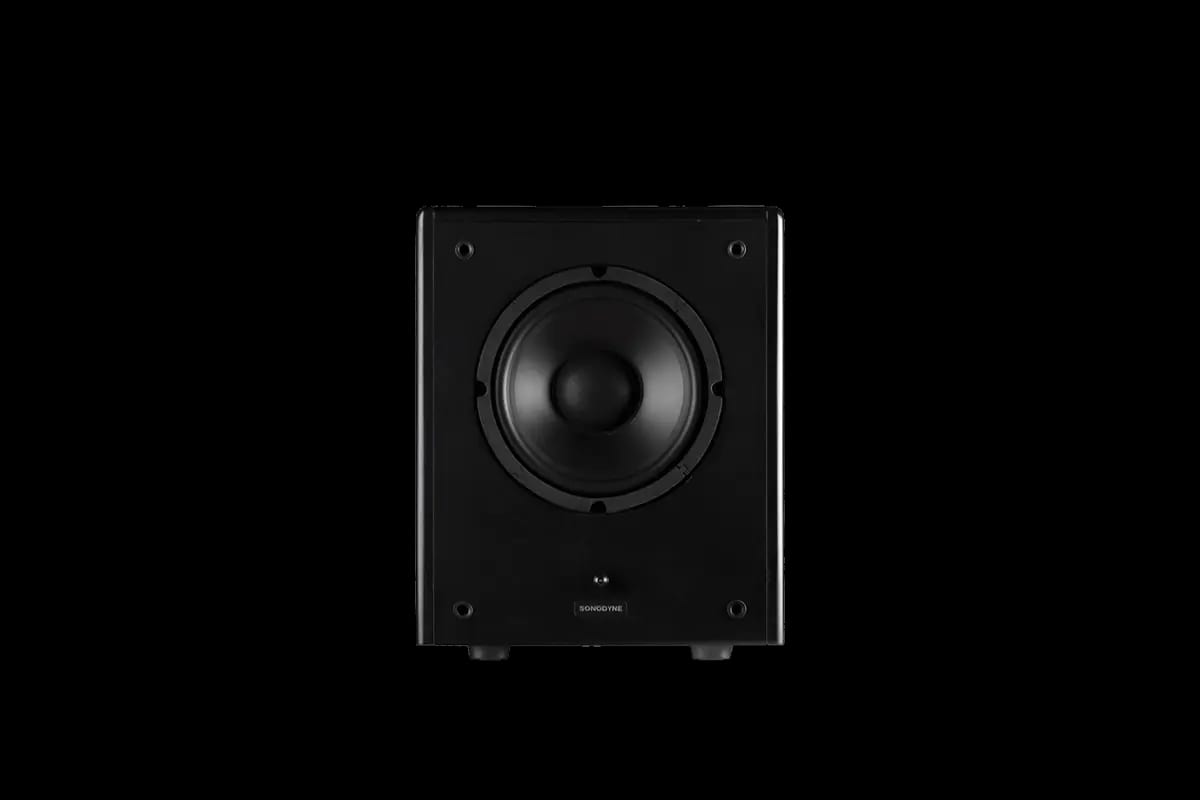

SLF 108
8" powered subwoofer
The SLF 108 provides detailed and powerful LF extension for the smaller SRP and PM models.
Warranty
2 Years
Dimensions
455mm×310mm×370mm
8" transducer powered by AB class amp
2.1 channel bass management
Discrete phase control from 0 ~ 180 deg.
Polarity switch
Ground lift switch
External (foot switch controlled) bass management
DESCRIPTION
Front firing powered subwoofer, vented
ENCLOSURE
15mm MDF
TRANSDUCER COMPLEMENTS
1 x 8" high- excursion subwoofer
AMPLIFIER TYPE
Class AB
AMPLIFIER THD @ RATED POWER
0.1% at rated power
RECOMMENDED AMPLIFIER POWER
80W
MAX SPL
109dB
FREQUENCY RESPONSE
35Hz ~ Crossover frequency (-6dB)
USABLE FREQUENCY RESPONSE
30Hz (-10dB)
INPUT
Left, Right and LFE, Fully balanced, through XLR socket
OUTPUT
Left and Right, fixed 120 Hz highpass, Fully balanced, through XLR socket

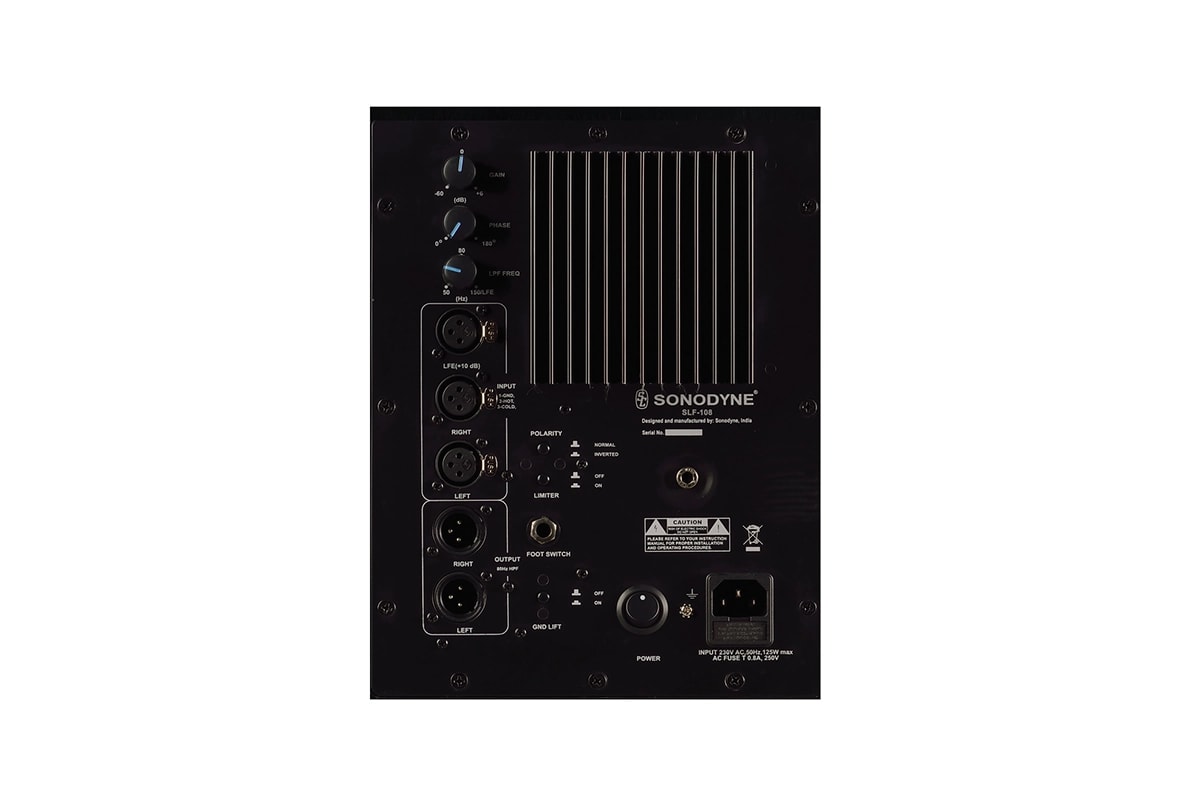

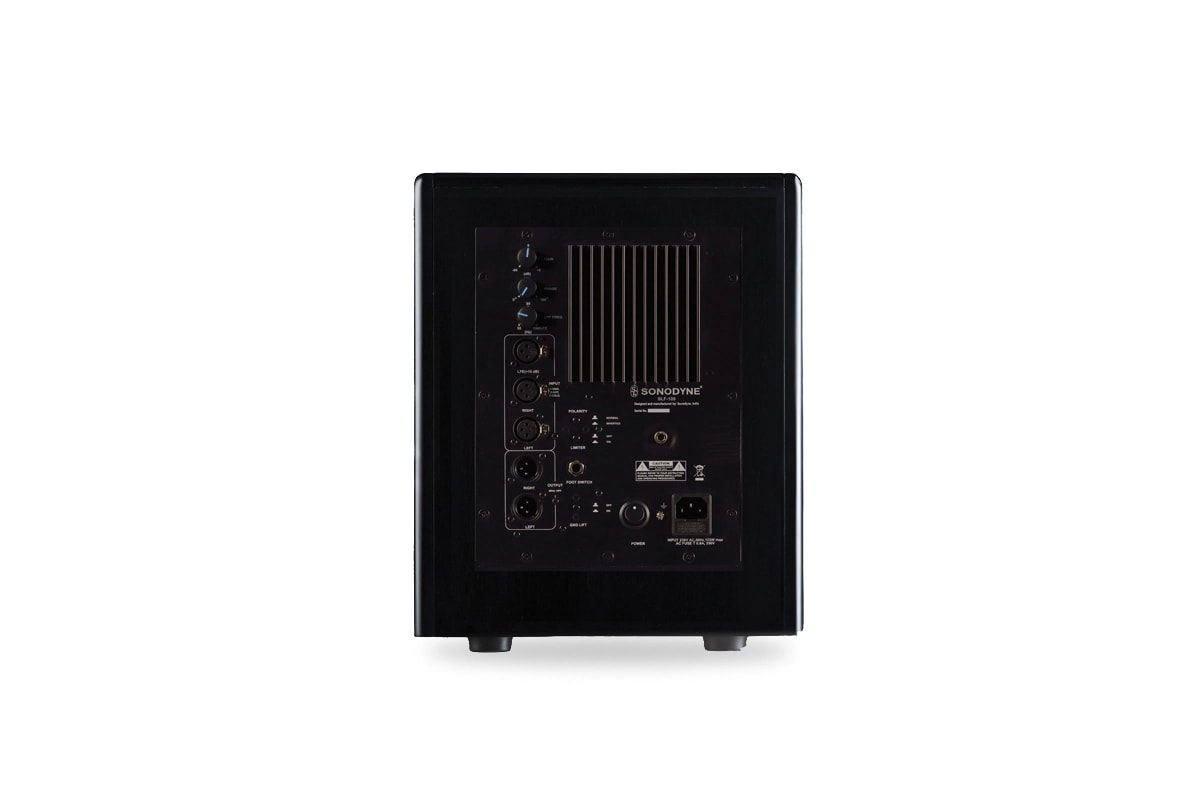

CONTROLS
1. Crossover frequency: 60 Hz ~ 180 Hz 2. Phase: 0 ~ 180 degrees 3. Gain: -60 dB to +6 dB. Rear: Polarity, Limiter On/Off, Ground Lift switch
FINISH
Black painted
GRILL
Black grill cloth stretched over wooden frame
COLOURS
Black
DIMENSIONS (WxHxD)
310mm x 370mm x 455mm
NET WEIGHT
10kg
NOTE: Due to continuous improvements, all specifications are subject to change
