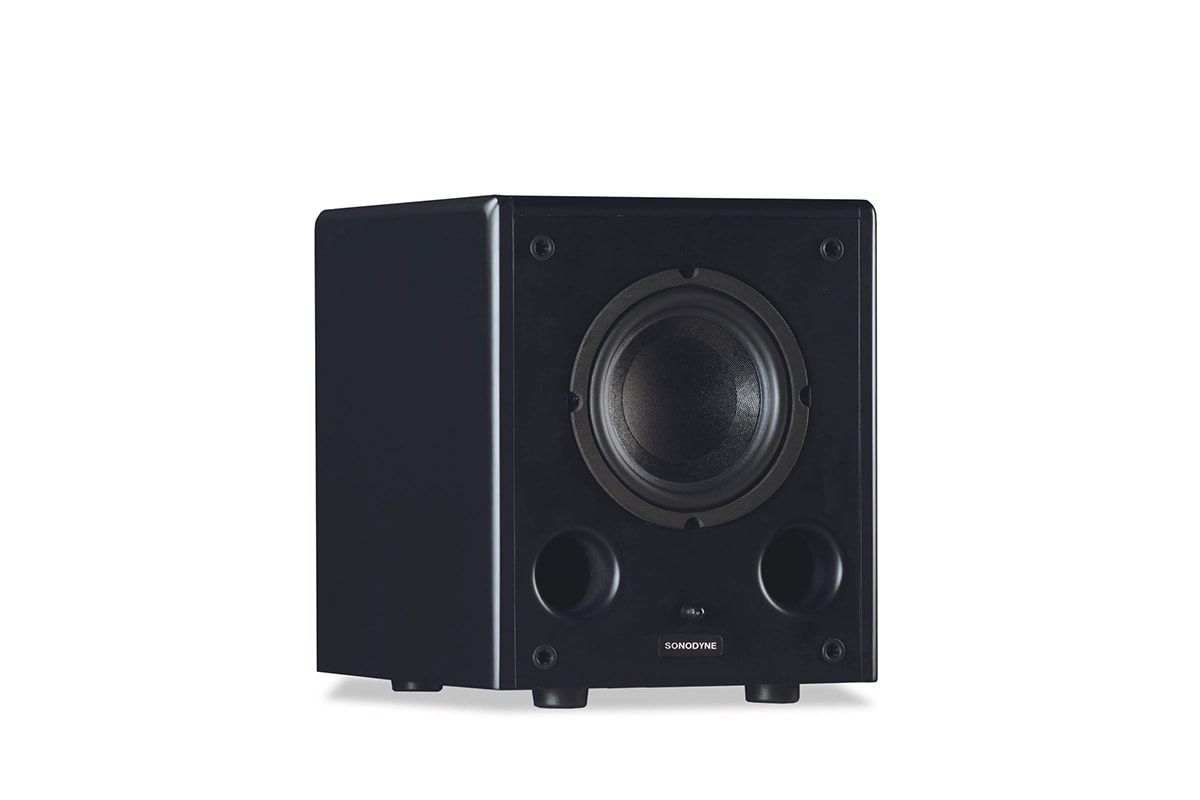

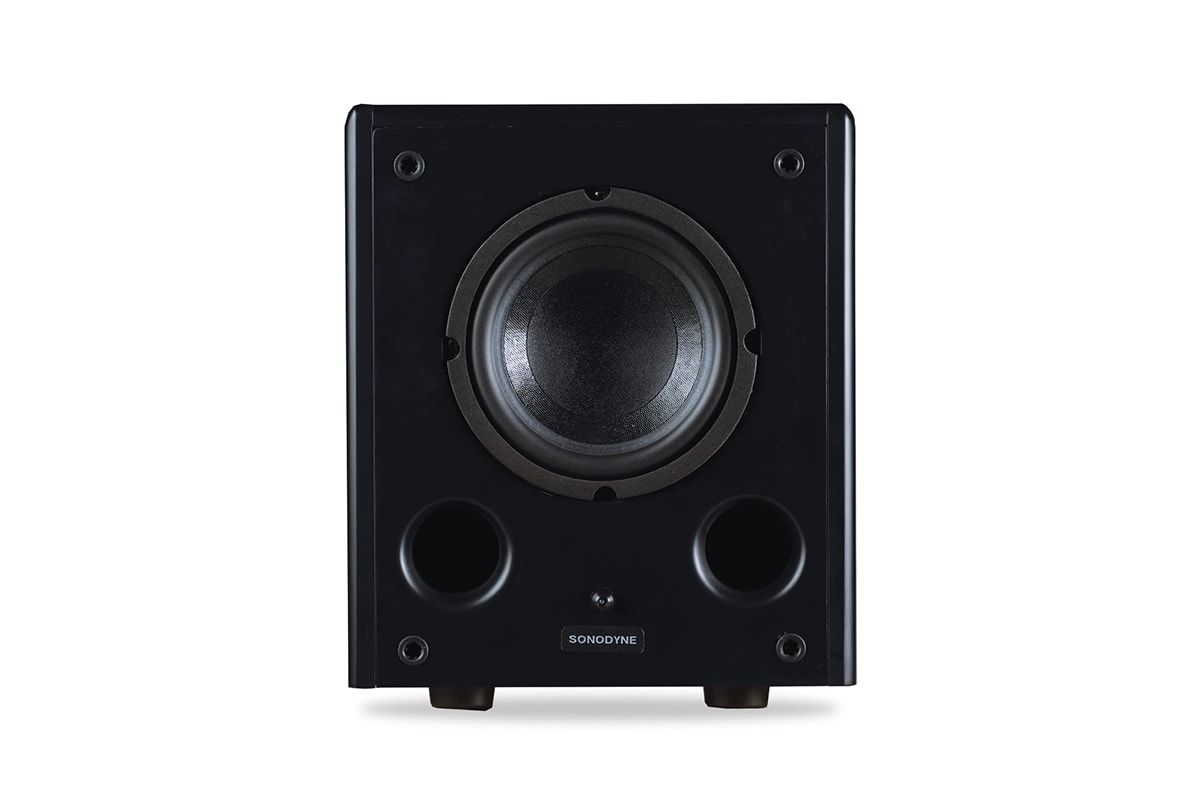

SLF 106
8" powered subwoofer
The SLF 106 compact subwoofer provides detailed and powerful LF extension for the smaller SRP and PM models
Warranty
2 Years
Dimensions
415mm×270mm×310mm
6" transducer powered by AB class amp
2.1 channel bass management
Discrete phase control from 0 ~ 180 deg.
Polarity switch
Ground lift switch
External (foot switch controlled) bass management
DESCRIPTION
Front firing powered subwoofer, vented
ENCLOSURE
15mm MDF
TRANSDUCER COMPLEMENTS
1 x 6" high- excursion subwoofer
AMPLIFIER TYPE
Class AB
AMPLIFIER THD @ RATED POWER
0.1% at rated power
RECOMMENDED AMPLIFIER POWER
80W
MAX SPL
107dB
FREQUENCY RESPONSE
38Hz ~ Crossover frequency (-6dB)
USABLE FREQUENCY RESPONSE
33Hz (-10dB)
INPUT
Left, Right and LFE, Fully balanced through XLR socket
OUTPUT
Left and Right, fixed 120 Hz highpass, Fully balanced, through XLR socket

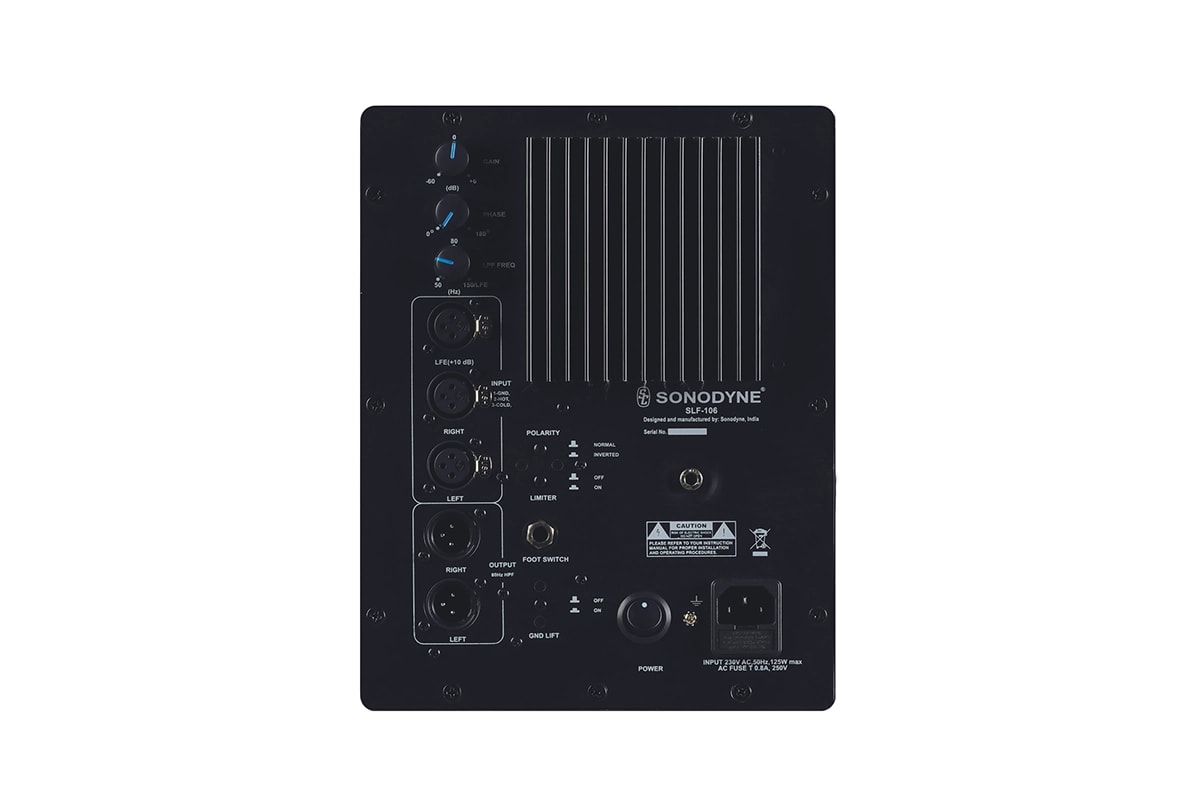

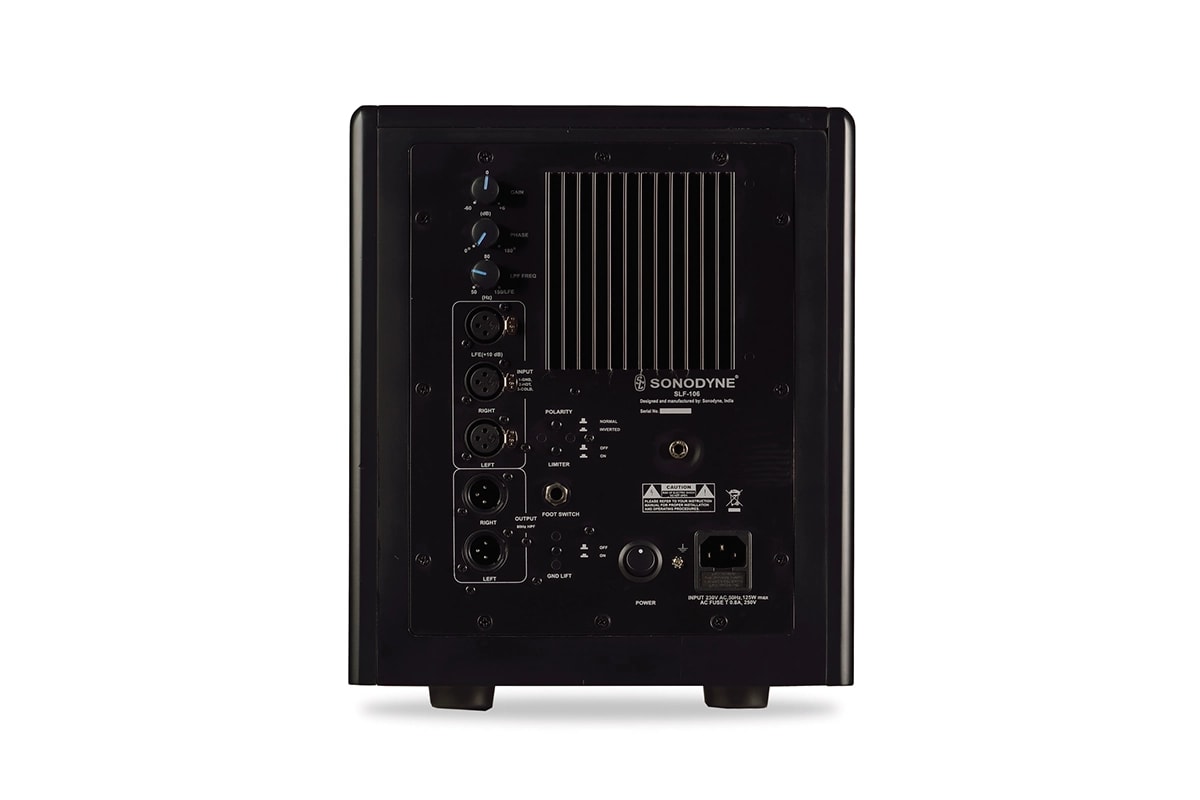

CONTROLS
1. Crossover frequency: 60 Hz ~ 180 Hz 2. Phase: 0 ~ 180 degrees 3. Gain: -60 dB to +6 dB. Rear: Polarity, Limiter On/Off, Ground Lift switch
FINISH
Black painted

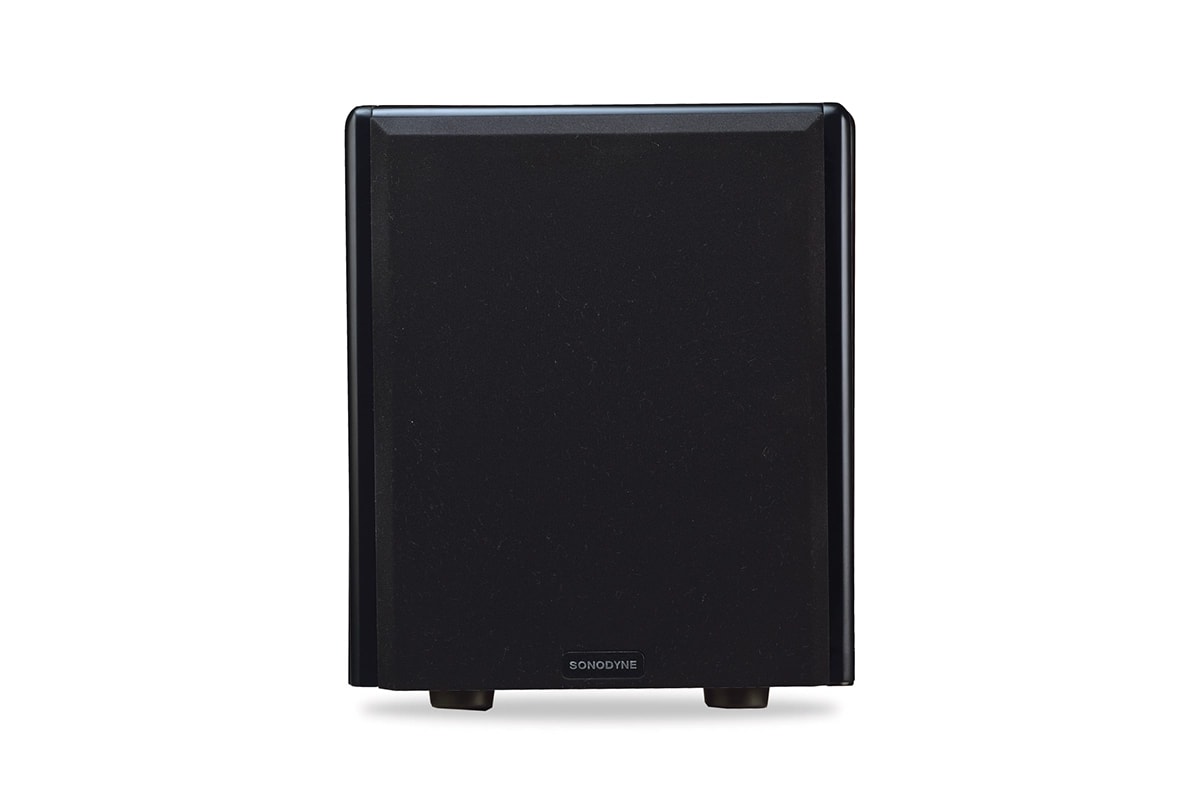

GRILL
Black grill cloth stretched over wooden frame
COLOURS
Black
DIMENSIONS (WxHxD)
270mm x 310mm x 415mm
NET WEIGHT
7kg
NOTE: Due to continuous improvements, all specifications are subject to change
