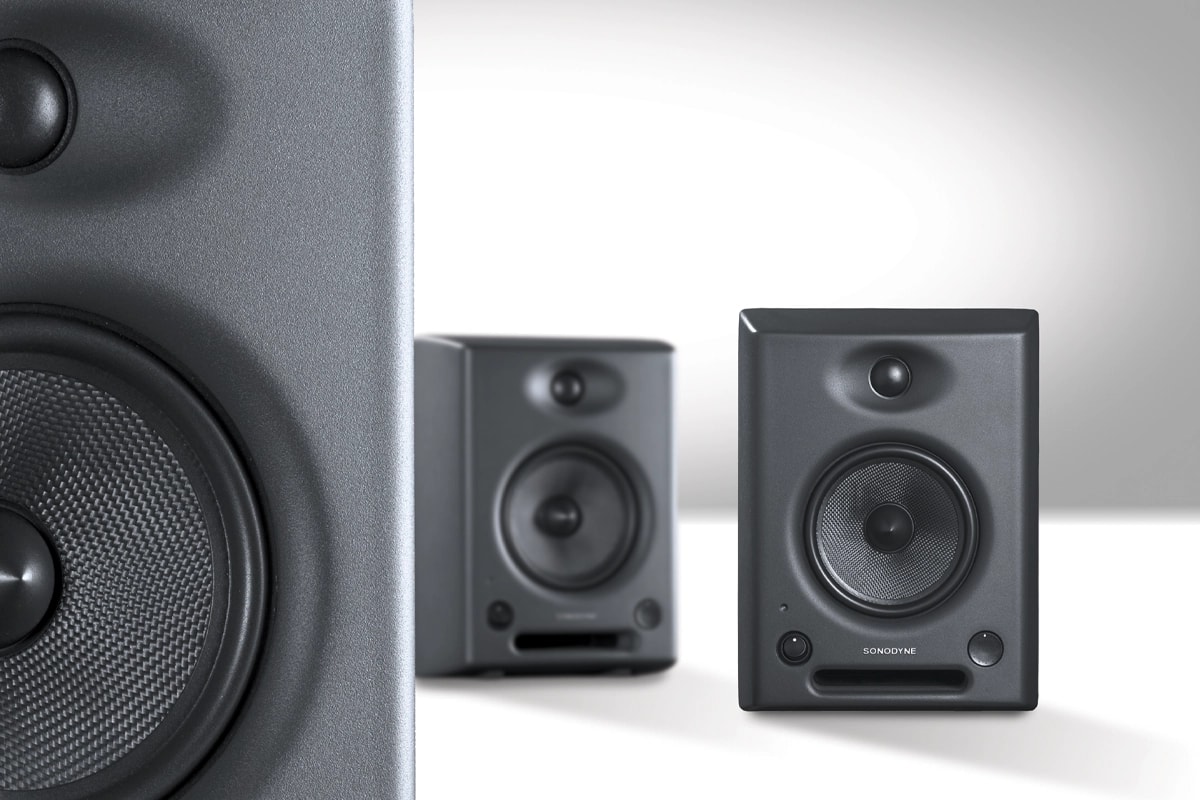

Rigid Aluminium Die-cast Enclosure
The enclosure is pressure die-cast aluminium that maximises rigidity and lends it a unique form.
Home > Professional > Studio > Studio Monitors > SRP Series > SRP 501

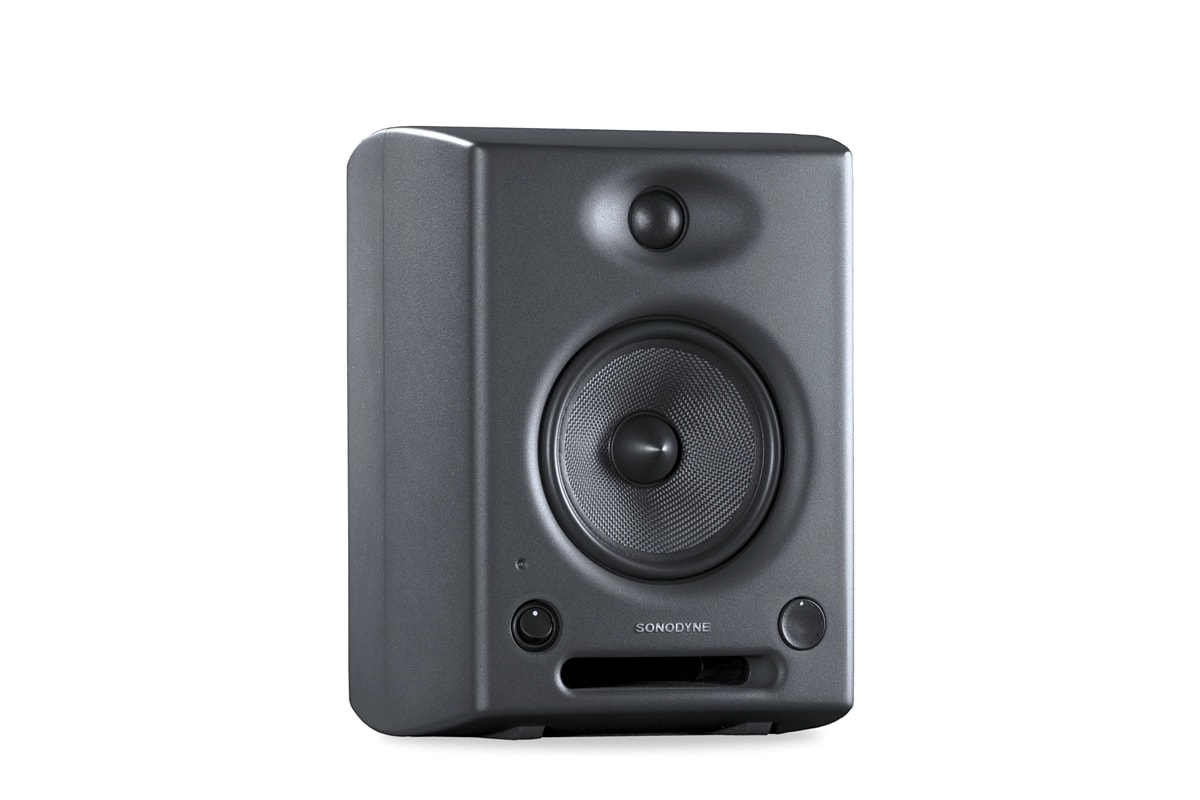

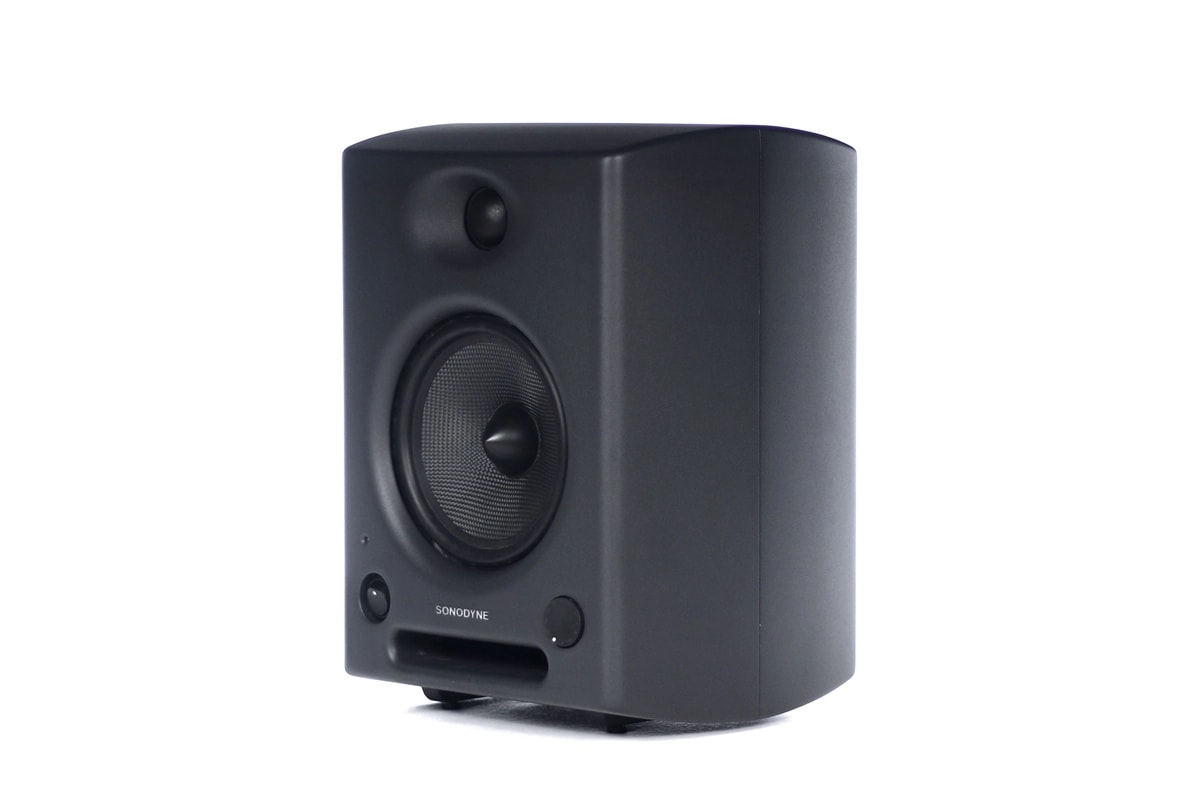

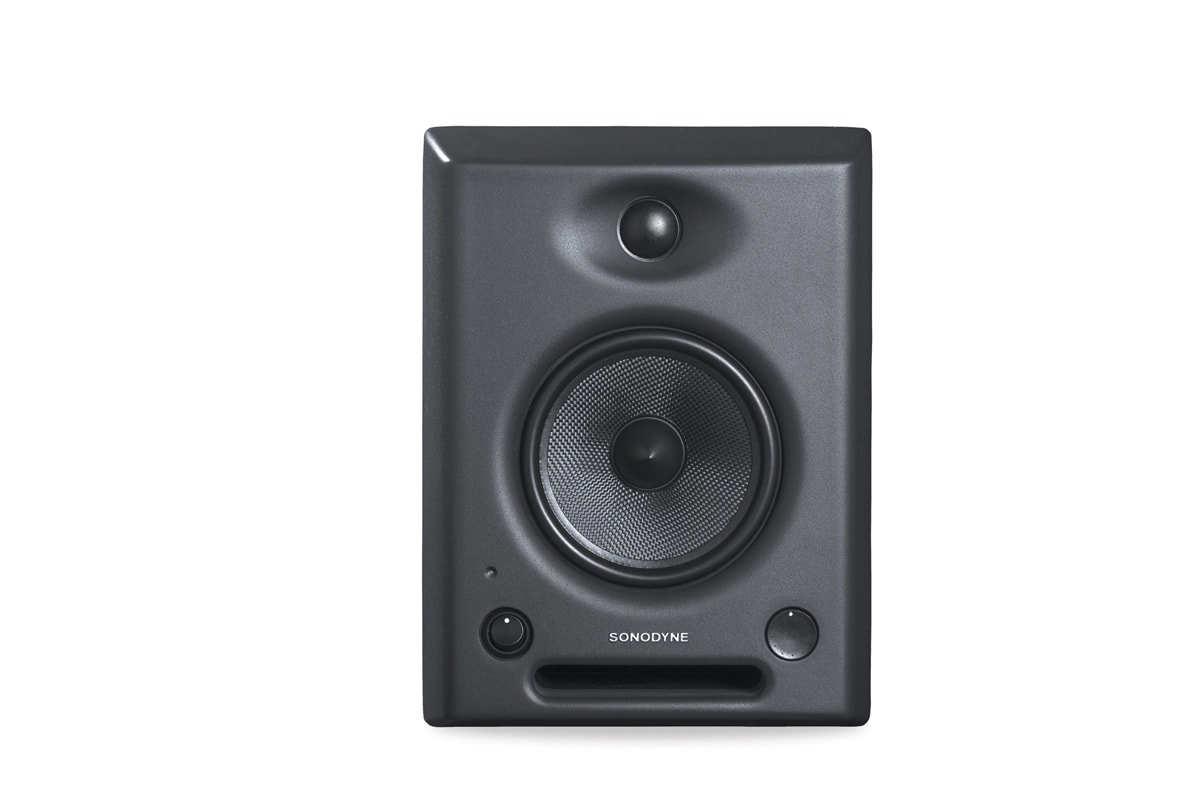

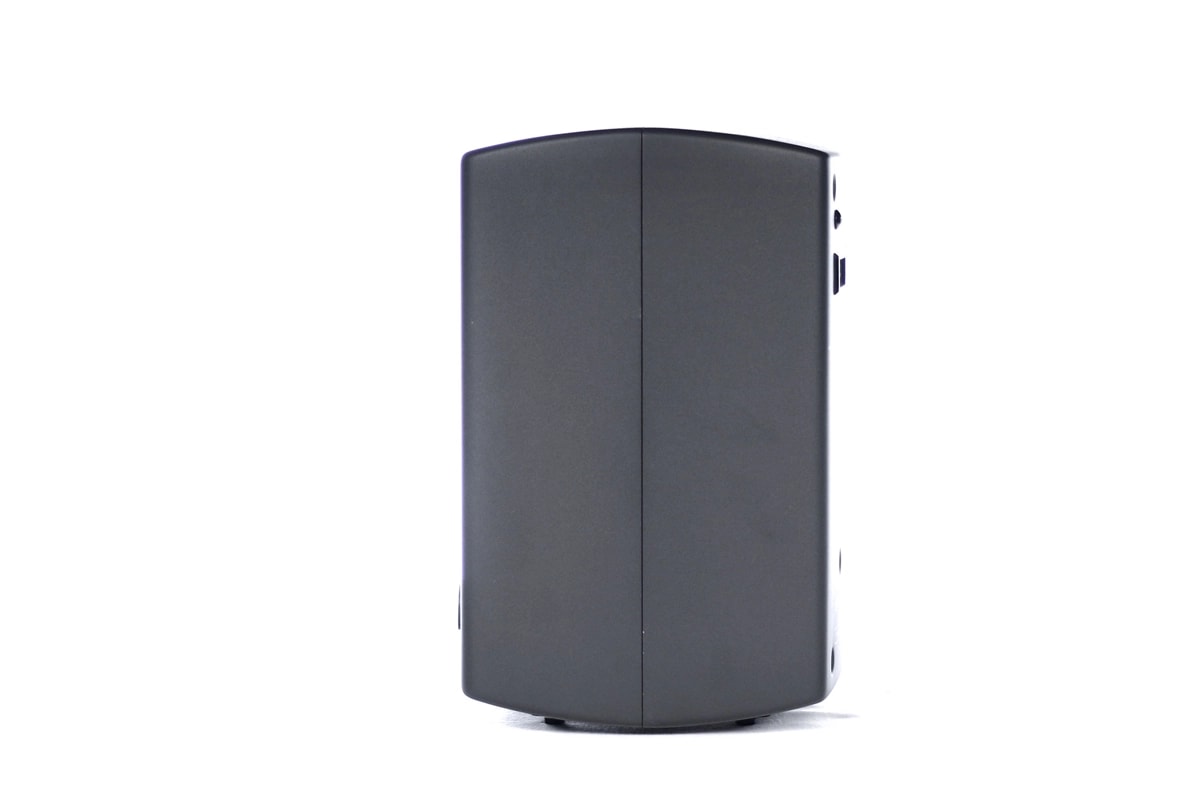

compact near field active reference monitor
The SRP 501 is a compact near field active reference monitor with a wide frequency and dynamic range
Warranty
2 Years
Dimensions
181mm×210mm×279mm
Aluminium die-cast enclosure
Inbuilt bi-amplifier
Custom HF Waveguide
Glass Fibre Woofer

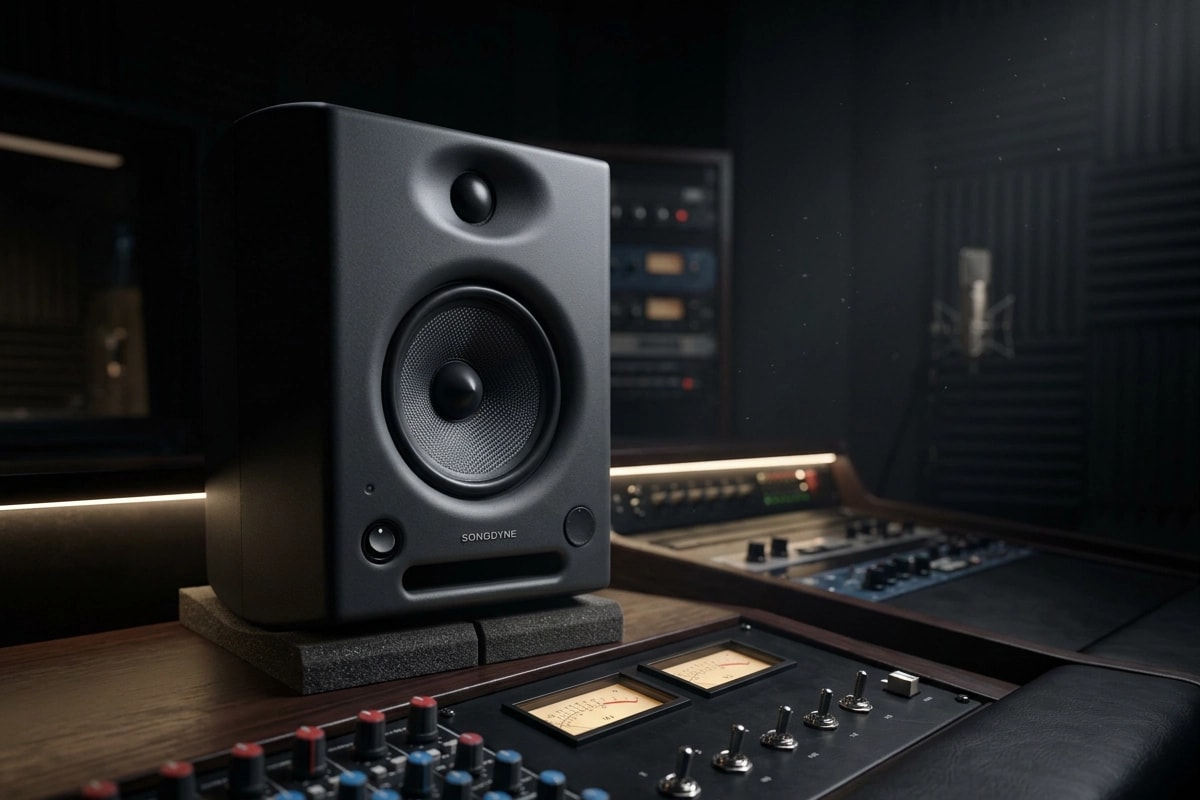

Discrete EQ
Multiple Inputs


The enclosure is pressure die-cast aluminium that maximises rigidity and lends it a unique form.

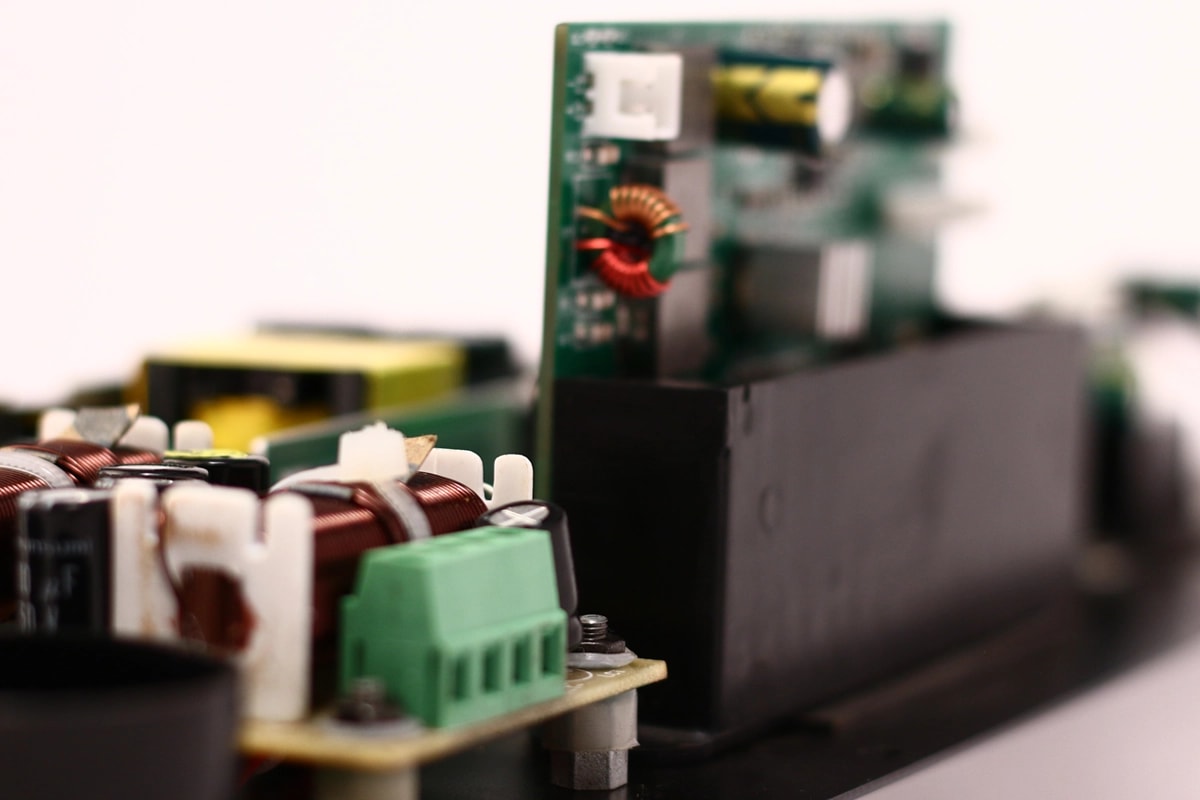

A new 50W + 50W bi-amplifier drives the transducers optimally while providing adequate headroom and dynamics. The maximum SPL measures in at an impressive 104dB.

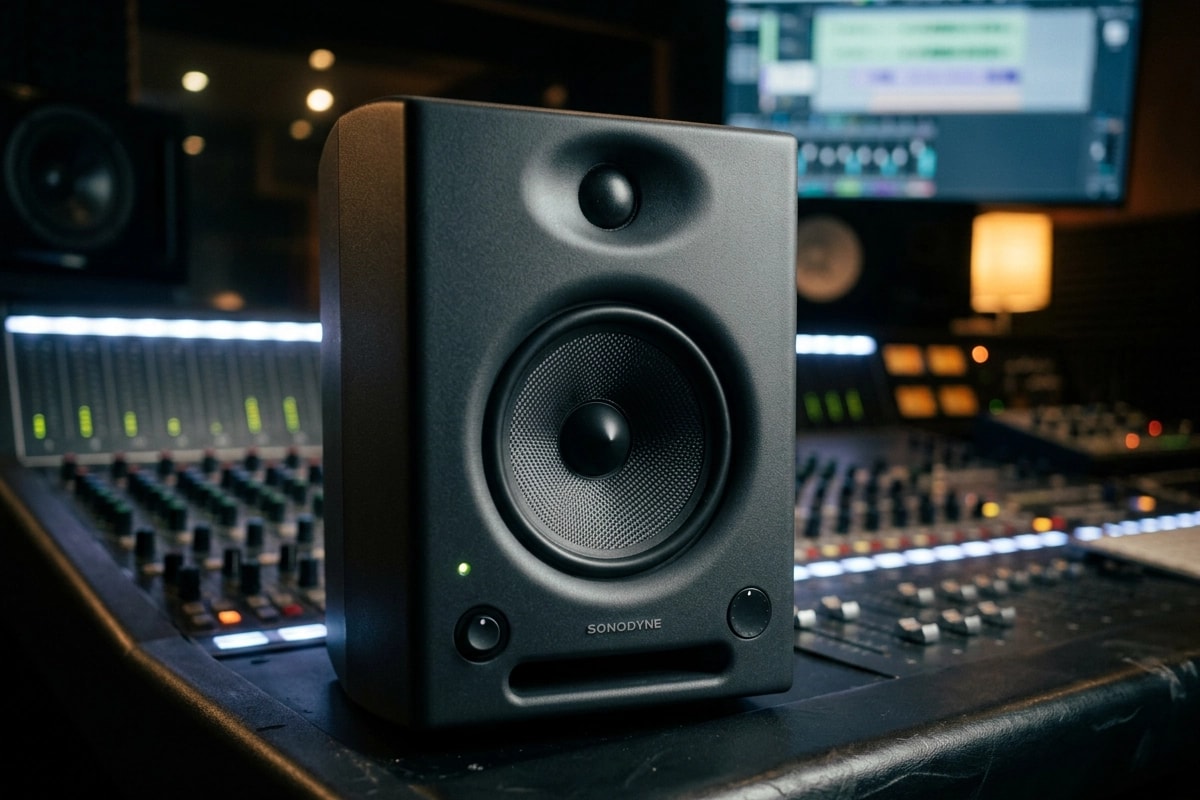

The 5.25 inch glass fibre woofer produces deep bass and exceptional transient response.

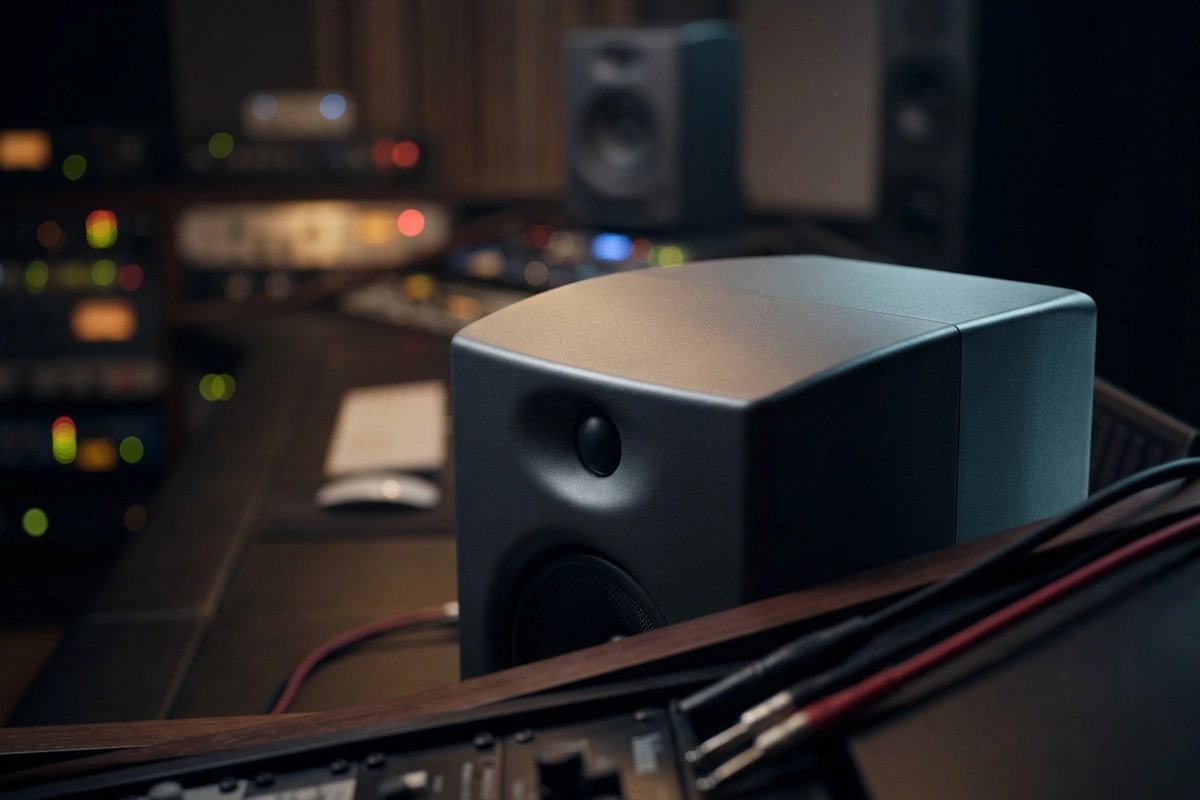

The 1" silk dome tweeter is nested in a custom waveguide to produce on and off axis linearity and a wide, detailed soundstage.

Bass tilt -2dB , -4dB , -6dB at 80Hz. Treble tilt -2dB at 15kHz. Bass roll-off 100 Hz, 6dB/octave

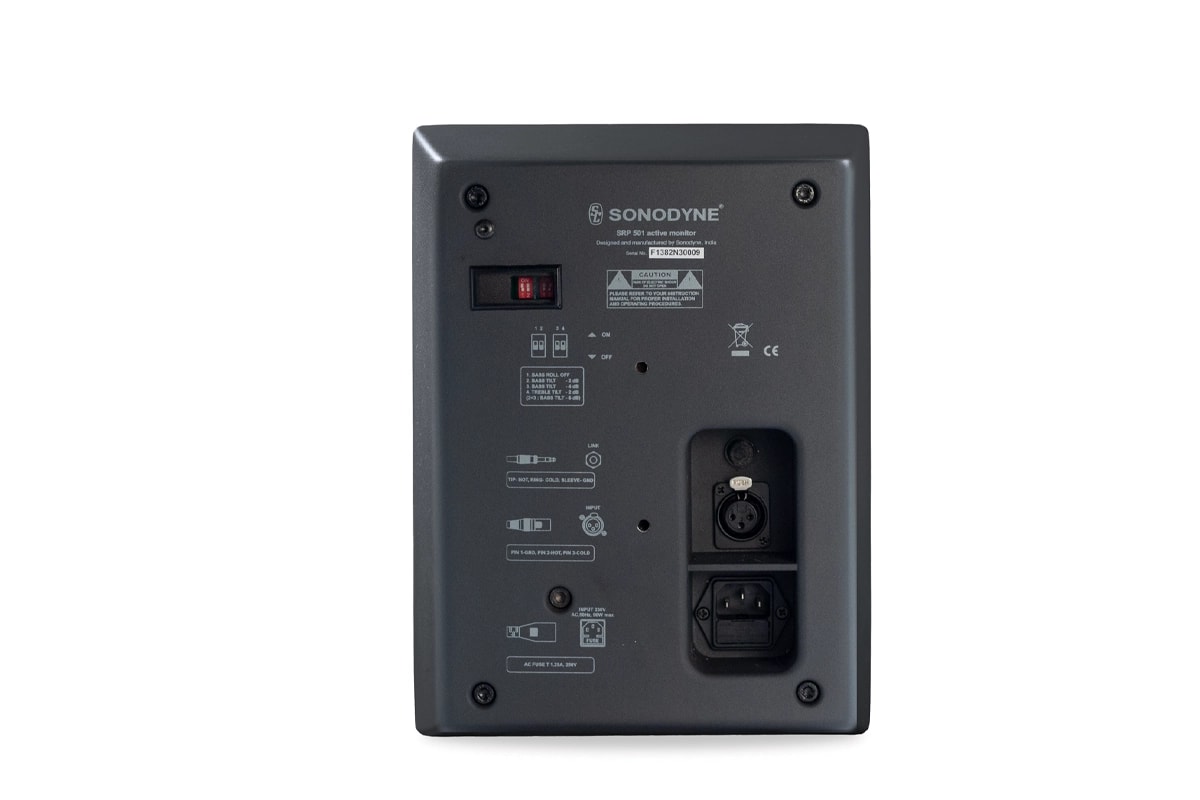

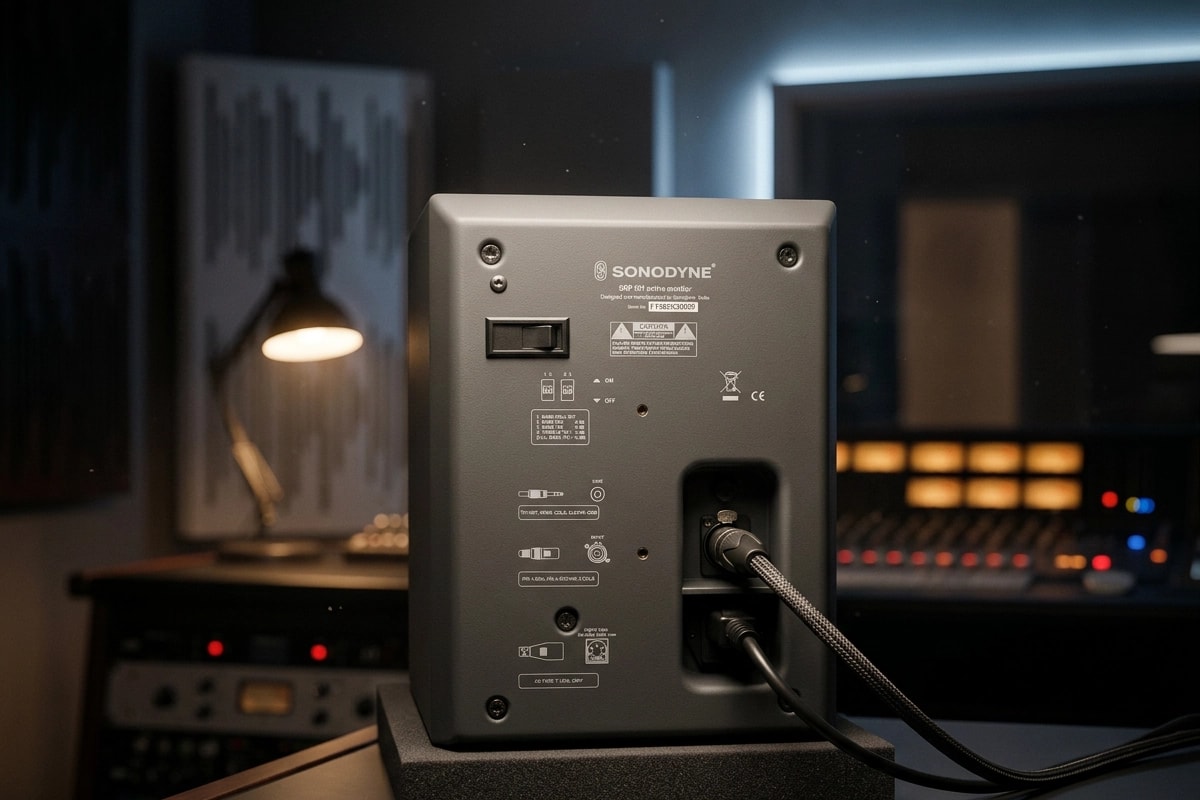

The SRP 501 accepts both XLR and TRS balanced inputs
Description
2 way bi-amplifier speaker
Enclosure
Pressure die-cast aluminum, vented, through front-firing aerodynamic port
Transducer Complements
HF: 26mm silk dome neodymium magnet tweeter with custom waveguide, LF: 5.25 inch glass fibre cone woofer in die-cast chassis
Amplifier Power Before Clipping
LF: 50W, HF: 50W
Amplifier THD @ Rated Power
< 0.04%
Max SPL At 1m
104dB
Frequency Response
58Hz ~ 21kHz (±3dB)
Frequency Range
50Hz ~ 25kHz (-10dB)
Crossover Frequency
2.5kHz
Cmrr
>65dB
The SRP range is ideal for: Music producers Recording and mastering engineers Broadcast professionals Content creators Home studio enthusiasts Educational institutions and audio training centres
All SRP monitors are active speakers with built-in bi-amplification. Each driver has its own dedicated amplifier, ensuring precise crossover performance, improved dynamics and lower distortion
The pressure die-cast aluminium enclosure is significantly more rigid than conventional MDF cabinets. This reduces cabinet resonance and coloration, resulting in tighter bass, greater clarity and improved overall accuracy.
The custom-designed waveguide improves on-axis and off-axis response, creating a wider listening sweet spot with excellent stereo imaging and consistent tonal balance.
Absolutely. The SRP range is available in multiple sizes, making it suitable for compact home studios as well as larger professional control rooms.
No. Since every SRP monitor has built-in amplification, simply connect your audio interface, mixer or monitor controller using balanced XLR or TRS cables and you're ready to work.
For the best audio quality, it is recommended to connect the monitors through an external USB audio interface or mixer. This provides balanced outputs, better signal quality and lower noise.
Yes. The SRP monitors include acoustic tuning controls that allow you to adjust bass and treble response to compensate for room acoustics and speaker placement.
The right model depends on your workspace and application: Smaller models are ideal for desktop and compact studios. Mid-sized models offer greater bass extension for general music production. Larger models are suited for professional studios requiring higher SPL and extended low-frequency performance.
