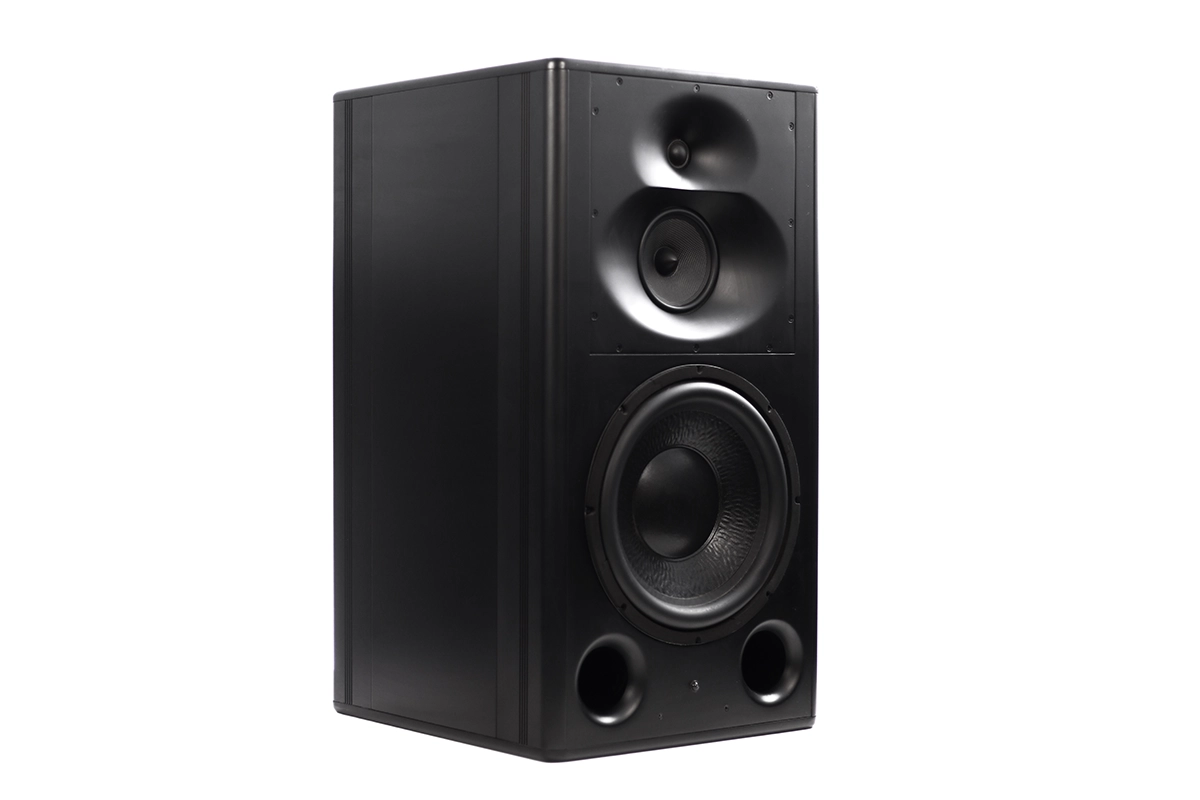

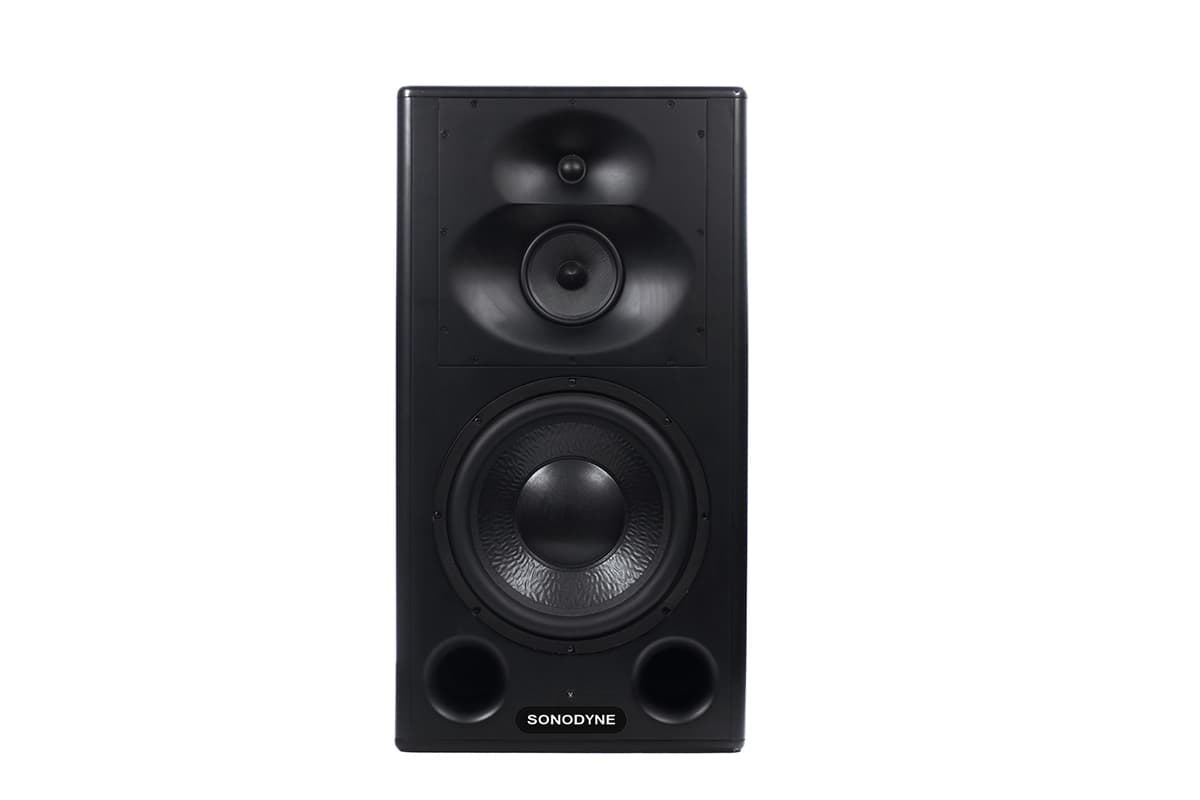

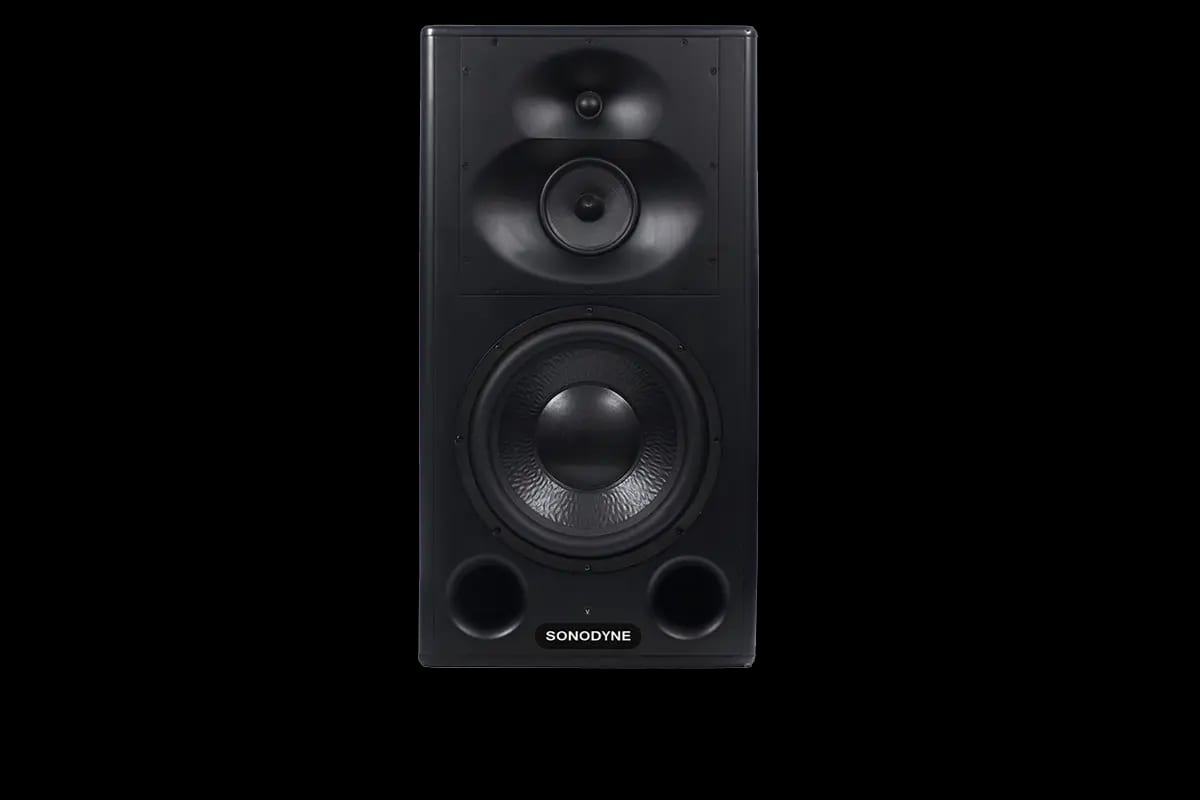

The SM 3300 is a main monitor. Capable of playing loud, and clear and delivering the lowest LF notes, the SM 3300 will fill your studio with body and detail. A tri-amplified speaker, the HF and Mids are nested in a rotatable waveguide, that, assisted by internal DSP balance, results in exceptional on and off axis response. A new 12" LF transducer ensures that the lowest notes and upper mid transients are produced with detail and clarity. With the SM 3300, experience unheard detail and power in main monitors!
Warranty
2 Years
Dimensions
450mm×398mm ×750mm
Features

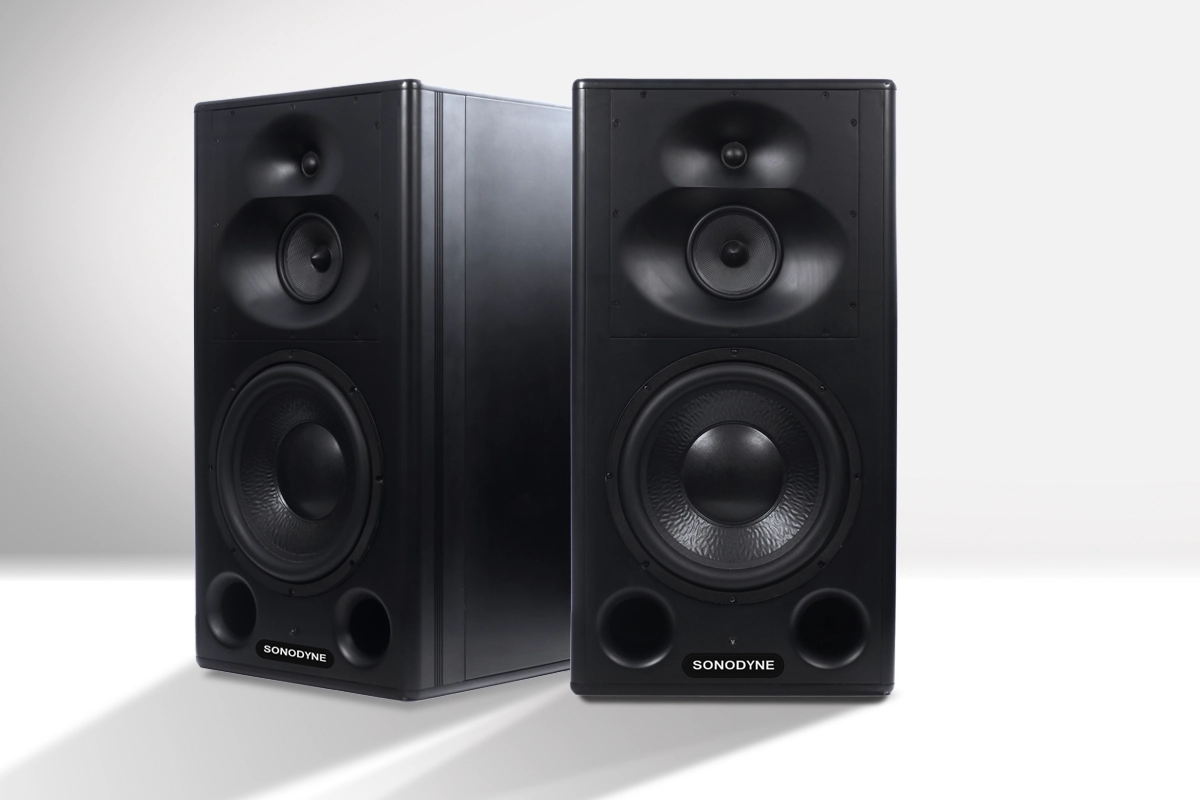

3 way Tri-amplified speaker

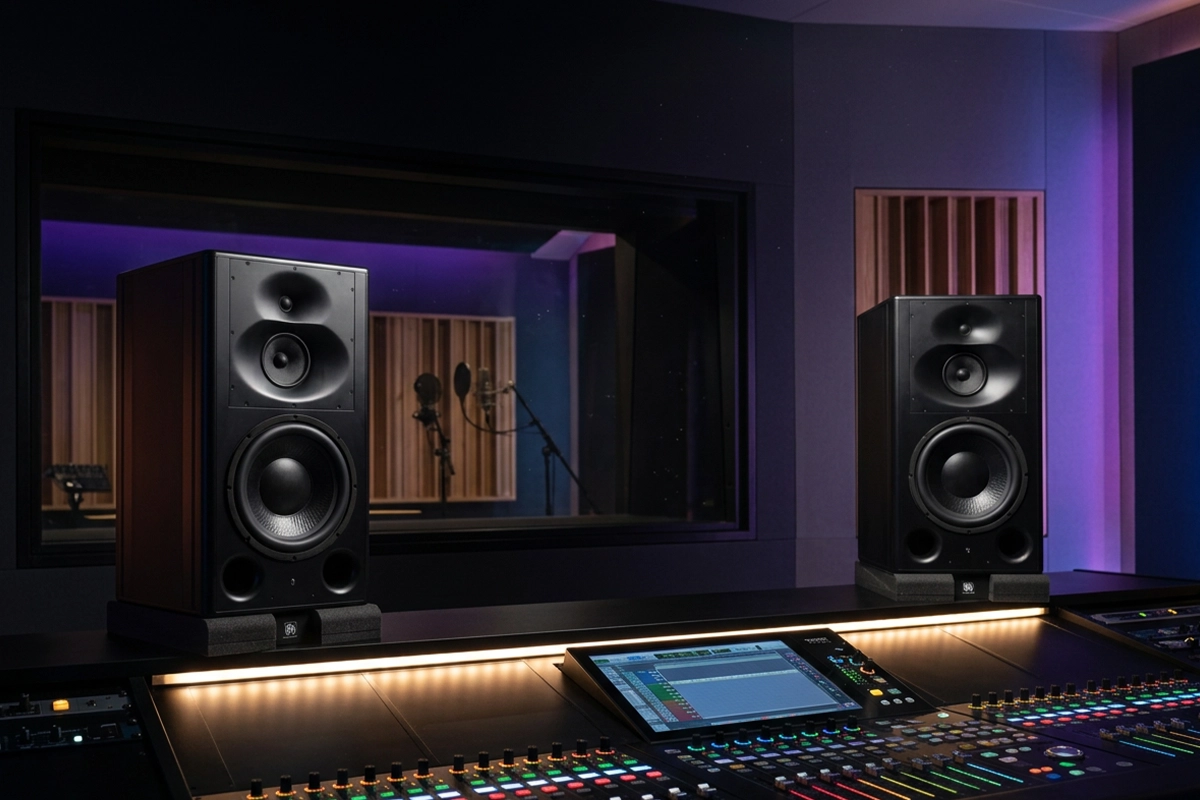

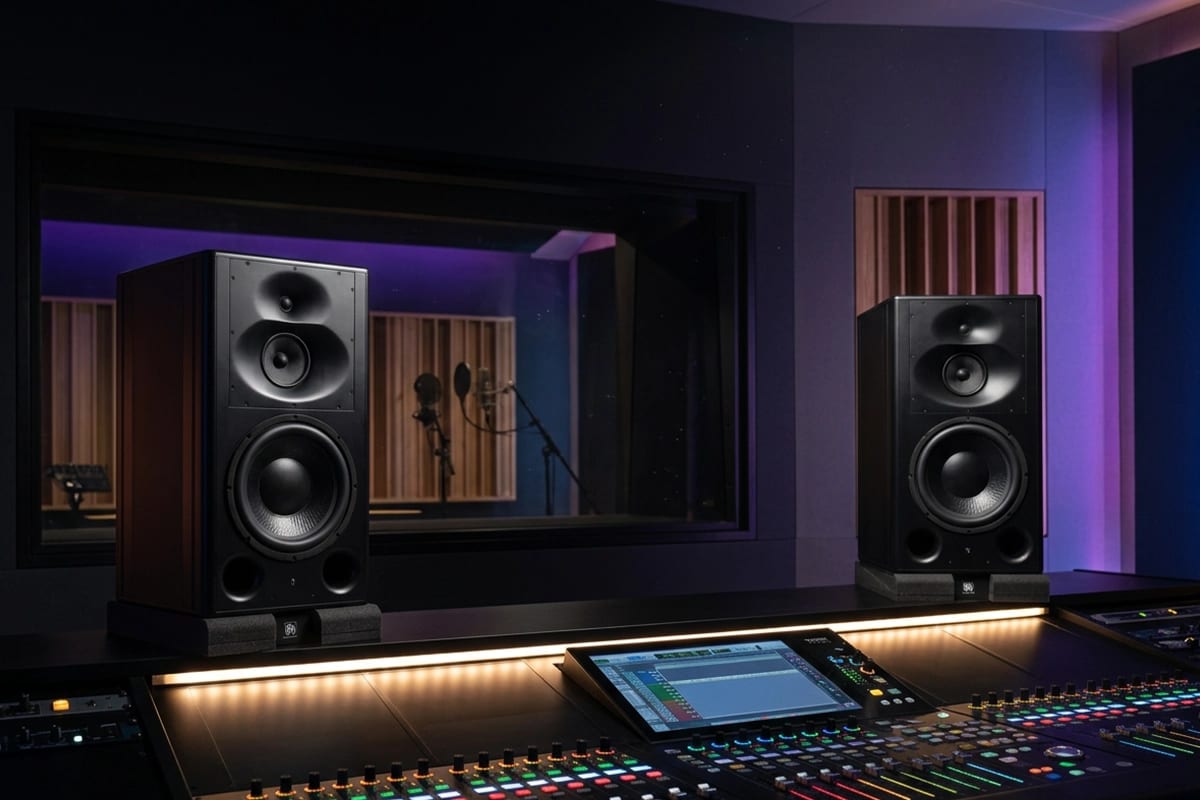

Aluminium - MDF Hybrid Rigid Enclosure

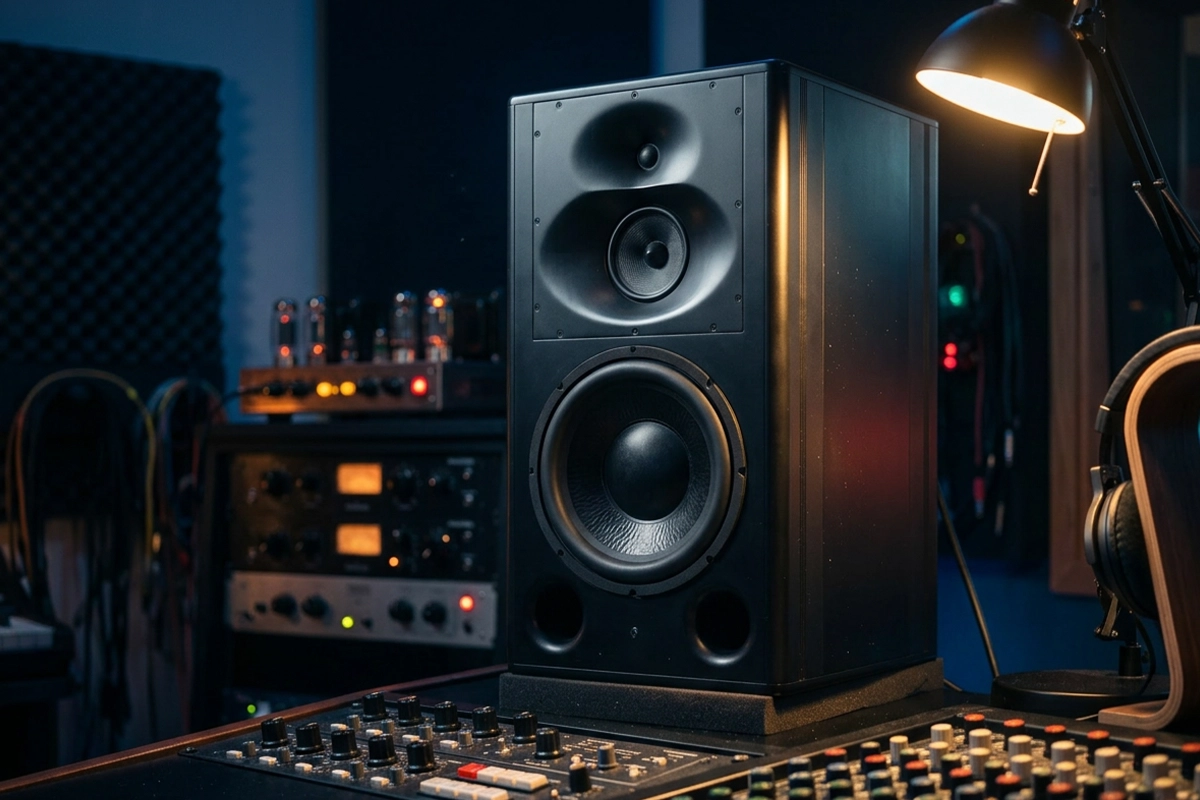

Kevlar Woofer and Midrange

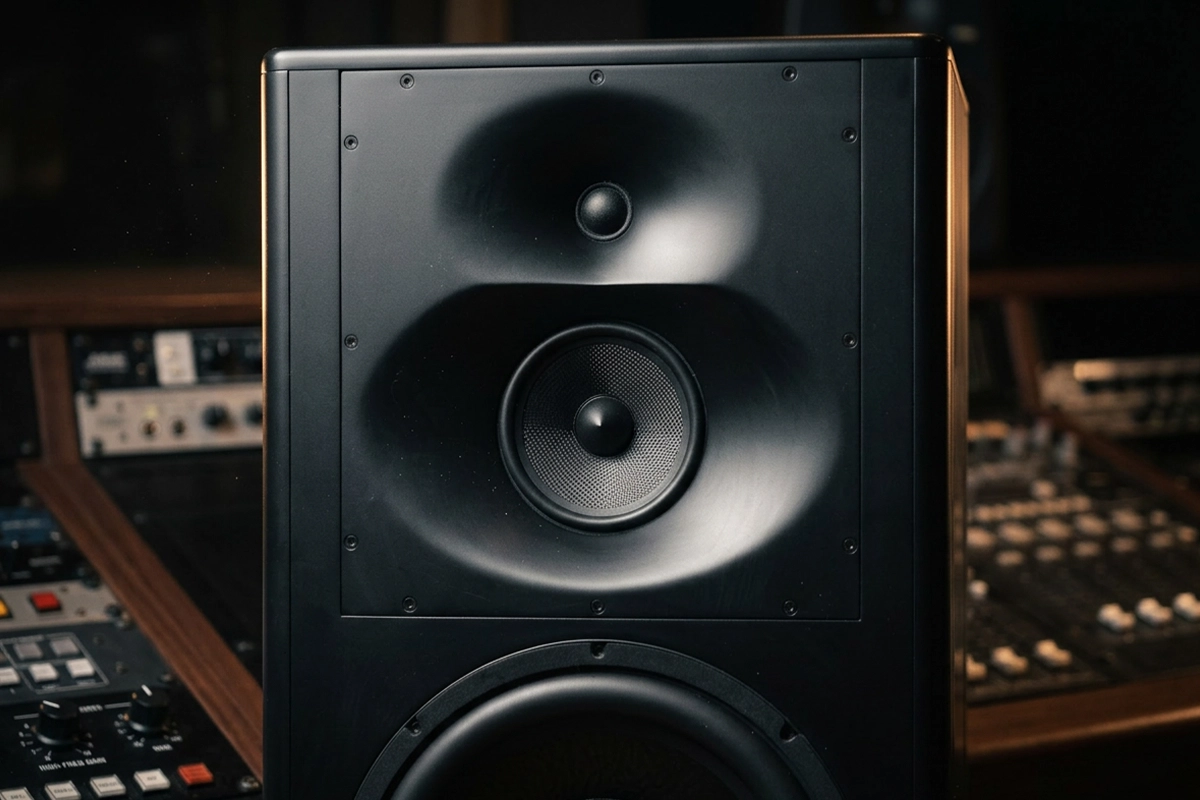

Custom Waveguide for HF

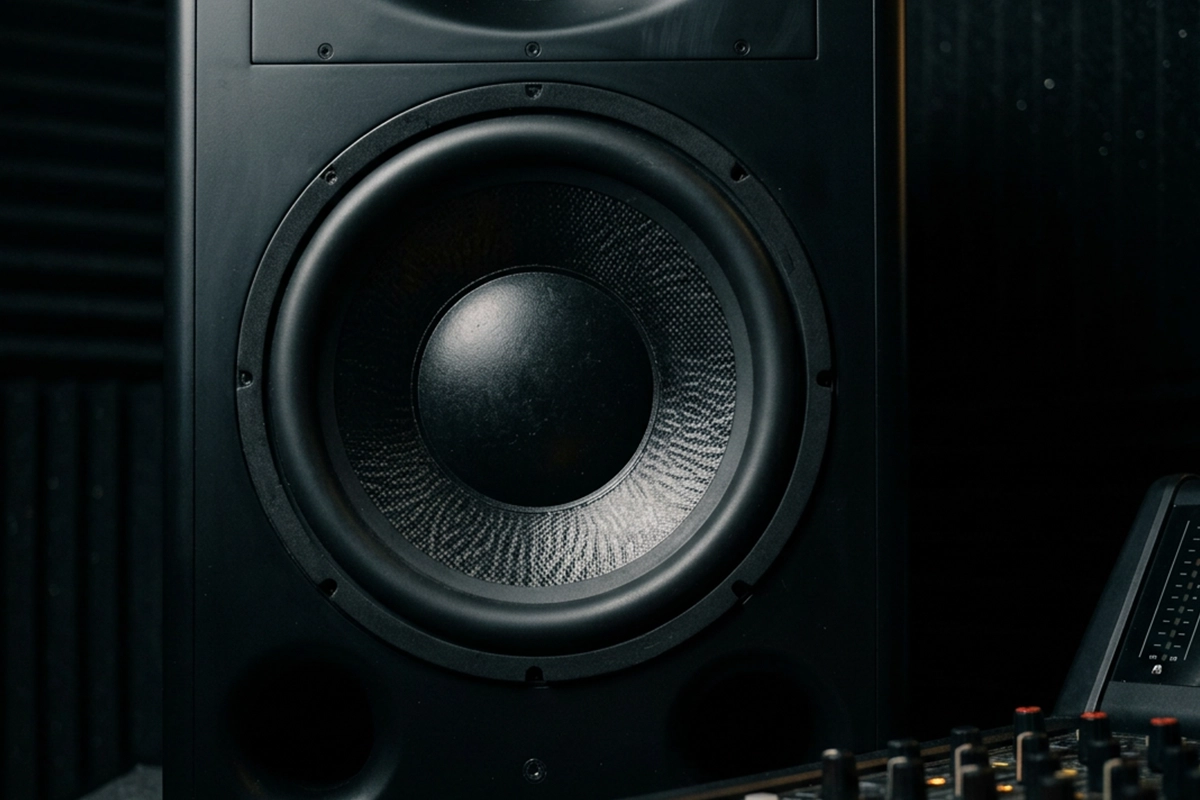

3 EQs

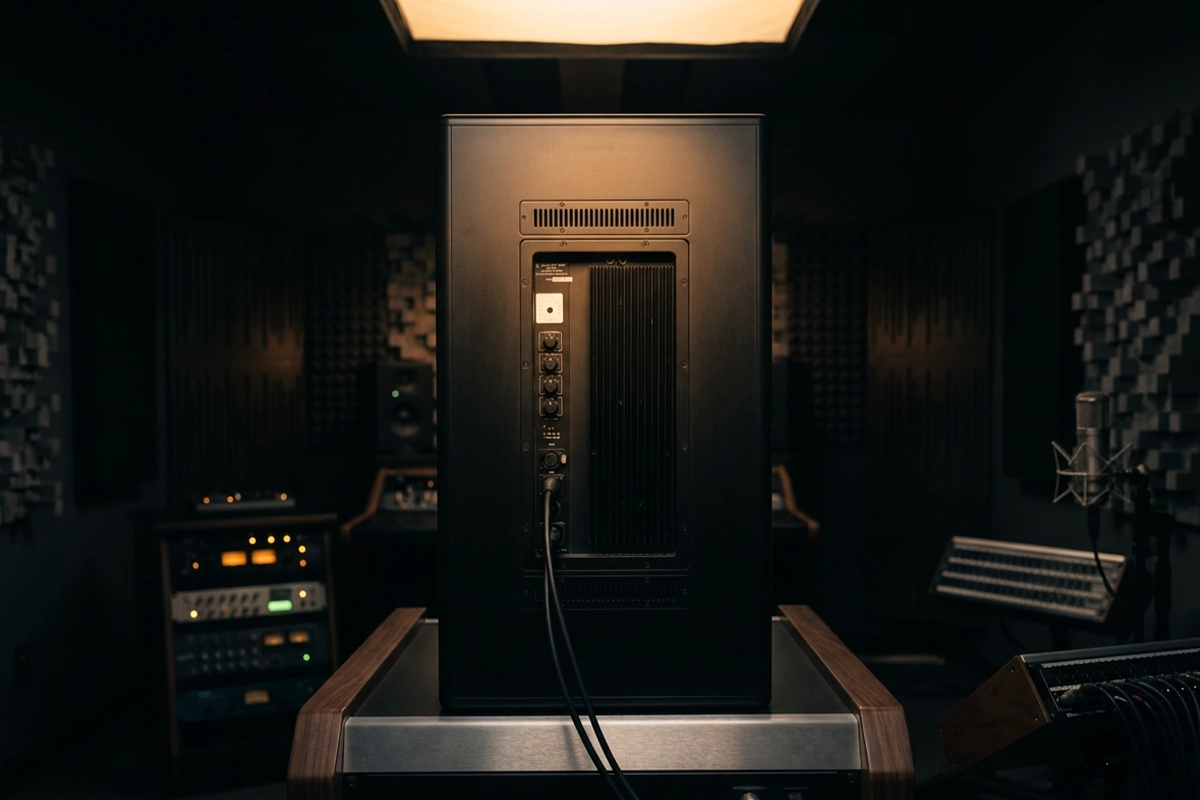

High in Details and Dynamics
Tech Specifications
Description
3 way active studio monitor
Enclosure
Vented, through front-firing aerodynamic port; MDF, with extruded aluminium corners
Transducer Complements
HF: Magnetically shielded 26mm silk dome tweeter in rotatable waveguide, MF: Magnetically shielded 5 " Kevlar cone midrange, LF: 12" coated cone woofer
Amplifier Power Before Clipping
LF: 300 W, MF: 75 W,HF: 75 W
Amplifier Type
Class AB
Amplifier THD @ Rated Power
<0.04 %
Max SPL At 1m
122dB
Overall Frequency Response
30Hz ~ 22kHz (±2dB)
Usable Frequency Range
25Hz ~ 25kHz (-10dB)
Crossover Frequency
350Hz, 3kHz
Cmrr
>65dB, 1kHz
