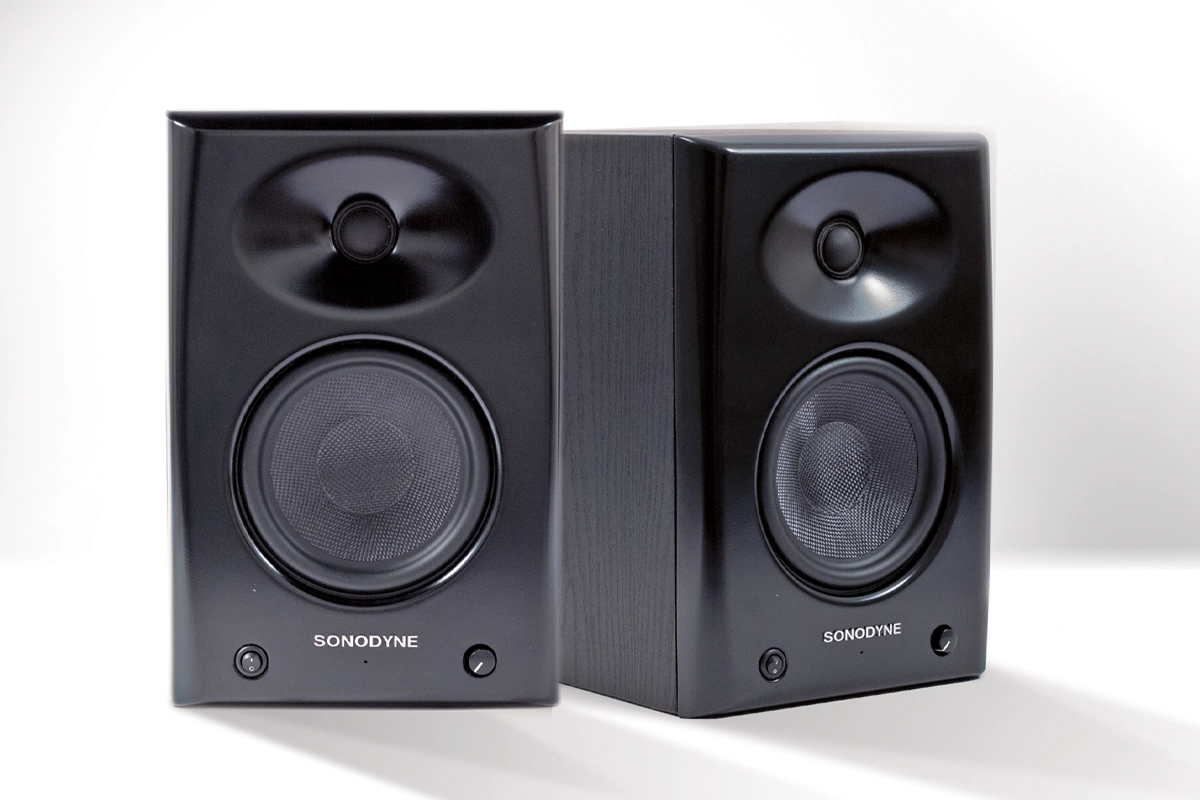

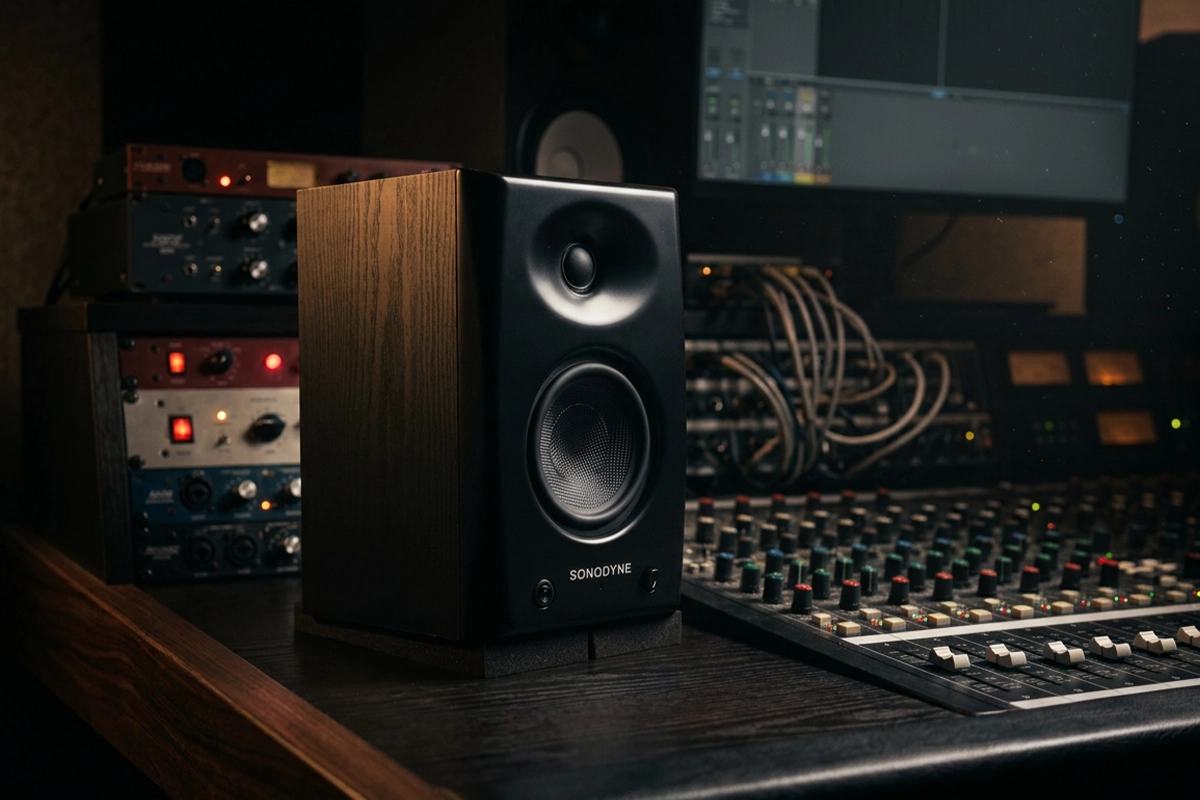

Bigger Driver, Bigger Sound
The 6-inch glass-fibre woofer delivers deeper bass extension and greater dynamic capability for more demanding productions.
Home > Professional > Studio > Studio Monitors > PM Series > PM 5160

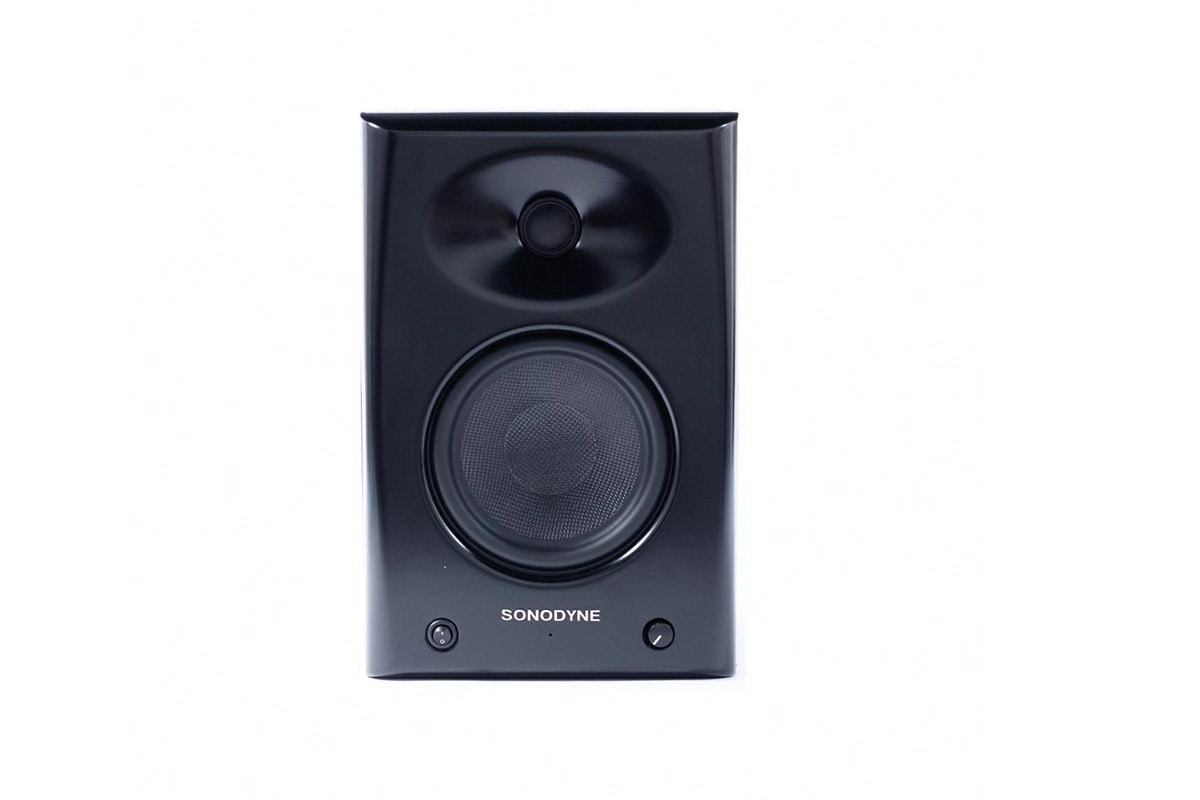

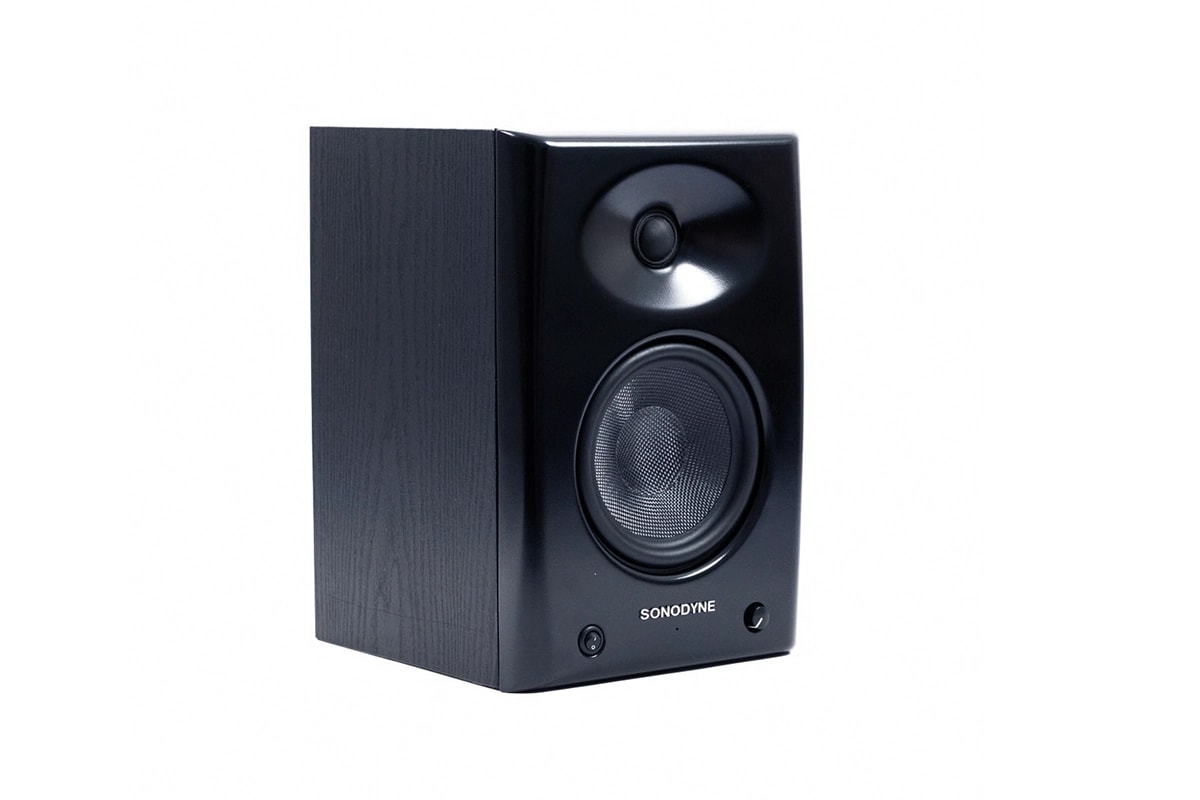

PM 5160
2 way active studio monitor
The Sonodyne PM 5160 is a powerful 2-way active nearfield monitor built for producers, engineers and content creators who need deeper bass, higher output and exceptional accuracy. Equipped with a larger 6-inch glass-fibre woofer, a silk-dome tweeter and more powerful amplification, the PM 5160 offers an extended low-frequency response while maintaining the neutral, transparent character essential for critical monitoring. Flexible room compensation and professional connectivity make it equally at home in project studios and professional production environments.
Warranty
2 Years
Dimensions
240mm×220mm×332mm
Features
Inbuilt bi-amplifier
Custom HF Waveguide
Multiple Inputs
Glass Fibre Woofer
Silk Dome Tweeter
Exhaustive Protection
Modelled Baffle Shape

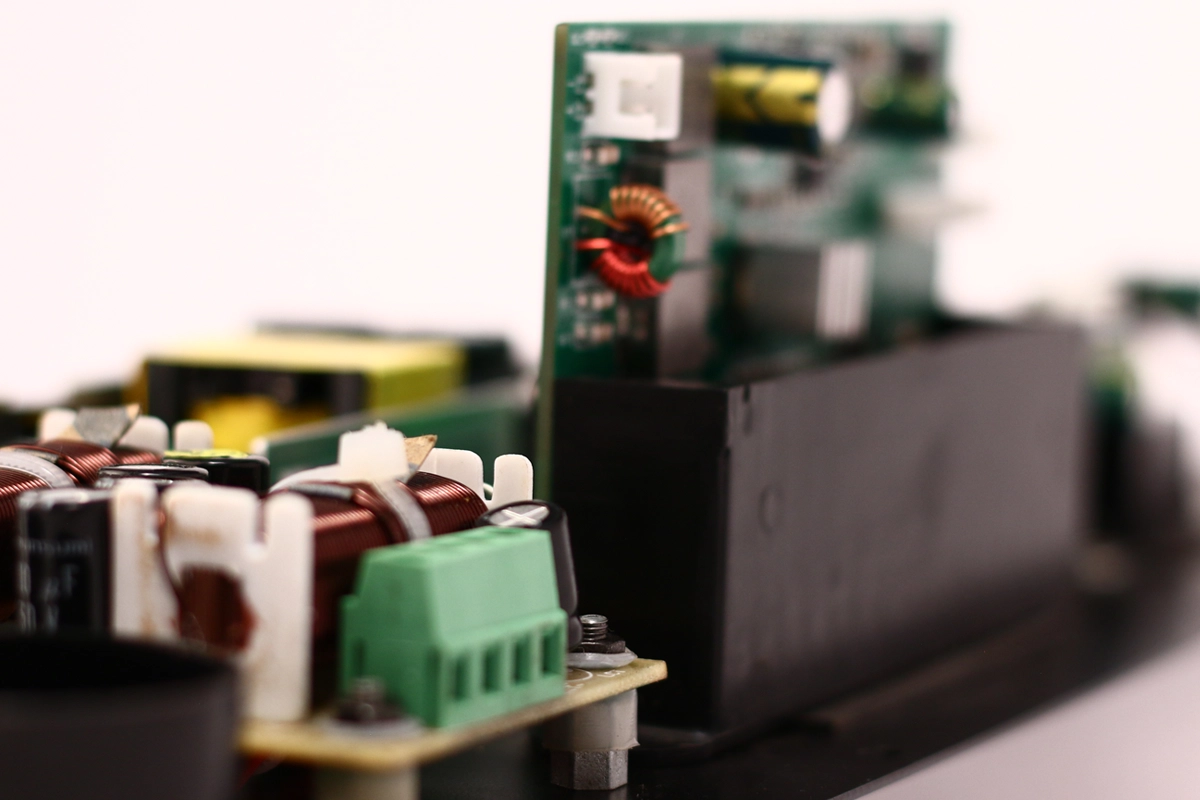

Bi-Amplified Class D Design
An 80W LF amplifier and 50W HF amplifier provide impressive headroom, clarity and low distortion even at higher listening levels.
Accurate Studio Reference
Designed for neutral and transparent sound reproduction, helping you hear every detail exactly as it is.

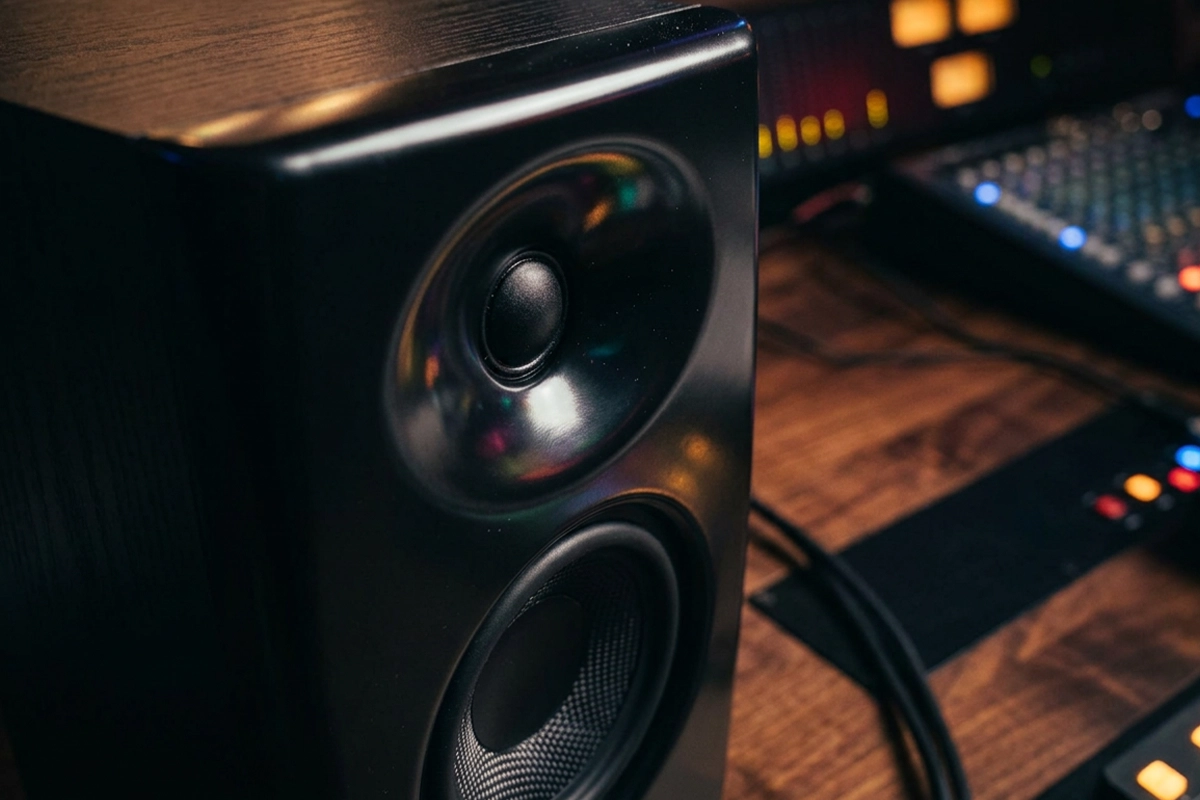

Optimized for Any Studio
Integrated bass tilt, bass roll-off and treble tilt controls allow the monitor to be tailored to your room acoustics.

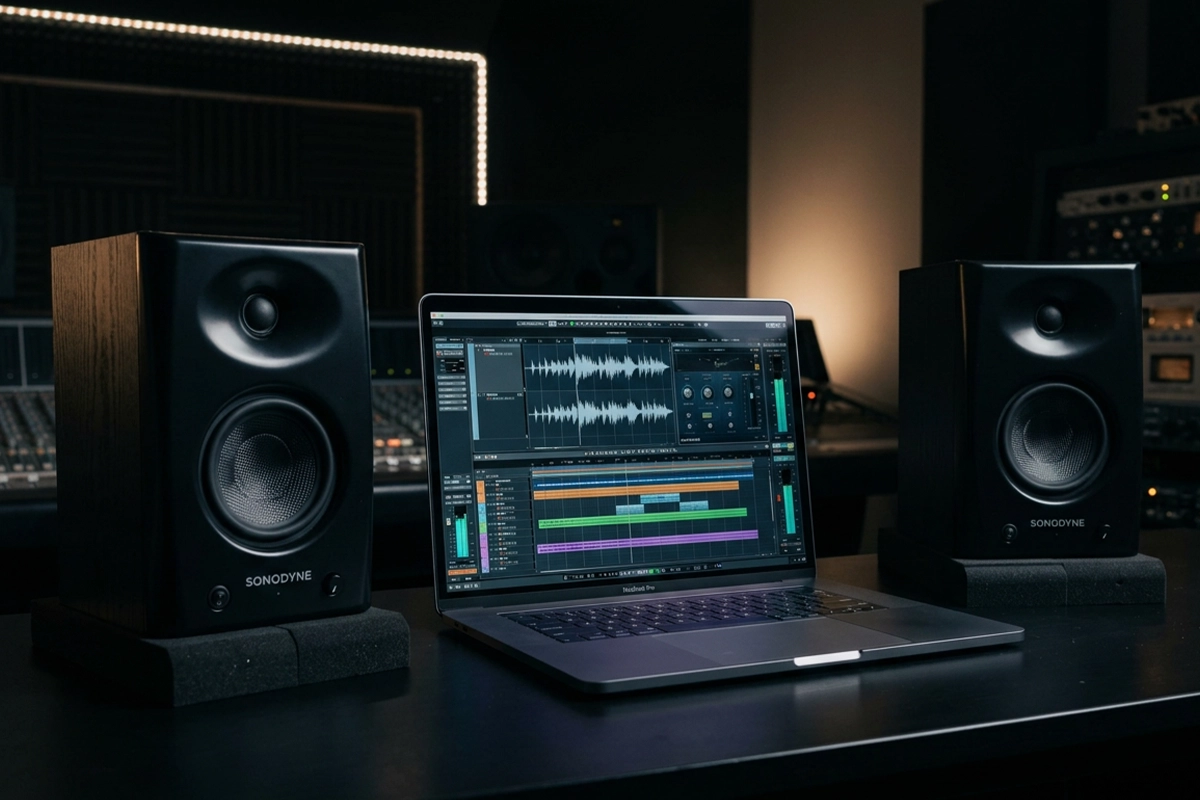

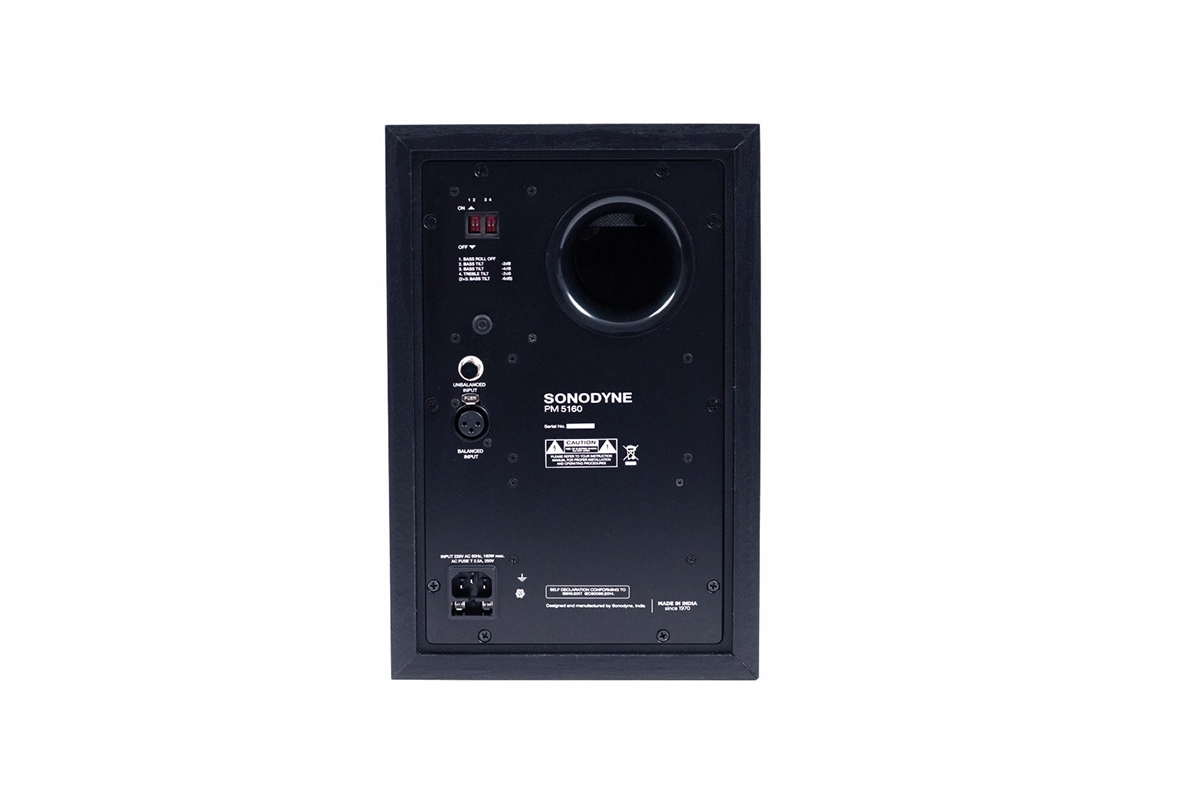

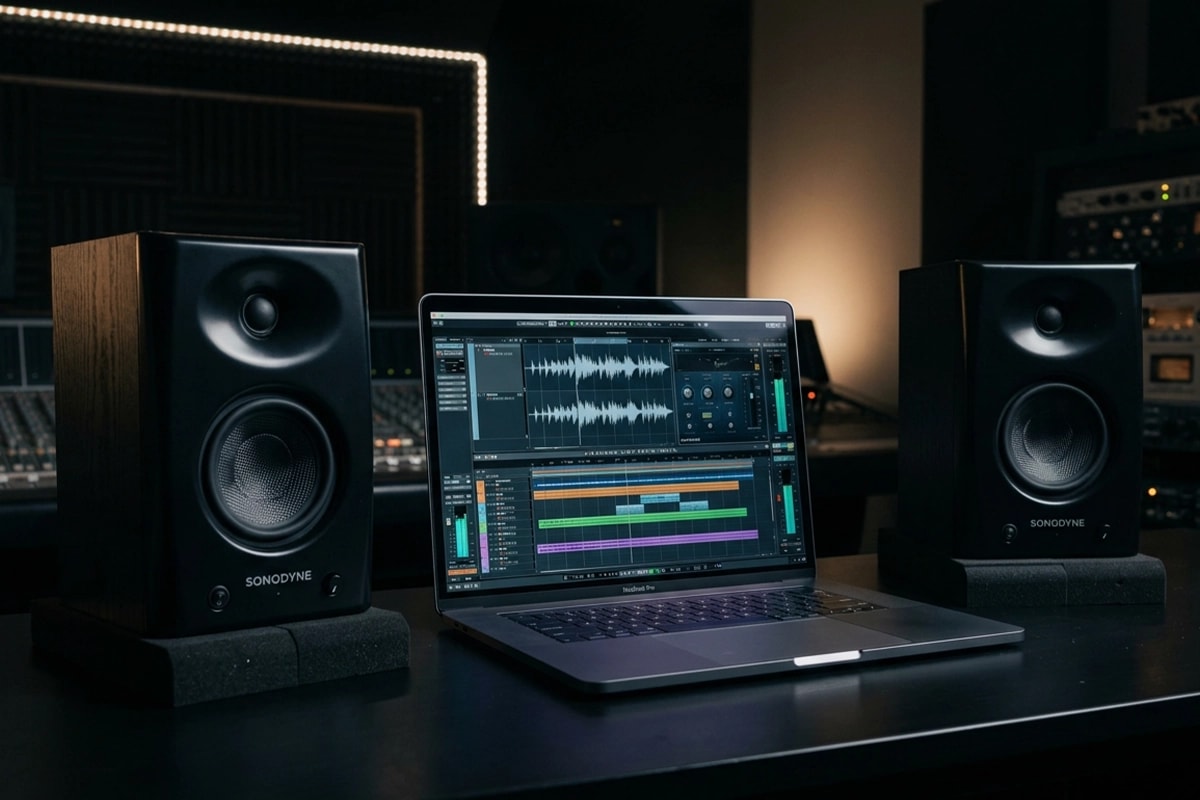

Wide Connectivity Options
Balanced XLR and RCA inputs make connecting to professional and consumer audio equipment quick and easy.

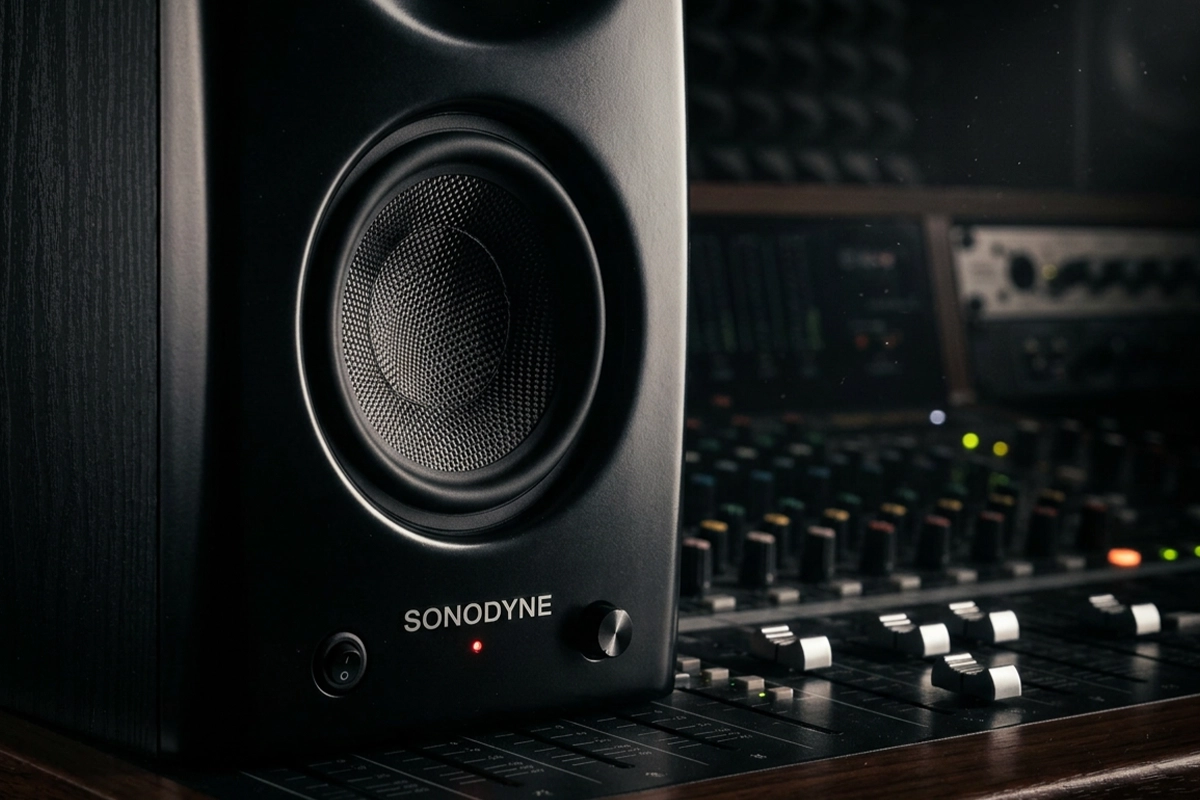

Built for Long Sessions
Robust protection circuitry guards against overheating, over-current and power fluctuations, ensuring dependable performance.
Tech Specifications
Description
2-way active monitor
Enclosure
MDF with plastic moulded front panel, vented, through rear-firing aerodynamic port
Transducer Complements
HF: 26mm silk-dome neodymium magnet tweeter, LF: 6" glass fibre cone woofer
Amplifier Power Before Clipping
LF: 80W, HF: 50W
Amplifier Type
Class D
Max SPL At Half Space
107dB
Overall Frequency Response
65Hz ~ 20kHz (±3dB)
Usable Frequency Response
55Hz ~ 22kHz, (±10dB)
Crossover Frequency
2.5kHz
S/n Ratio (at Unity Gain)
>90dB, referred to full output
Amplifier THD @ Rated Power
<0.04%
Cmrr
>65dB
Find YourPerfect Match
PM 5160
DESCRIPTION
2-way active monitor
AMPLIFIER POWER BEFORE CLIPPING
LF: 80W, HF: 50W
MAX SPL AT HALF SPACE
107dB
TRANSDUCER COMPLEMENTS
HF: 26mm silk-dome neodymium magnet tweeter, LF: 6" glass fibre cone woofer
DIMENSIONS (WxHxD)
220mm x 332mm x 240mm
NET WEIGHT
7kg

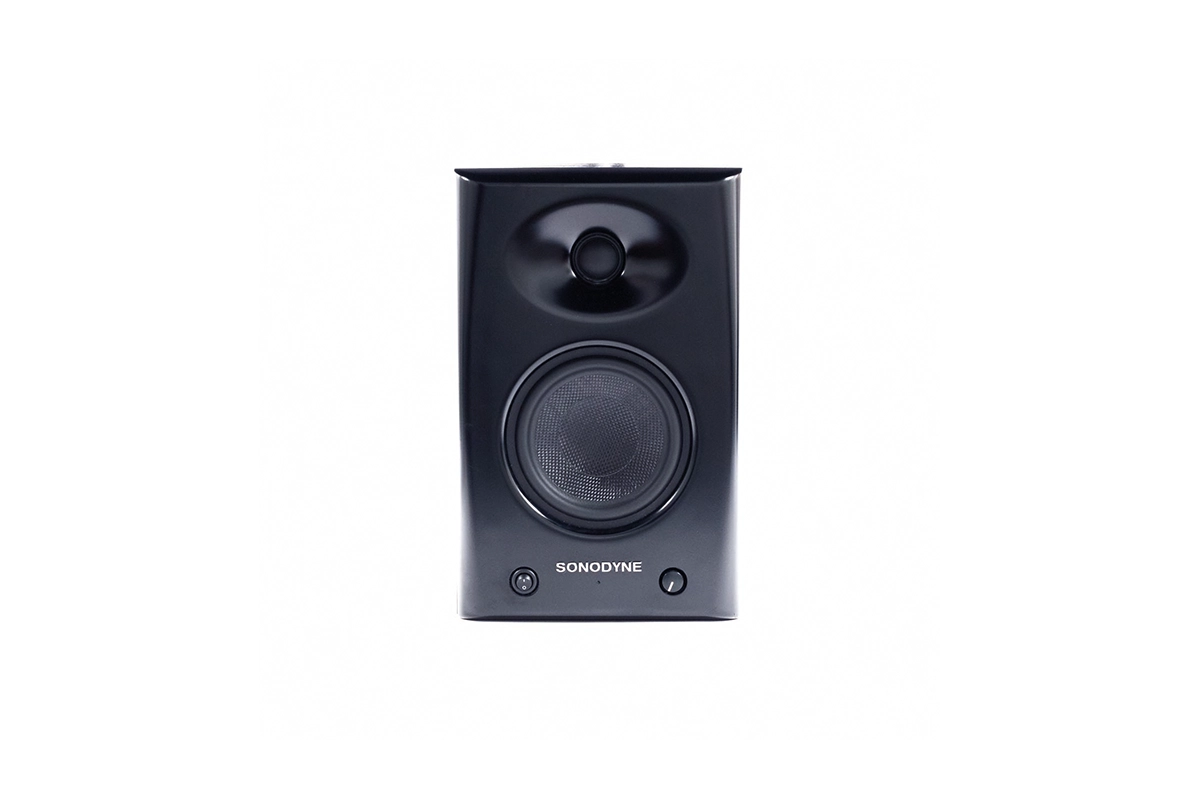

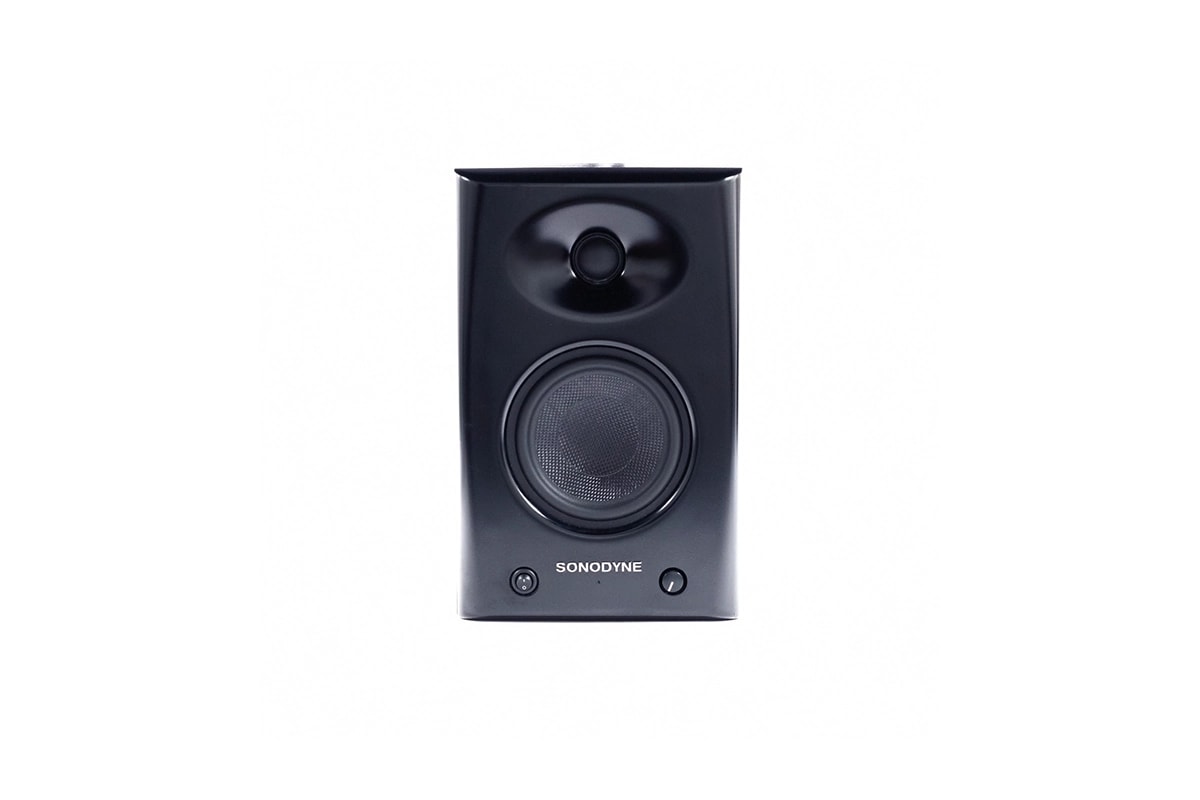

PM 5150
DESCRIPTION
2-way active monitor
AMPLIFIER POWER BEFORE CLIPPING
LF: 45W, HF: 45W
MAX SPL AT HALF SPACE
104dB
TRANSDUCER COMPLEMENTS
HF: 26mm silk-dome neodymium magnet tweeter, LF: 5" glass fibre cone woofer
DIMENSIONS (WxHxD)
194mm x 306mm x 210mm
NET WEIGHT
5.5kg
Who are the PM 5150 and PM 5160 designed for?
Both monitors are ideal for music production, recording, mixing, podcasting, video editing and content creation. They provide accurate nearfield monitoring for home and professional studios.
What is the difference between the PM 5150 and PM 5160?
The PM 5150 features a 5-inch woofer and is suited for compact workspaces, while the PM 5160 uses a larger 6-inch woofer with more amplifier power, delivering deeper bass and higher maximum output.
Do the monitors include room tuning controls?
Yes. Both models include bass tilt, bass roll-off and treble tilt switches, allowing you to optimize their performance based on room acoustics and placement.
Can I connect both professional and consumer audio equipment?
Yes. Both monitors feature balanced XLR inputs for professional interfaces and mixers, along with RCA inputs for consumer devices
Why do the PM monitors use active bi-amplification?
Dedicated amplifiers for the woofer and tweeter provide better driver control, reduced distortion and improved clarity across the frequency range.
Are these monitors suitable for beginners?
Absolutely. Their straightforward setup, accurate sound and flexible connectivity make them an excellent choice for beginners, while their professional performance also satisfies experienced engineers and producers.
