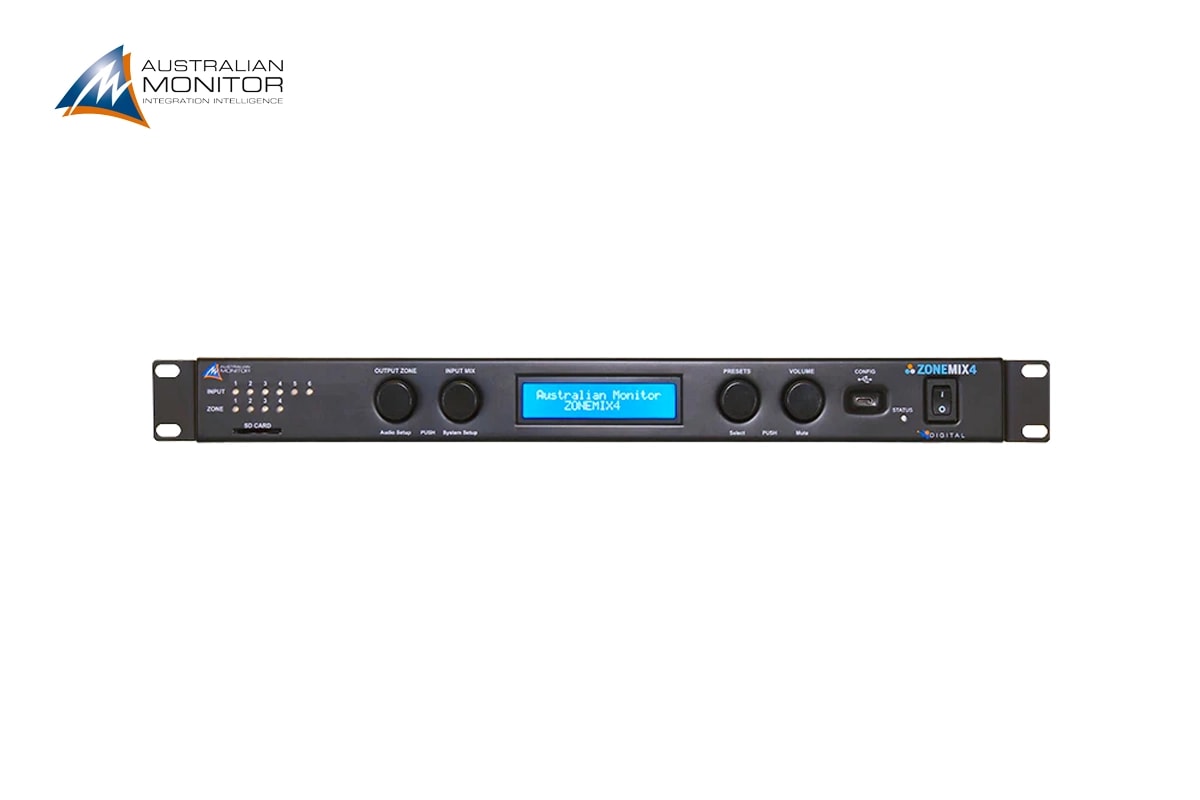

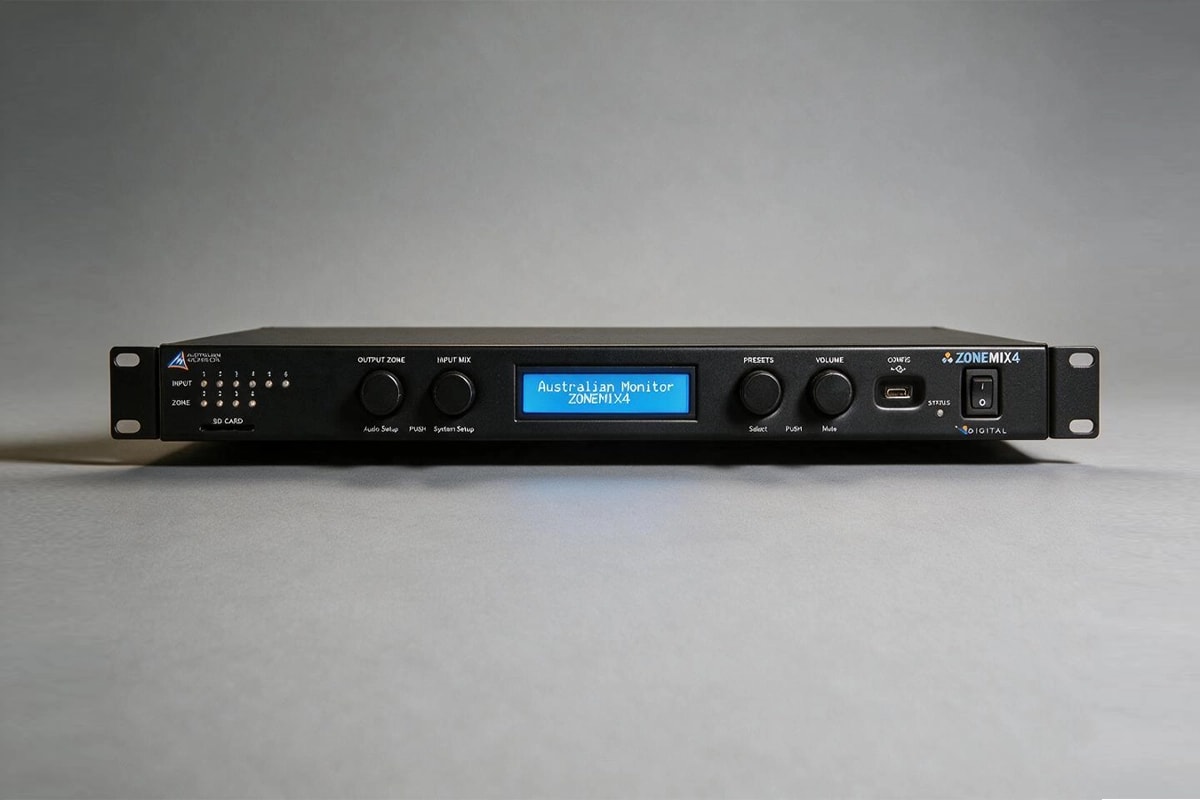

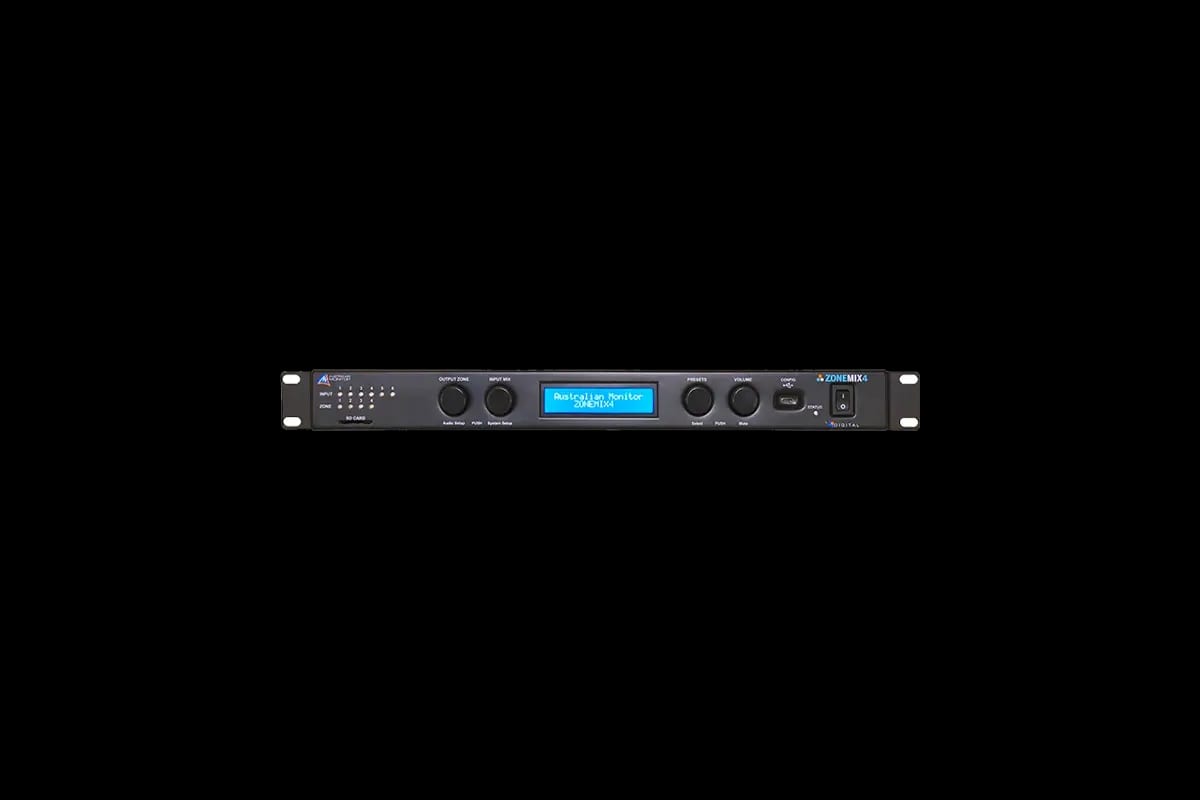

ZoneMix4
zone mixer and paging system
The ZONEMIX4 provides a 4 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity.
It features 2 Mic/Line and 4 line level stereo inputs which can be independently mixed to any output zone. An additional local audio input can also be added to each zone using audio wall panel inputs.
WP10, WP4R and WPVOL wall controllers provide in-zone control of various ZONEMIX functions. Paging capabilities can be added using the ZMPS paging station with a total of 16 stations supported. Additional audio inputs can be added such as the WPBT Bluetooth Receiver and the WPML Mic/Line audio input wall panel.
Software features of the ZONEMIX include a miniDSP, tone generator, message player, priority control, programmable I/O and an in-built scheduler.
Warranty
2 Years
Dimensions
44.5mm×484mm ×160mm

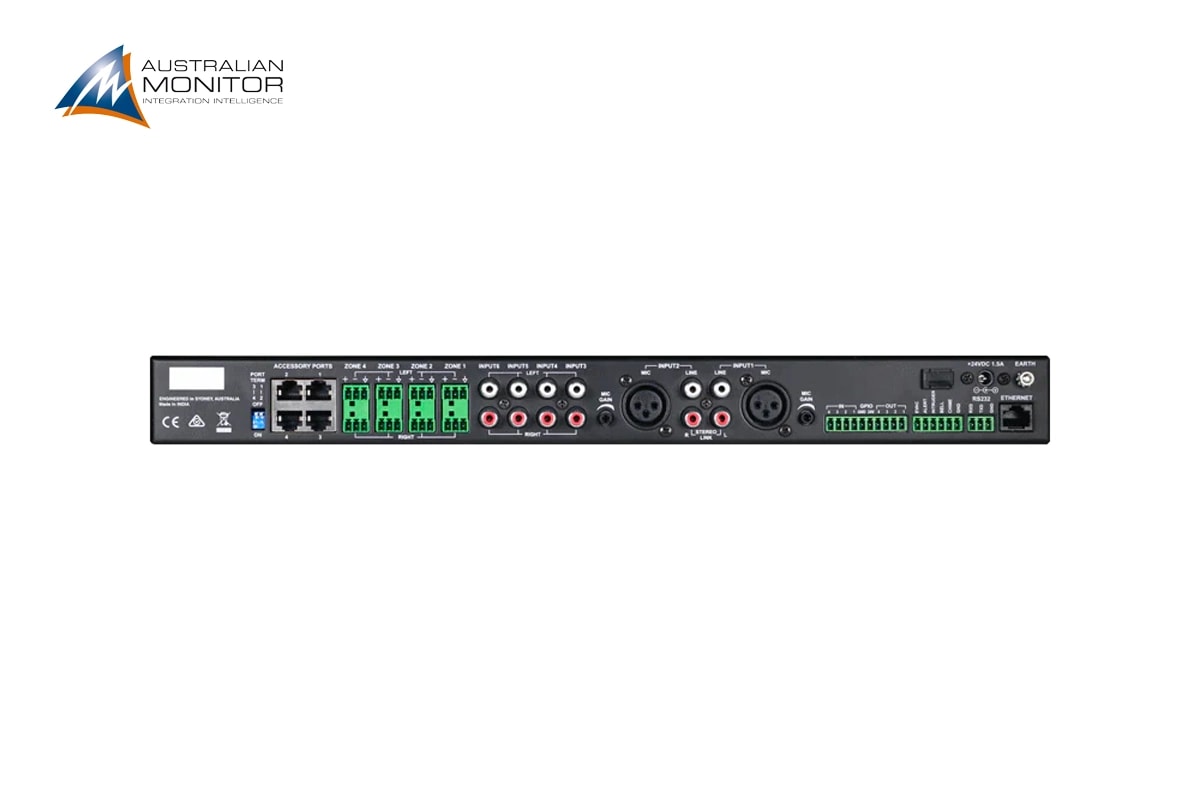

4 stereo or mono zone outputs
2 Mic/line and 4 stereo line inputs plus 1 local input per zone
USB, Ethernet and RS232 connectivity
miniDSP - Filters, Tone Control, Delay, Compressors/Limiters
Built-in Tone Generator, Message Player and Scheduler
Multi-stage priority control
4 general purpose inputs/outputs
Supports up to 16 ZMPS Paging Stations, 16 WP10, WP4R and WPVOL wall panels
Supports up to 4 local inputs such as WPBT, WPML or WPXLR
ZONEMIX PC control software free via download
NOTE: Due to continuous improvements, all specifications are subject to change
