WP BREAKOUT
Wall Panel Breakout
The WP-BREAKOUT is an accessory box to easily provide power and break out the audio from up to two audio wall panels.
24V is provided to the wall panels and the wall panel balanced audio is converted into unbalanced audio for connection into any audio system.
Multiple WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.
Warranty
2 Years
Dimensions
47mm×144mm ×124mm
• Supports the WPBT and WPML Wall Panels
• Provides 24V power to wall panels
• Converts wall panel balanced audio to unbalanced audio

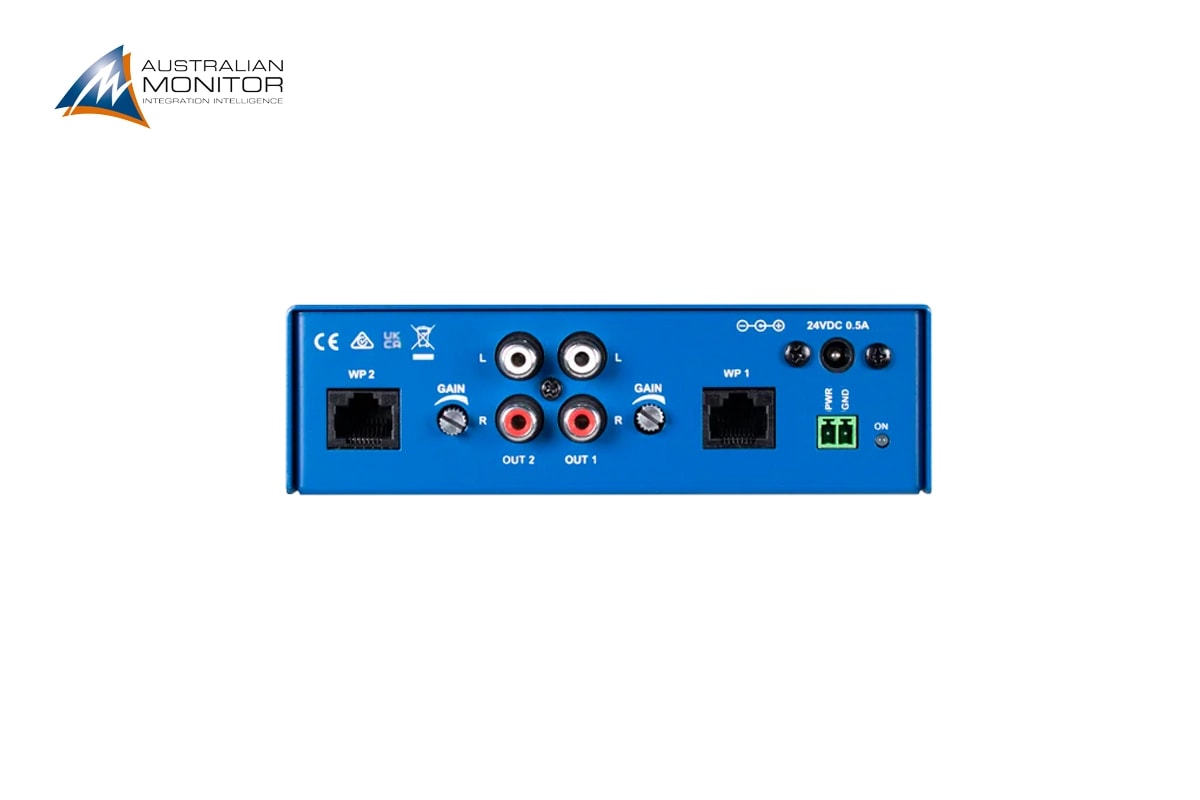

• Rear panel gain adjustment
• Supports up to two wall panels
• Power output to daisy chain up to 15 WP-BREAKOUT units from one power supply
NOTE: Due to continuous improvements, all specifications are subject to change
