Home > Professional > Installed Sound > Subwoofers > SSW Series > SSW 3010

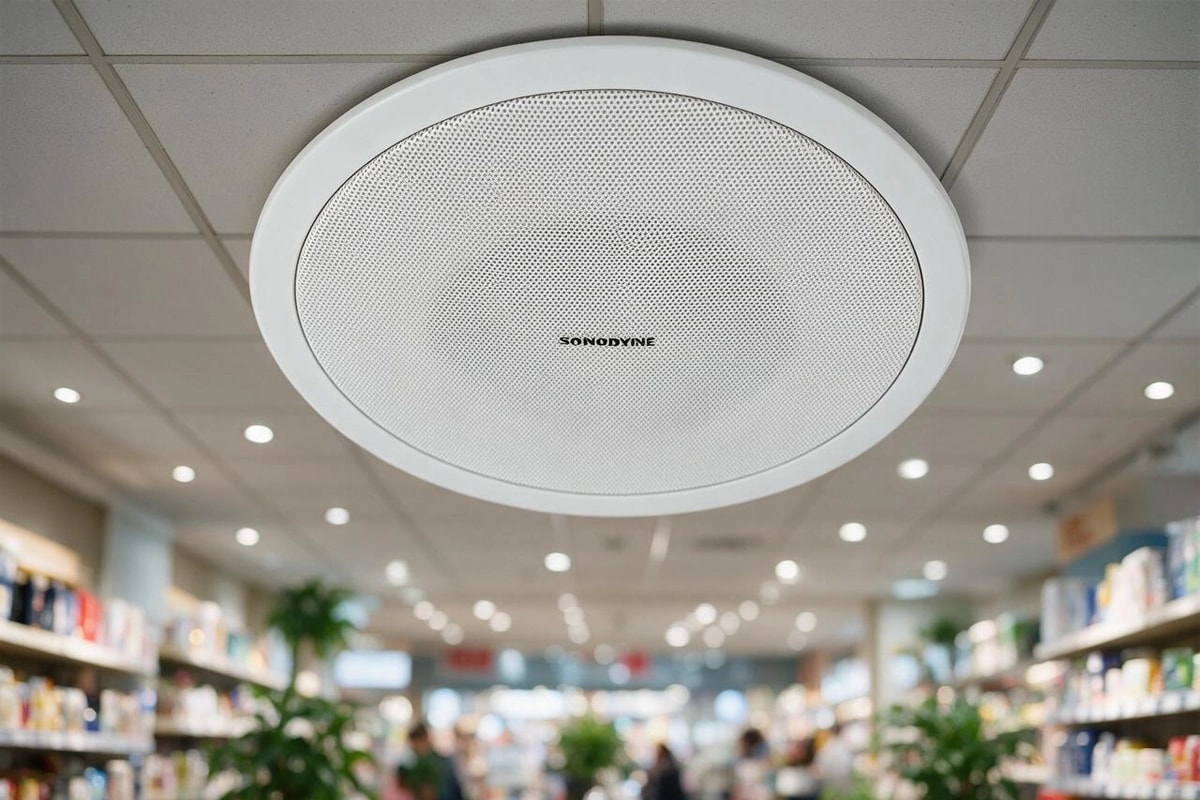

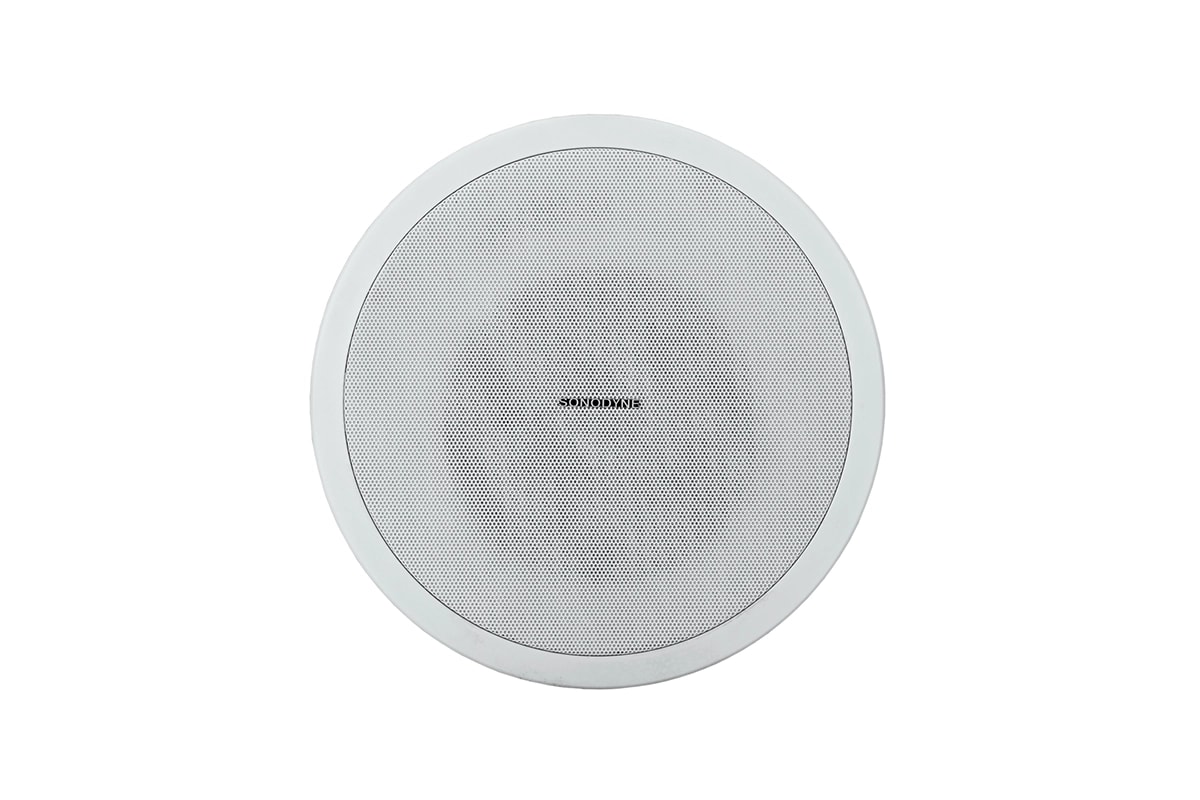

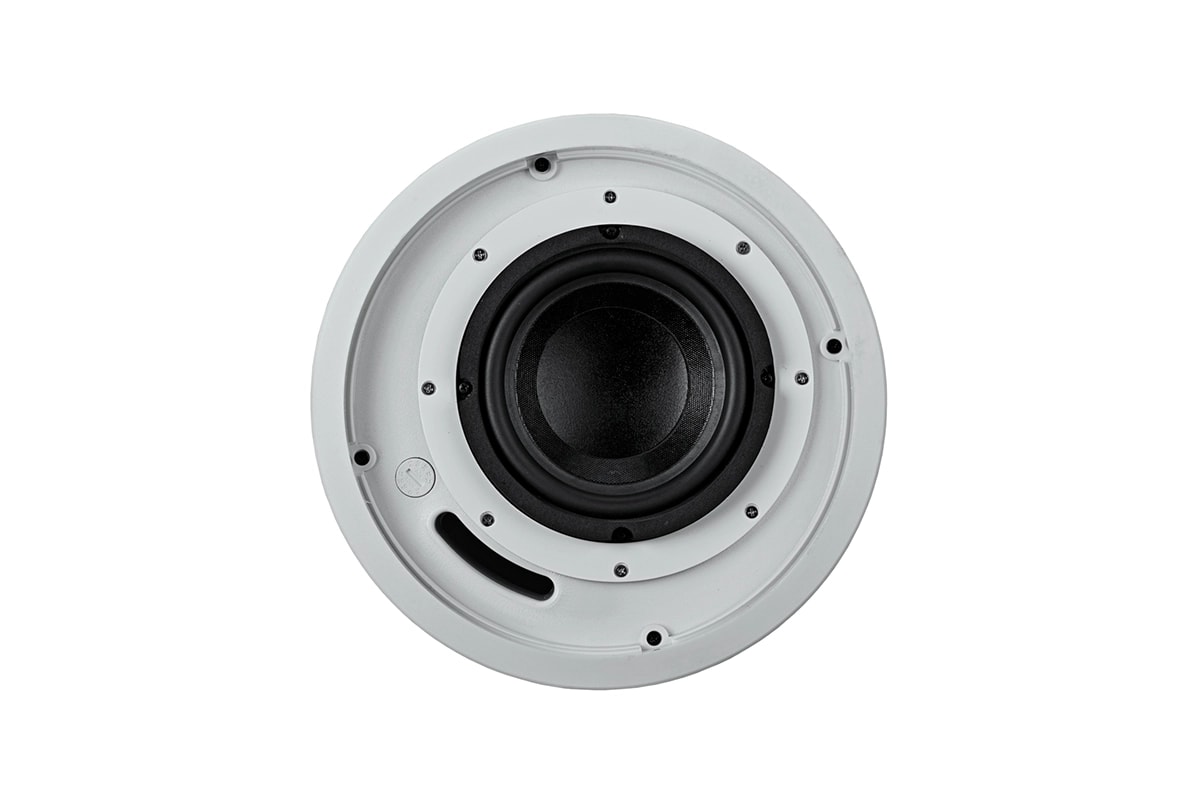

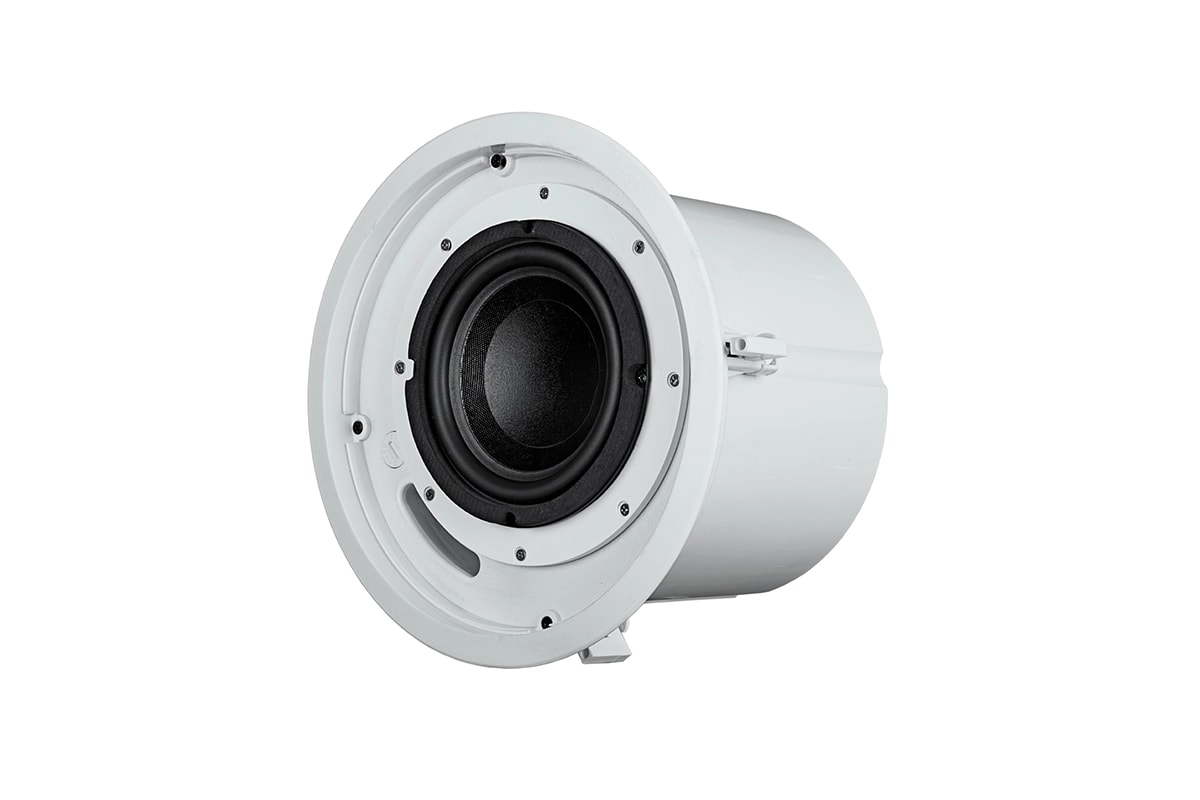

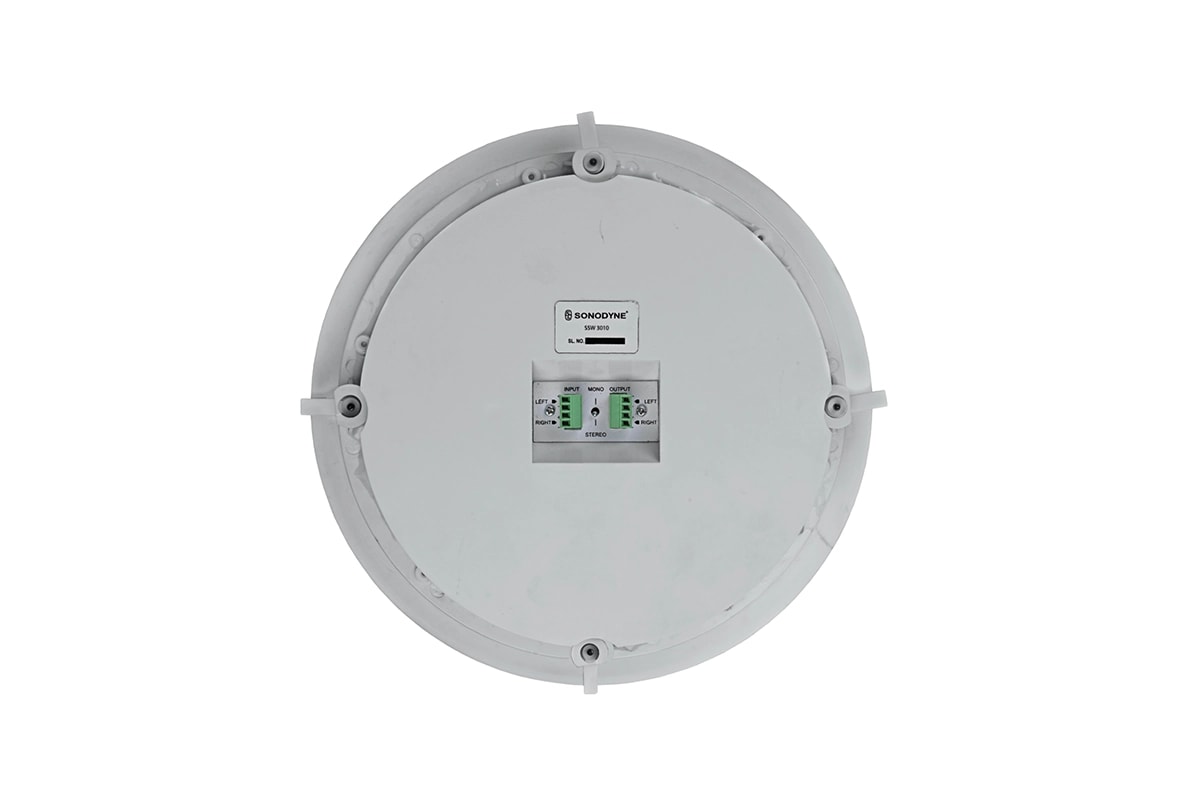

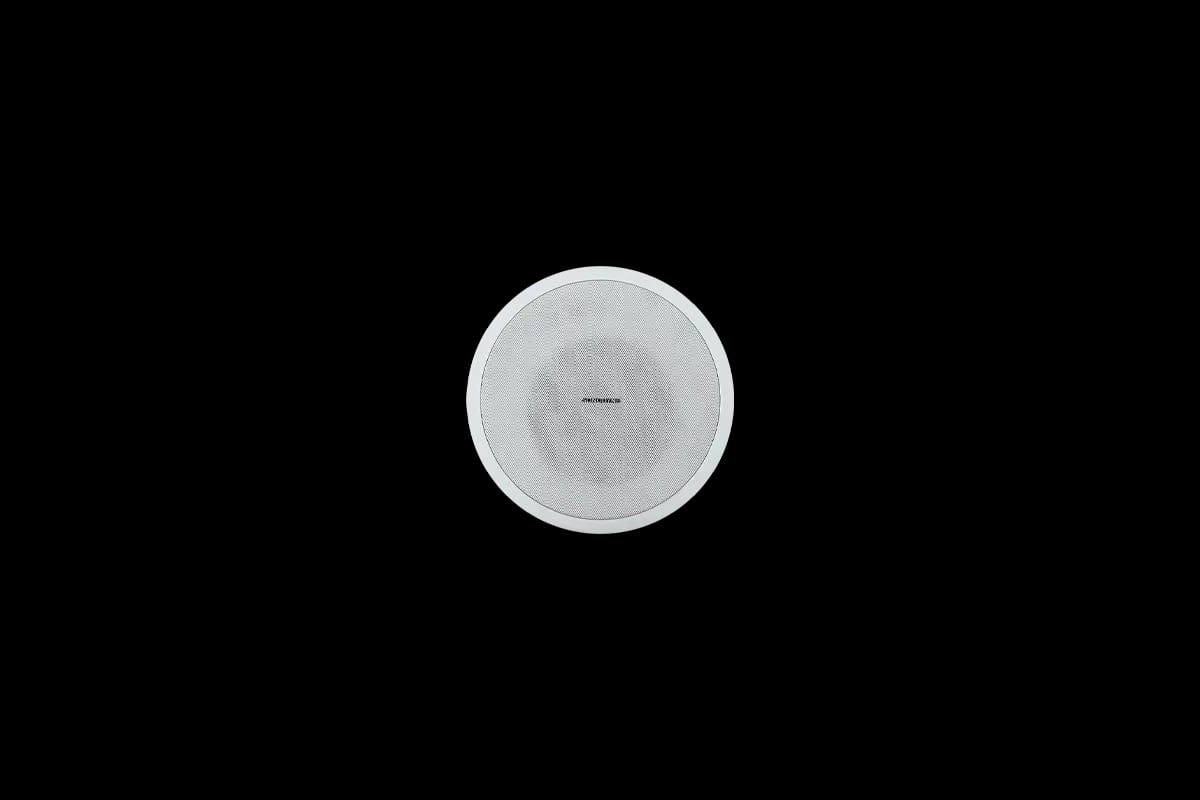

SSW 3010
in-ceiling subwoofer
The SSW 3010 is a 6" dual coil inceiling subwoofer
Warranty
2 Years
Diameter
205mm
In-ceiling mounted subwoofer
In-built crossover for high pass to satellite speakers
Both stereo and mono modes
Both direct and LMT modes
Smooth, articulated response
Transducer with dual voice coil
DESIGN
Stereo in-ceiling sub woofer with high pass output
TRANSDUCER COMPLEMENTS
1 x 6" dual voice-coil subwoofer
FREQUENCY RANGE
50Hz ~ 150Hz
FREQUENCY RESPONSE
55Hz ~ 150Hz
SENSITIVITY (1W 1M)
90dB (half space)
SPL
108dB @ 60W
IMPEDANCE
4Ω + 4Ω (stereo), 8Ω (mono) direct mode
AMPLIFIER POWER
100W + 100W direct input
POWER TAPS, 70V
7.5W, 15W, 30W, 60W (mono)
POWER TAPS, 100V
15W, 30W, 60W, NA (mono)
NOMINAL IMPEDANCE
4Ω + 4Ω (Stereo mode) 8Ω (Mono mode)
COLOURS
White/ Black
WALL/CEILING CUT-OUT
274 mm
DIMENSIONS (WxHxD)
300mm x 205mm (depth x dia)
NET WEIGHT
5.3kg
MOUNTING OPTIONS
Ceiling mount
NOTE: Due to continuous improvements, all specifications are subject to change
