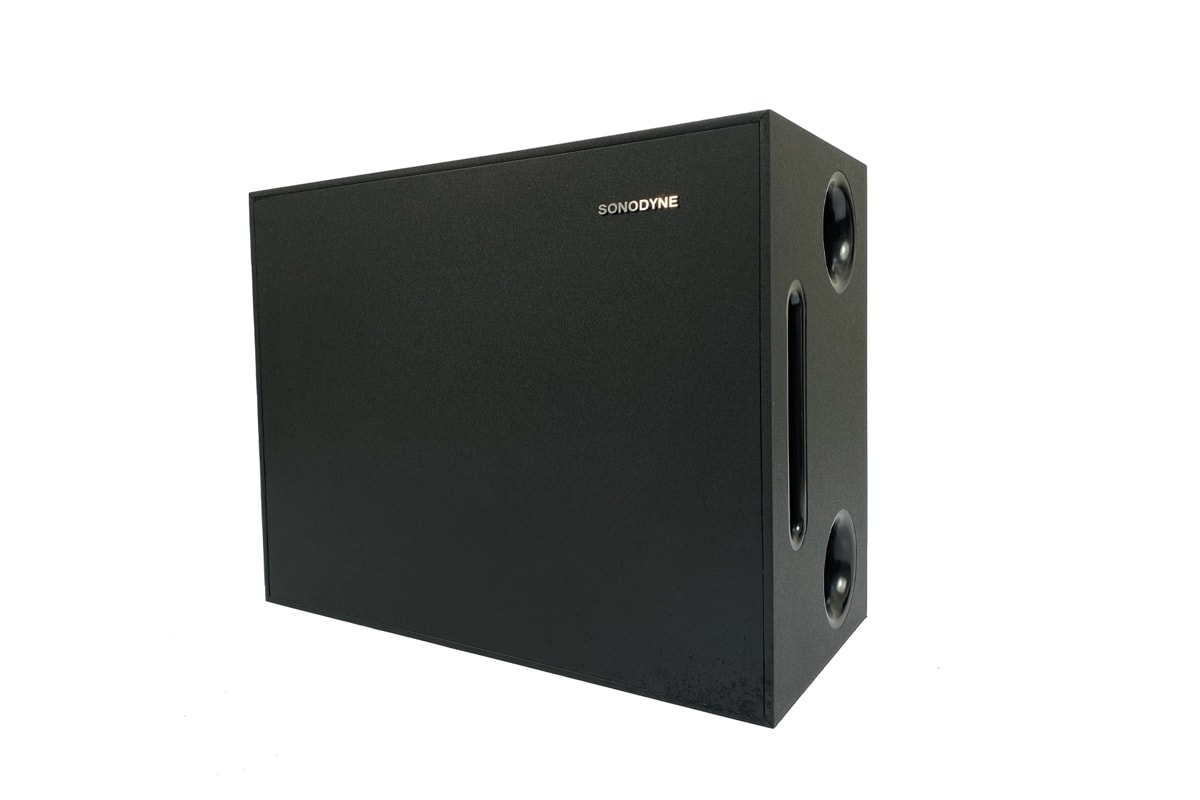

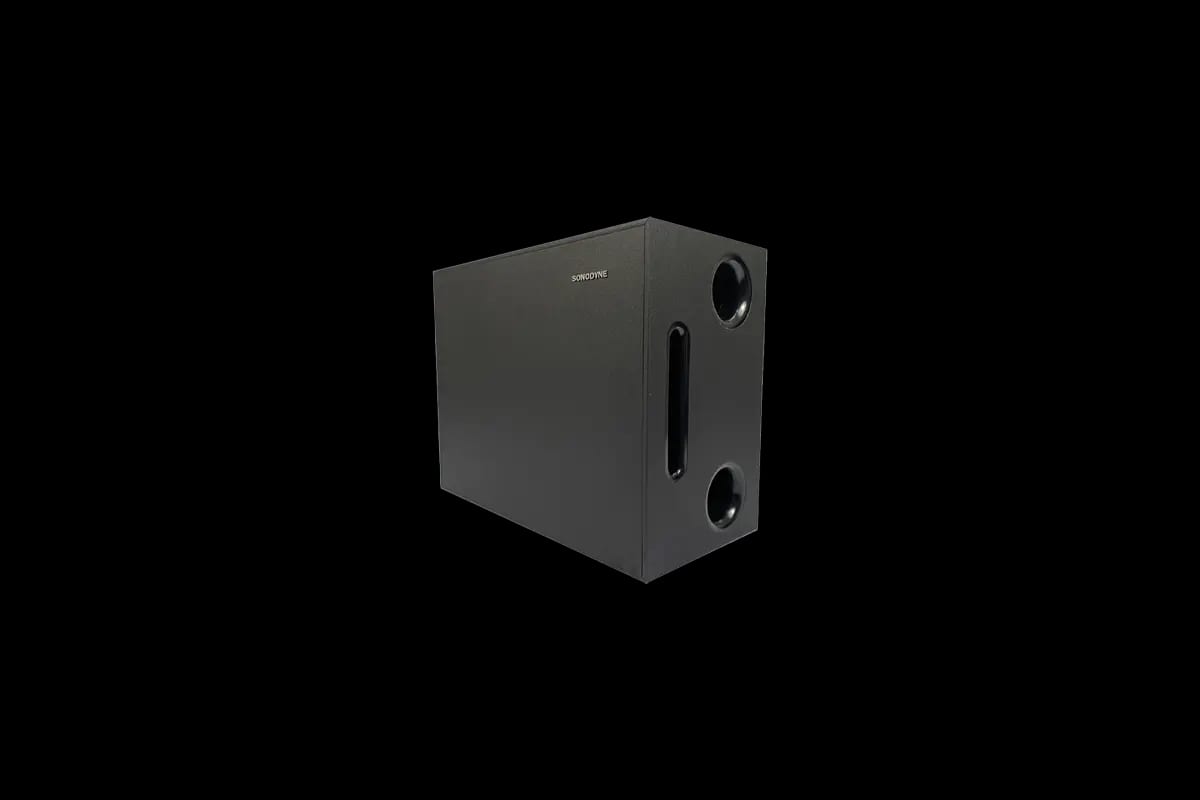

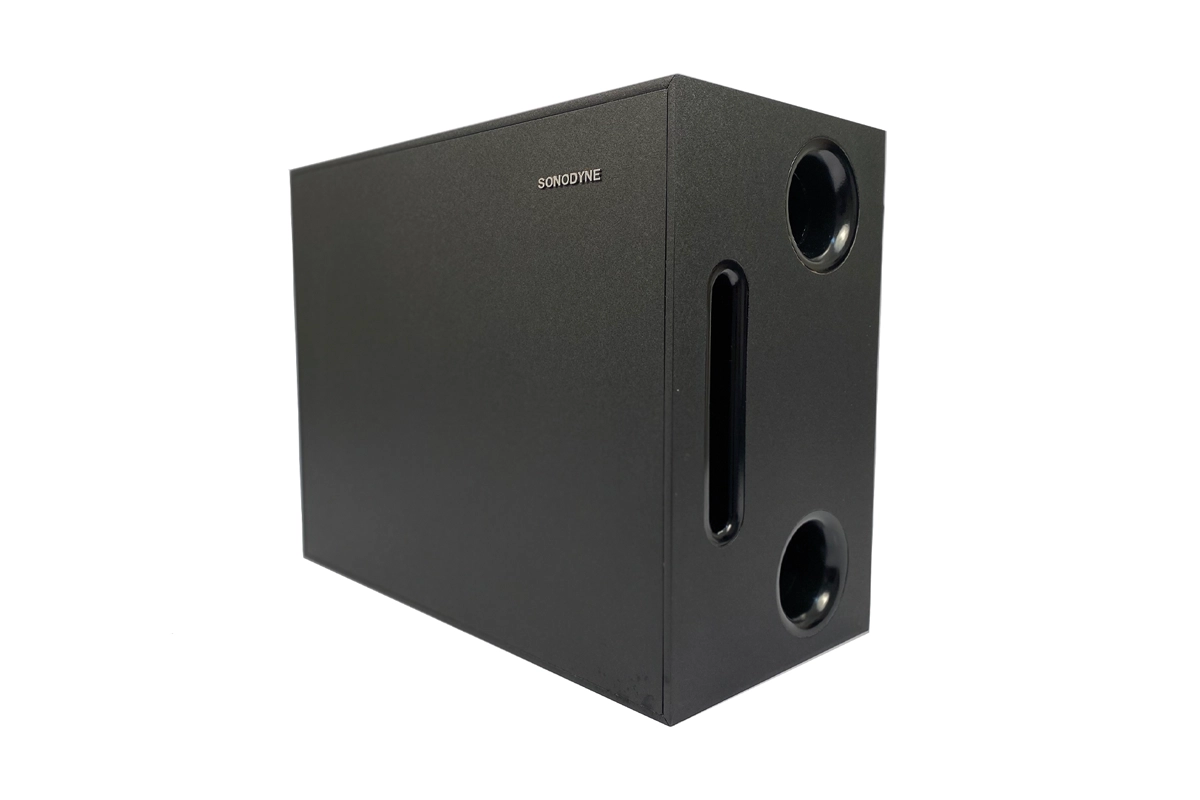

SSW 2020
on wall subwoofer
The SSW 2020 is a stereo passive subwoofer with both direct (4 Ohm) and 70/100V input, and a pair of high-pass outputs for satellite speakers.
Warranty
2 Years
Dimensions
225mm×480mm×370mm
Wall mounted subwoofer
In-built crossover for high pass to satellite speakers
Both stereo and mono modes
Both direct and LMT modes
Smooth, articulated response
Transducer with dual voice coil
DESIGN
Front firing subwoofer, vented
ENCLOSURE
MDF
TRANSDUCER COMPLEMENTS
1 x 8" dual voice-coil subwoofer
FREQUENCY RANGE
40Hz ~ 200Hz
FREQUENCY RESPONSE
45Hz ~ 200Hz
SENSITIVITY (1W 1M)
90dB (half space)
SPL
109dB @ 80W
IMPEDANCE
4Ω + 4Ω (stereo), 8Ω (mono) direct mode
AMPLIFIER POWER
150W + 150W direct input
POWER TAPS, 70V
10W, 20W, 40W
POWER TAPS, 100V
20W, 40W, 80W
IMPEDANCE 70V
490, 245, 122Ω
IMPEDANCE 100V
666, 500, 250, 125Ω
DIMENSIONS (WxHxD)
480mm x 370mm x 225mm
COLOURS
White/ Black
MOUNTING OPTIONS
Wall-mounting brackets
NET WEIGHT
15.5kg
NOTE: Due to continuous improvements, all specifications are subject to change
