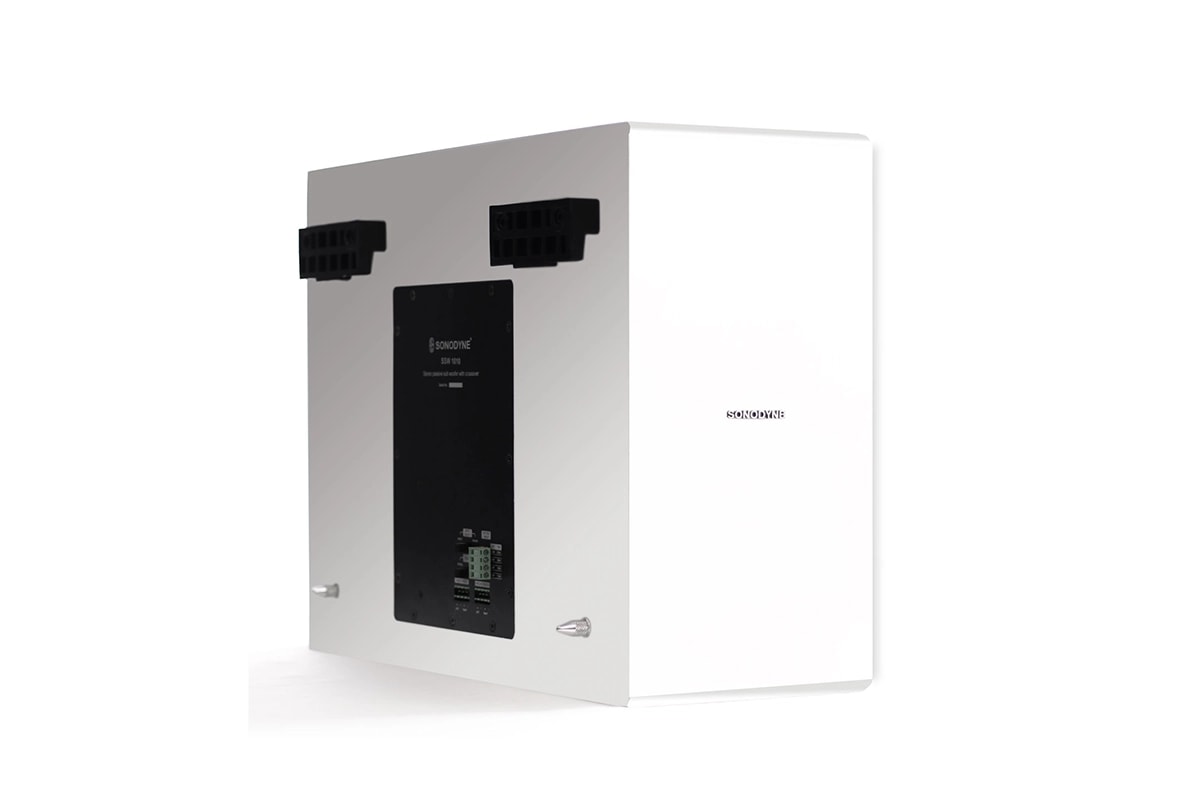

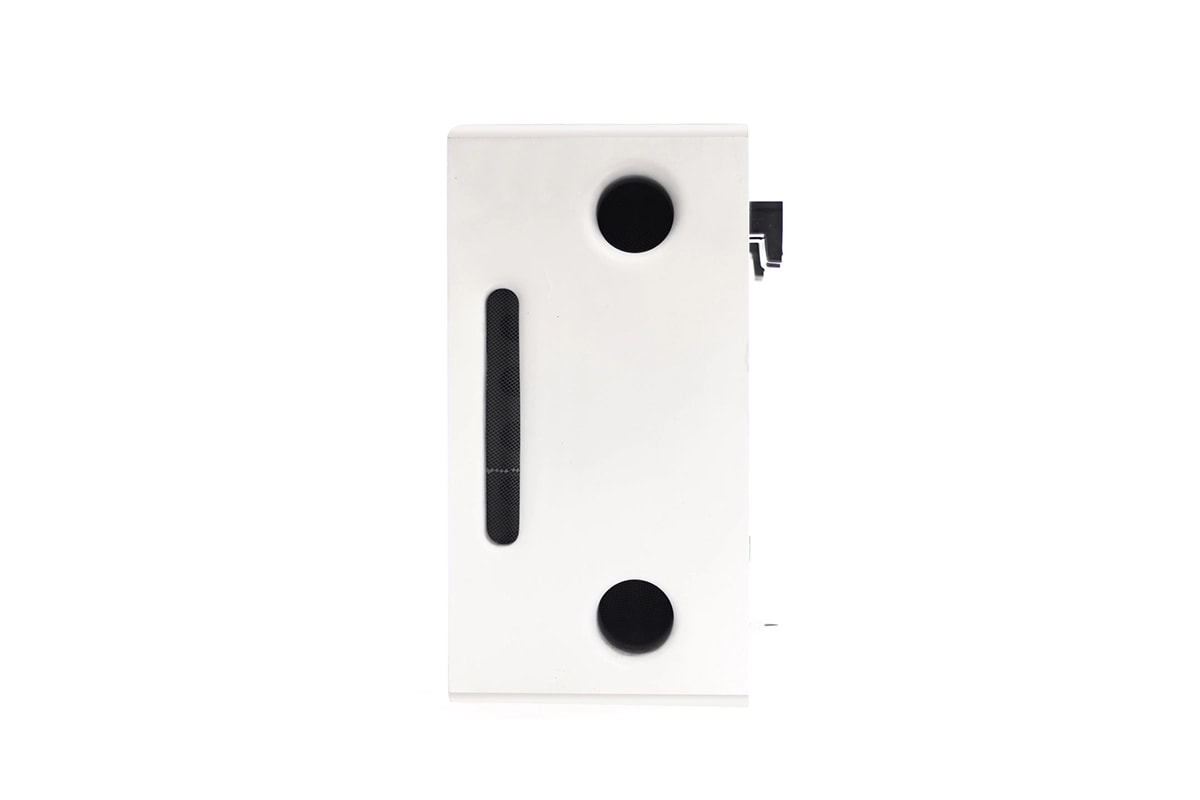

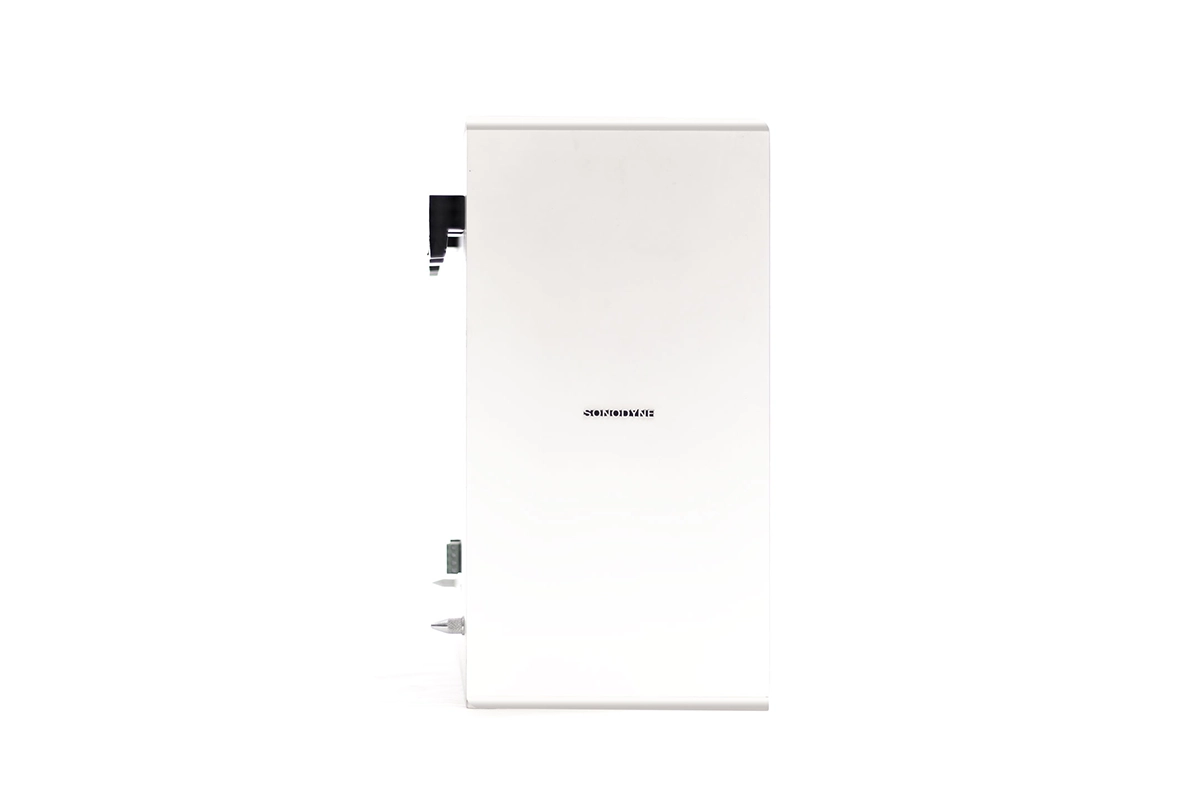

SSW 2010
on wall subwoofer
The SSW 2010 is a high performance on wall subwoofer with operations in both mono and stereo mode. With inbuilt HPF, it can be operated in 100 volt or 4 Ohm mode.
Warranty
2 Years
Dimensions
180mm×450mm×350mm
Wall mounted subwoofer
In-built crossover for high pass to satellite speakers
Both stereo and mono modes
Both direct and LMT modes
Smooth, articulated response
Transducer with dual voice coil
DESIGN
Side firing subwoofer, vented
ENCLOSURE
MDF
TRANSDUCER COMPLEMENTS
1 x 6" dual voice-coil subwoofer
FREQUENCY RANGE
45Hz ~ 200Hz
FREQUENCY RESPONSE
50Hz ~ 200Hz
SENSITIVITY (1W 1M)
88dB (half space)
SPL
105dB @ 60W
IMPEDANCE
4Ω + 4Ω (stereo), 8Ω (mono)
AMPLIFIER POWER
100W + 100W direct input
POWER TAPS, 70V
7.5W, 15W, 30W
POWER TAPS, 100V
15W, 30W, 60W
IMPEDANCE 70V
653, 327, 163Ω
IMPEDANCE 100V
666, 333, 167Ω
DIMENSIONS (WxHxD)
450mm x 350mm x 180mm
COLOURS
White/ Black
MOUNTING OPTIONS
Wall-mounting brackets
NET WEIGHT
12.2kg
NOTE: Due to continuous improvements, all specifications are subject to change
