SOW 6140
SOW 6140
SOW 6140
SOW 6140
SOW 6140
SOW 6140

SOW 6140

wall mount speaker

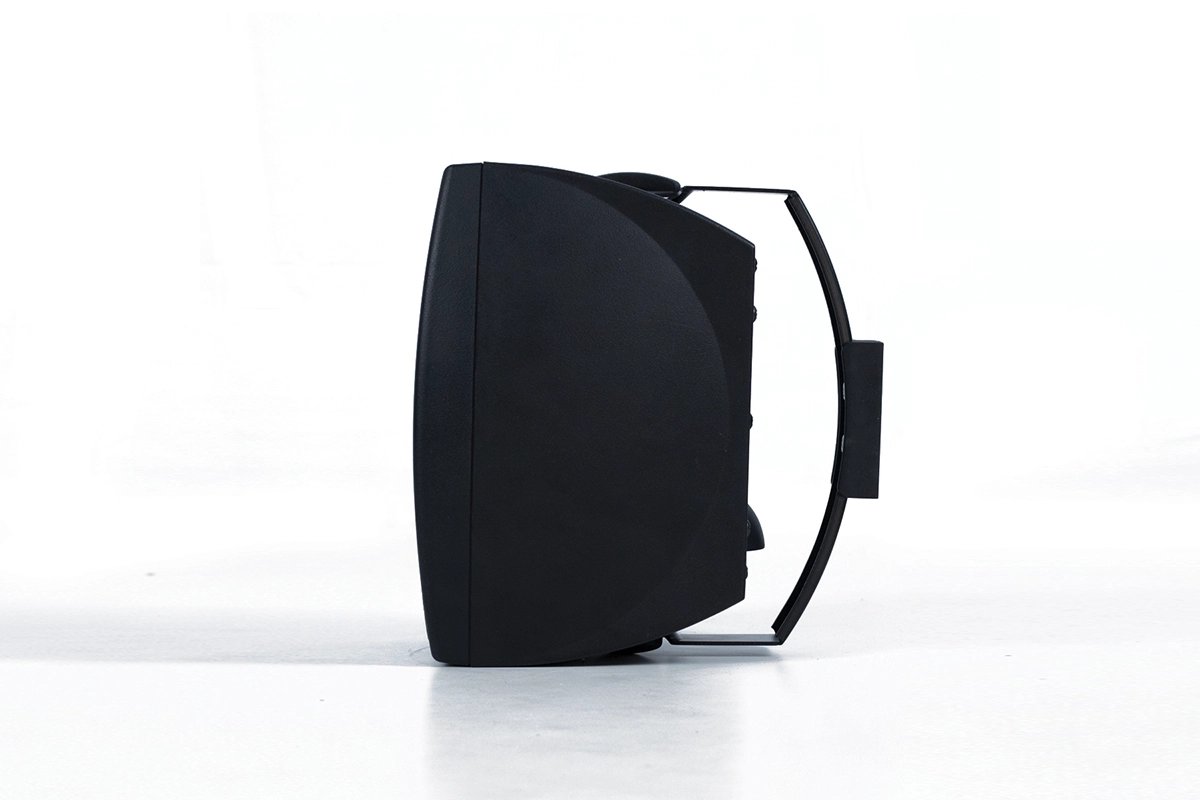

The SOW 6140 is a compact passive 2-way wall-mount speaker featuring a 4-inch low-frequency driver and a 1-inch dome tweeter. It includes a dedicated pan-and-tilt wall bracket for flexible positioning.

Warranty

2 Years

Dimensions

131mm×136mm×196mm

  • 2-way speaker with 4-inch LF driver and 1-inch HF driver

  • Compact and sturdy enclosure

  • Balanced frequency response for warmth, detail and clarity

  • Direct 8-ohm and 100V/70V inputs with multiple power taps

  • Weatherised IP65 construction for outdoor use

  • Powder-coated aluminium grille

  • Powder-coated aluminium mounting bracket

  • Horizontal and vertical tilt adjustment

  • Available in white and black

DESCRIPTION
Wall mount speaker
SYSTEM
Passive 2 way bass reflex
TRANSDUCER COMPLEMENTS
HF 1 x 1" dome tweeter, LF 1 x 4" woofer
FREQUENCY RESPONSE
90Hz ~ 20kHz, ± 6dB
POWER HANDLING DIRECT MODE
40W
POWER TAPS, 100V
2.5W, 5W, 10W, 20W
POWER TAPS, 70V
1.25W, 2.5W, 5W, 10W
NOMINAL IMPEDANCE
8Ω
SENSITIVITY (1W 1M)
86dB (half space)
MAX SPL DIRECT MODE
102dB

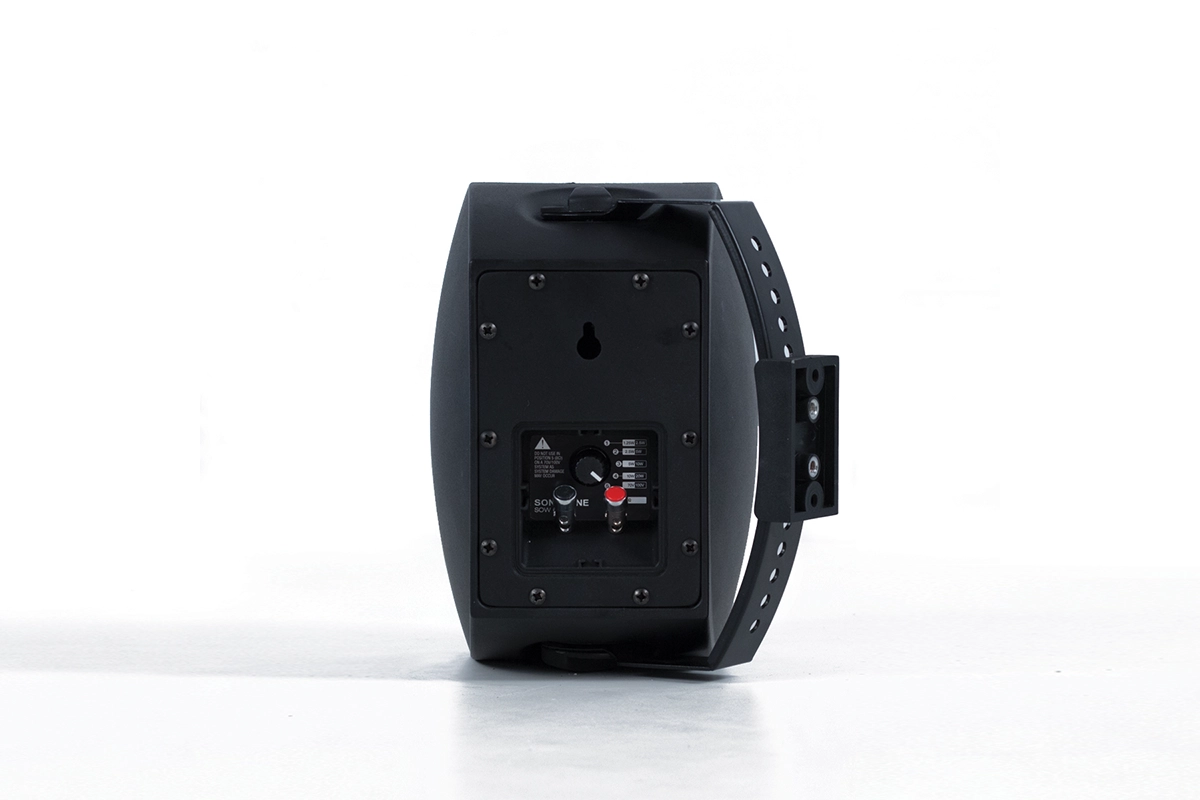

INPUT
Push type terminal, colour coded
IP RATING
IP65
GRILL
Aluminium mesh powder coated
ENCLOSURE
Polypropylene
COLOURS
White/ Black
DIMENSIONS (WxHxD)
136mm x 196mm x 131mm
NET WEIGHT
1.7kg

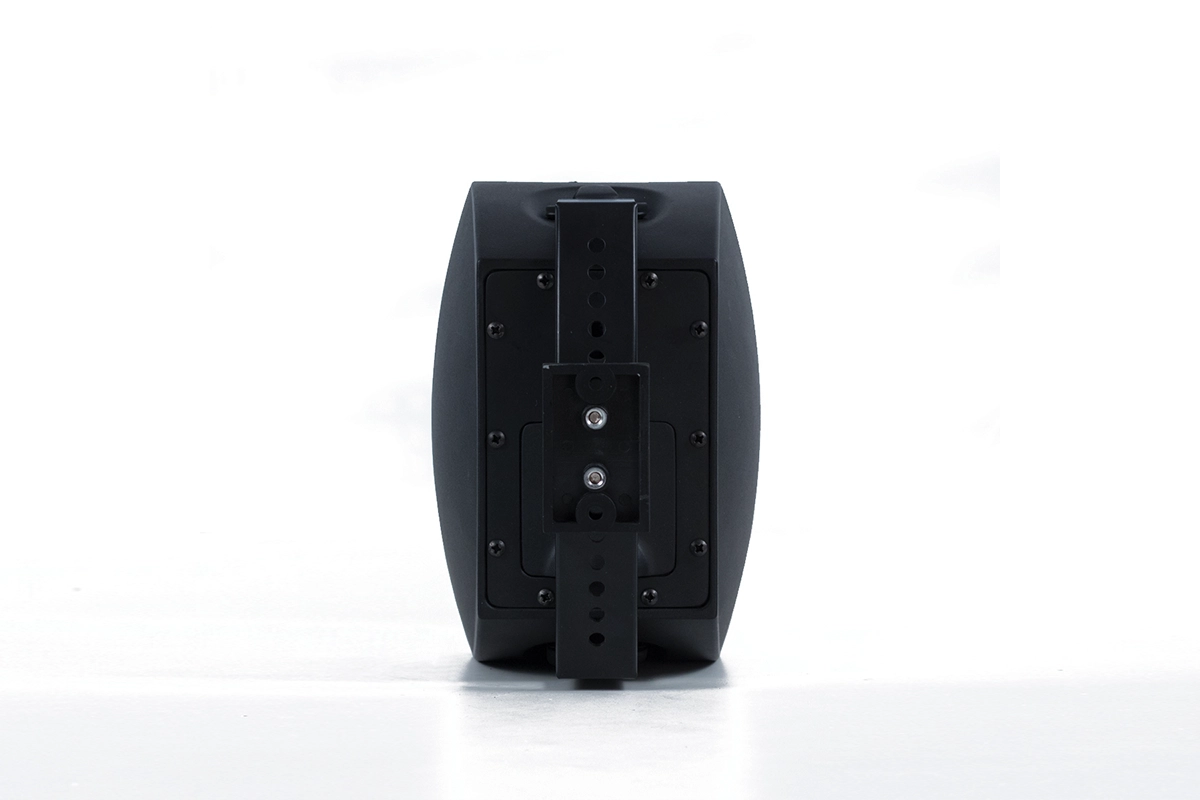

MOUNTING OPTIONS
Pan and tilt wall-mounting bracket

NOTE: Due to continuous improvements, all specifications are subject to change
