2 way passive speaker for indoor and outdoor usage

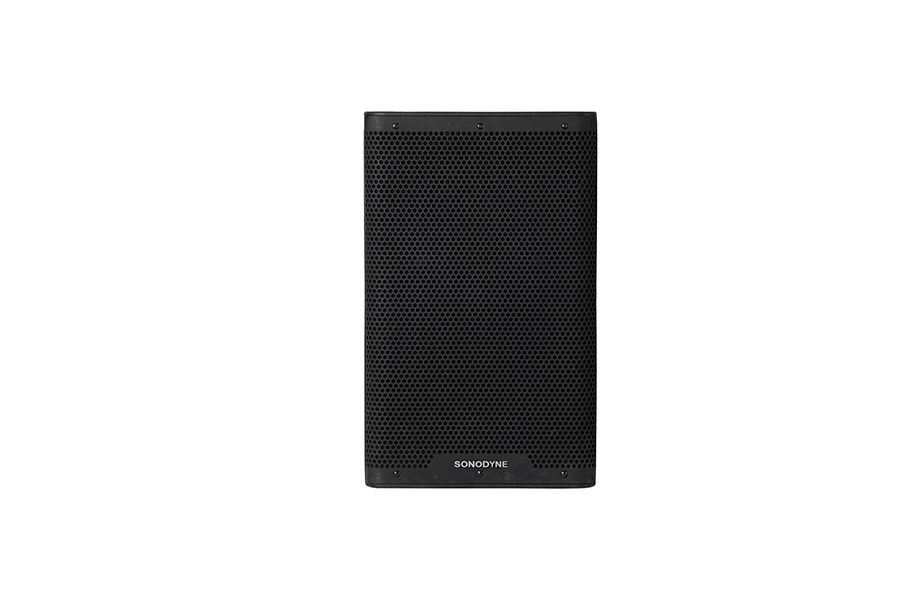

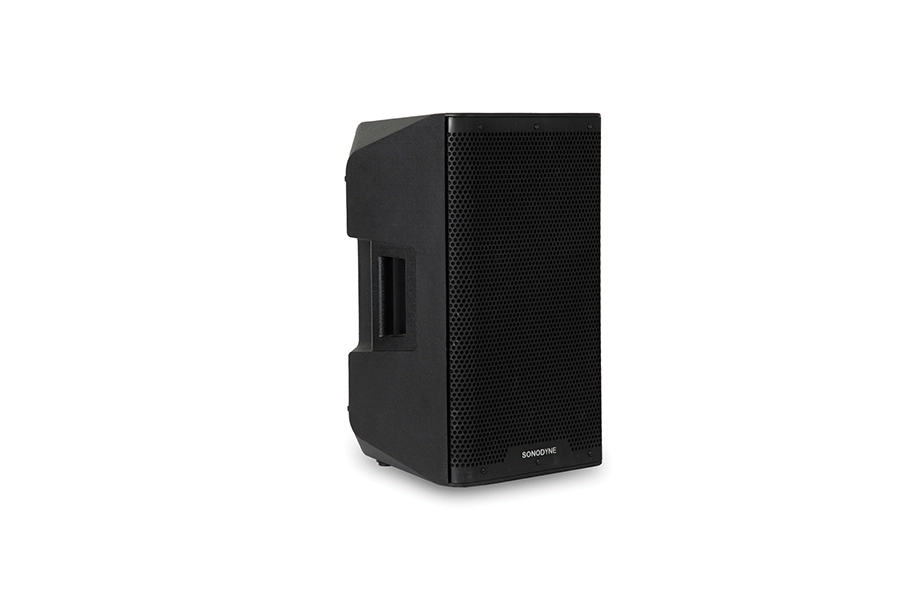

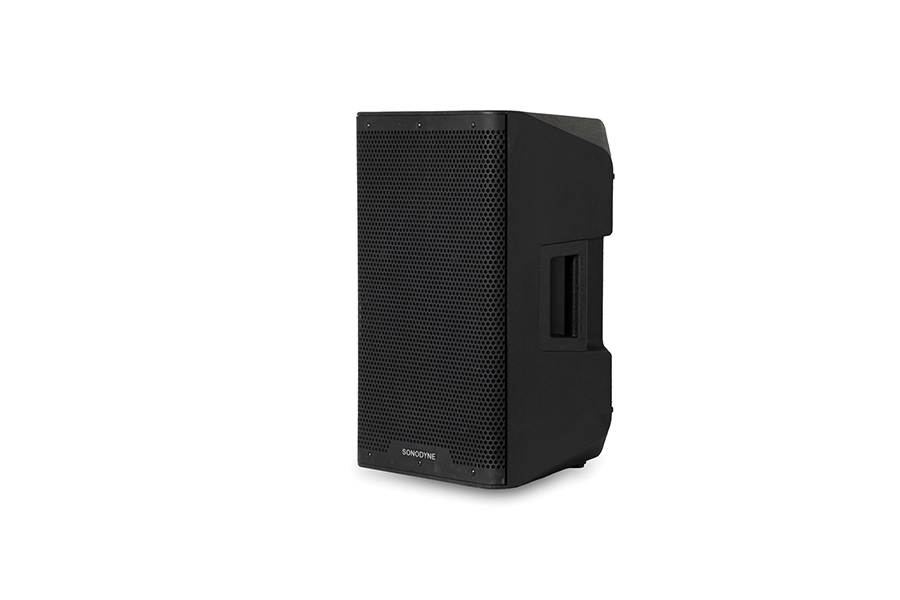

SPA 1310 is a two way passive speaker with 10” LF and throat compression driver which can be used indoors and outdoors; detailed specifications are given below

Warranty

2 Years

Dimensions

365mm ×370mm ×576mm

  • High performance 2 way speaker with 10" woofer, 1.35" HF compression driver

  • Smooth, wide frequency response

  • With direct and LMT inputs. ideal for installation, indoor and outdoors

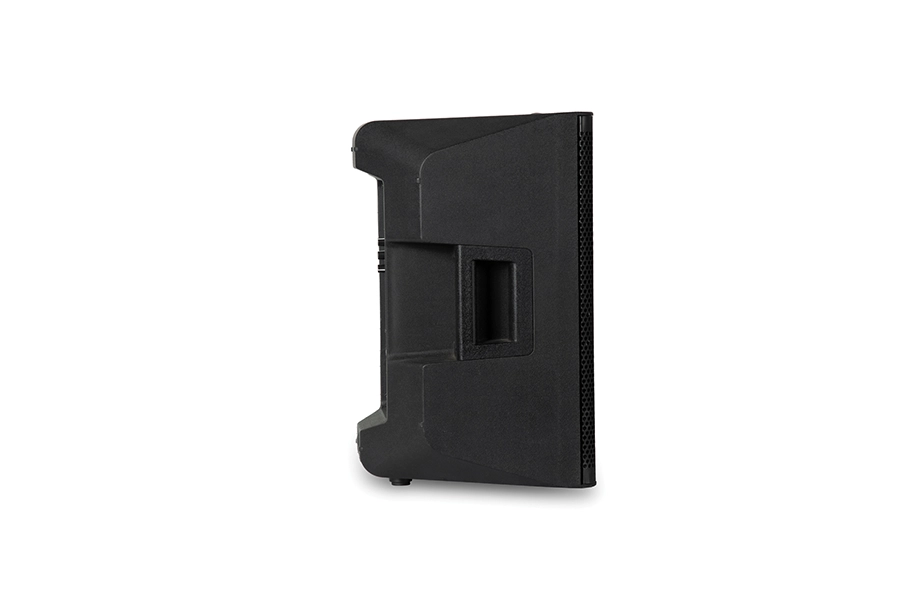

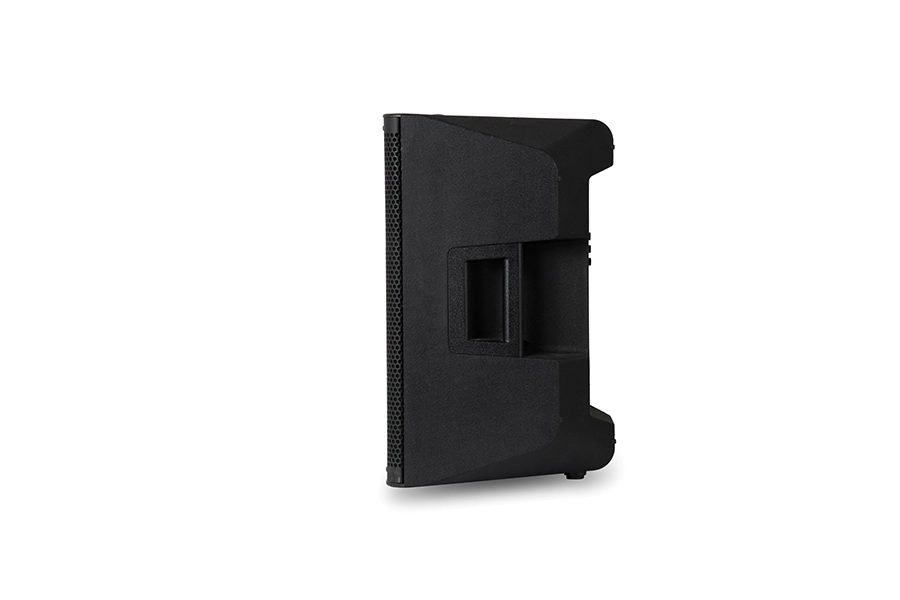

  • Rigid PP enclosure fitted with handles for lifting

  • Can be flown - 6 inserts provided for same

  • Wedge type shape allows use as stage monitor

  • Integrated pole mount for stands and brackets

  • Weatherised to meet IP 44 standards

DESCRIPTION
Passive 2 way speaker system, weatherised
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.35" VC LF: 1 x 10" woofer, 2.5" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
55Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
65Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 120dB; Peak: 126dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 300W Program: 600W Peak: 1200W
CROSSOVER FREQUENCY
2.0kHz
POWER TAPS, 100V
150W, 75W, 37.5W, 18.8W
POWER TAPS, 70V
75W, 37.5W, 18.8W, 9.4W

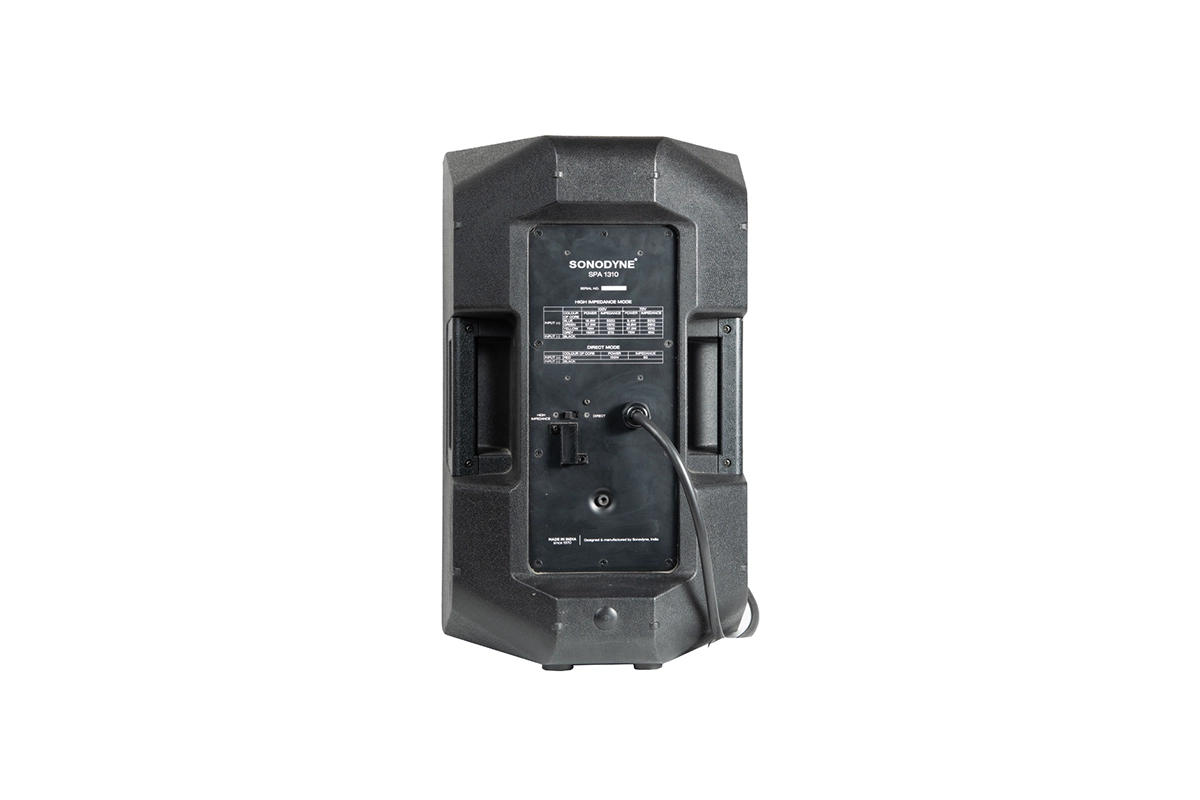

INPUT
Twist- lock connector
IP RATING
IP44
MOUNTING OPTIONS

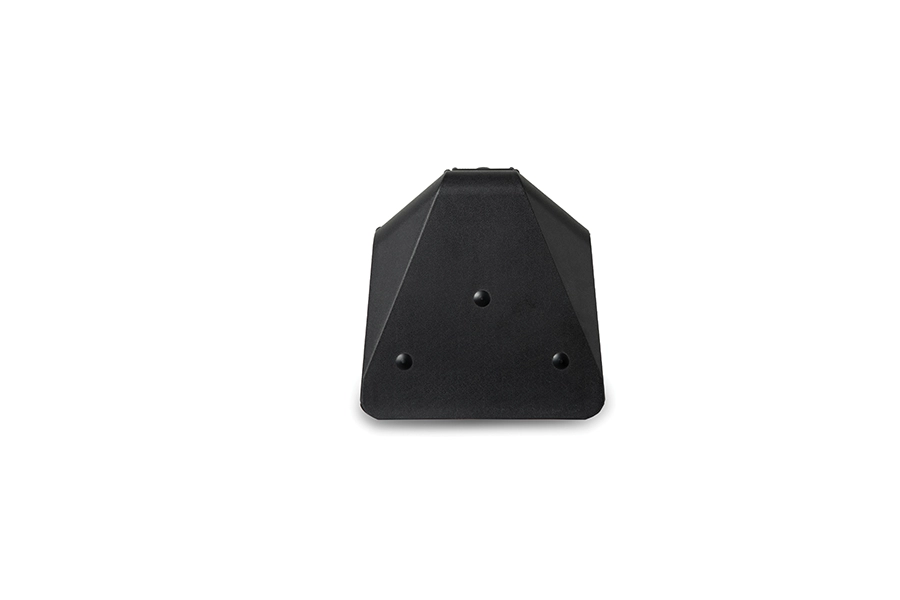

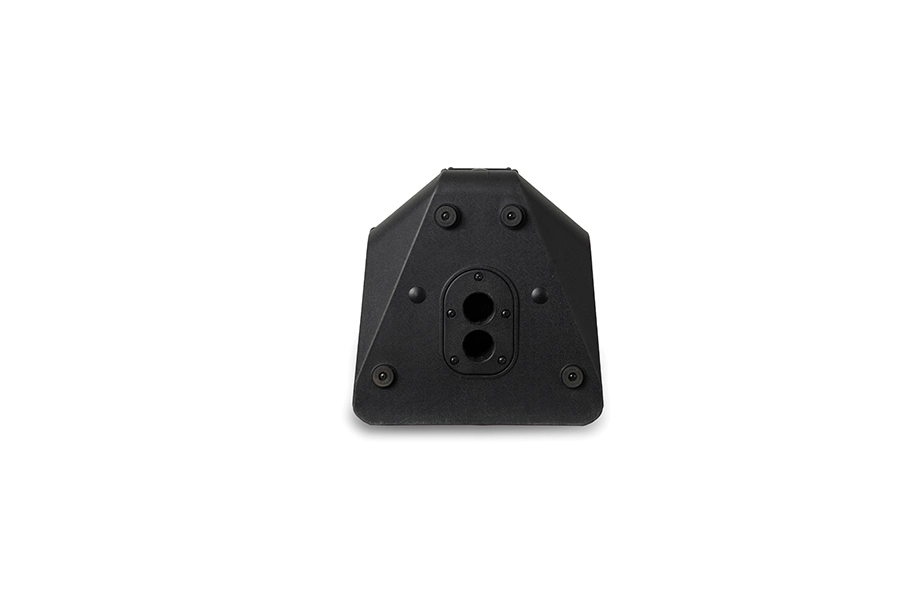

3 x M8 inserts on top,2 x M8 inserts on bottom and 1 x M8 insert at back, for flying Twin 35 mm pole mounting 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
305mm x 500mm x 310mm
NET WEIGHT
11.1kg

NOTE: Due to continuous improvements, all specifications are subject to change
