Home > Professional > Installed Sound > Speakers > Horns > SH15

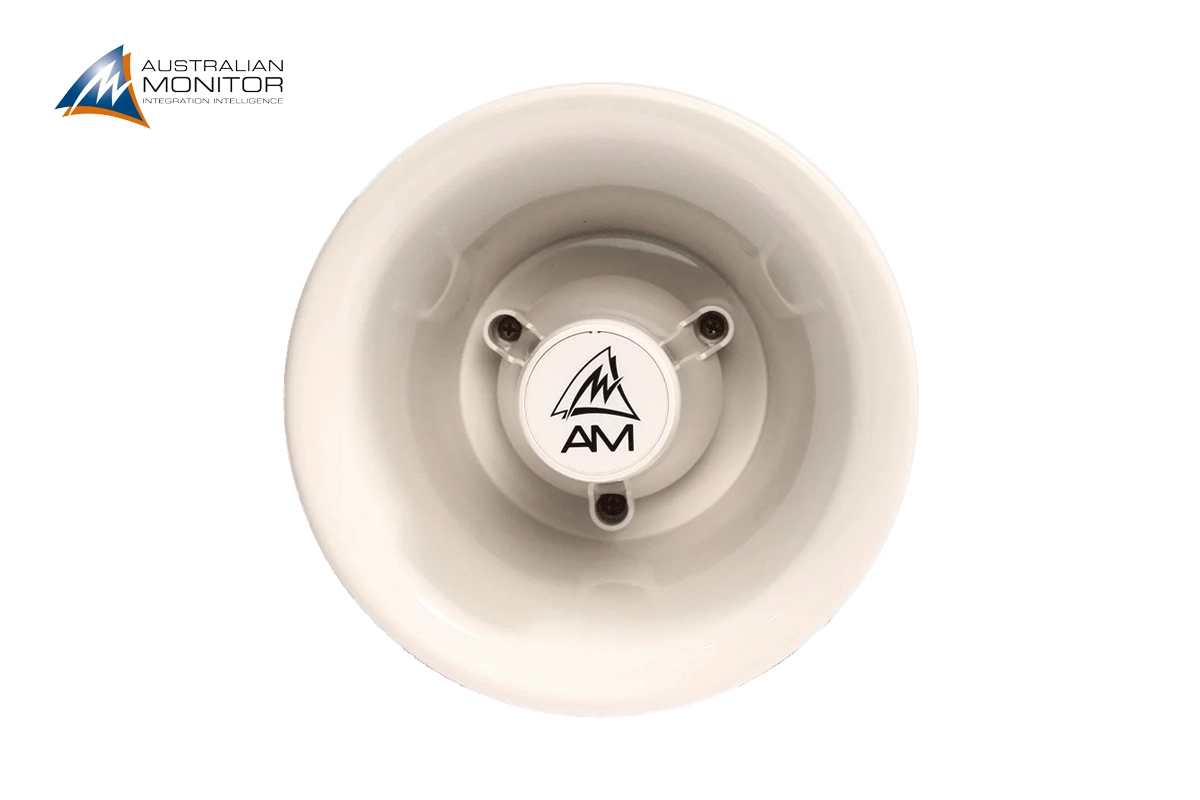

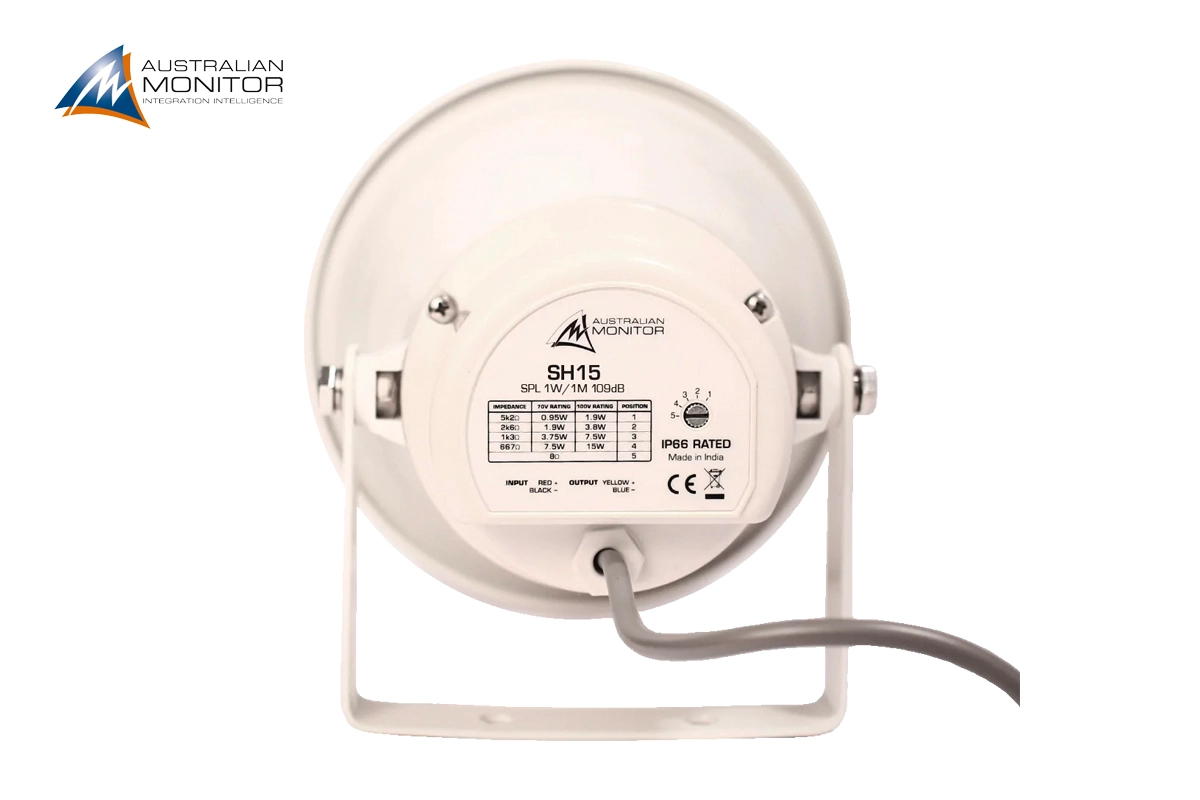

SH15
Horn, 15W, IP66 Rated
The Australian Monitor SH15 horn is both constant voltage and low impedance, designed for paging and background music systems requiring vocal clarity and sound projection.
Warranty
2 Years
Diameter
205mm
15 watts power rating RMS
Power taps 15, 7.5, 3.8, 1.9W and 8 ohm
Frequency response 350Hz-9.5kHz
109 dB sensitivity (1W/1M)
Aluminium flare and ABS housing
Includes capacitor for EVAC purposes
1.6kg
DESCRIPTION
Horn Speaker
TRANSDUCER COMPLEMENTS
34mm driver diameter
FREQUENCY RESPONSE
350Hz ~ 9.5kHz (-3dB)
MAX POWER
CONTINUOUS 15W, PROGRAM 30W, PEAK 60W
SPL, 1W 1M
109dB
MAX SPL
RMS 121dB, PEAK 124dB
POWER TAPS
15W, 5W, 7.5W, 3.75W, 1.87W - 8Ω
IP RATING
IP66
COLOURS
White
DIMENSIONS (WxHxD)
205mm x 250m x 230mm
NET WEIGHT
1.6kg
NOTE: Due to continuous improvements, all specifications are subject to change
