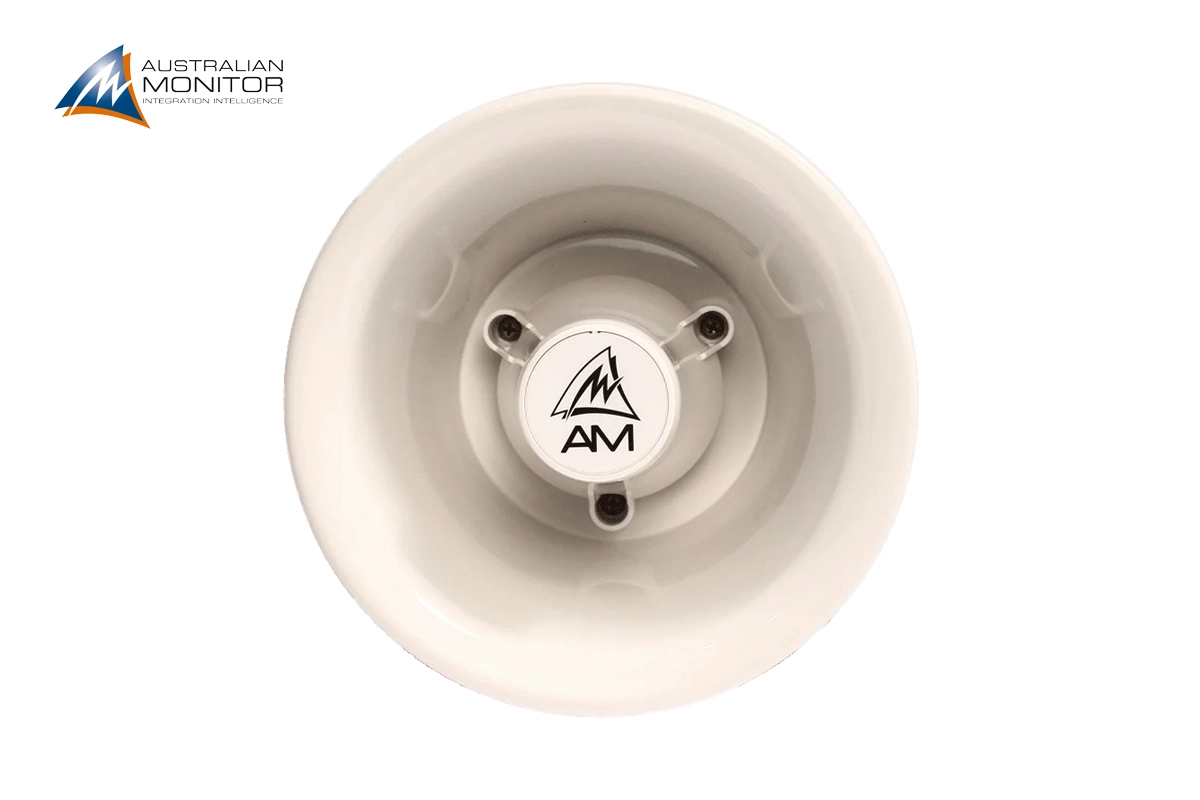

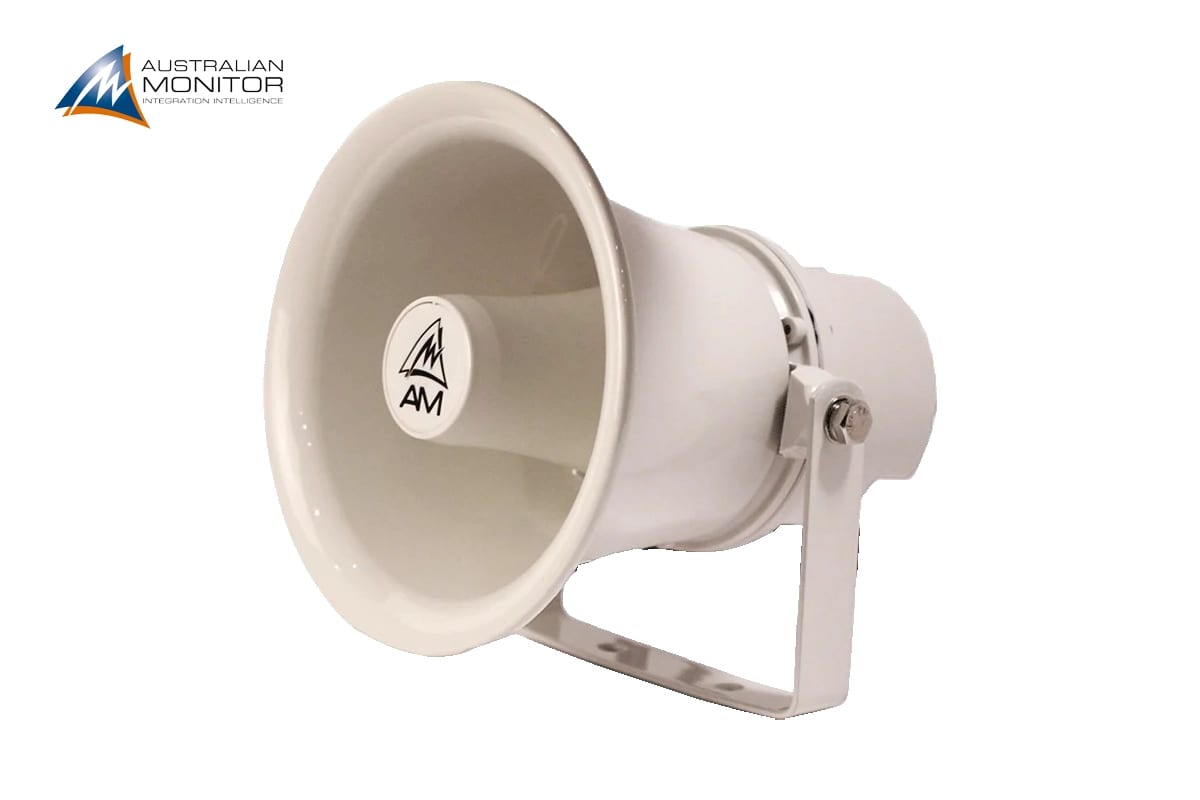

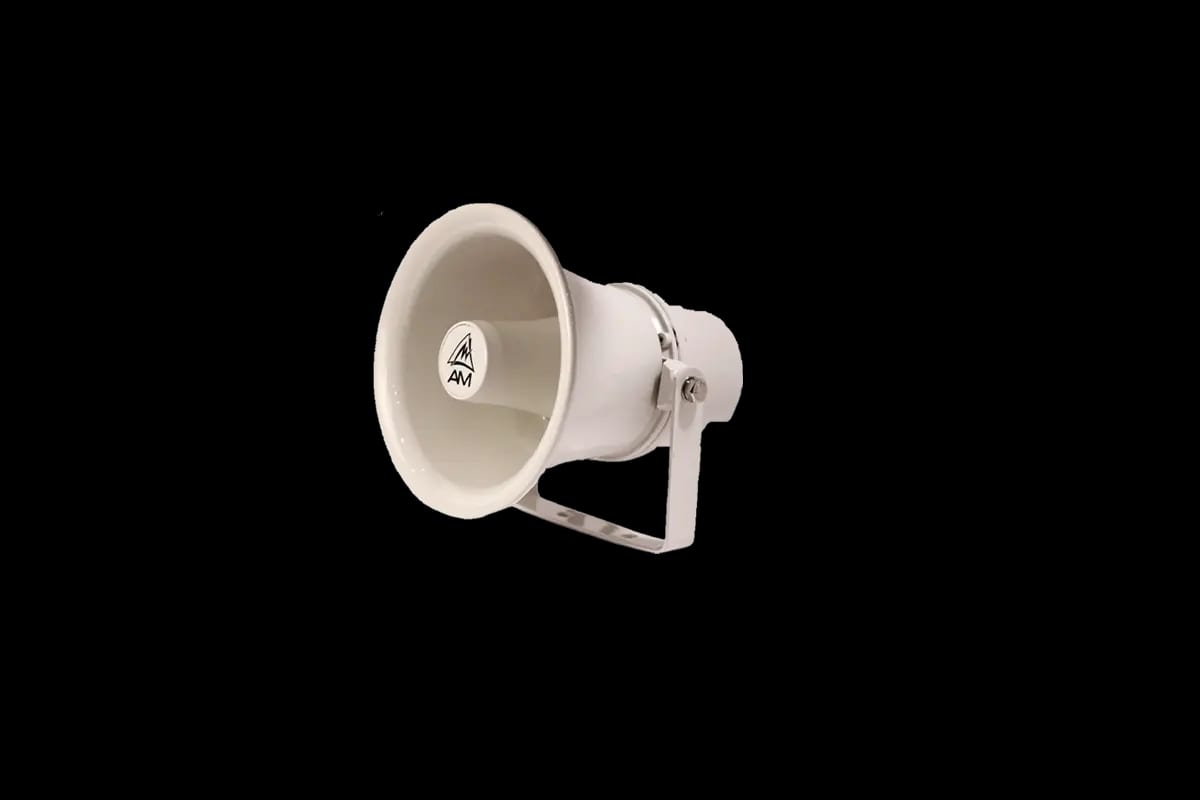

SH10
Horn, 10W, IP66 Rated
The Australian Monitor SH10 horn is both constant voltage and low impedance, designed for paging and background music systems requiring vocal clarity and sound projection.
Warranty
2 Years
Diameter
177mm
• 10 watts power rating RMS
• Power taps 10, 5, 2.5, 1.25W and 8 ohm
• Frequency response 350Hz-9.5kHz
• 107 dB sensitivity (1W/1M)
• Aluminium flare and ABS housing
• Includes capacitor for EVAC purposes
• 1.4kg
DESCRIPTION
Horn Speaker
TRANSDUCER COMPLEMENTS
34mm driver diameter
FREQUENCY RESPONSE
350Hz ~ 9.5kHz (-3dB)
MAX POWER
CONTINUOUS 10W, PROGRAM 20W, PEAK 40W
SPL, 1W 1M
107dB
MAX SPL
RMS 117dB, PEAK 123dB

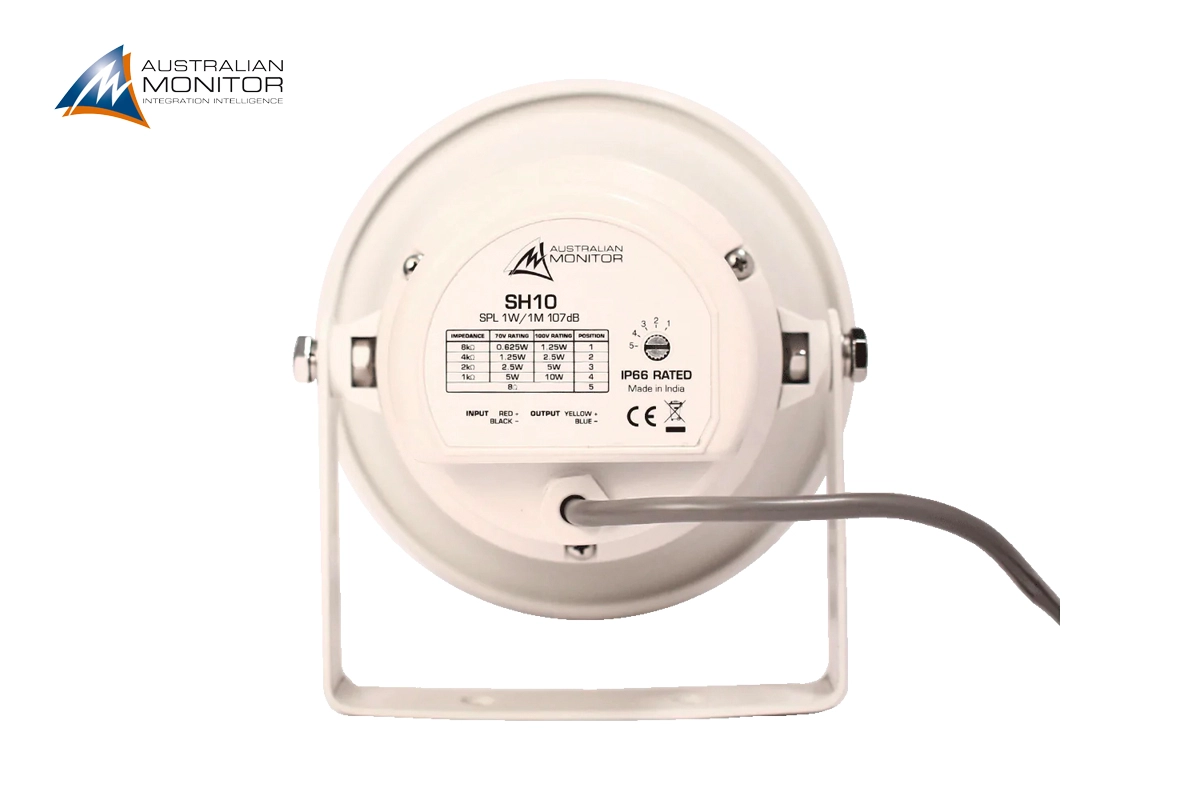

POWER TAPS
10W, 5W, 2.5W, 1.25W - 8Ω
IP RATING
IP66
COLOURS
White
DIMENSIONS (WxHxD)
177mm x 215m x 196mm
NET WEIGHT
1.4kg
NOTE: Due to continuous improvements, all specifications are subject to change
