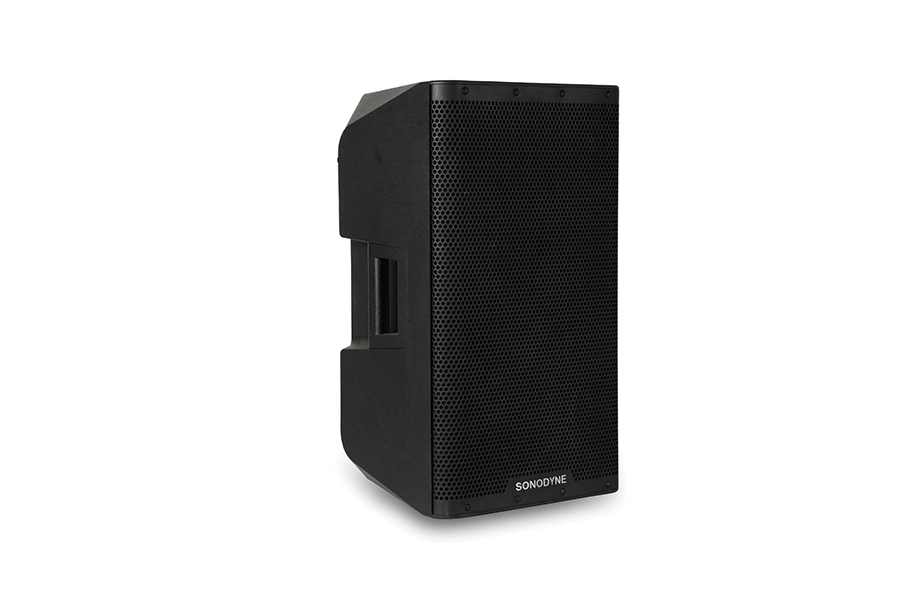

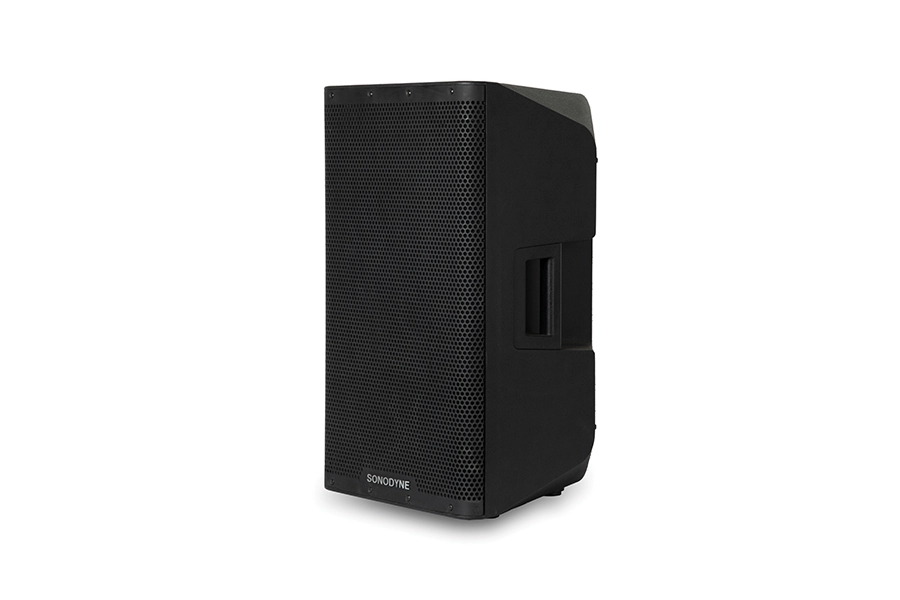

SPA 1112
2 way passive speaker
SPA 1112 is a two way passive speaker with 12” LF and horn loaded compression driver; detailed specifications are given below
Warranty
2 Years
Dimensions
415mm × 410mm ×682mm
High performance 2 way speaker with 12" woofer, 1.75" HF compression driver
Smooth, wide frequency response
Ideal for mains, fills, or monitors
High sensitivity, 128dB maximum SPL
Portable and Rigid PP enclosure
Integrated pole mount for stands and brackets
5 x M8 inserts for installation
DESCRIPTION
2 way passive speaker with 12” LF and horn loaded compression driver
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.75" VC LF: 1 x 12" woofer, 2.5" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
50Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
60Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 122dB; Peak: 128dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 400W Program: 800W Peak: 1600W
CROSSOVER FREQUENCY
1.5kHz
SENSITIVITY (1W 1M)
96dB
NOMINAL IMPEDANCE
8Ω

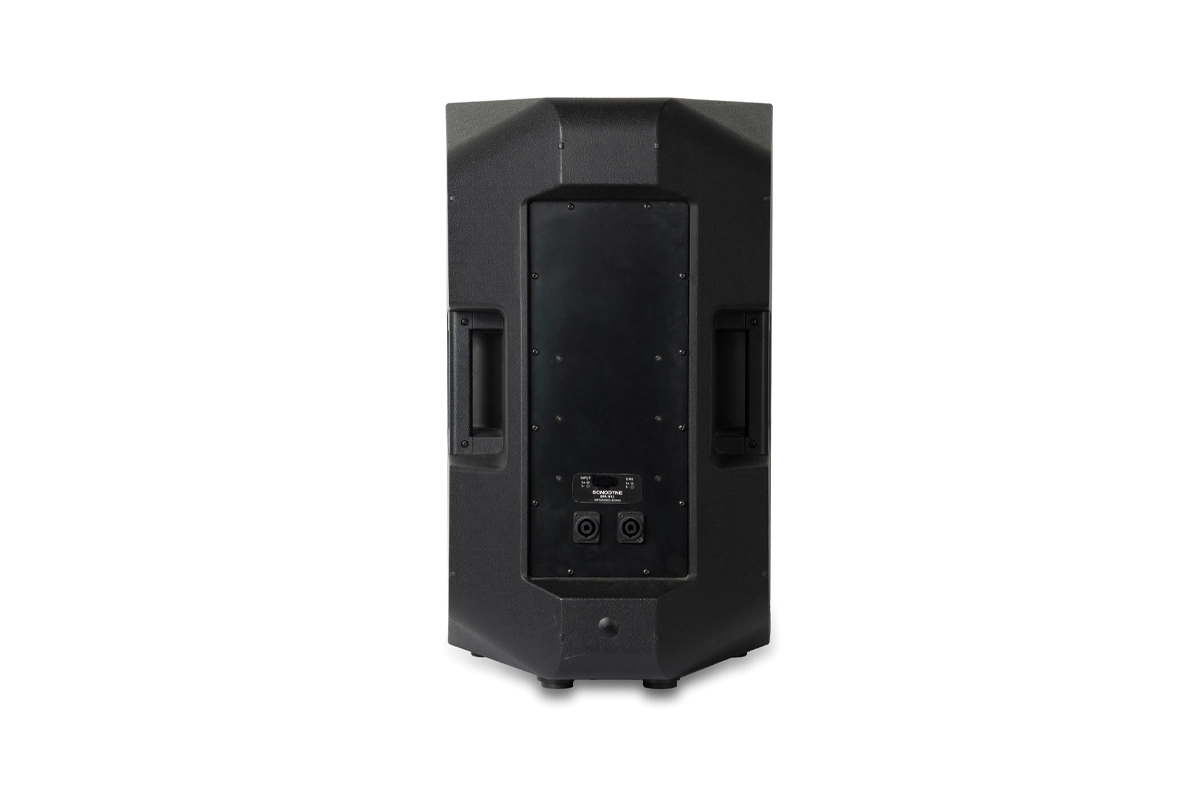

INPUT
Twist- lock connector
MOUNTING OPTIONS
3 x M8 inserts on top, 2 x M8 inserts on bottom and 1 x M8 insert at back, for flying; Twin 35 mm pole mounting; 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
360mm x 610mm x 350mm
NET WEIGHT
14.9kg
NOTE: Due to continuous improvements, all specifications are subject to change
