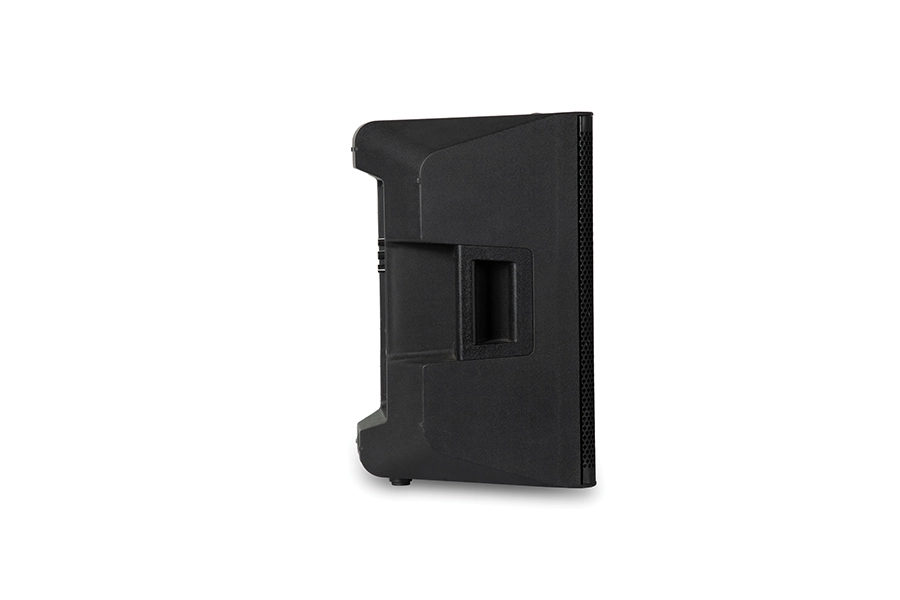

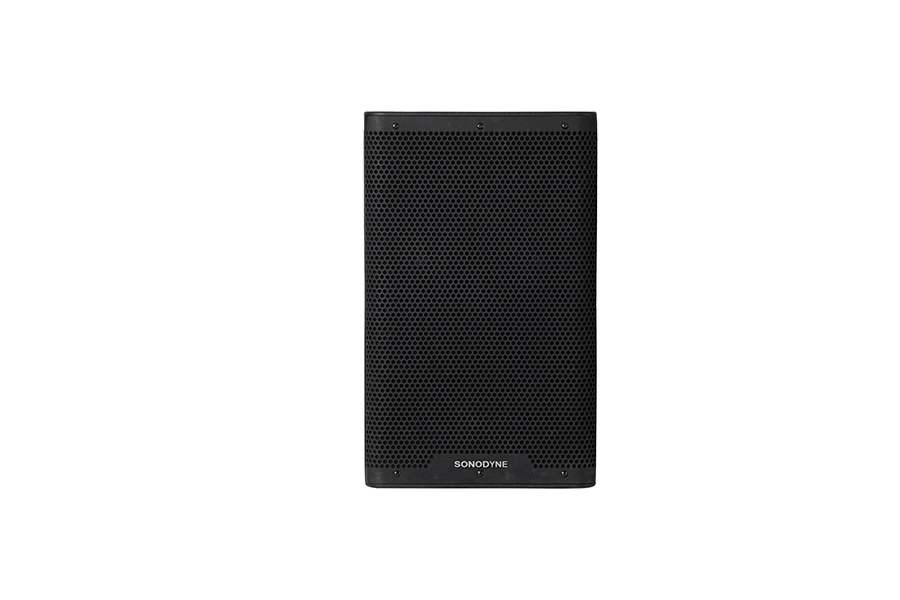

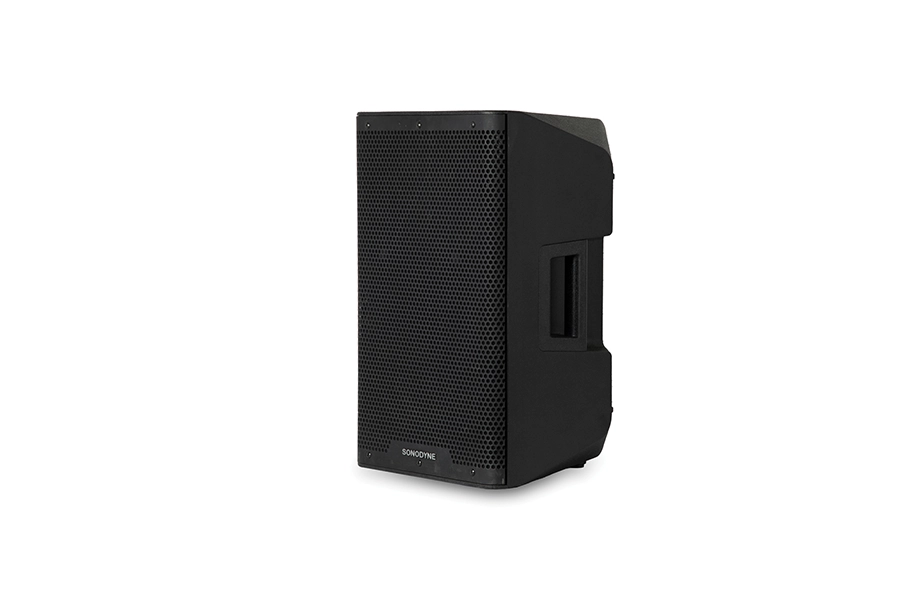

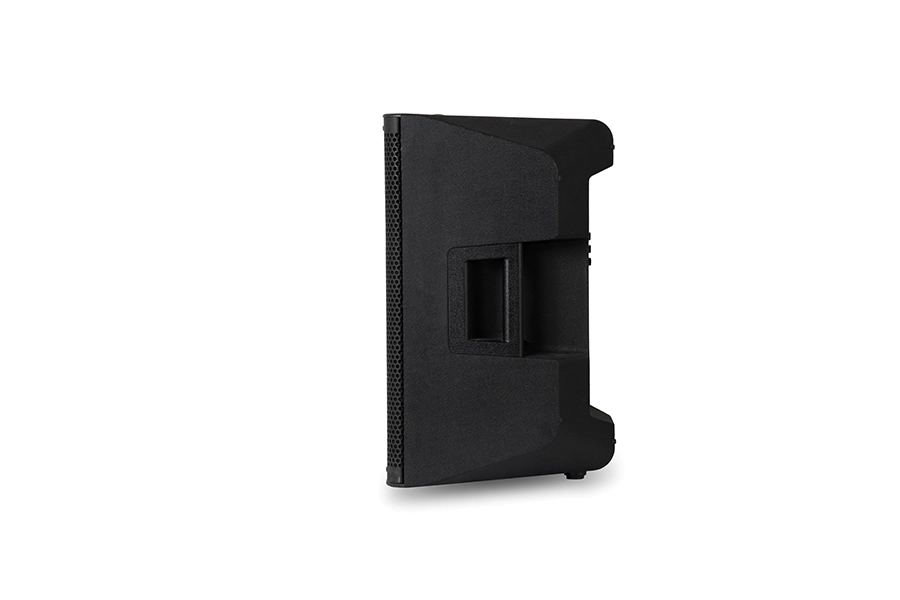

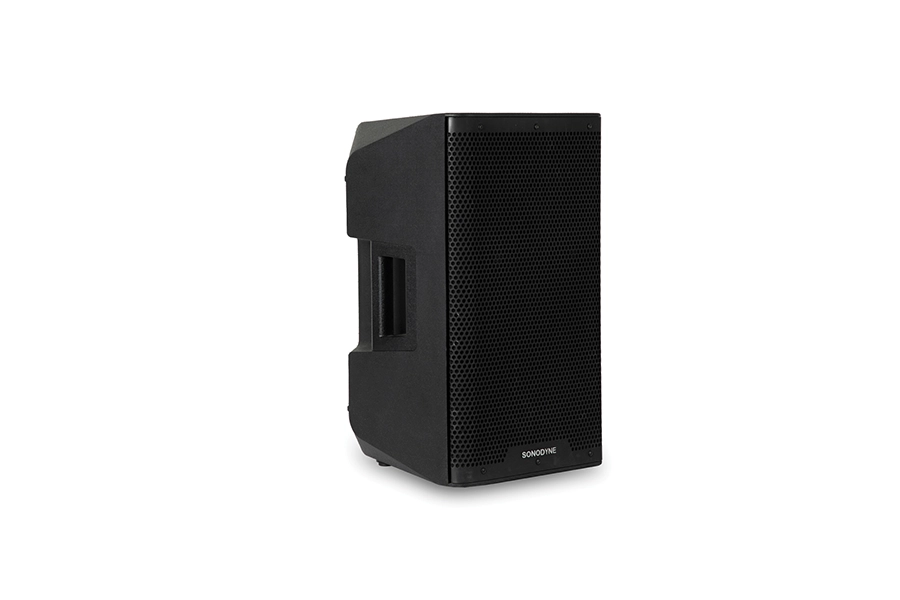

SPA 1110
2 way passive speaker
SPA 1110 is a two way passive speaker with 10” LF and horn loaded compression driver; detailed specifications are given below
Warranty
2 Years
Dimensions
365mm ×370mm ×576mm
High performance 2 way speaker with 10" woofer, 1.35" HF compression driver
Smooth, wide frequency response
Ideal for mains, fills, or monitors
High sensitivity, 126dB maximum SPL
Portable and Rigid PP enclosure
Integrated pole mount for stands and brackets
5 x M8 inserts for installation
DESCRIPTION
2 way passive speaker with 10” LF and horn loaded compression driver
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.35" VC LF: 1 x 10" woofer, 2.5" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
55Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
65Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 120dB; Peak: 126dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 300W Program: 600W Peak: 1200W
SENSITIVITY (1W 1M)
95dB
CROSSOVER FREQUENCY
2.0kHz
NOMINAL IMPEDANCE
8Ω
INPUT

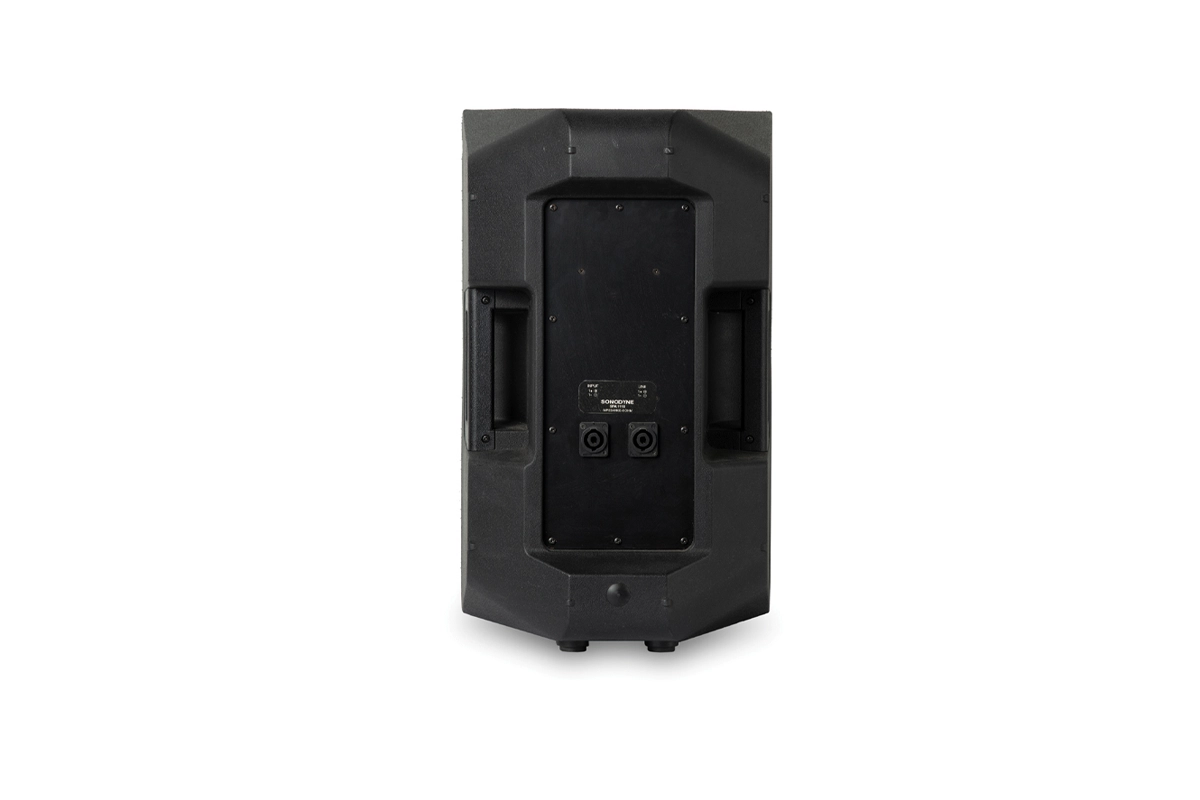

Twist- lock connector
MOUNTING OPTIONS

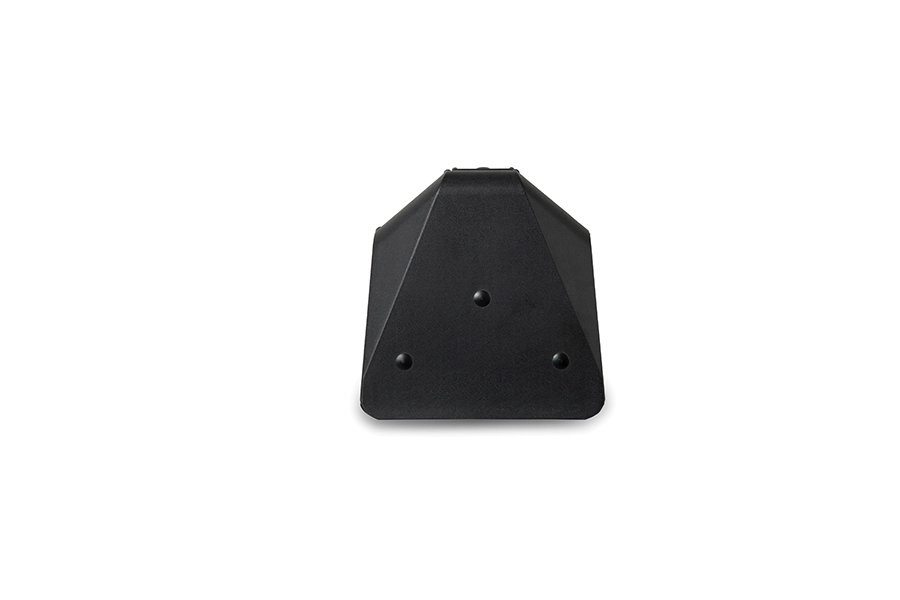

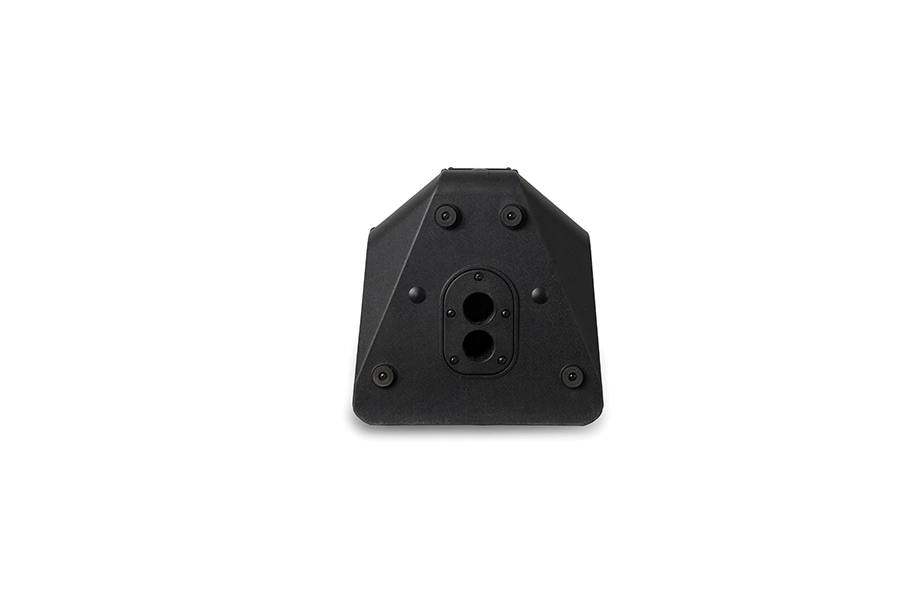

3 x M8 inserts on top,2 x M8 inserts on bottom and 1 x M8 insert at back, for flying Twin 35 mm pole mounting 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
305mm x 500mm x 310mm
NET WEIGHT
10.7kg
NOTE: Due to continuous improvements, all specifications are subject to change
