SPA 1108
2 way passive speaker
SPA 1108 is a two way passive speaker with 8” LF and horn loaded compression driver; detailed specifications are given below
Warranty
2 Years
Dimensions
326mm ×326mm×490mm
High performance 2 way speaker with 8" Woofer, 1.35" HF compression driver
Smooth, wide frequency response
Ideal for mains, fills, or monitors
High sensitivity, 123dB maximum SPL
Portable and Rigid PP enclosure
Integrated pole mount for stands and brackets
5 x M8 inserts for installation
DESCRIPTION
2 way passive speaker with 8” LF and horn loaded compression driver
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.35" VC; LF: 1 x 8" woofer, 1.5" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
60Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
70Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 117dB; Peak: 123dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 200W Program: 400W Peak: 800W
SENSITIVITY (1W 1M)
94dB
CROSSOVER FREQUENCY
2.5kHz
INPUT

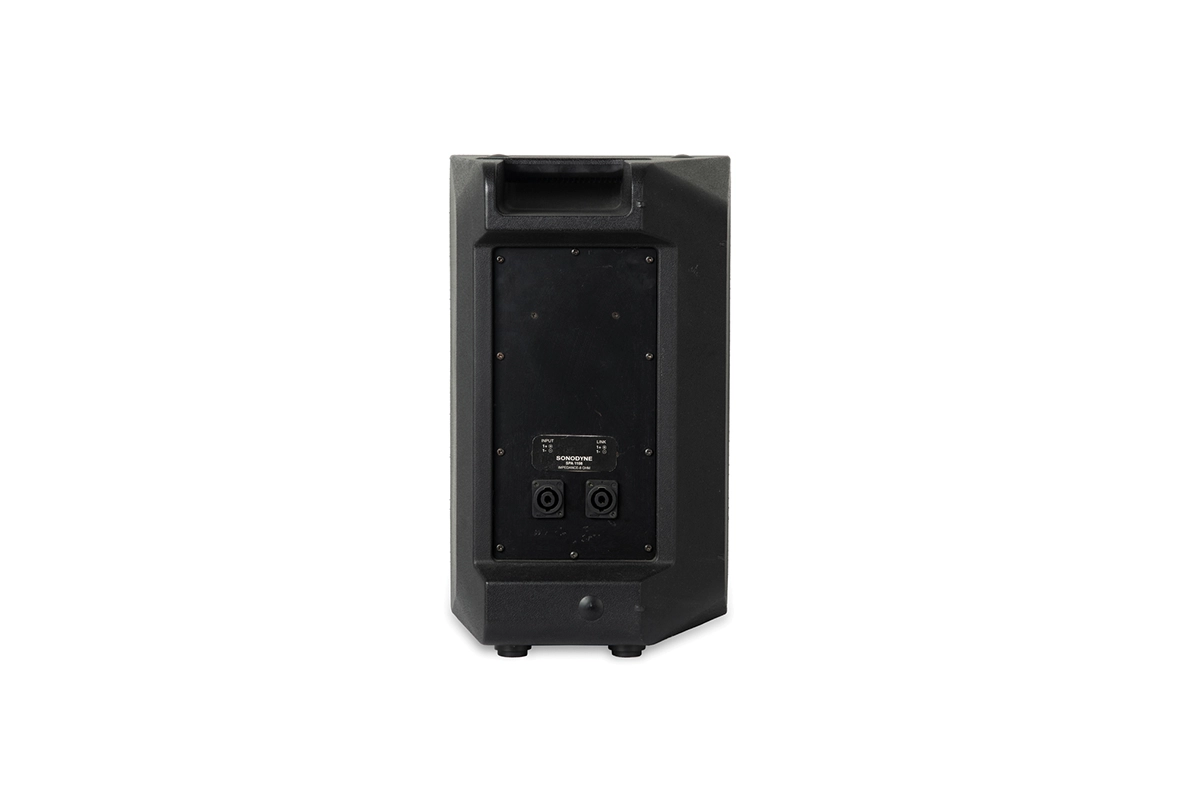

Twist-lock connector
NOMINAL IMPEDANCE
8Ω
MOUNTING OPTIONS

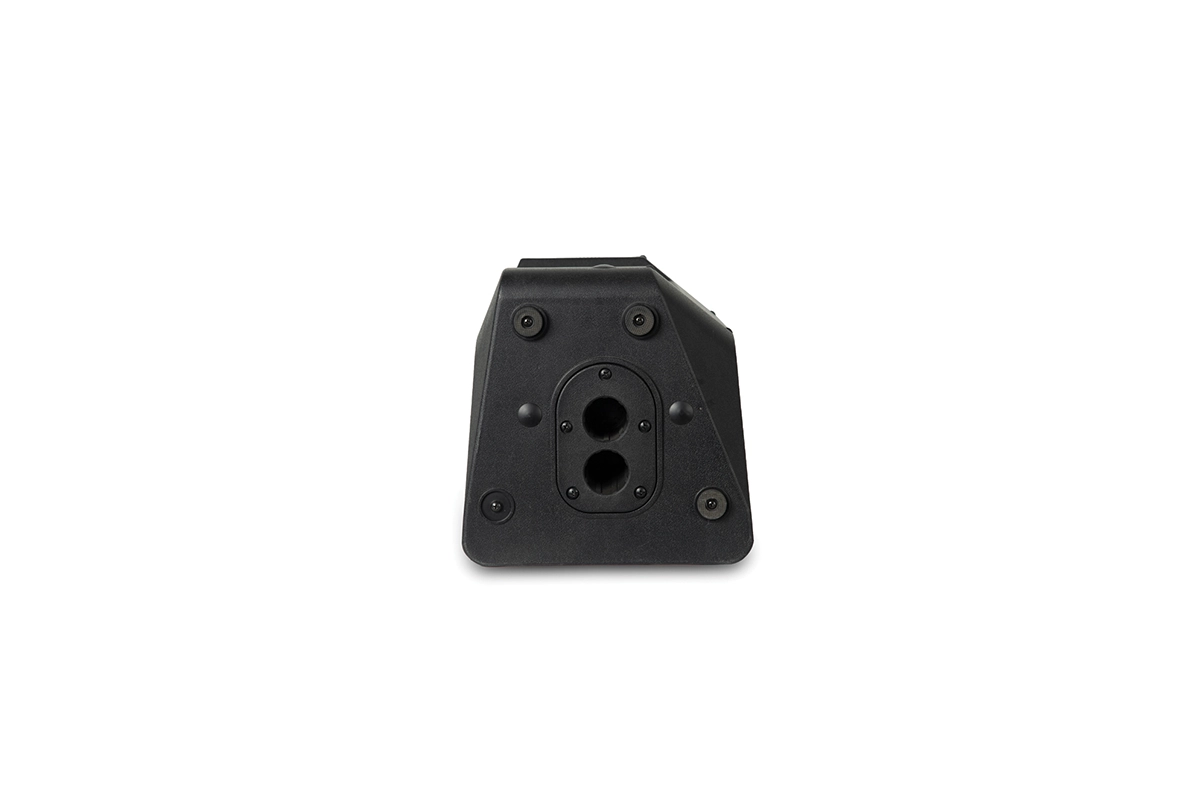

2 x M8 inserts on top, 2 x M8 inserts on bottom and 1 x M8 insert at back, for flying; Twin 35 mm pole mounting; 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
250mm x 420mm x 255mm
NET WEIGHT
9.5kg
NOTE: Due to continuous improvements, all specifications are subject to change
