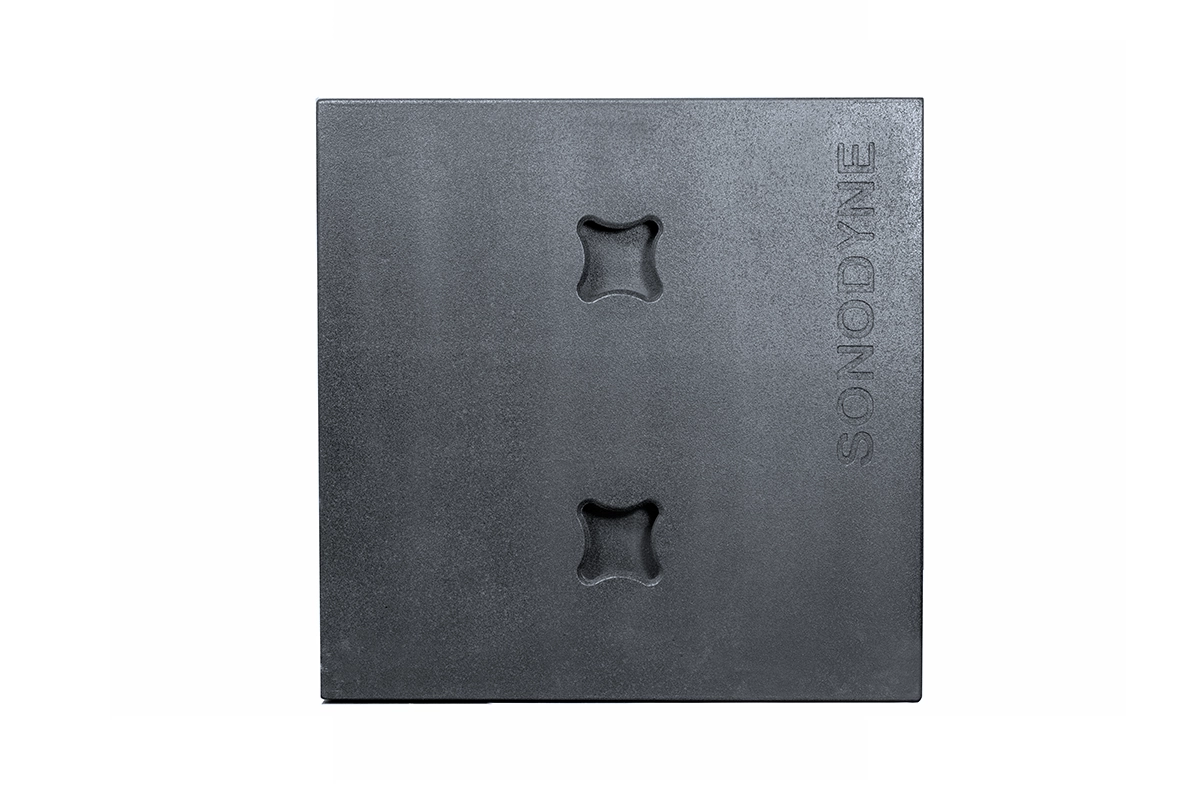

SLX 2280
passive 18” subwoofer
SLX 2280 is a passive 18” horn-loaded subwoofer ; detailed specifications are given below
Warranty
2 Years
Dimensions
854mm×570mm×850mm
Portable and fixed install PA speakers
High power handling and SPL
Rigid painted cabinet with heavy internal bracing
High excursion LF transducer
DESCRIPTION
Passive 18" horn-loaded subwoofer
ENCLOSURE TYPE
18mm plywood
TRANSDUCER COMPLEMENTS
LF: 18" with 5" VC
NOMINAL IMPEDANCE
8Ω
FREQUENCY RANGE
30Hz ~ crossover frequency (-10dB)
CROSSOVER FREQUENCY
Recommended 80 ~120Hz, 18~12dB, /oct low-pass
RECOMMENDED SUBSONIC FILTER
35Hz, 24dB/octave
SENSITIVITY (1W 1M)
100dB
MAX SPL
CONTINUOUS: 131dB, PEAK: 137dB
POWER HANDLING
CONTINUOUS: 1300W, PROGRAM: 2600W, PEAK: 5200W
CONNECTORS
1 x Twist-lock connector (input) 1 x Twist-lock connector (link)
FINISH
Durable paint
DIMENSIONS (WxHxD)
570mm x 850mm x 854mm
NET WEIGHT
64kg
NOTE: Due to continuous improvements, all specifications are subject to change
