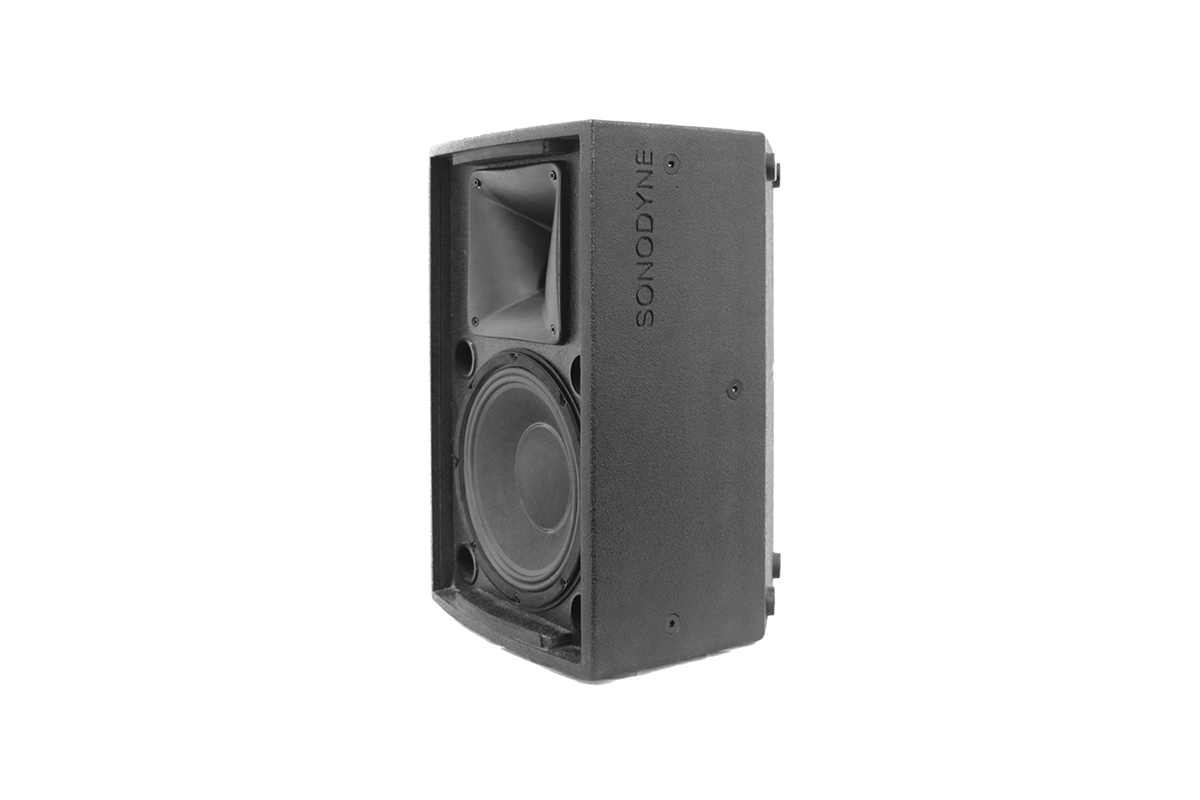

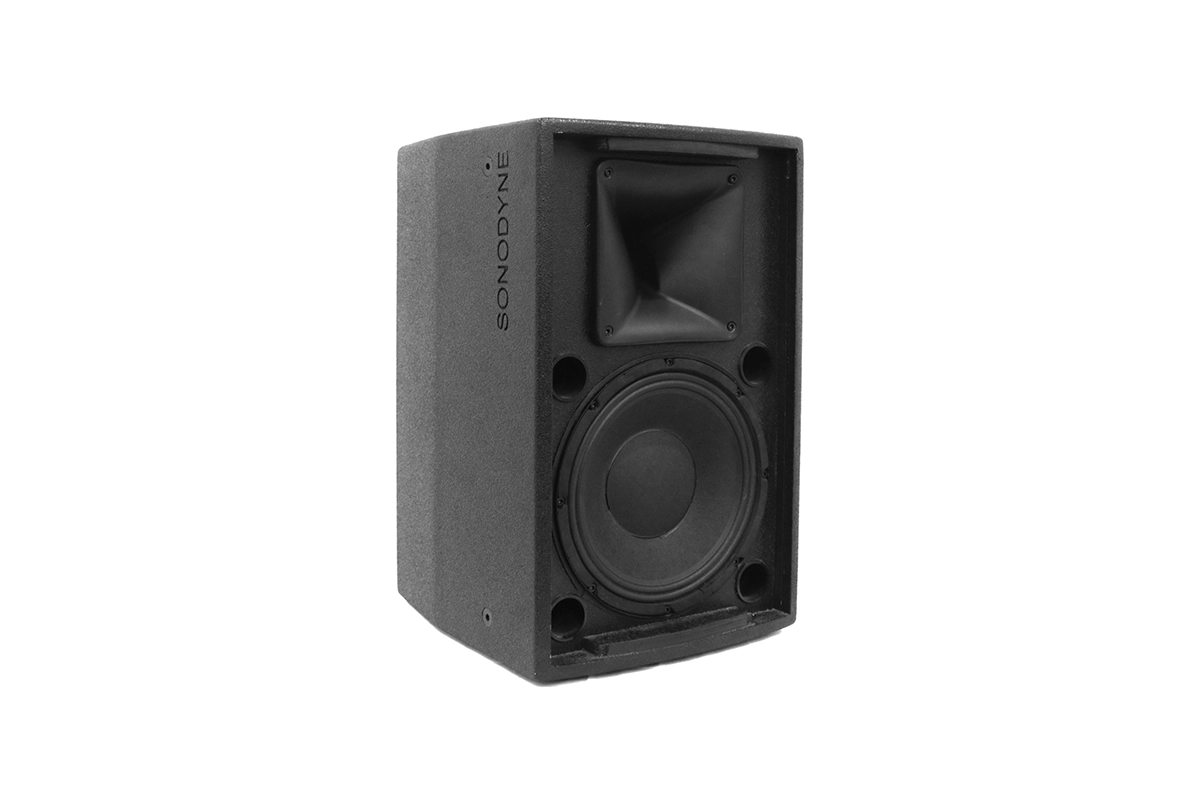

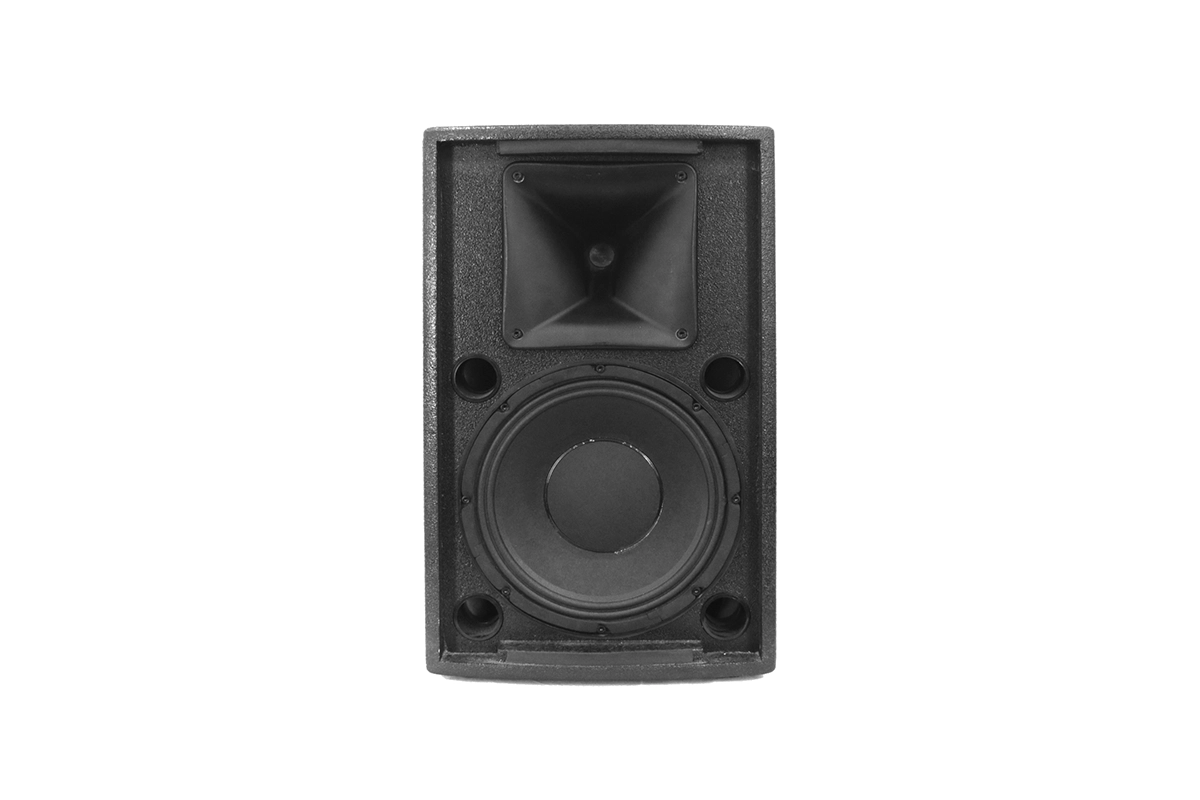

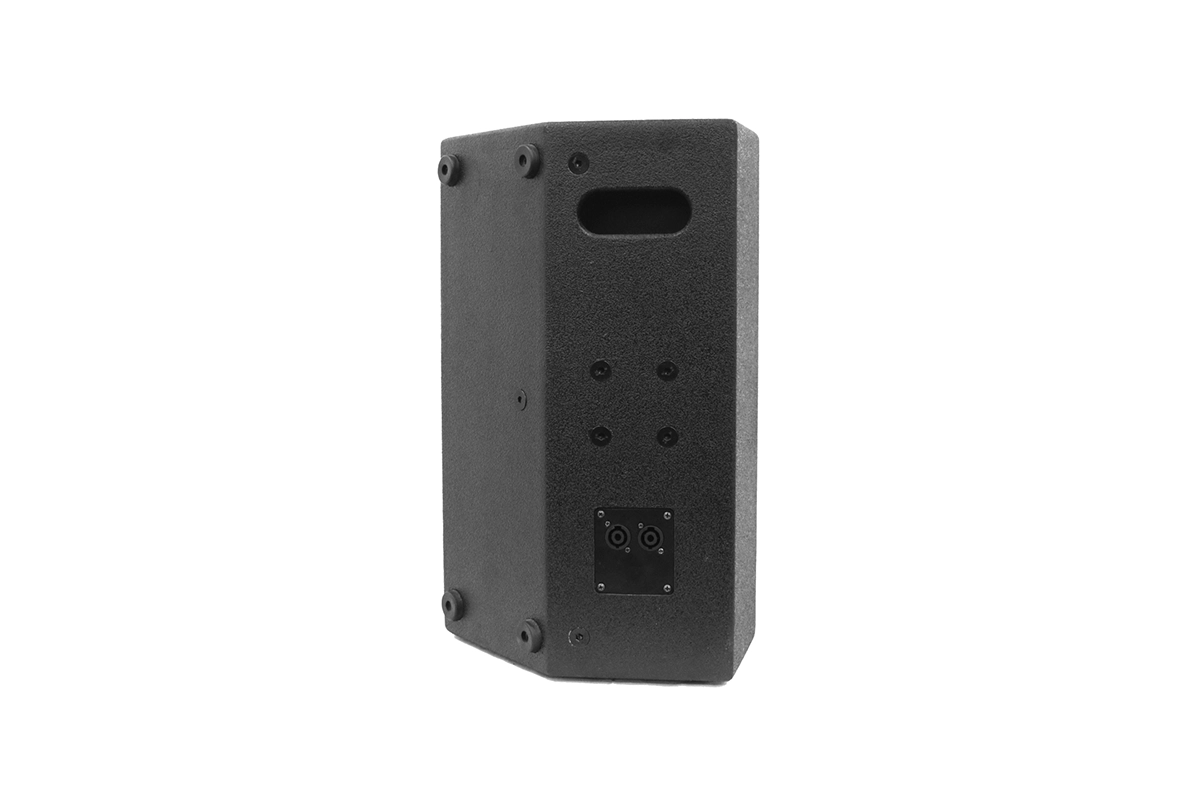

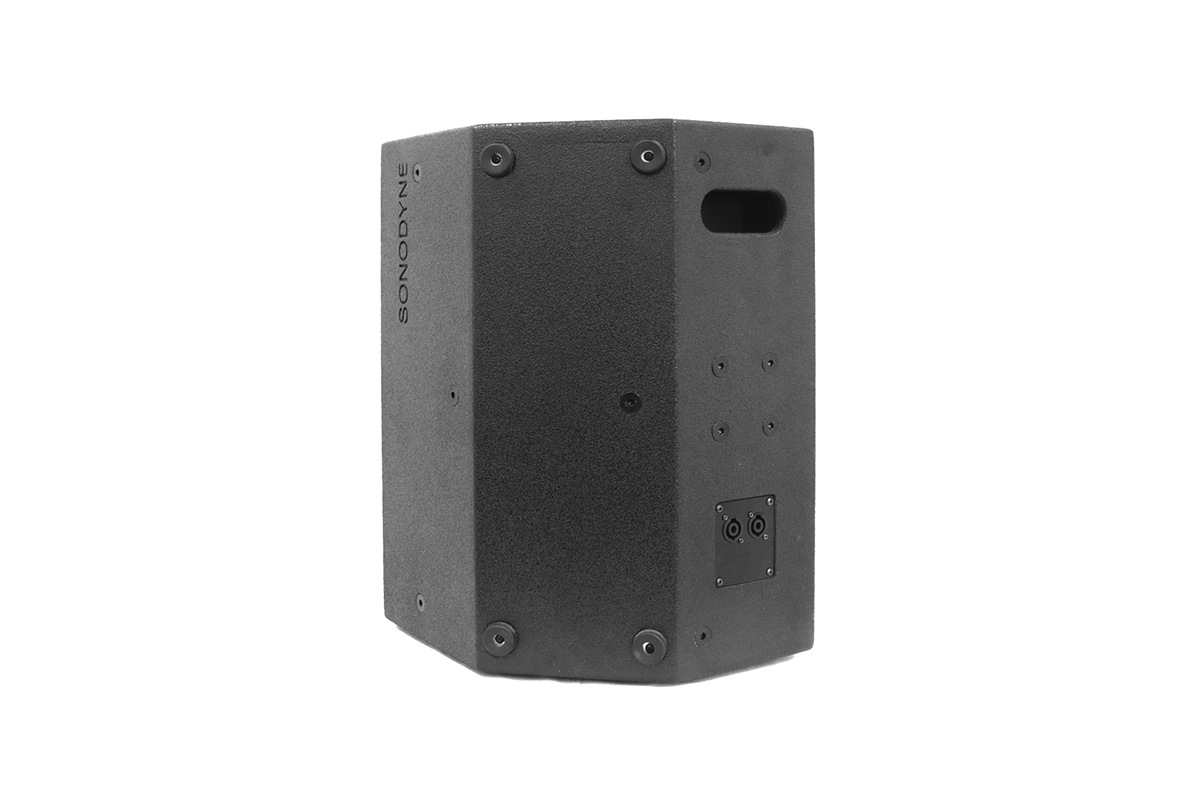

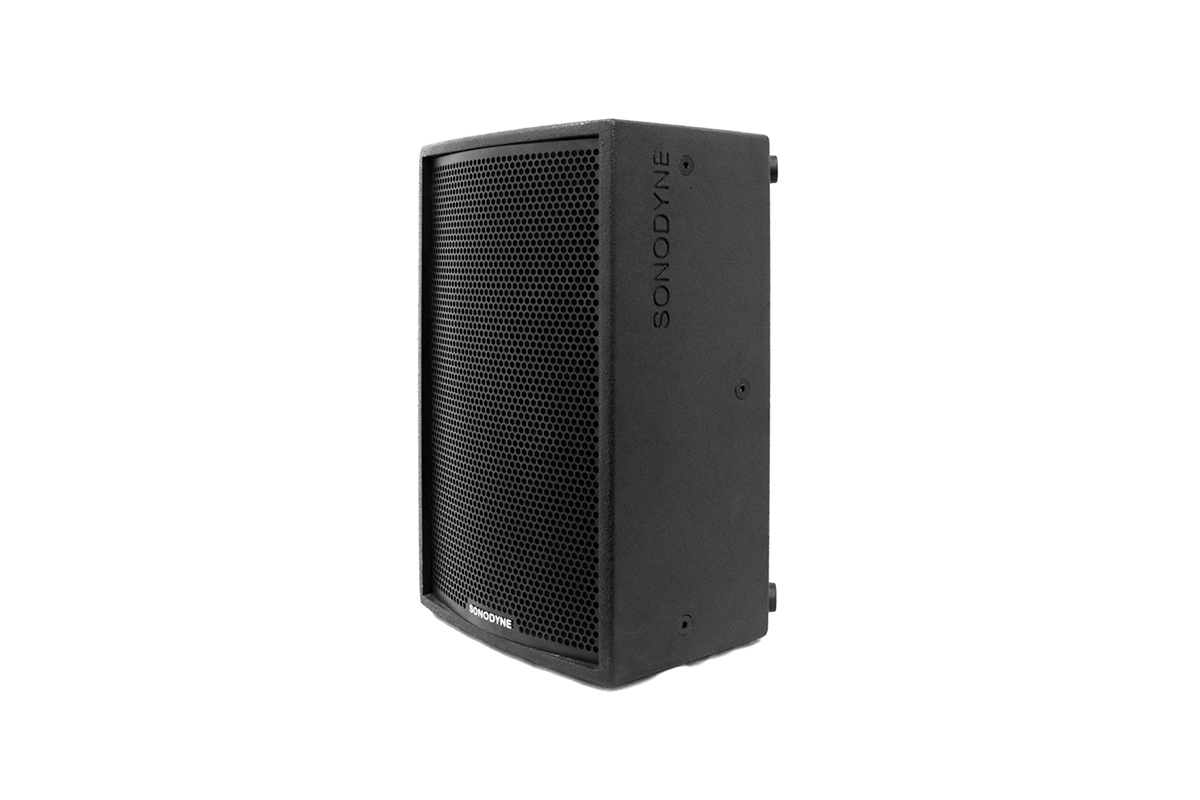

SLX 1010
2 way passive speaker
SLX 1010 is a two way passive speaker with 10” LF and horn loaded compression driver; detailed specifications are given below
Warranty
2 Years
Dimensions
350mm×320mm×517mm
Portable and fixed install PA speakers
High power handling and SPL
Constant directivity HF with custom waveguide
Rigid painted cabinet with heavy internal bracing
High excursion LF transducer
Flying points
DESCRIPTION
Passive 2 way, 10", bass-reflex
ENCLOSURE TYPE
15mm plywood, Wedge with one 45° face
TRANSDUCER COMPLEMENTS
HF: 1" HLCD with 1.1" VC, LF: 10" with 2" VC
NOMINAL IMPEDANCE
8Ω
FREQUENCY RANGE
50Hz ~ 22kHz (-10dB)
DIRECTIVITY (HxV)
90° x 50° HF
SENSITIVITY (1W 1M)
94dB
MAX SPL
CONTINUOUS: 117dB, PEAK: 123dB
POWER HANDLING
CONTINUOUS: 200W, PROGRAM: 400W, PEAK: 800W
CONNECTORS
1 x Twist-lock connector (input) 1 x Twist-lock connector (link)
FINISH
Durable paint
MOUNTING OPTIONS
35.5mm pole, 15 x M10 suspension points, 4 x M10 wall mount inserts
DIMENSIONS (WxHxD)
517mm x 320mm x 350mm
NET WEIGHT
14.5kg
NOTE: Due to continuous improvements, all specifications are subject to change
