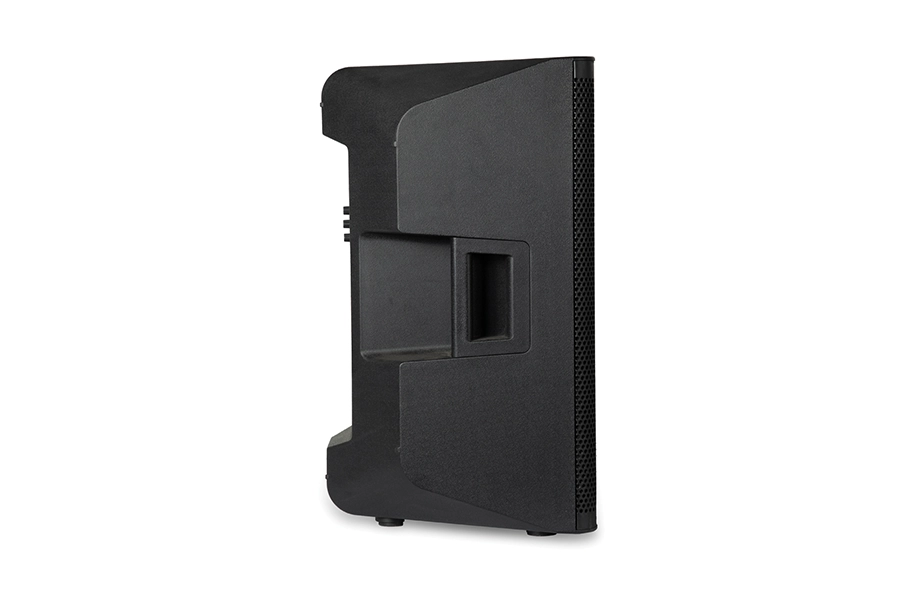

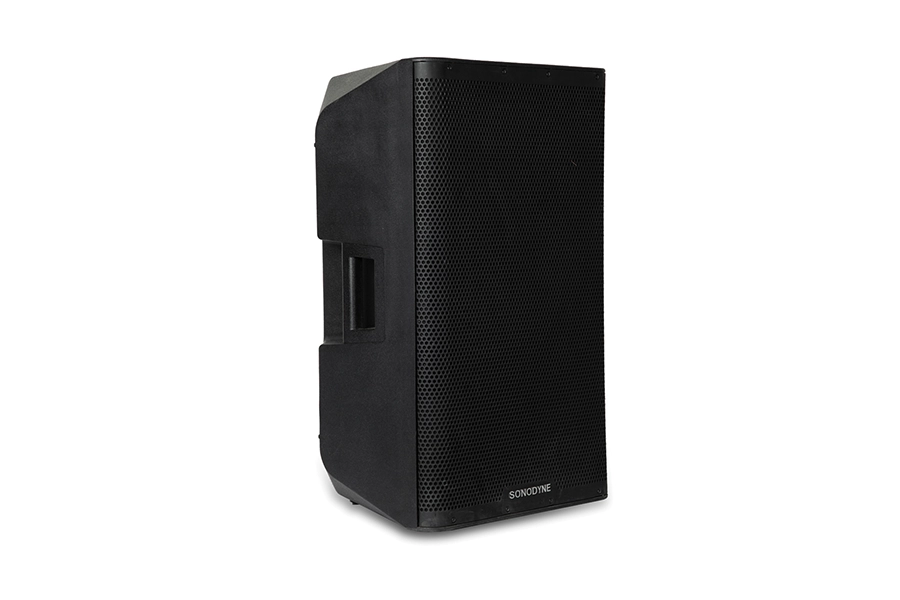

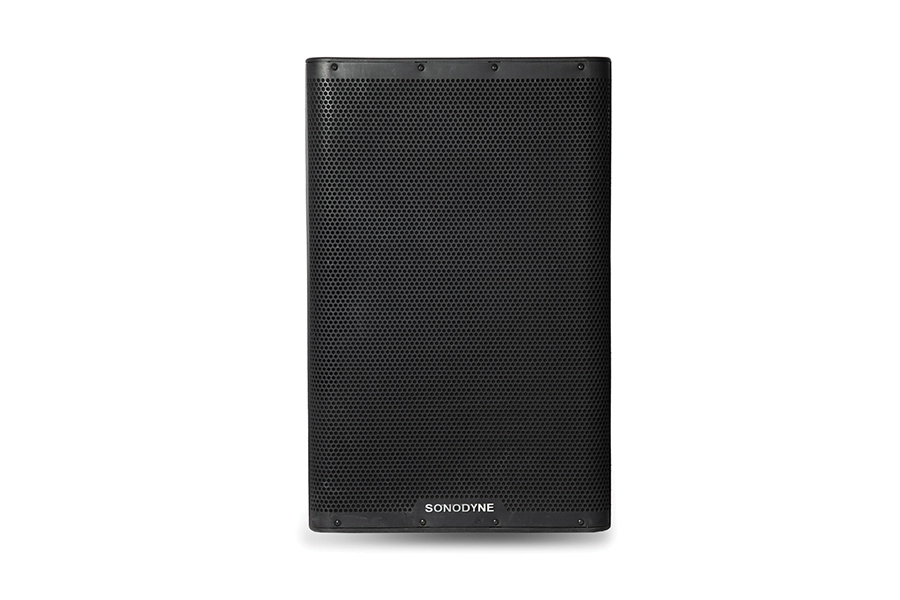

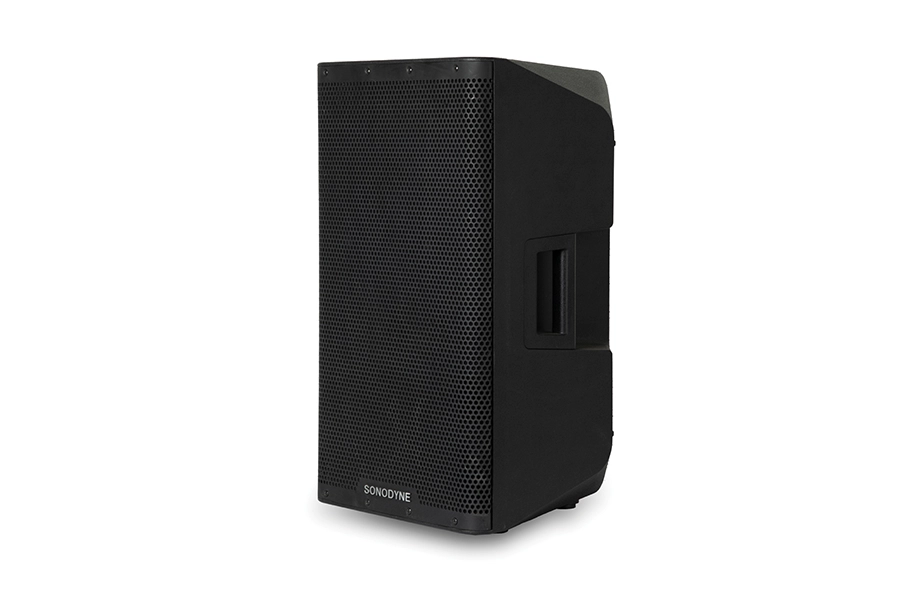

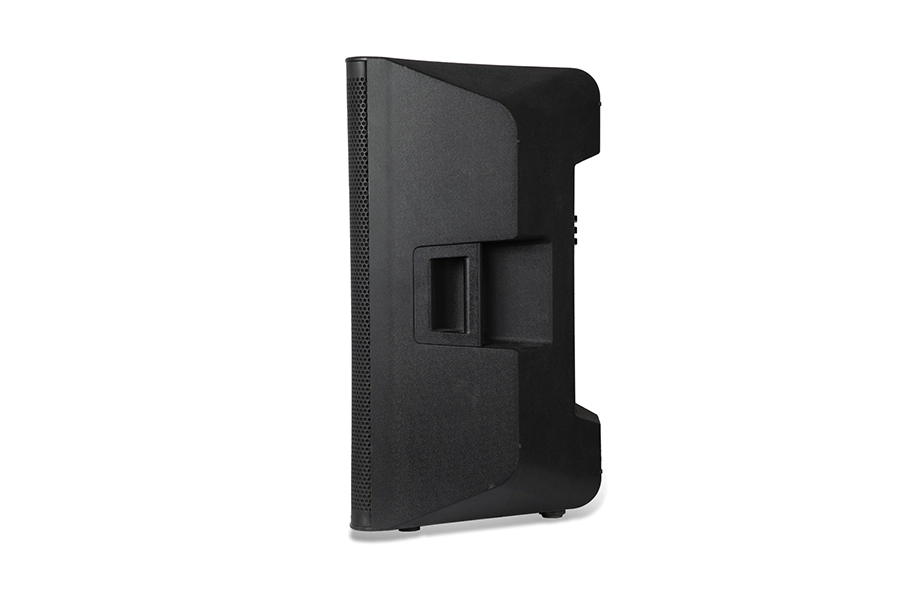

SPA 1215
SPA 1215
SPA 1215
SPA 1215
SPA 1215
SPA 1215
SPA 1215
SPA 1215
SPA 1215

SPA 1215

2 way active professional speaker

The SPA 1215 is the largest and most powerful model in the SPA 1200 Series. This 2-way active professional speaker combines a 15-inch low-frequency woofer, a throat compression driver and high-power Class-D bi-amplification for demanding live sound, installation and stage-monitor applications.

Warranty

2 Years

Dimensions

375mm ×445mm×700mm

  • High performance 2 way speaker with 15" woofer, 1.75" HF compression driver

  • Smooth, wide frequency response

  • High Power D Class amplification

  • Ideal for mains, fills, stage monitors, FRFR monitors

  • High sensitivity, 131dB maximum SPL

  • Portable and Rigid PP enclosure

  • On board HF and LF controls

  • Balanced  mic / Line inputs with Mix out

  • Wedge type shape allows use as stage monitor

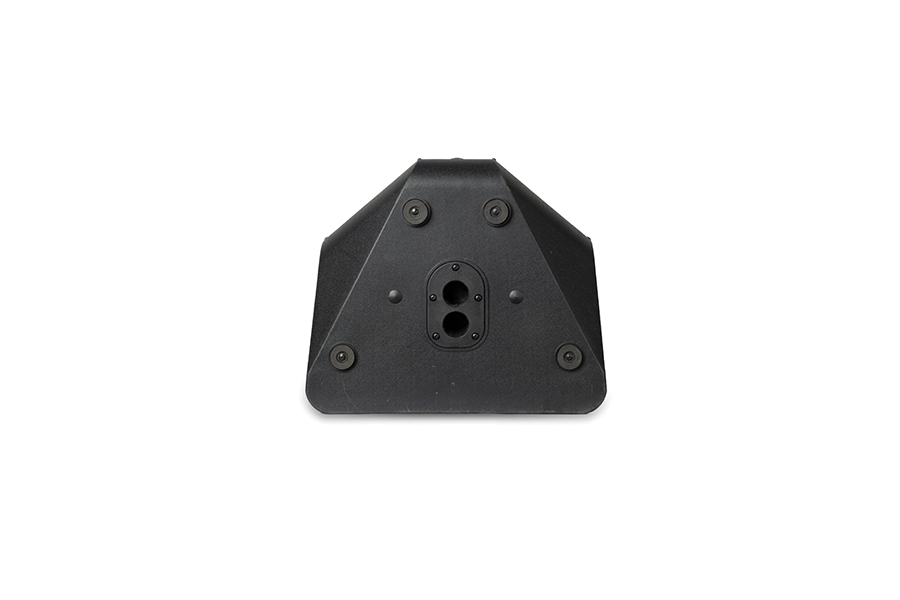

  • Integrated pole mount for stands and brackets

  • 5 x M8 inserts for installation

DESCRIPTION
2 way active professional speaker
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.75" VC; LF: 1 x 15" woofer, 3" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
50Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
60Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 125dB; Peak: 131dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 500W; Program: 1000W (Bi-amped)
CROSSOVER FREQUENCY
1.5kHz (Active)

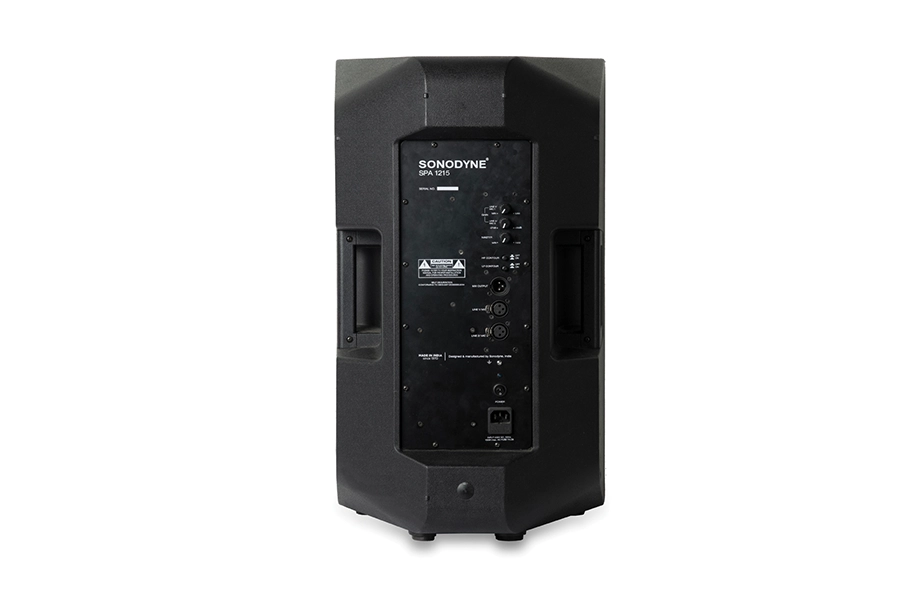

INPUT
2 x MIC/LINE inputs (can be used as either MIC or LINE)
OUTPUT
MIX OUT
CONTROLS
Gain: 2 x Gain control for 2 inputs. Gain control range 55dB (+30dB to -25dB), 0dB at center; Master: Level control, -∞ to 0 dB
SWITCHES
HF Contour: High shelving, corner frequencies 1kHz and 13kHz, +5dB boost; LF Contour: Low shelving, break points at 1kHz and 80Hz, +5dB boost
PROTECTION
Overload, Short-circuit, Overheat, Mains Overvoltage
MOUNTING OPTIONS

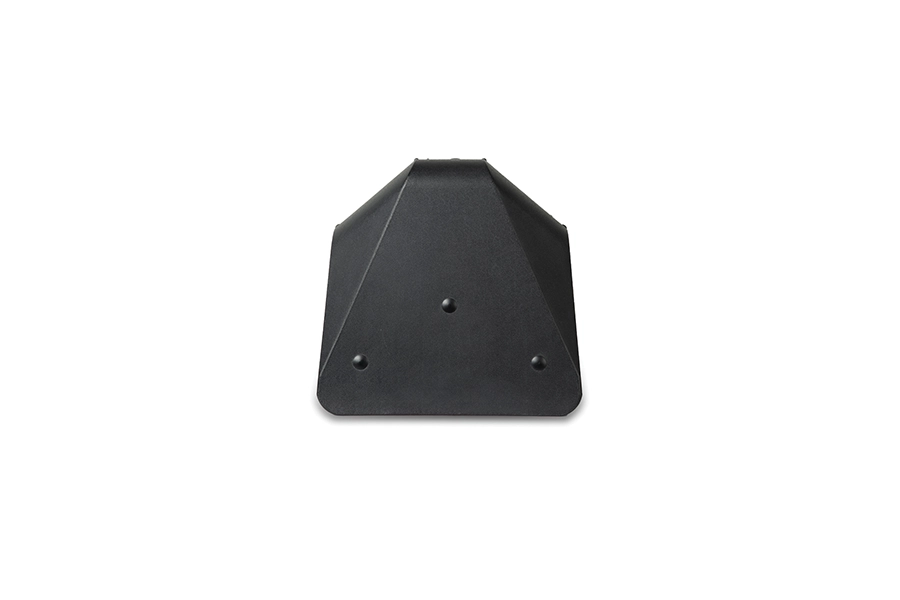

3 x M8 inserts on top, 2 x M8 inserts on bottom and 1 x M8 insert at back, for flying; Twin 35 mm pole mounting; 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
445mm x 700mm x 375mm
NET WEIGHT
20.8kg
SHIPPING DIMENSIONS WxHxD
452mm x 788mm x 512mm
GROSS WEIGHT
23.7kg

NOTE: Due to continuous improvements, all specifications are subject to change
