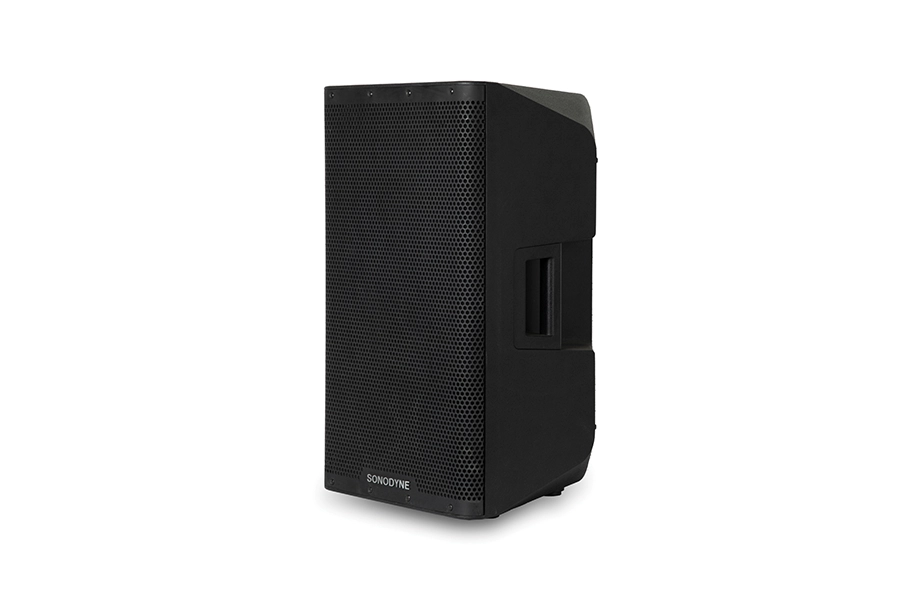

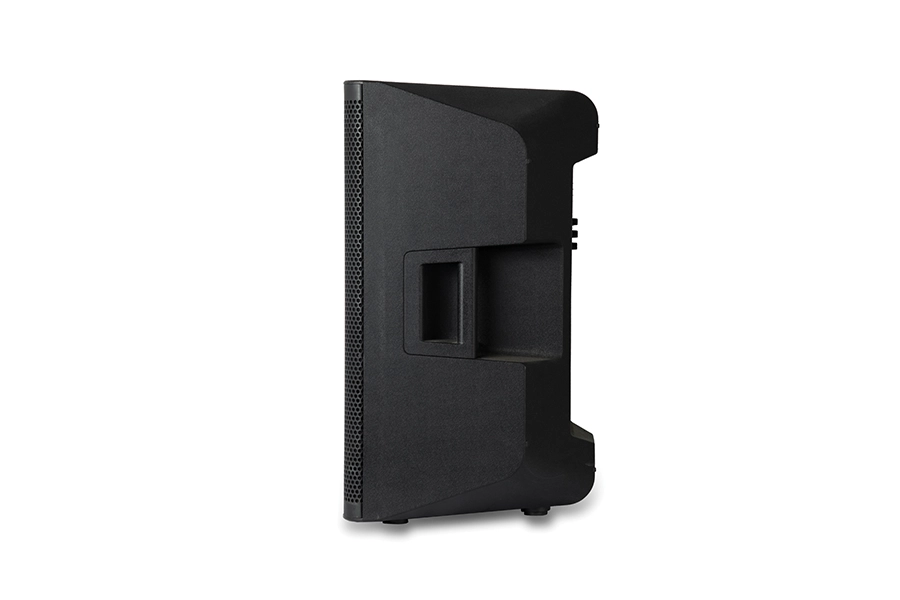

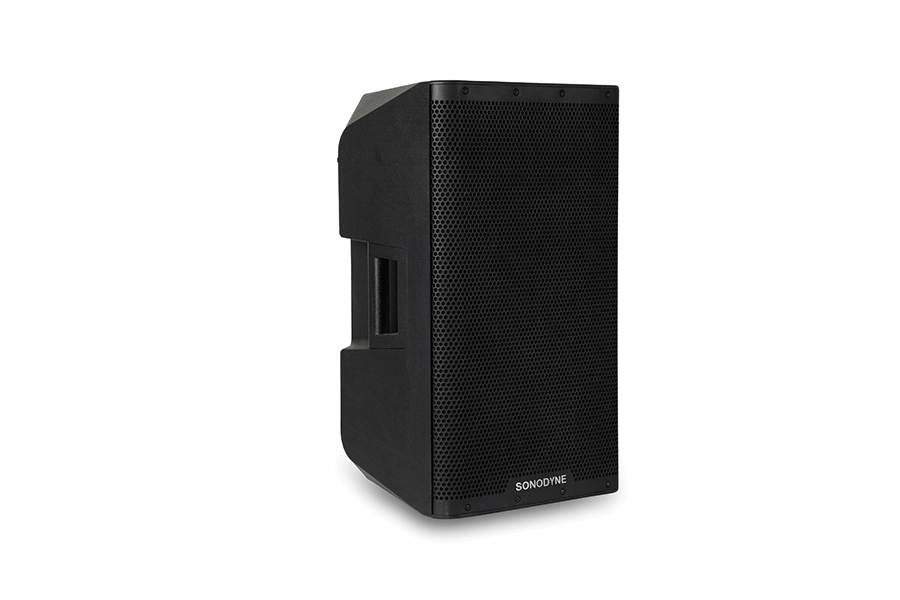

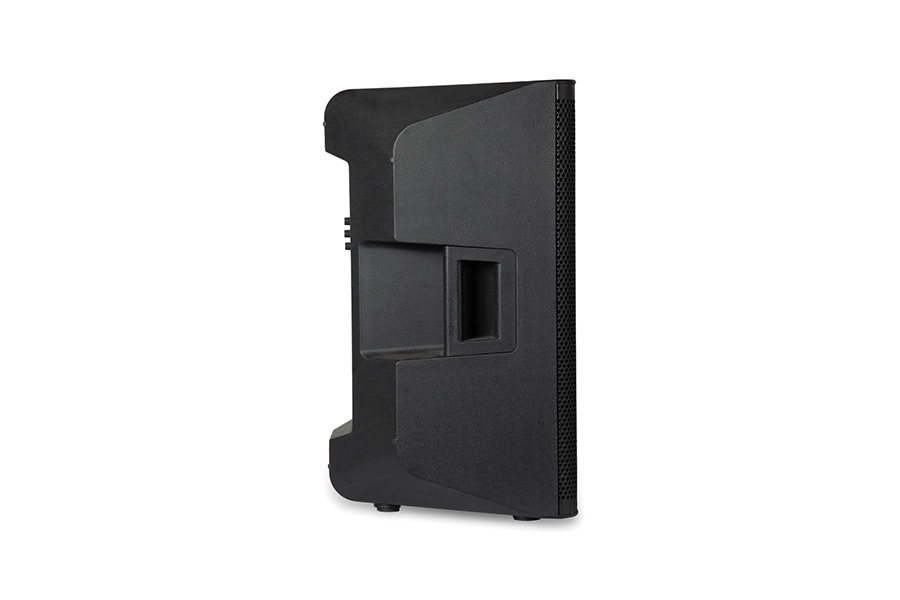

SPA 1212
SPA 1212
SPA 1212
SPA 1212
SPA 1212
SPA 1212
SPA 1212
SPA 1212
SPA 1212

SPA 1212

2 way active professional speaker

The SPA 1212 is a high-power 2-way active professional speaker featuring a 12-inch low-frequency woofer and a 1-inch throat compression driver. Its Class-D bi-amplification, wide frequency response and rigid polypropylene enclosure make it suitable for mains, fills, stage monitoring and fixed installations.

Warranty

2 Years

Dimensions

415mm × 410mm ×682mm

  • High performance 2 way speaker with 12" Woofer, 1.75" HF compression driver

  • Smooth, wide frequency response

  • High Power D Class amplification

  • Ideal for mains, fills, stage monitors, FRFR monitors

  • High sensitivity, 128dB maximum SPL

  • Portable and Rigid PP enclosure

  • On board HF and LF controls

  • Balanced  mic / Line inputs with Mix out

  • Wedge type shape allows use as stage monitor

  • Integrated pole mount for stands and brackets

  • 5 x M8 inserts for installation

DESCRIPTION
2 way active professional speaker
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.75" VC LF: 1 x 12" woofer, 2.5" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
50Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
60Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 122dB; Peak: 128dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 300W; Program: 600W (Bi-amped)
CROSSOVER FREQUENCY
1.8kHz (Active)
INPUT
2 x MIC/LINE inputs (can be used as either MIC or LINE)
OUTPUT
MIX OUT
CONTROLS
Gain: 2 x Gain control for 2 inputs. Gain control range 55dB (+30dB to -25dB), 0dB at center; Master: Level control, -∞ to 0 dB
SWITCHES
HF Contour: High shelving, corner frequencies 1kHz and 13kHz, +5dB boost; LF Contour: Low shelving, break points at 1kHz and 80Hz, +5dB boost
PROTECTION
Overload, Short-circuit, Overheat, Mains Overvoltage
MOUNTING OPTIONS
3 x M8 inserts on top, 2 x M8 inserts on bottom and 1 x M8 insert at back, for flying; Twin 35 mm pole mounting; 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
360mm x 610mm x 350mm
NET WEIGHT
15.2kg
SHIPPING DIMENSIONS WxHxD
410mm x 682mm x 415mm
GROSS WEIGHT
17.3kg

NOTE: Due to continuous improvements, all specifications are subject to change
