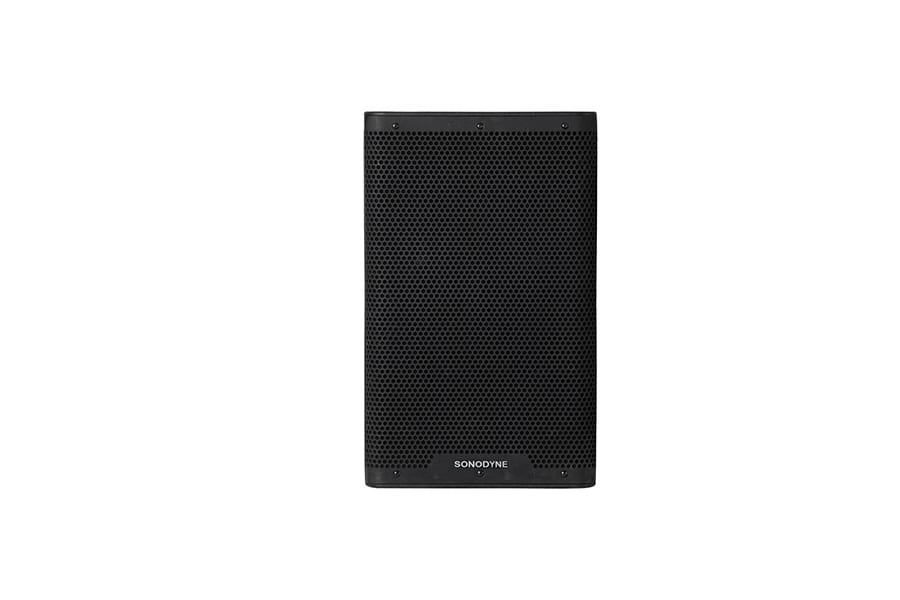

SPA 1210
SPA 1210
SPA 1210
SPA 1210
SPA 1210
SPA 1210
SPA 1210
SPA 1210
SPA 1210

SPA 1210

2 way active professional speaker

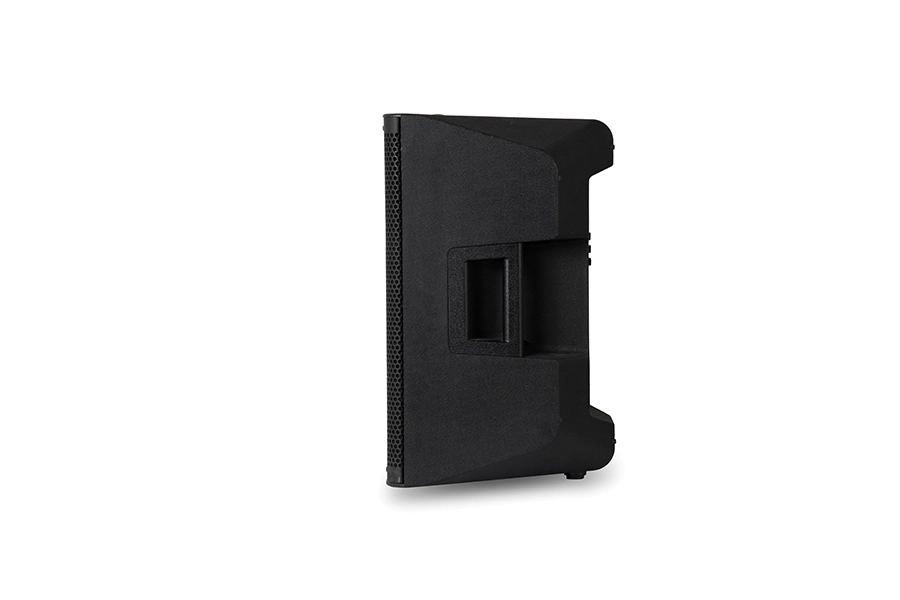

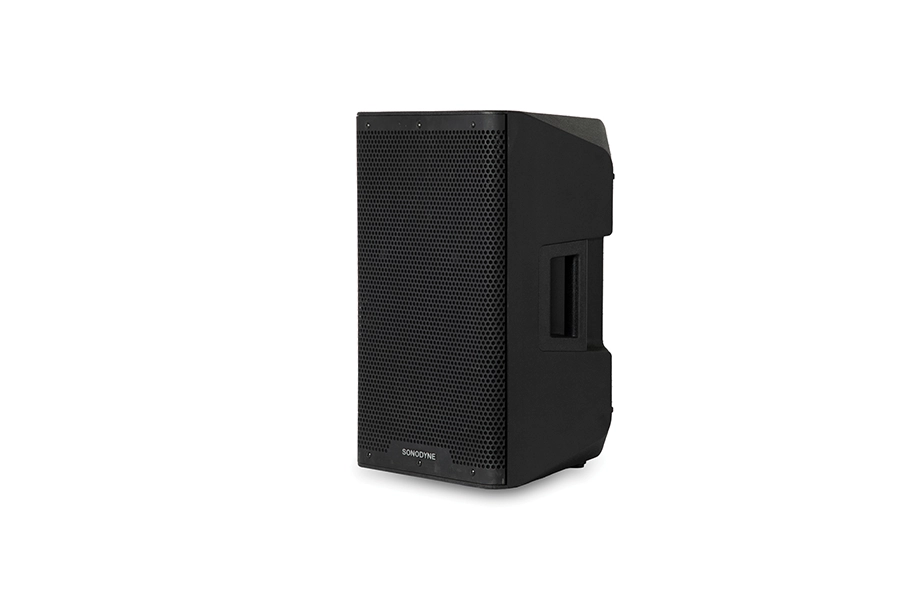

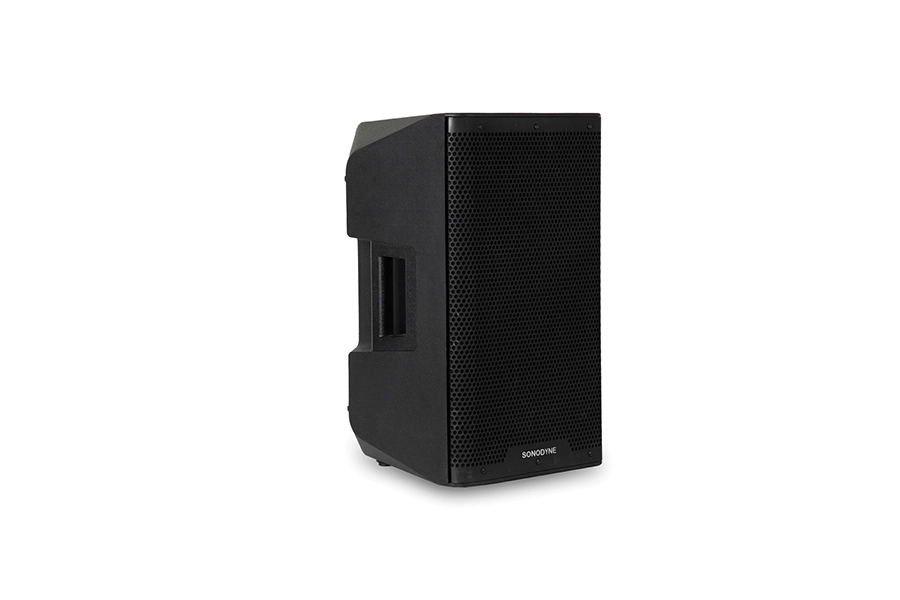

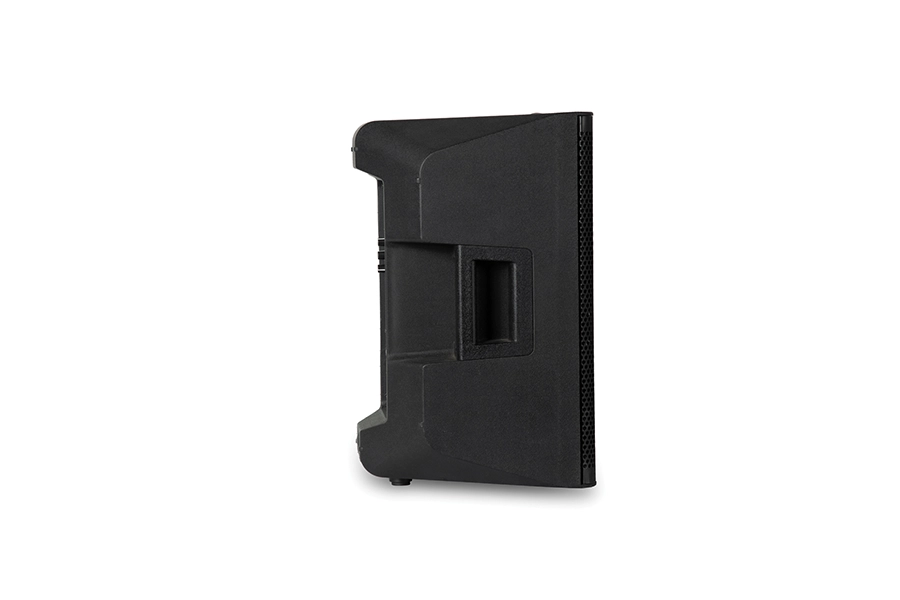

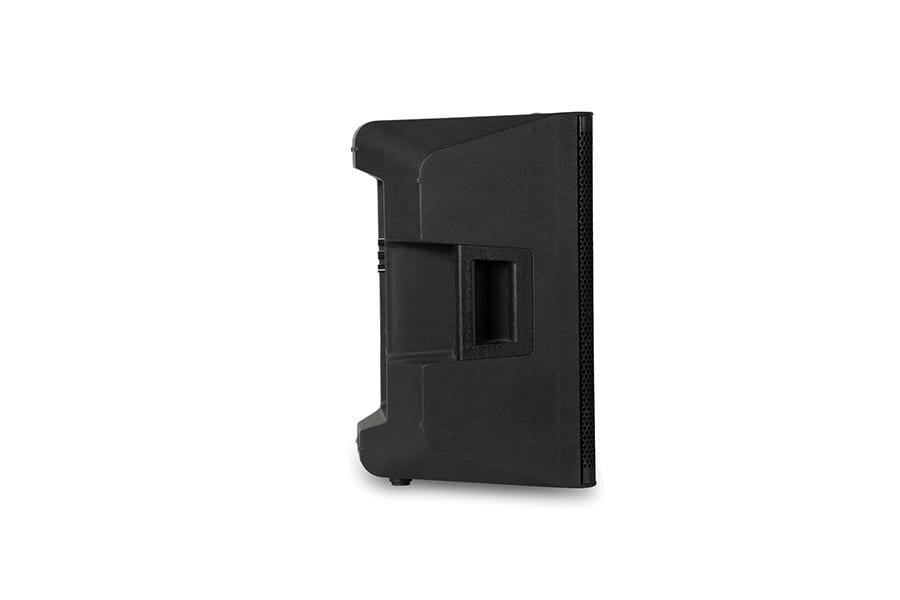

The SPA 1210 is a versatile 2-way active professional speaker featuring a 10-inch low-frequency woofer and a 1-inch throat compression driver. Its rigid trapezoidal polypropylene enclosure supports portable use, fixed installation and stage-monitor applications.

Warranty

2 Years

Dimensions

365mm ×370mm ×576mm

  • High performance 2 way speaker with 10" woofer, 1.35" HF compression driver

  • Smooth, wide frequency response

  • Ideal for mains, fills, stage monitors, FRFR monitors

  • High sensitivity, 126dB maximum SPL

  • Portable and Rigid PP enclosure

  • Wedge type shape allows use as stage monitor

  • Integrated pole mount for stands and brackets

  • 5 x M8 inserts for installation

DESCRIPTION
2 way active professional speaker
TRANSDUCER COMPLEMENTS
HF: 1 x 1" throat compression driver, 1.35" VC; LF: 1 x 10" woofer, 2.5" VC
ENCLOSURE MATERIAL
Industrial grade PP, Black
FORM FACTOR
Trapezoidal, can be used as stage monitor
ACOUSTIC FREQUENCY RANGE
55Hz ~ 18kHz
ACOUSTIC FREQUENCY RESPONSE
65Hz ~ 17kHz
MAX SPL AT HALF SPACE
Continuous: 120dB; Peak: 126dB
DIRECTIVITY (HxV)
90° x 50°
OUTPUT POWER
Continuous: 200W; Program: 400W (Bi-amped)
CROSSOVER FREQUENCY
2.2kHz (Active)

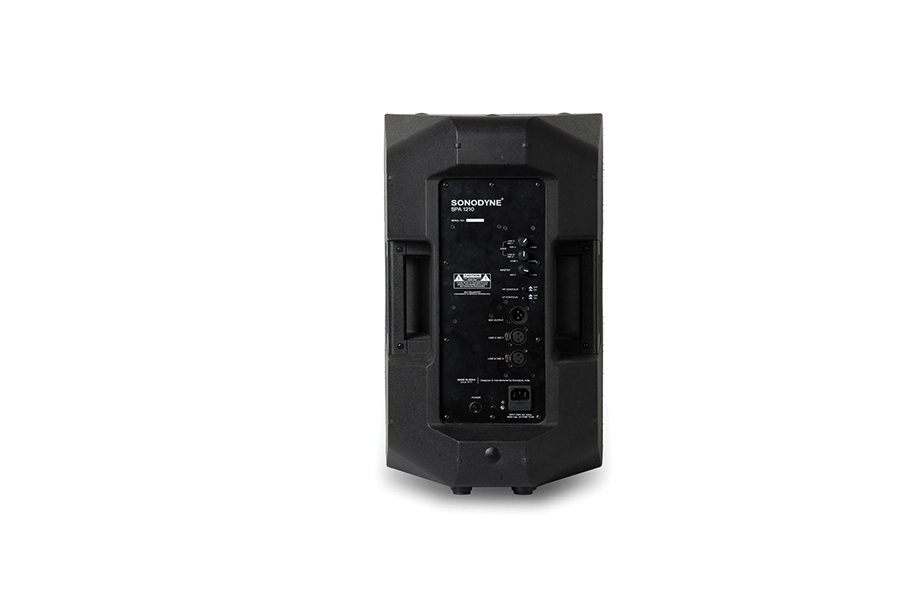

INPUT
2 x MIC/LINE inputs (can be used as either MIC or LINE)
OUTPUT
MIX OUT
CONTROLS
Gain: 2 x Gain control for 2 inputs. Gain control range 55dB (+30dB to -25dB), 0dB at center; Master: Level control, -∞ to 0 dB
SWITCHES
HF Contour: High shelving, corner frequencies 1kHz and 13kHz, +5dB boost; LF Contour: Low shelving, break points at 1kHz and 80Hz, +5dB boost
PROTECTION
Overload, Short-circuit, Overheat, Mains Overvoltage
MOUNTING OPTIONS

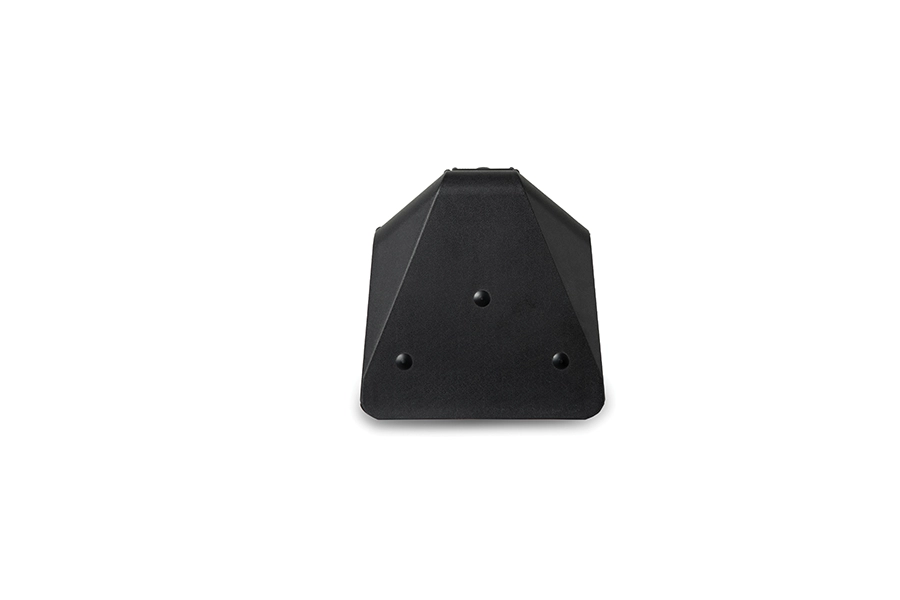

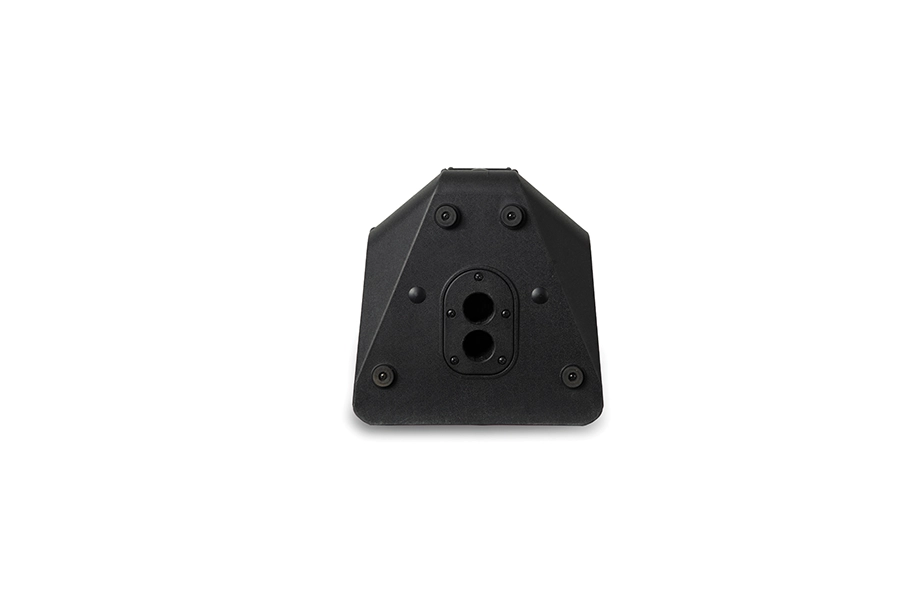

3 x M8 inserts on top, 2 x M8 inserts on bottom and 1 x M8 insert at back, for flying; Twin 35 mm pole mounting; 4 x plastic legs
COLOURS
Black
DIMENSIONS (WxHxD)
305mm x 500mm x 310mm
NET WEIGHT
11.1kg
SHIPPING DIMENSIONS WxHxD
370mm x 576mm x 365mm
GROSS WEIGHT
12.8kg

NOTE: Due to continuous improvements, all specifications are subject to change
