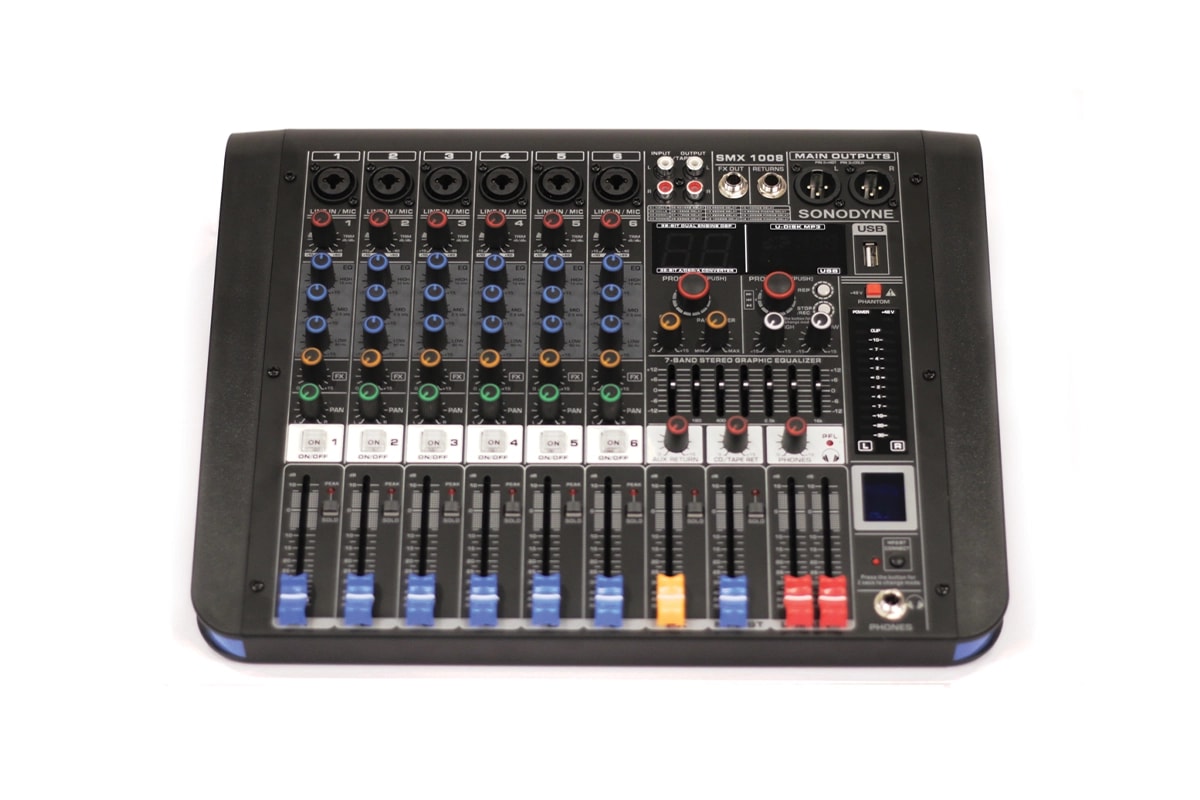

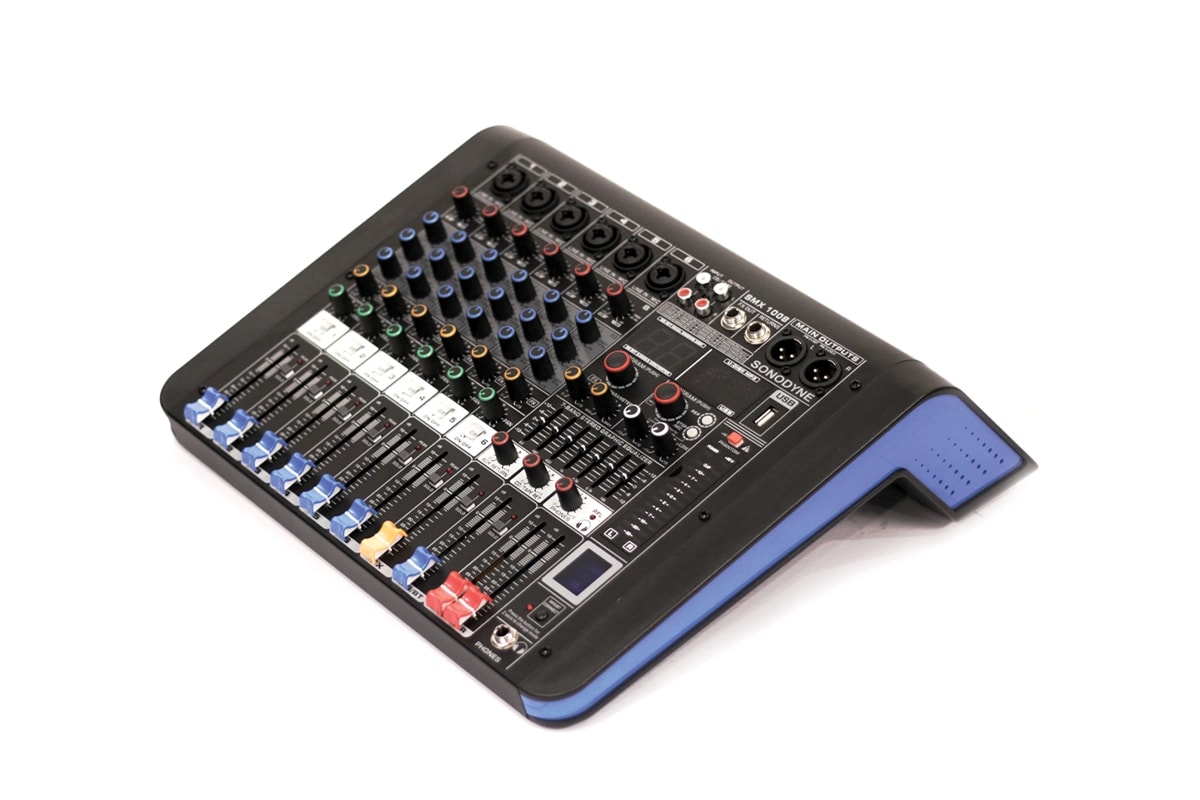

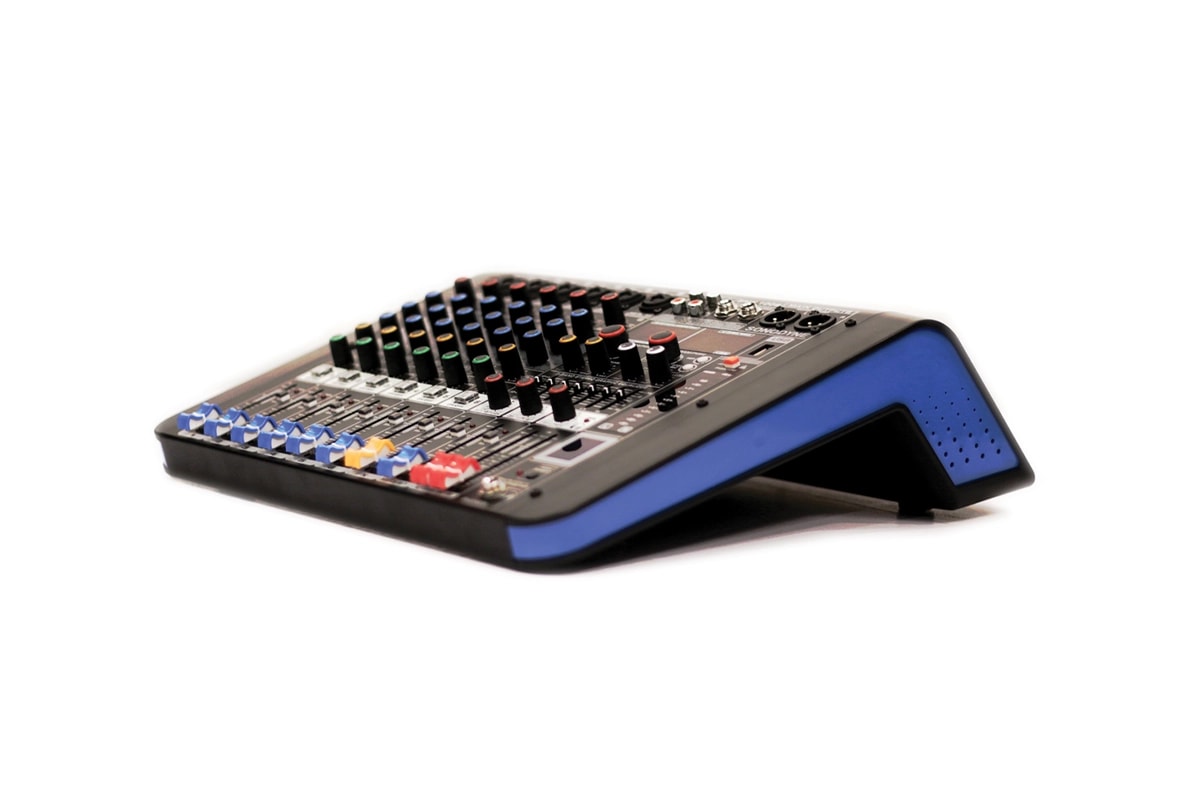

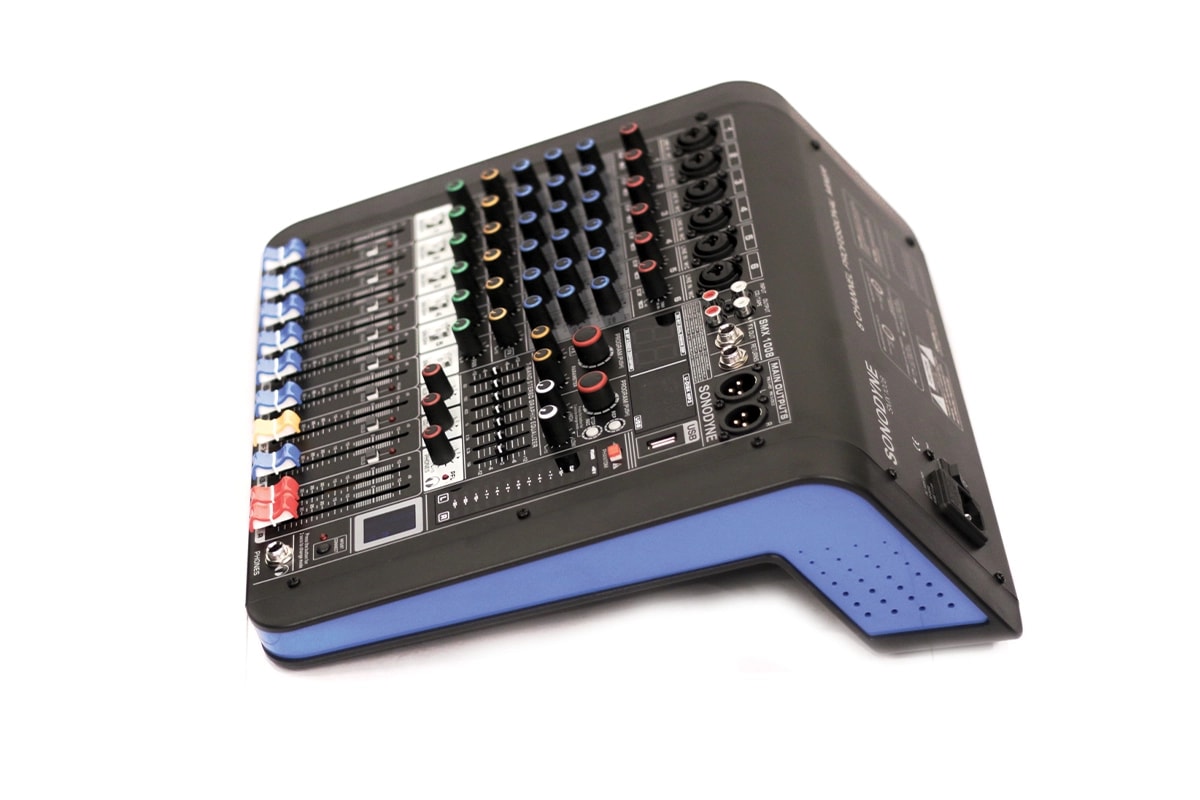

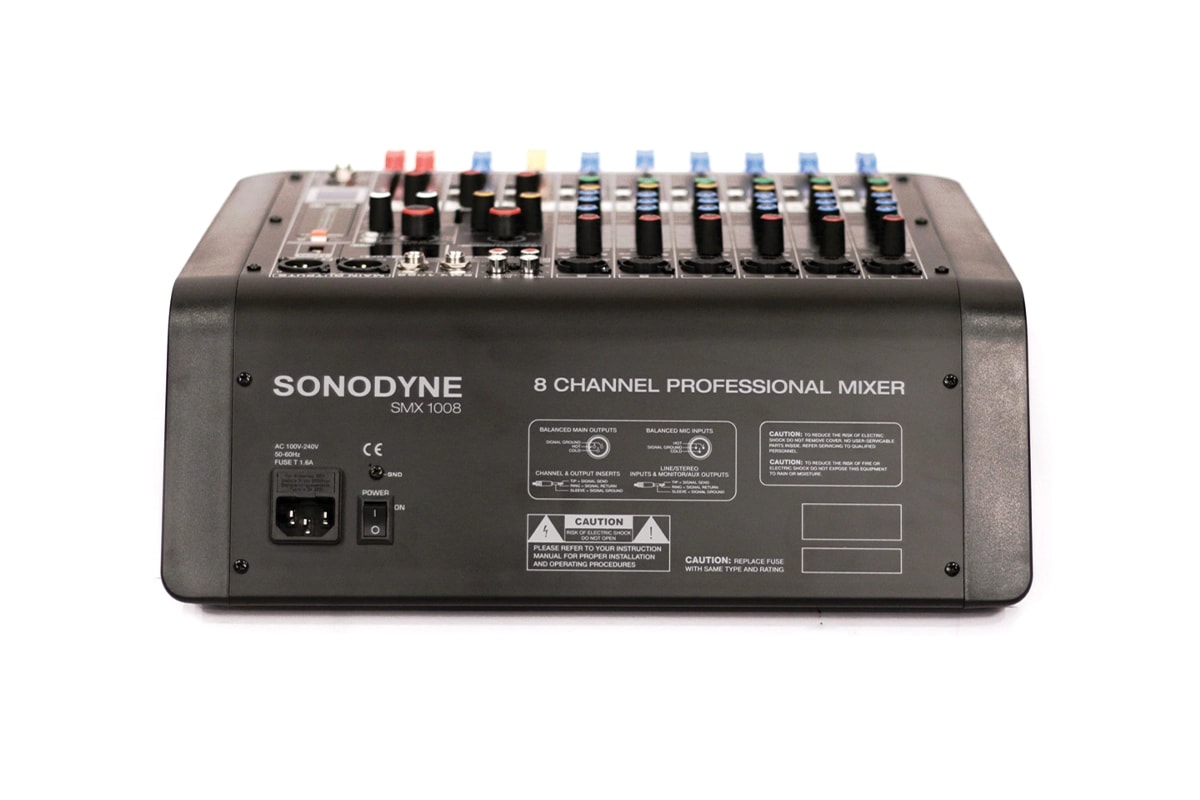

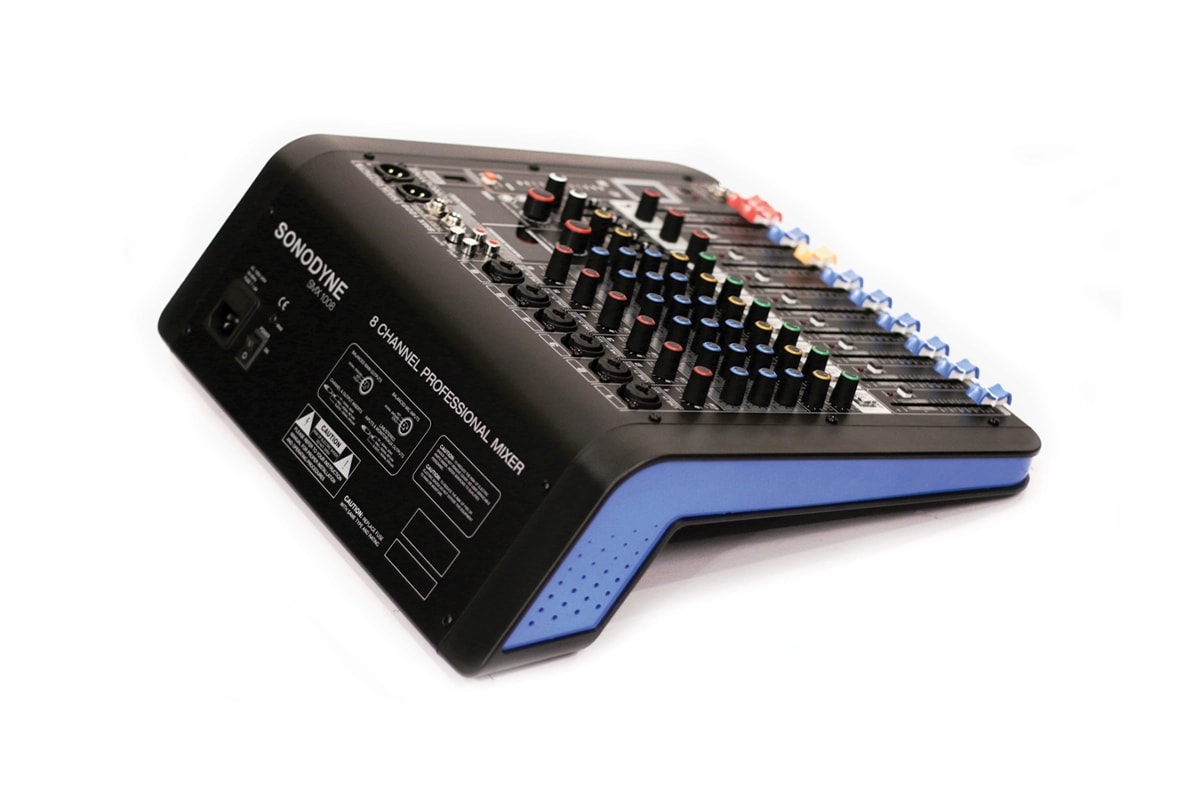

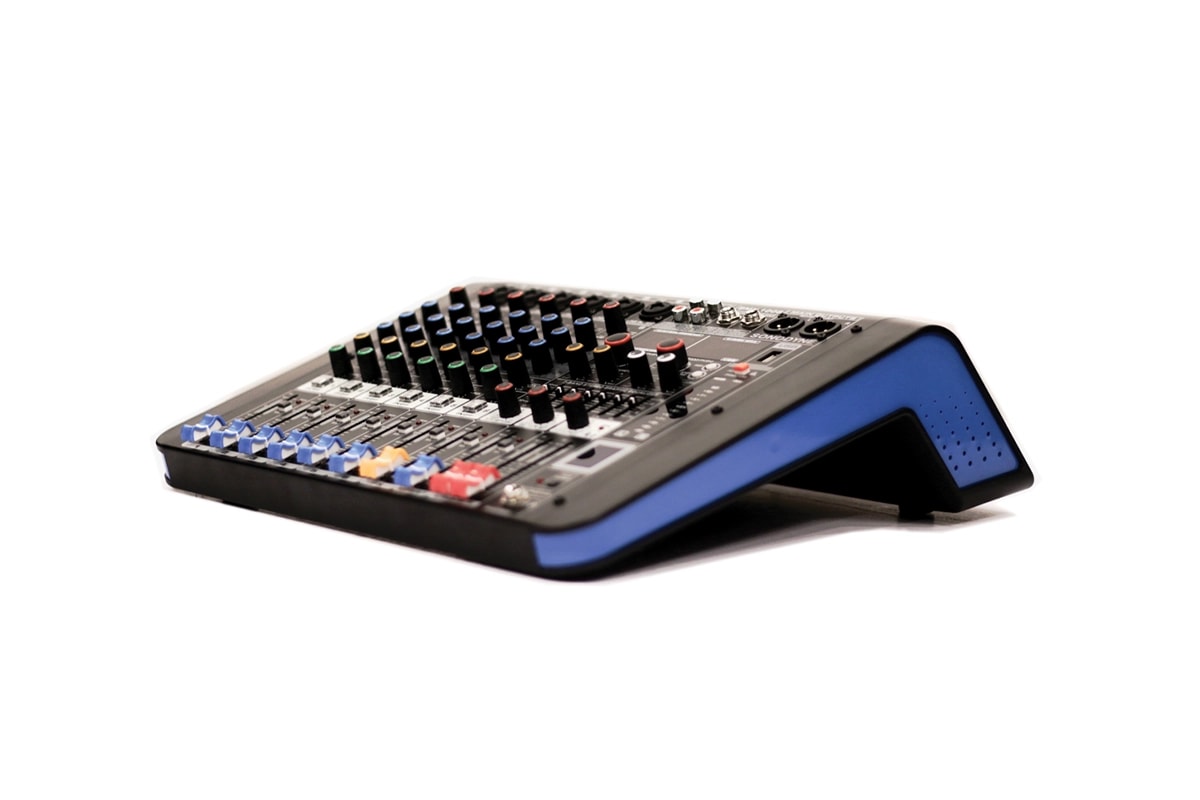

compact mixing console

SMX 1008 is a compact mixing console with 6 mic, 1 stereo inputs; detailed specifications are given below

Warranty

2 Years

Dimensions

360mm×360mm×120mm

  • High-Performance small format analogue mixers with onboard effects

  • Mic preamps with low noise performance

  • EQ with sweep-able mid-bands per channel

  • Tap Delay on select models

  • USB rec and playback

  • 32bit 48kHz Effects Engine featuring Reverb, Delay, Chorus and Modulation

  • Trim Limiters on input channels

  • Combo inputs for guitars, basses and other instruments

  • Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels (12, 16 and 24 channel)

  • Smooth premium-quality faders

  • Robust polymer lightweight construction for tour-grade build quality and reliability

  • Internal universal power supply

  • DC 5V lamp connector

  • +48V phantom power

  • XLR balanced outputs

DESCRIPTION
Compact mixing console with 6 mic, 1 stereo inputs
FREQUENCY RESPONSE
10Hz ~ 90kHz (+0, -1dB)
INPUT: MONO (MIC/LINE)
6
INPUT: STEREO
1
OUTPUT: MAIN
2
GRAPHIC EQ
7 band stereo
EQ
HIGH: Gain: +15dB/ -15dB, Frequency: 12kHz shelving, MID: Gain: +15dB/-15dB, Frequency: 2.5kHz peaking, LOW: Gain: +15dB/ -15dB, Frequency: 80Hz shelving
EFFECTS
16 effects, DSP based
SIGNAL TO NOISE RATIO
110dB, A- weighted
THD
0.004% A- weighted
USB PLAYBACK
Yes
RECORD TO USB
Yes
FADERS
60mm
PHANTOM POWER
Global
OTHER FEATURES PER CHANNEL
Mute switch for each channel
MIC EIN, 50 OHM SOURCE RES
-133dB
POWER CONSUMPTION
230V AC 50Hz
POWER REQUIREMENT
15W
DIMENSIONS (WxHxD)
360mm x 120mm x 360mm

NOTE: Due to continuous improvements, all specifications are subject to change
