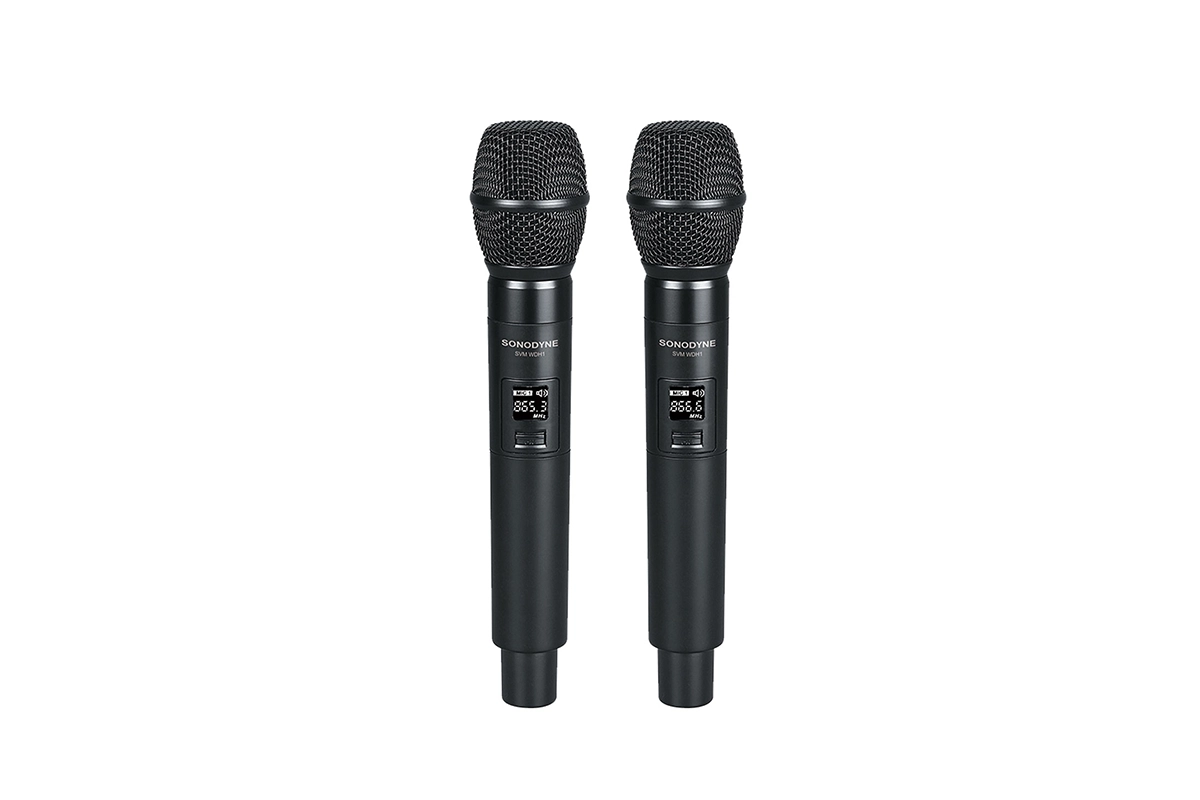

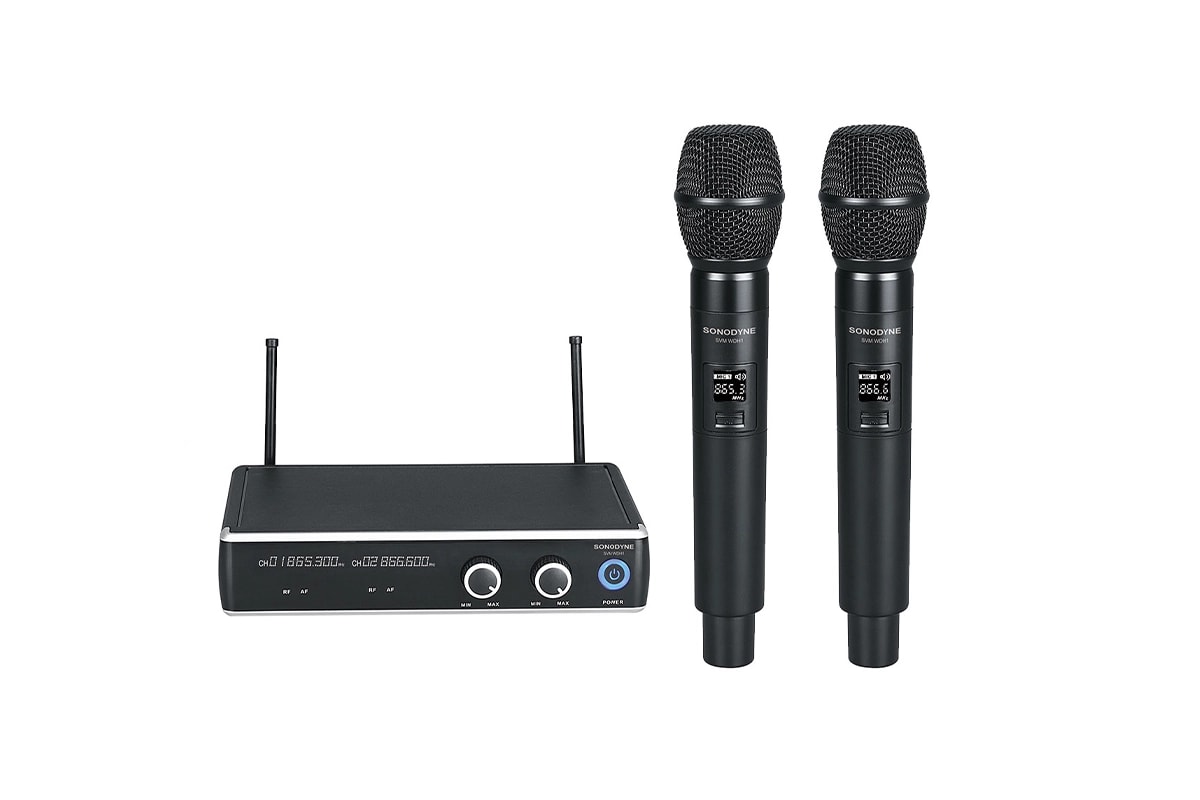

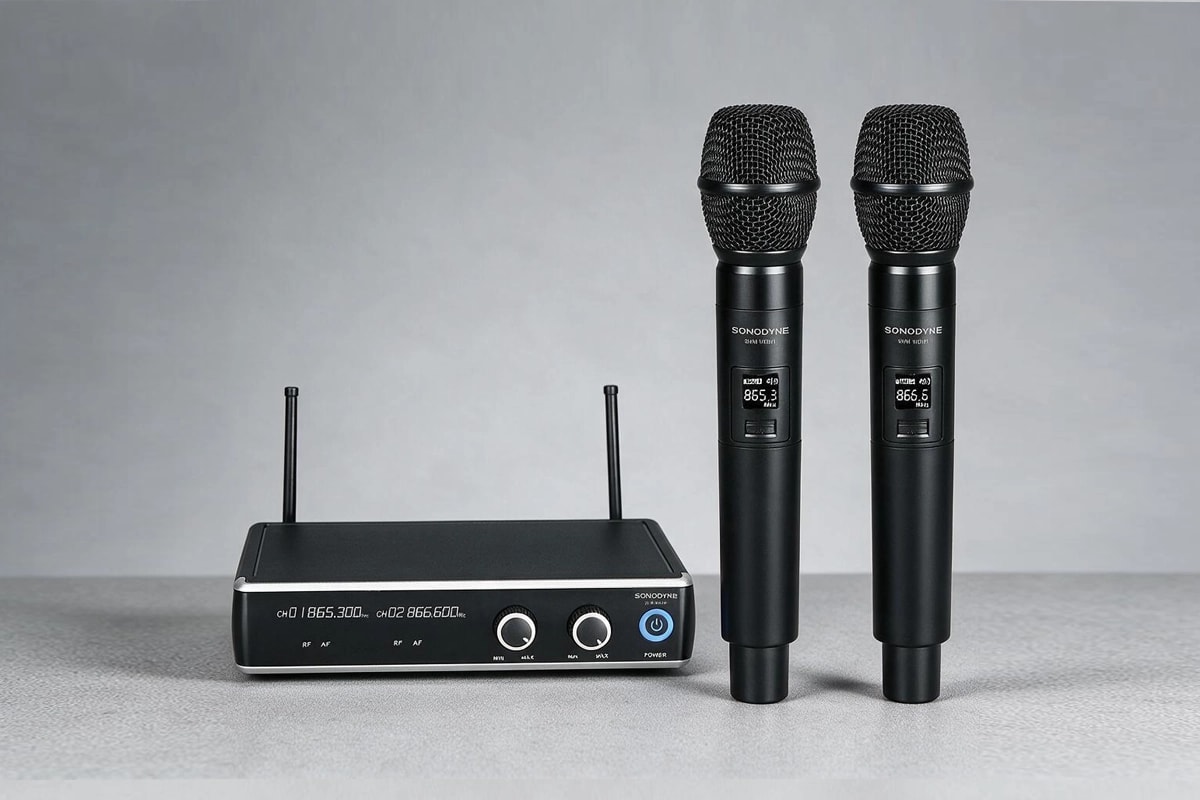

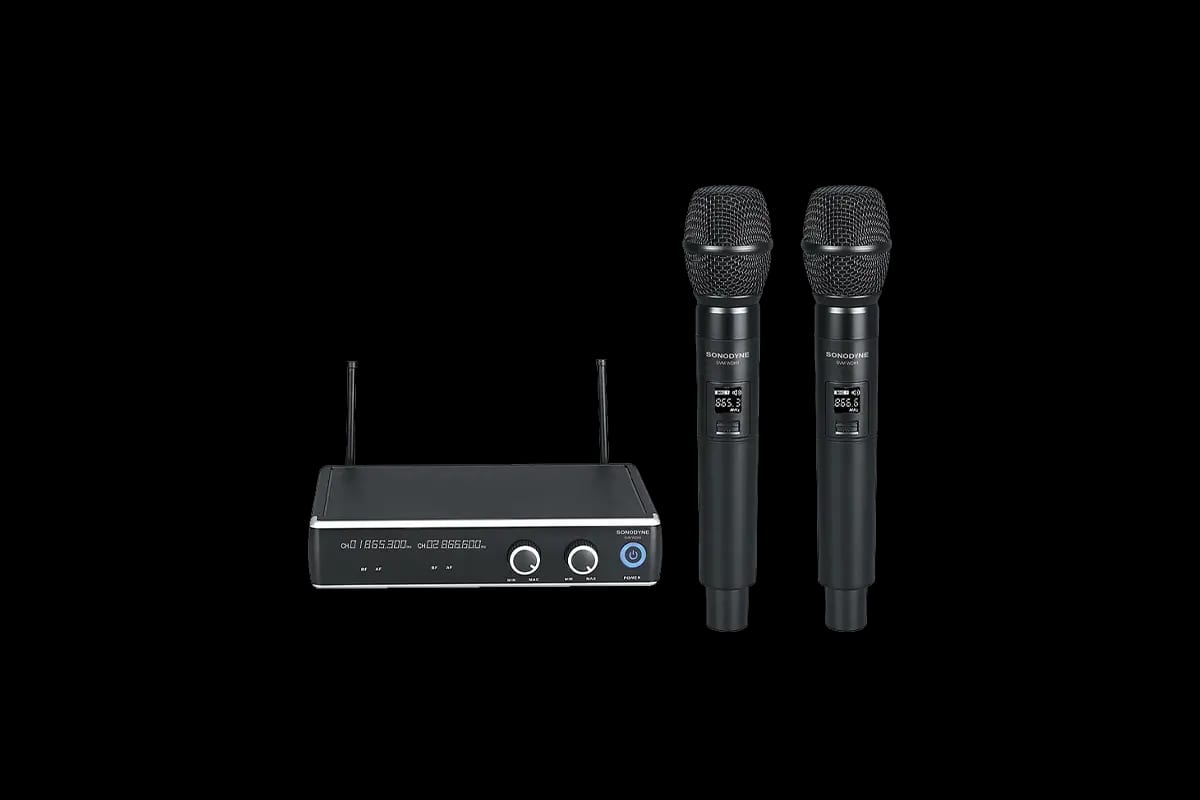

SVM WDH1
dual handheld wireless microphone
Sonodyne presents the SVM WDH1 dual handheld wireless microphone
Warranty
2 Years
UHF wireless microphone with dual channels
Plastic handheld microphone with high quality capsule
Frequency 865~867MHz
Plastic handheld microphone with high quality capsule
Power supply: 12V/1A
Contents include 1 connecting cable and 4 x 1.5AA batteries
DESCRIPTION
Dual handheld wireless microphone
RECEIVER
.
CARRIER WAVE FREQUENCY RANGE
865 ~ 867MHz
CARRIER WAVE STABILITY
10ppm
SENSITIVITY (1W 1M)
-105dB @ sinad=12dB
IMAGE REJECTION
85dB typical
SPURIOUS REJECTION
75dB typical
FREQUENCY RESPONSE
40Hz ~ 18kHz
WORKING DISTANCE
> 200ft
AF OUTPUT IMPEDANCE
2.2kΩ
DISPLAY
LCD
TRANSMITTER
.
TRANSMITTER POWER
30mW
SPURIOUS EMISSION
<40dB with carrier
BATTERY
1.5V x 2 pcs
BATTERY LIFE
6~8 hours
SIGNAL TO NOISE RATIO
>105dB
THD
<0.5% @ 1kHz
POWER SUPPLY
External DC Power supply, 1A, 12V DC
NOTE: Due to continuous improvements, all specifications are subject to change
