chairman, base only

The SyNC Conference Units are elegant, and stylish.  With touchpad illuminated controls on a OLED screen it allows for a host of onboard controls . It connects with the SyNC 1001 on a T type 8 core cable, and upto 180 such microphones can be connected in conjunction with the SyNC 4001 Power Extender Unit. By using a separate data extender 1000 microphone can be connected to SyNC 1001.

MODELS:
SyNC 2001:  Gooseneck microphone, 500mm
SyNC 2002:  Gooseneck microphone, 420mm
SyNC 3001:  Chairman unit, base only
SyNC 3002:  Delegate unit, base only

Warranty

2 Years

  • The unit is powered by SyNC 1001.

  • Comes with T-type 8-core connection. The cable is shielded by full-line aluminium foil, which greatly reduces interference of strong electromagnetic waves on the wire

  • Employs interference suppression to prevent interference from electronic products such as mobile phones

  • Touch type illuminated switches. The microphone on/off switch is bright green in standby mode and bright red when on

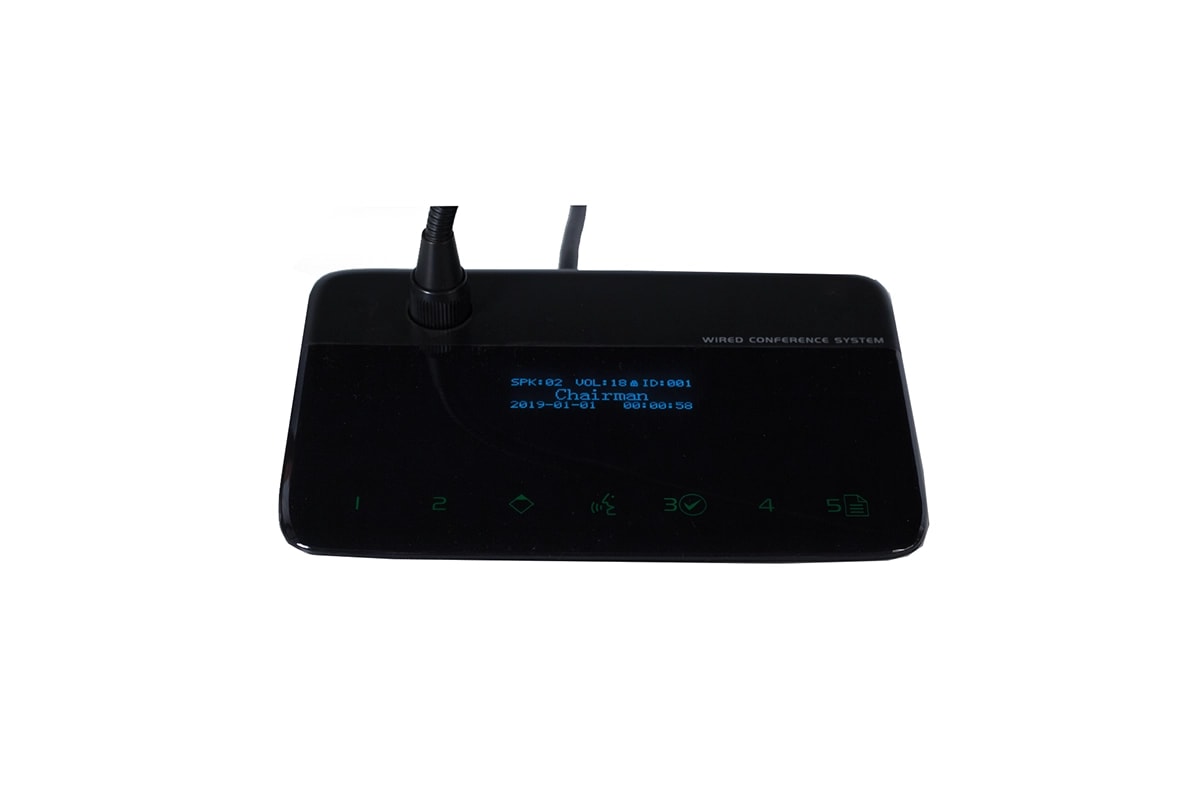

  • 2.23” bright full-view OLED display for displaying the voting, voting mode, unit parameters, date and time, speaking volume, monitoring volume, etc. when operated.

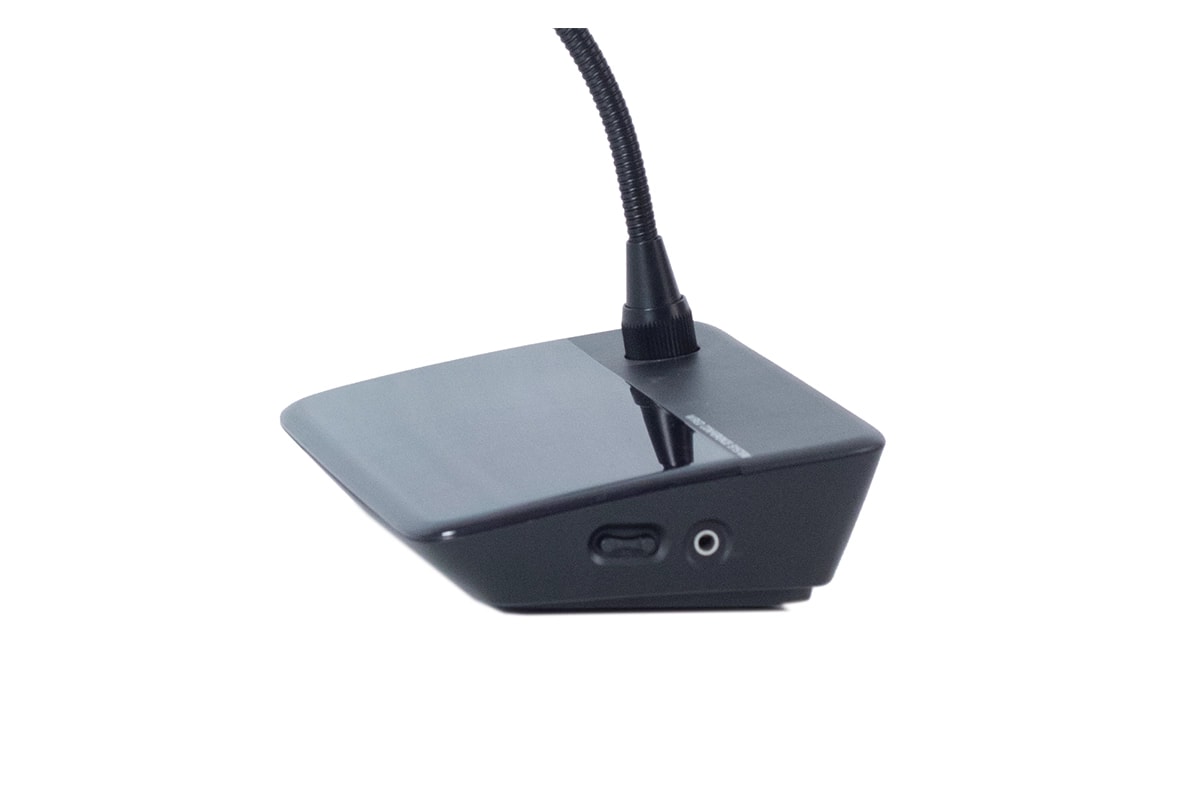

  • Headphone output port and volume adjustment button are provided on the side, for monitoring

  • Employs “Hand in hand”” connection mode, supporting hot plugging, which makes installation and maintenance easy

  • Service buttons for requesting tea, coffee, pen, paper, etc

  • The chairman unit has the function of approving the speech request of the delegate

  • The chairman unit is not limited by the number of speakers;

  • The chairman unit has an additional priority function button for controlling the order of the conference

  • The chairman unit can be connected anywhere in the loop

  • system can support the use of  multiple chairman units at the same time

CABLE
DIN-8P
CAPSULE
Cardioid
SENSITIVITY
-46 dBV/Pa
FREQUENCY RANGE
20Hz~20kHz
INPUT IMPEDANCE
2kΩ
DIRECTIONAL 0°/180°
>20dB (1kHz)
EQUIVALENT NOISE
20dBA (SPL)
SPL
125dB (THD<3%)
SIGNAL TO NOISE RATIO
>80dB
THD
<0.05%
DISPLAY
128 x 32 OLED
EARPHONE LOAD
>10Ω
EARPHONE VOLUME
10mW
EARPHONE INTERFACE
3.5mm × 1
INSTALLATION
Counter top
COLOURS
Black
DIMENSIONS (WxHxD)
185mm x 44mm x 121mm
WEIGHT
Base: 0.53kg, MIC: 0.07kg

NOTE: Due to continuous improvements, all specifications are subject to change
