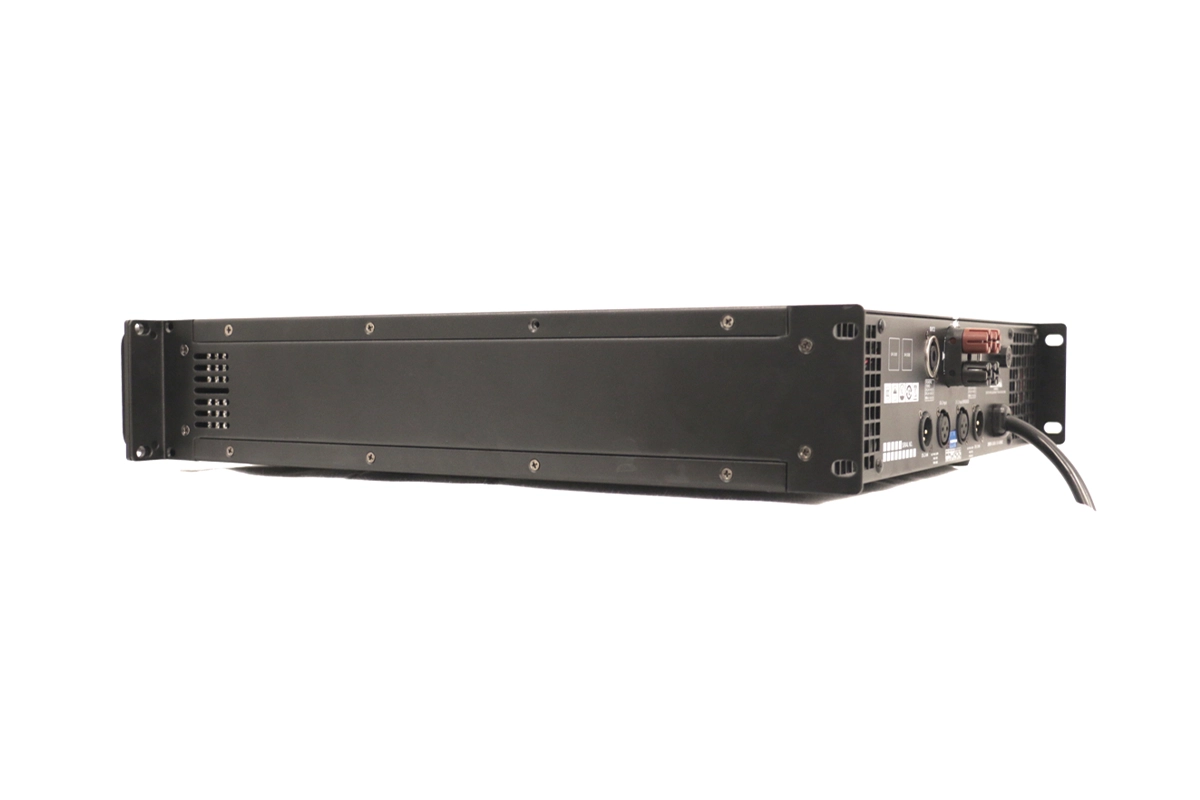

SLA 2015
2 channel power amplifier
SLA 2015 is a 2 channel, Class H amplifier that delivers 2250 watt / channel at 4 Ohm. Detailed specifications are given below
Warranty
2 Years
Configuration
2 Channel
Dimensions
457mm×483mm×88mm
2Ω operation
Soft start
High SNR
Low THD, IMD
Heavy-duty power supply for high dynamic power
Short-circuit, thermal, output DC, RF protection
Variable-speed twin fan back-to-front cooling
Neutrik Speakon® and binding post output connectors
LED indicators for metering, status, and operating mode
DESCRIPTION
2 channel power amplifier
CHANNEL
2
OUTPUT POWER
8Ω: 1500W 4Ω: 2250W 8Ω BRIDGED: 4500W (per channel)
AMPLIFIER THD @ RATED POWER
<1%
DAMPING FACTOR
>300
SIGNAL TO NOISE RATIO
107dB (20Hz ~ 20kHz)
OUTPUT CIRCUITRY
H
FREQUENCY RESPONSE
20Hz~20kHz, ±0.5dB
INPUT CONNECTOR
XLR with link (each channel)
OUTPUT CONNECTORS
Twist-lock connector and binding post (each channel)
AMPLIFIER AND LOAD PROTECTION
Short circuit, output DC, thermal, RF protection
INDICATORS
Front Panel: Clip, Protect and Signal LED indicators, 42 detent rotary vol control
INPUT POWER
600W (as per BIS IS616:2017 IEC60065:2014/IEC62368-1)
CONTROLS
Rear: DIP switch stereo, parallel, bridge. DIP switch for 2 Sensitivity settings
DIMENSIONS (WxHxD)
483mm x 88mm x 457mm
NET WEIGHT
28kg
AGENCY APPROVALS
CE, BIS IS616:2017 IEC60065:2014/IEC62368-1
NOTE: Due to continuous improvements, all specifications are subject to change
