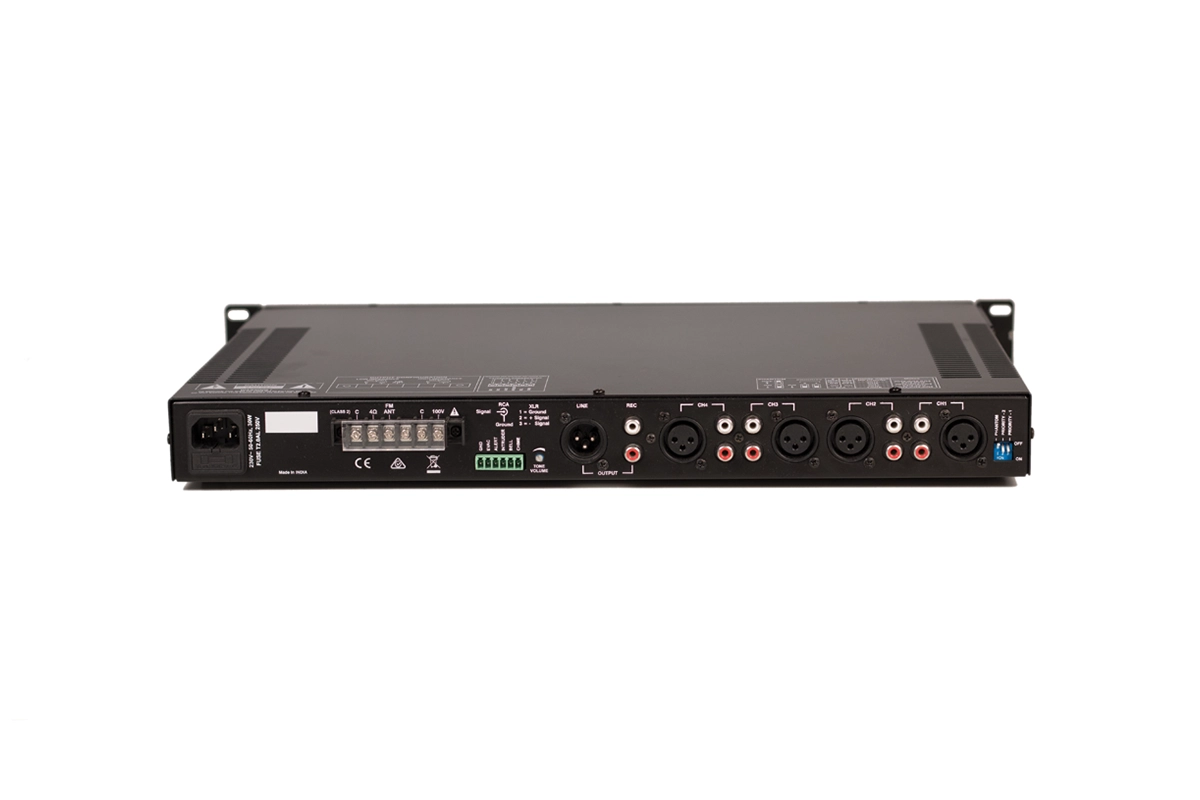

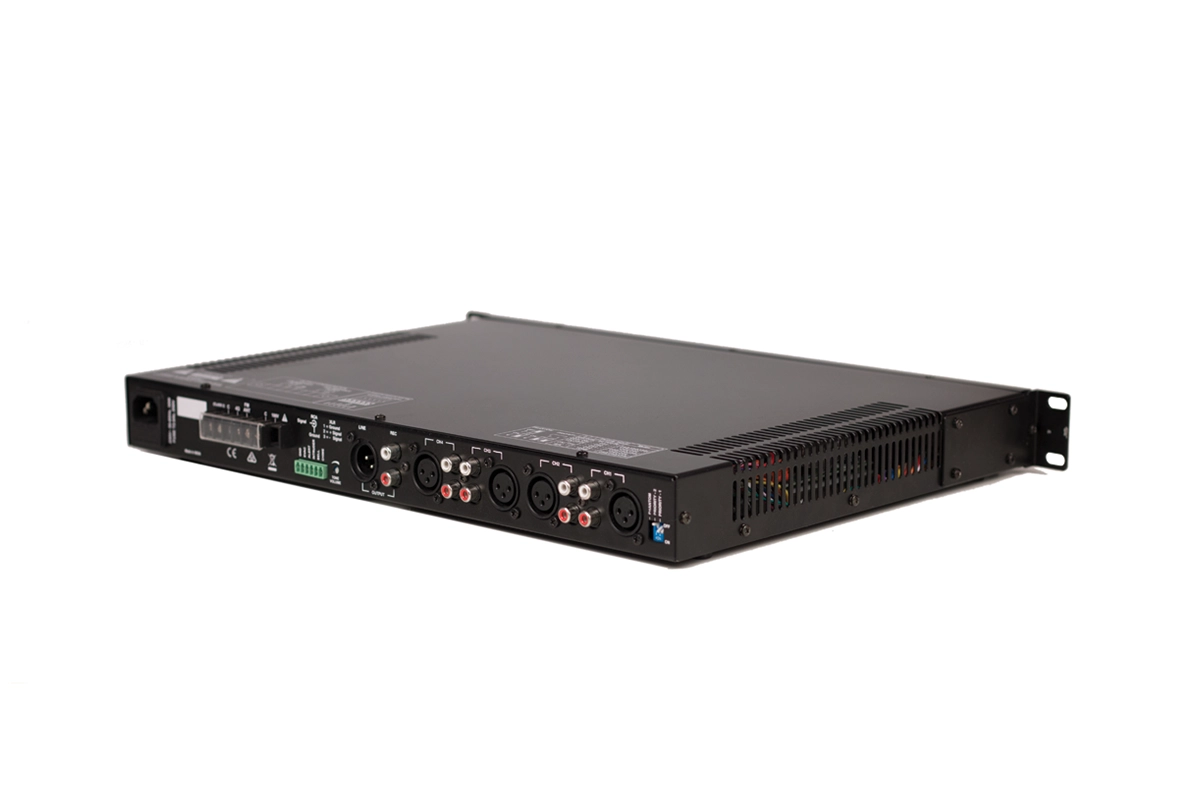

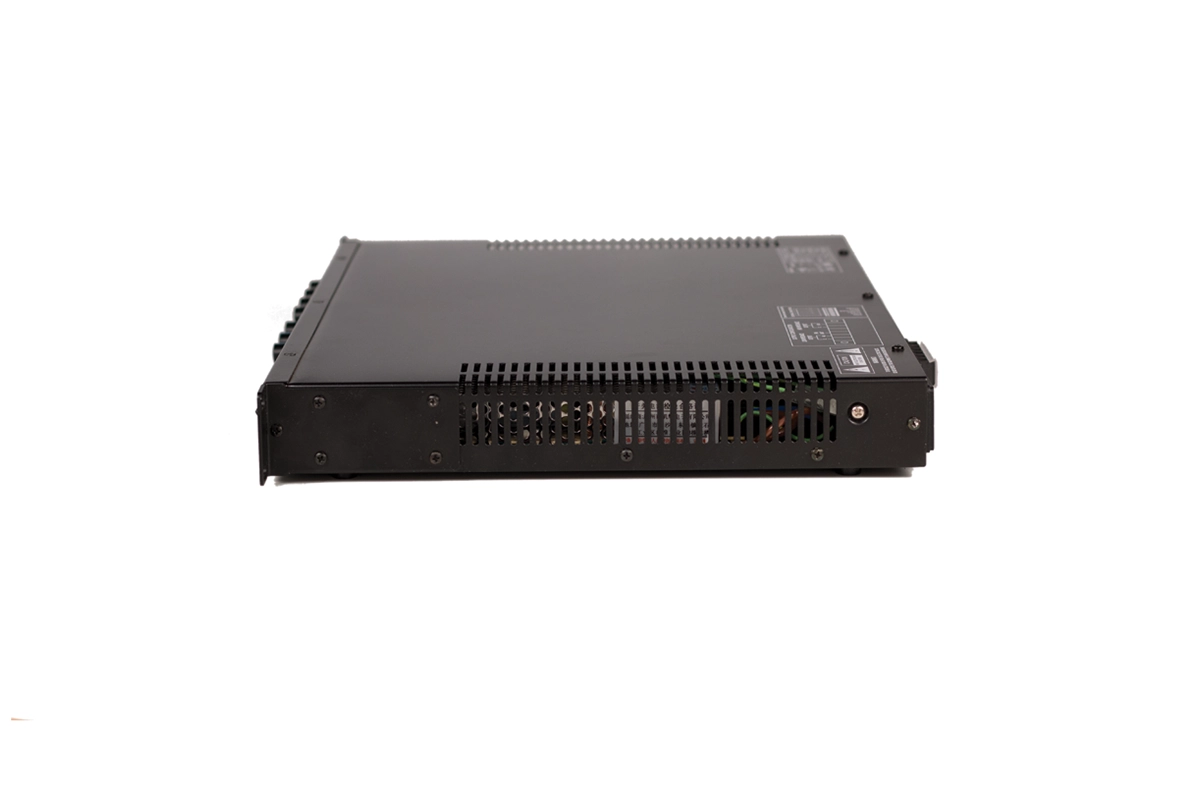

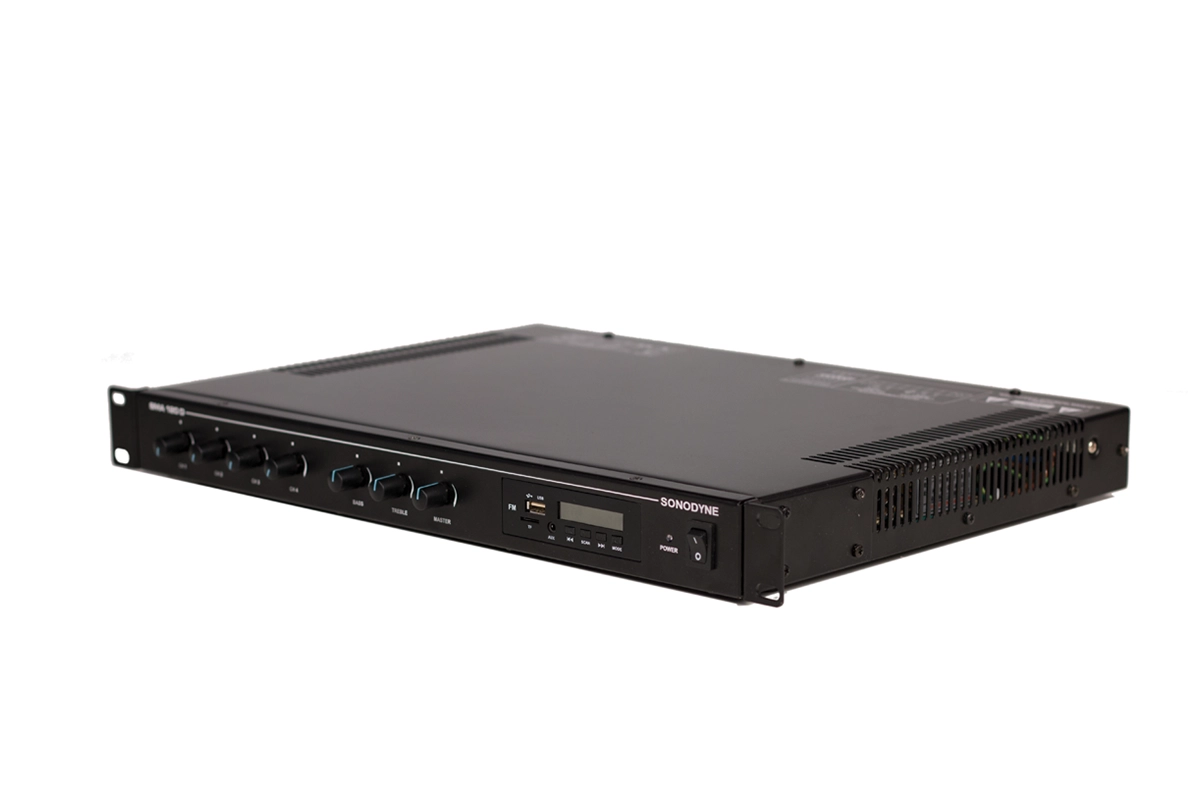

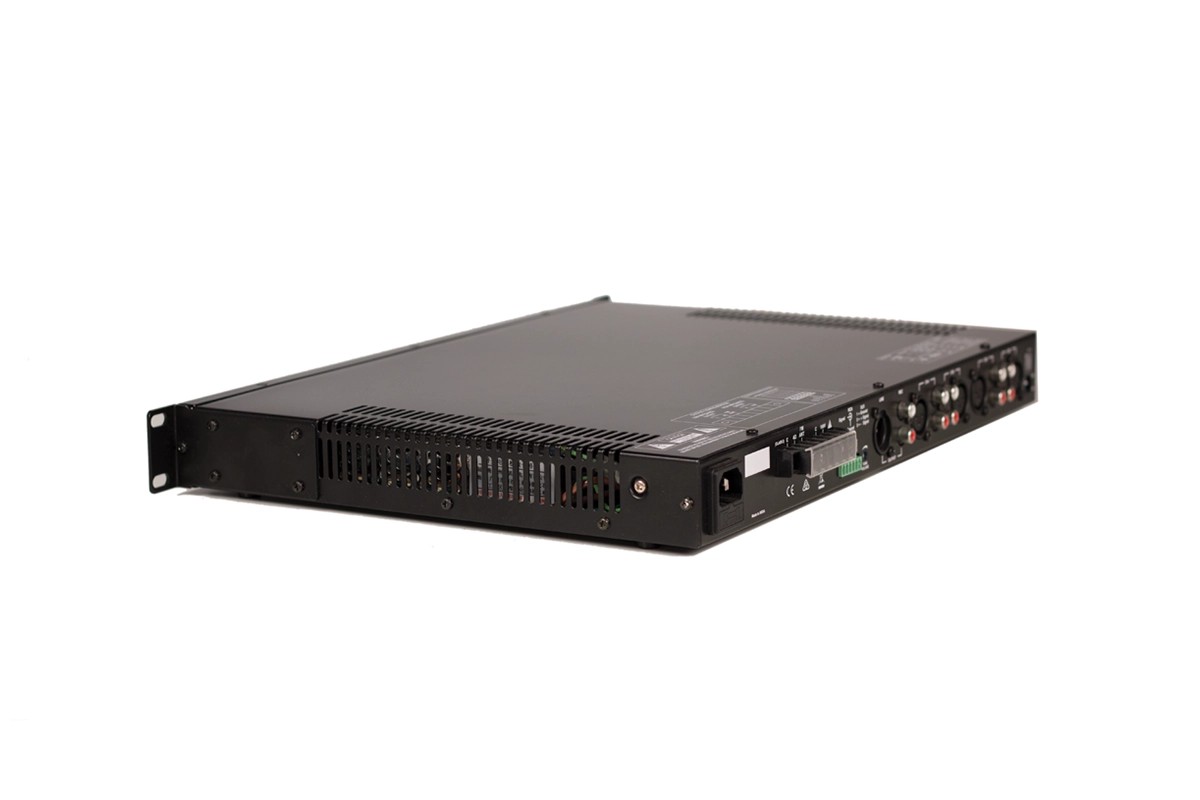

SMA 120D
120W mixer amplifier
The SMA 120D is a slim (1RU) 4 channel mixer amplifier with efficient 120W Class D amplification. User-friendly media player, 4 Ohm & 100V out, with individual volume control for each input suitable for commercial installation. Line output for easy daisy chain cascading
Warranty
2 Years
Dimensions
310mm×483mm×44mm
Heavy duty 1RU metal construction with rack mounting arrangement
Industry standard balanced XLR/ unbalanced RCA signal input connectors
Efficient power supply to take care of wide range of mains input
Phantom power and priority functions user selectable
Well designed rugged toroidal output transformer design
Layout, grounding, decoupling and close tolerance componentry have been optimized to give operational long term stability
Power On LED indications.
Meeting standard mains safety requirements
Radio frequency interference suppression
High overload mains fuse protection.
Output short circuit and over load protection
Various TONES selectable with a volume control
NOTE: Due to continuous improvements, all specifications are subject to change
