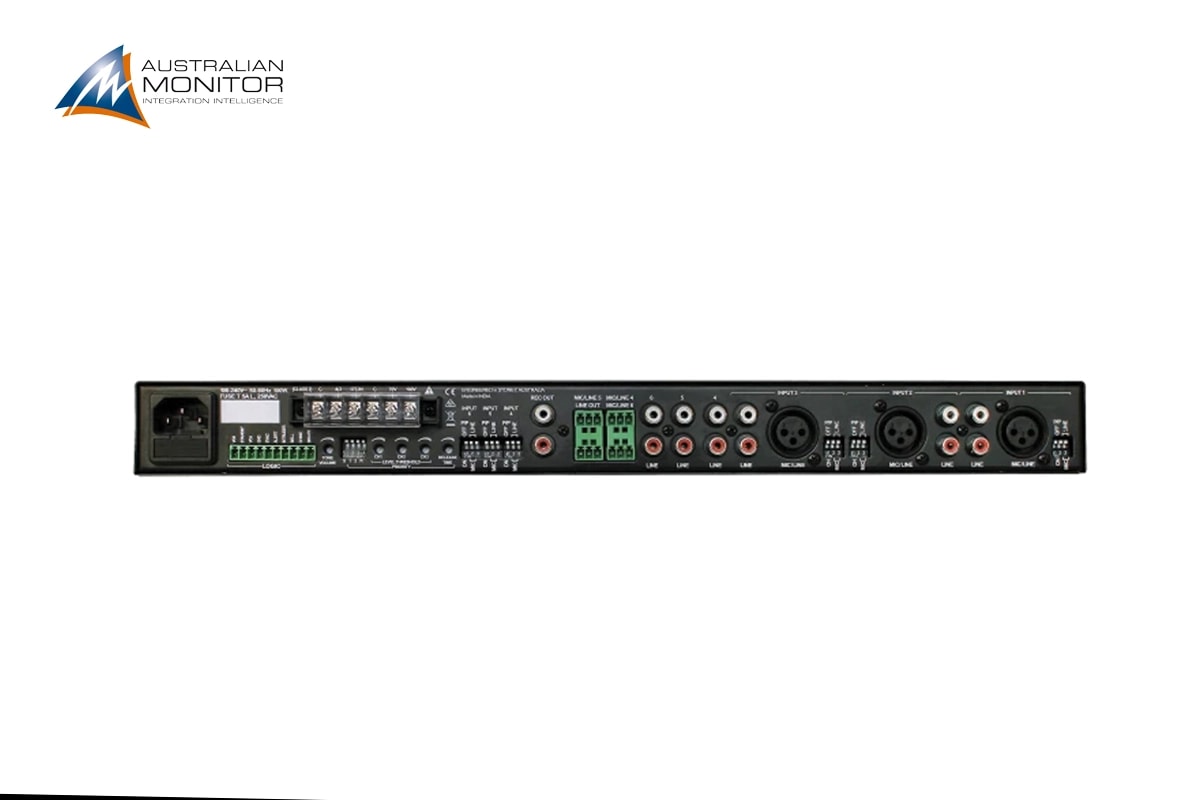

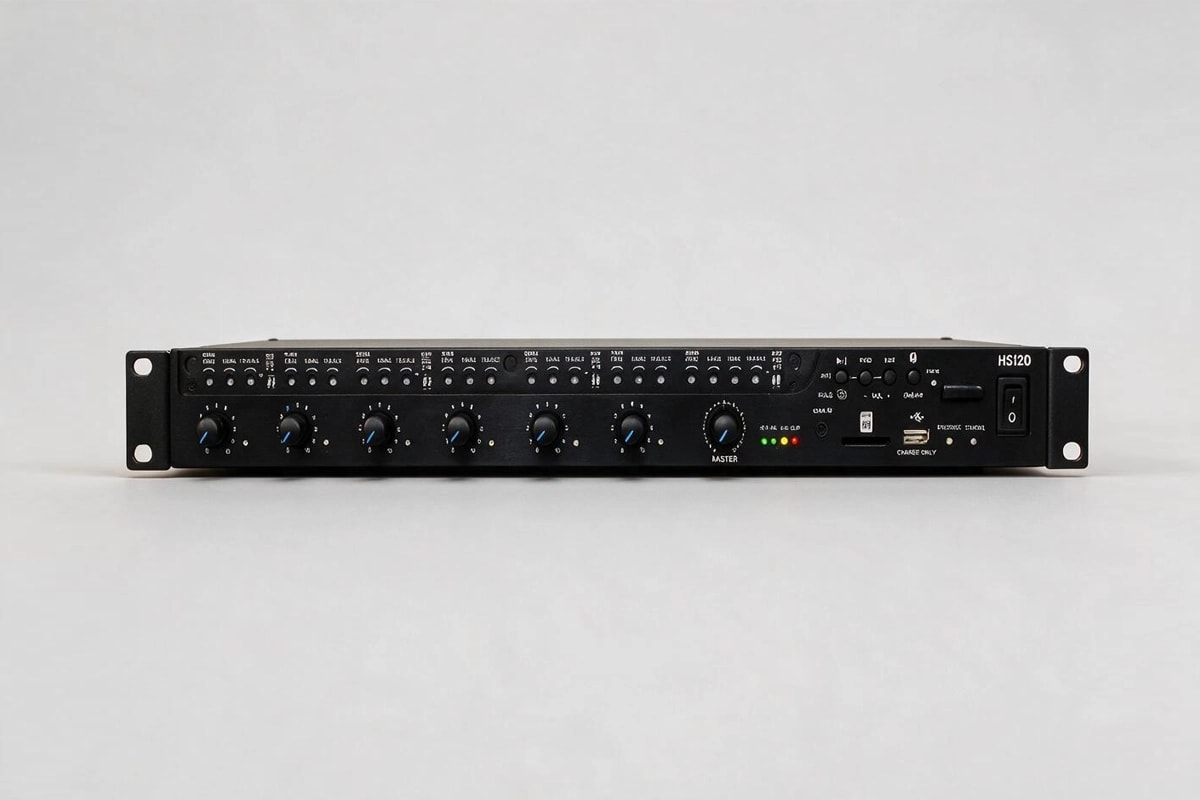

250W mixer amplifier

The HS series is Australian Monitor’s next generation of Class D mixer amplifiers, delivering high quality audio reinforcement with the power you need – 60, 120, 250 and 500 watt options, all in a one rack unit package.

Our new amplifiers are fully featured, offering 7 external and 2 internal audio input channels, each channel offering individual channel volume control, equalizer and gain control. An inbuilt user-customizable tone generator, MP3 player, Bluetooth module, 3.5mm jack and USB charger are included as standard in all models.

The HS series has been designed with all of the features and power to suit a vast range of installations, from the boardroom to the classroom, school hall to bar, restaurant or function space.

Warranty

2 Years

Configuration

6 MIC or Line - Bluetooth - MP3 and Aux Channel

Dimensions

306mm×438mm×44mm

  • 250W Class D amplifier stage

  • 4 Ohm / 70V and 100V outputs

  • 9 audio input channels. 6 rear & 3.5mm line, Bluetooth and MP3

  • Individual gain/equalisation control on all external audio inputs

  • Priority mute control on channels 1-3, with level and time release control

  • Magnetic cover for customer concealed eq and gain controls

  • Embedded tone generator for bell/alert/evac/chime/ intruder plus 11 fully customisable user tones

  • Embedded MP3 player via onboard SD card socket supporting random, sequenced and single playback

  • Bluetooth 3.0+EDR audio receiver supporting advanced audio distribution profile (A2DP)

  • Tamper-proof channel attenuation by disabling external volume controls

DESCRIPTION
250W mixer amplifier
OUTPUT POWER
250W (per channel)
OUTPUT MODE
4Ω-70V-100V
CHANNEL
6 MIC or Line - Bluetooth - MP3 and Aux
INPUT VOLTAGE
100-240Vac 50-60Hz
FREQUENCY RESPONSE
4Ω: 20Hz ~ 20kHz, 100V: 100Hz - 16kHz
THD + NOISE
< 0.3%
SIGNAL TO NOISE RATIO
> 75dB
INPUT SENSITIVITY
0dBu
INPUT CONNECTOR
1 x 3 euroblock plug (3.81mm)
AUDIO INPUT
Internal: Bluetooth audio input, MP3 audio input; External: 3 XLR/RCA inputs with MIC/LINE level control, 3 EURO/RCA inputs with MIC/LINE level control, 3.5mm front panel audio jack
TONES
5 default tones + 11 user customisable tones
BLUETOOTH®
Bluetooth 3.0 + EDR supporting A2DP profile
COOLING
Convection
MOUNTING
1RU
DIMENSIONS (WxHxD)
438mm x 44mm x 306mm
NET WEIGHT
6.8kg

NOTE: Due to continuous improvements, all specifications are subject to change
