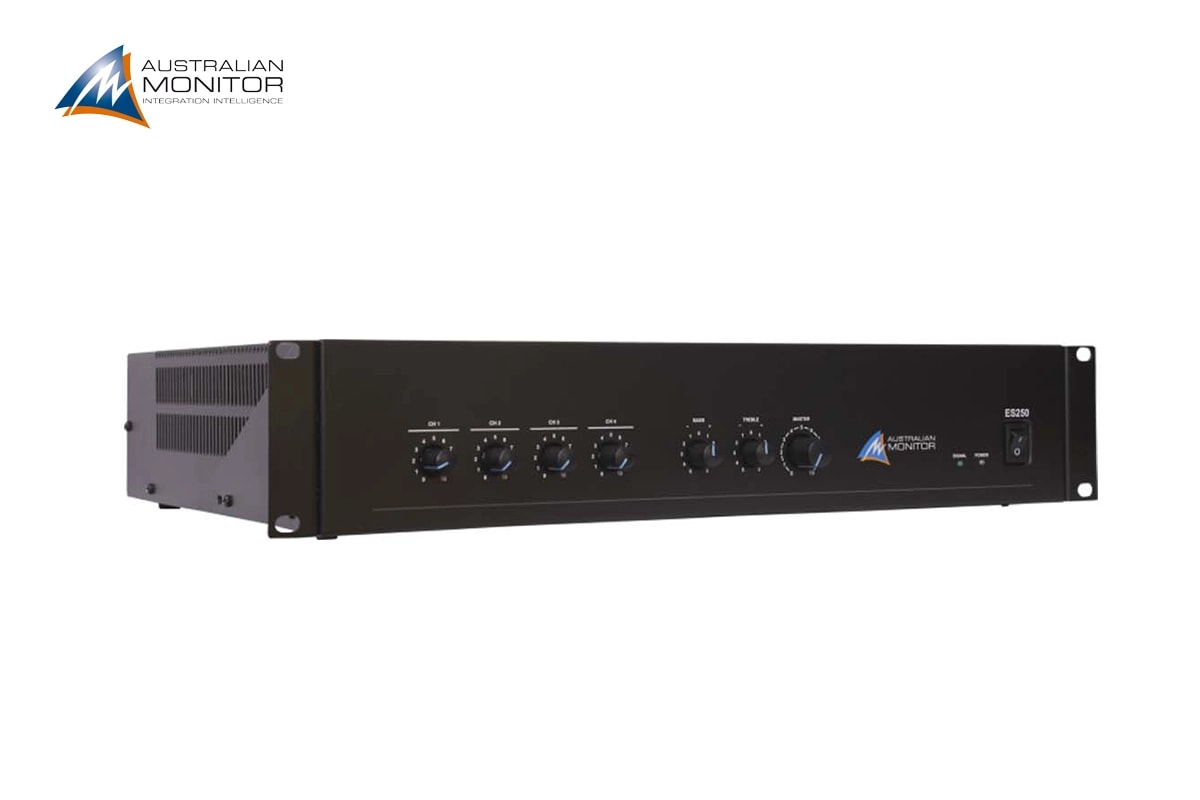

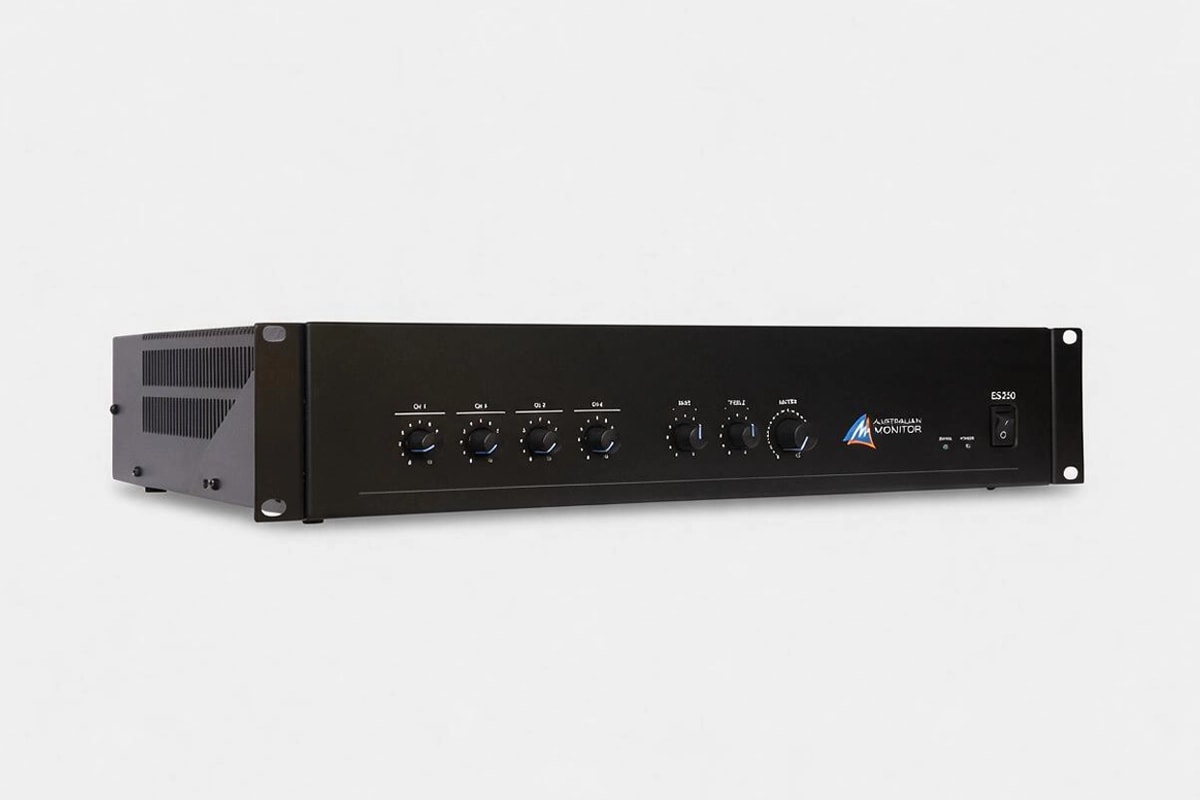

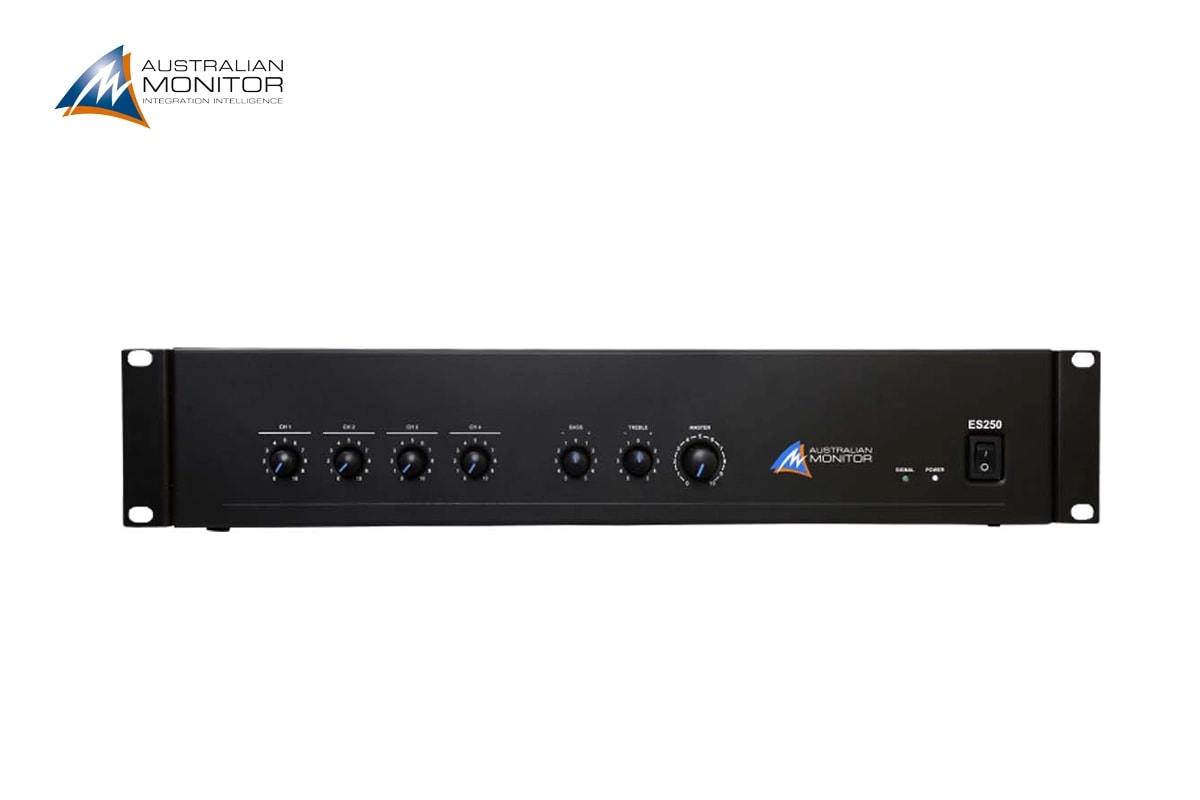

250W mixer amplifier

The Australian Monitor ES Series is the latest evolution of our Essentials series of Mixer Amplifiers, now featuring 2 channels of priority VOX muting, integrated tone generator (120/250 models) and a modern look and finish.

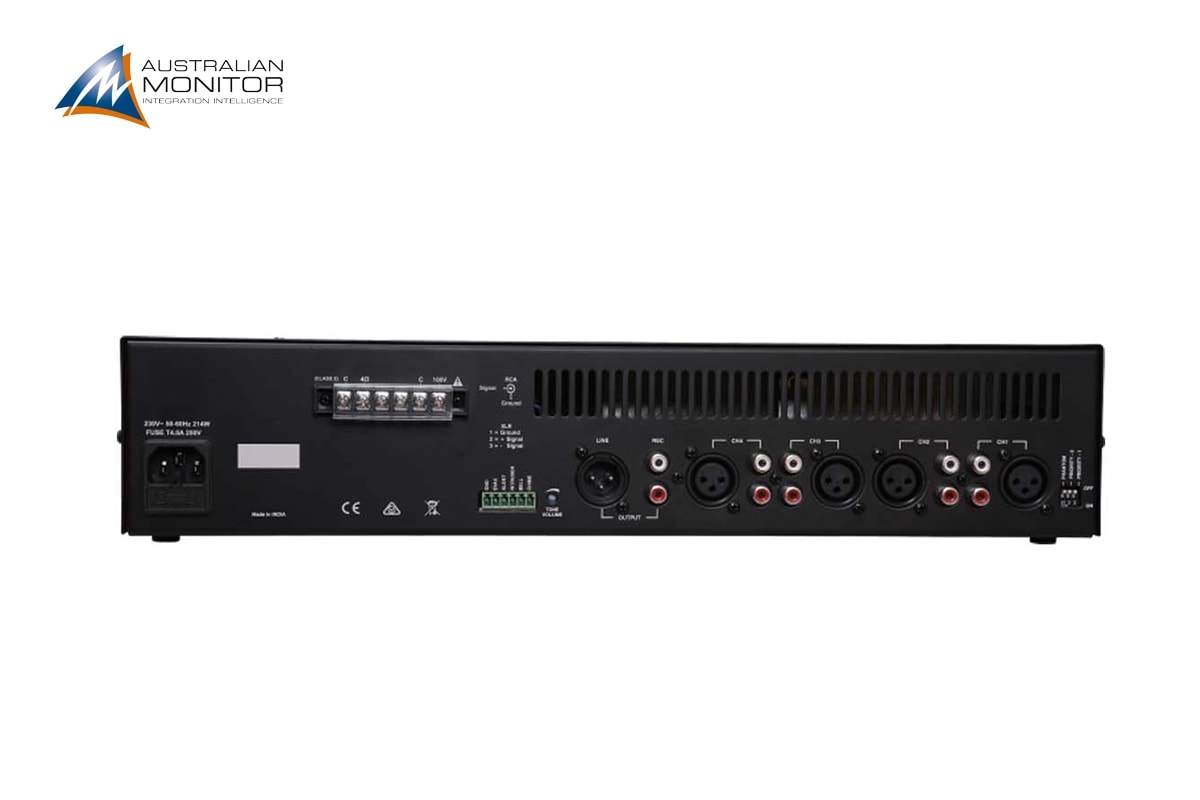

The ES mixer amplifiers maintain the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs, low impedance or constant voltage outputs and 12V phantom power.

The ES series offers the latest features to meet projects requiring the most cost-effective solutions.

Warranty

2 Years

Configuration

4 MIC or Line Channel

Dimensions

365mm×483mm×88mm

  • 250 Watt mixer amplifier

  • 4 XLR microphone/dual RCA line inputs

  • 100 volt or 4 ohm output

  • Line and Record Level Outputs

  • Input 1,2 vox muting priority

  • Integrated tone generator. Evac/Alert/Intruder/Bell/Chime tones

  • 12VDC phantom power

  • 2 RU rack mountable chassis

DESCRIPTION
250W mixer amplifier
OUTPUT POWER
250W (per channel)
OUTPUT MODE
4Ω-100V
CHANNEL
4 MIC or Line
INPUT VOLTAGE
230VAC 50Hz
FREQUENCY RESPONSE
40Hz - 20kHz
THD + NOISE
< 0.2%
SIGNAL TO NOISE RATIO
> 80dB
INPUT SENSITIVITY
MIC: 1.2mV - LINE: 160mV
COOLING
Fan-assisted
MOUNTING
2RU
DIMENSIONS (WxHxD)
483mm x 88mm x 365mm
NET WEIGHT
11.8kg

NOTE: Due to continuous improvements, all specifications are subject to change
