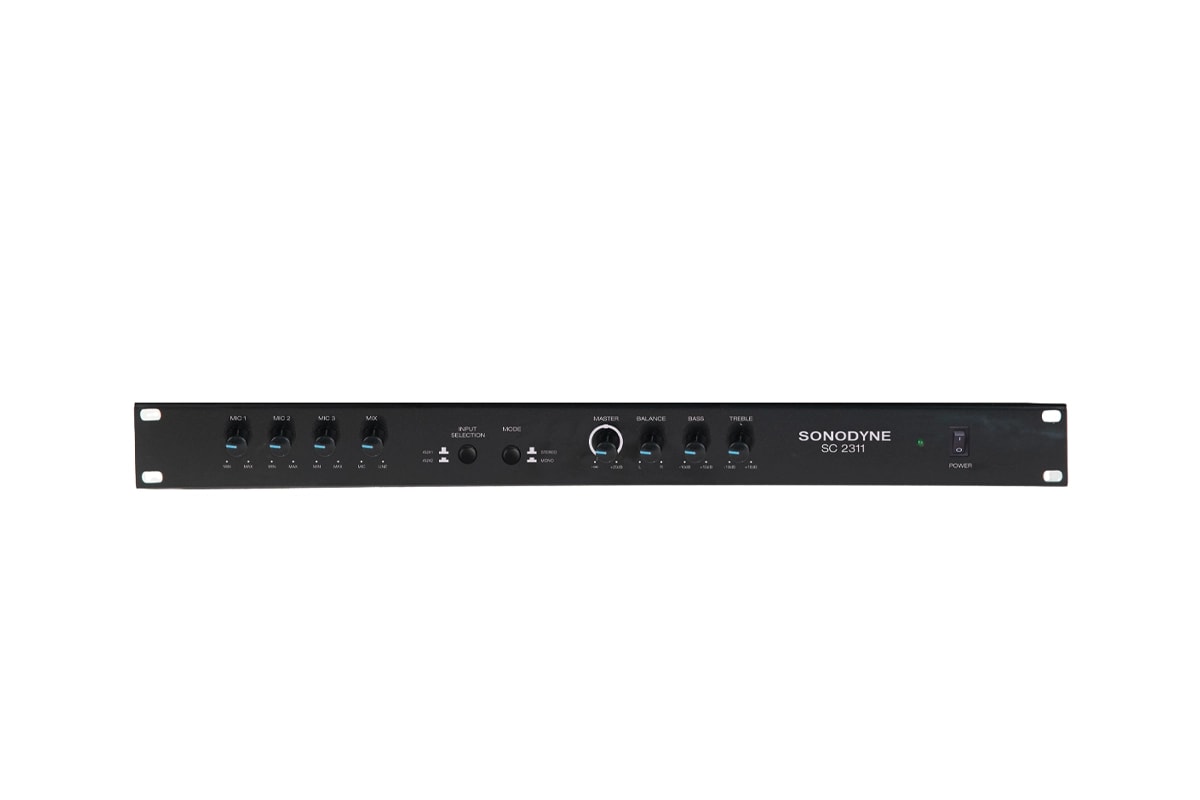

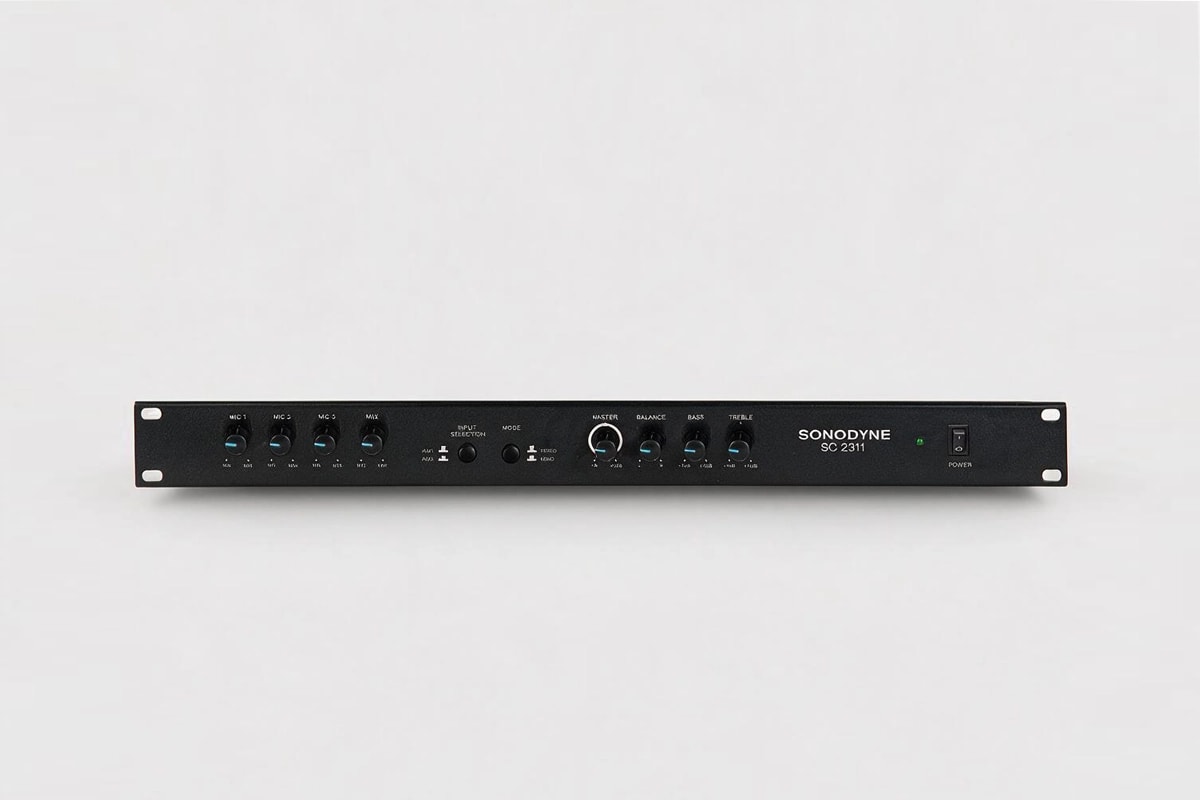

SC 2311
SC 2311

SC 2311

stereo preamplifier

Our years of experience in installed sound has resulted in a feature-loaded device that will meet most installed sound needs. The SC 2311 performs admirably as a line mixer with intuitive priority allocations and overrides, and as a preamplifier, providing low noise, low distortion signals to your power/ booster amplifiers. With 3 mic, 2 line ins, and a priority alarm in, it will make your installation a breeze to set-up and operate. So go ahead and produce your signature sound with the SC 2311.

Warranty

2 Years

Dimensions

192mm×182mm×44mm

DESCRIPTION
Professional stereo mixer preamplifier
INPUT
3 Mic inputs (fully balanced) via XLR socket 1 balanced stereo line level input via TRS (AUX 1) 2 unbalanced stereo line level inputs via RCA socket as follows : AUX 2 (L&R), ALARM (L&R)
OUTPUT
1 unbalanced line level stereo RCA output 1 balanced line level stereo TRS outputs
CONTROLS
Master volume control, Balance, Bass, Treble, Mic/ Line MIX Control, individual Mic level controls, selector switches for AUX1 & AUX2, STEREO/MONO mode selection switch, one power switch & one rear panel accessible priority control switch which provides priority to MIC 1 over all channels except ALARM
FREQUENCY RESPONSE
10Hz ~ 20kHz, ±3dB
INPUT SENSITIVITY
Aux 1 - 140mV Aux 2 - 130mV Alarm - 180mV Mic - 2mV
INPUT IMPEDANCE
Aux 1 - 44kΩ (balanced) Aux 2 - 47kΩ Alarm - 10kΩ Mic - 1kΩ (balanced)
CROSSTALK
Better than 65dB (1kHz)
CHANNEL SEPARATION
55dB (1kHz)
SIGNAL TO NOISE RATIO
Better than 85dB
THD
0.02% @ 1 kHz
BASS
±10dB at 100Hz
TREBLE
±10dB at 10kHz
POWER REQUIREMENT
230VAC @ 50Hz
POWER CONSUMPTION
15 VA max
DIMENSIONS (WxHxD)
182mm x 44mm x 192
NET WEIGHT
2.5kg

NOTE: Due to continuous improvements, all specifications are subject to change
