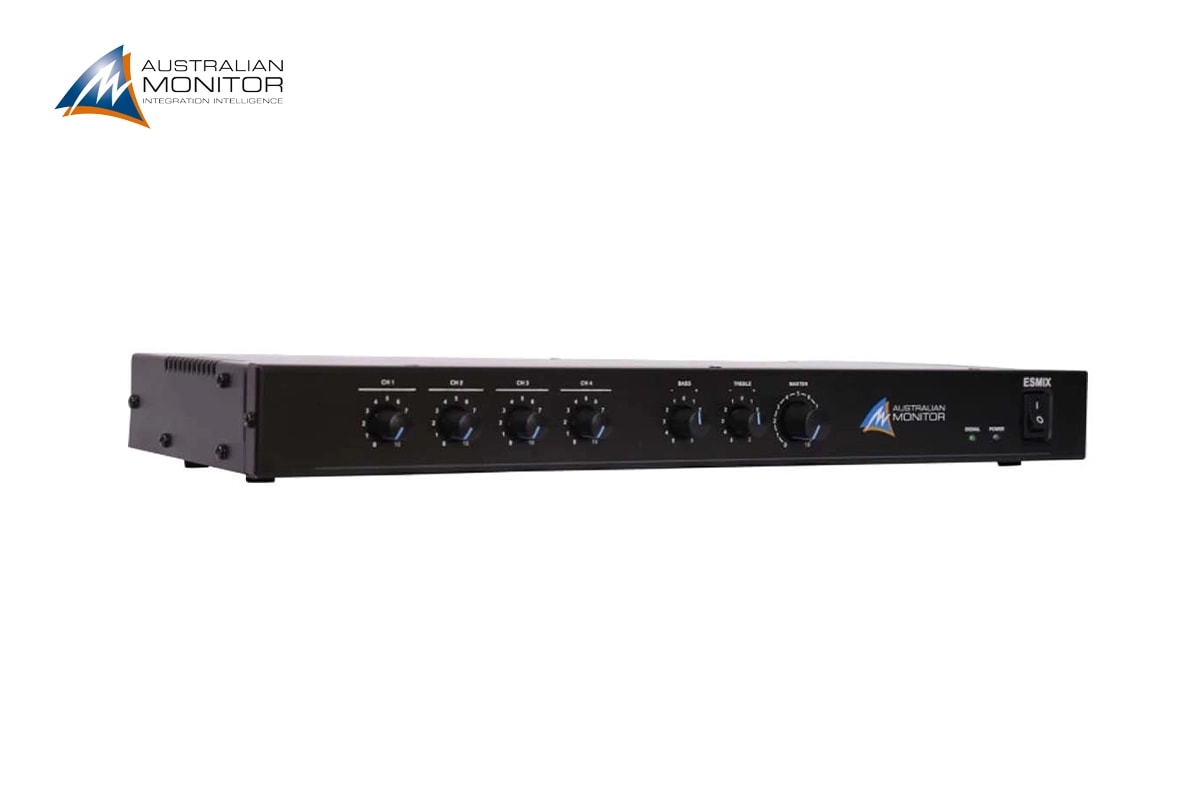

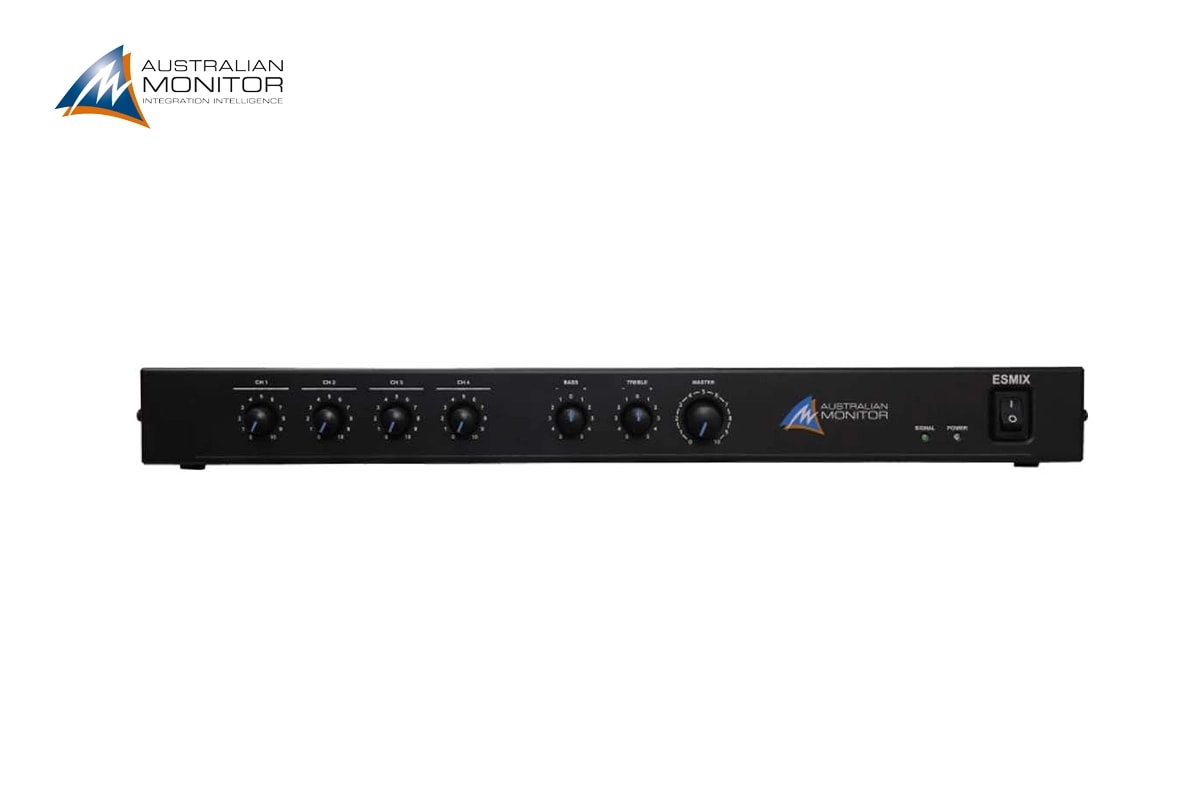

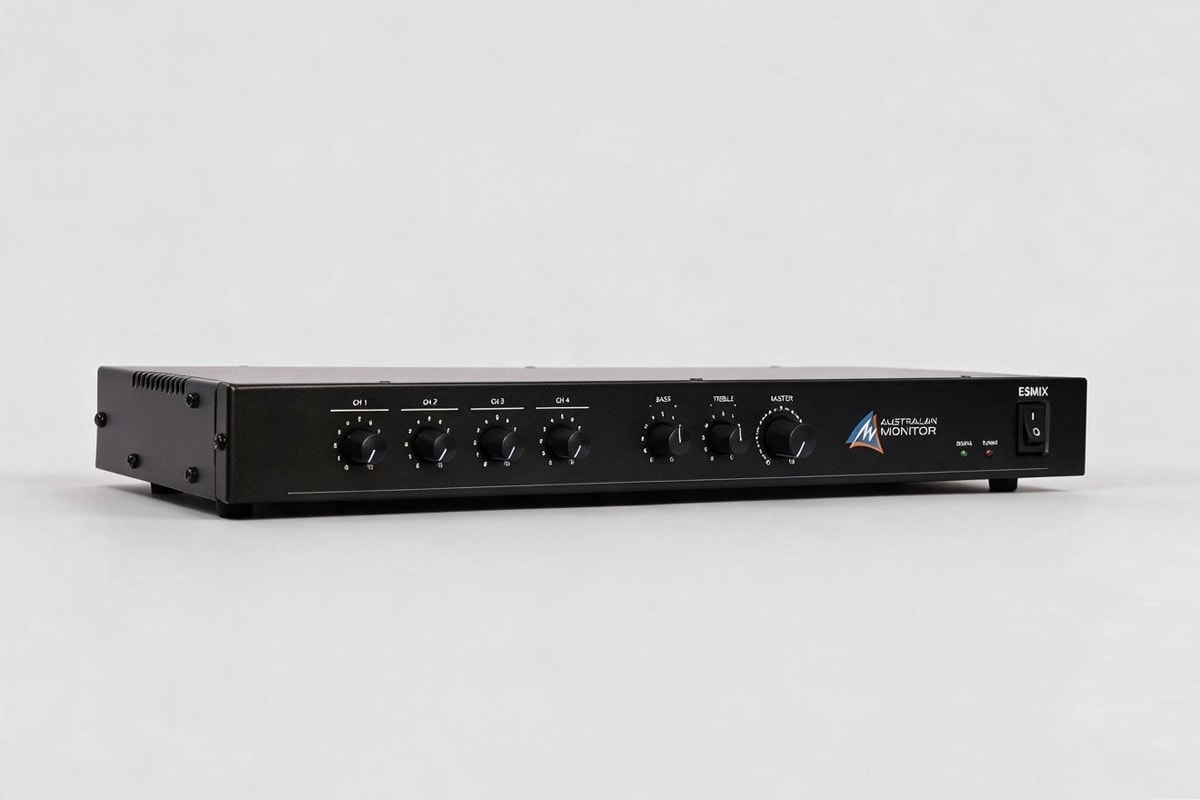

4 channel mono mixer

The Australian Monitor ESMIX is the latest evolution of our Essentials series of Mixers, now featuring 2 channels of priority VOX muting an integrated tone generator with a modern look and finish.

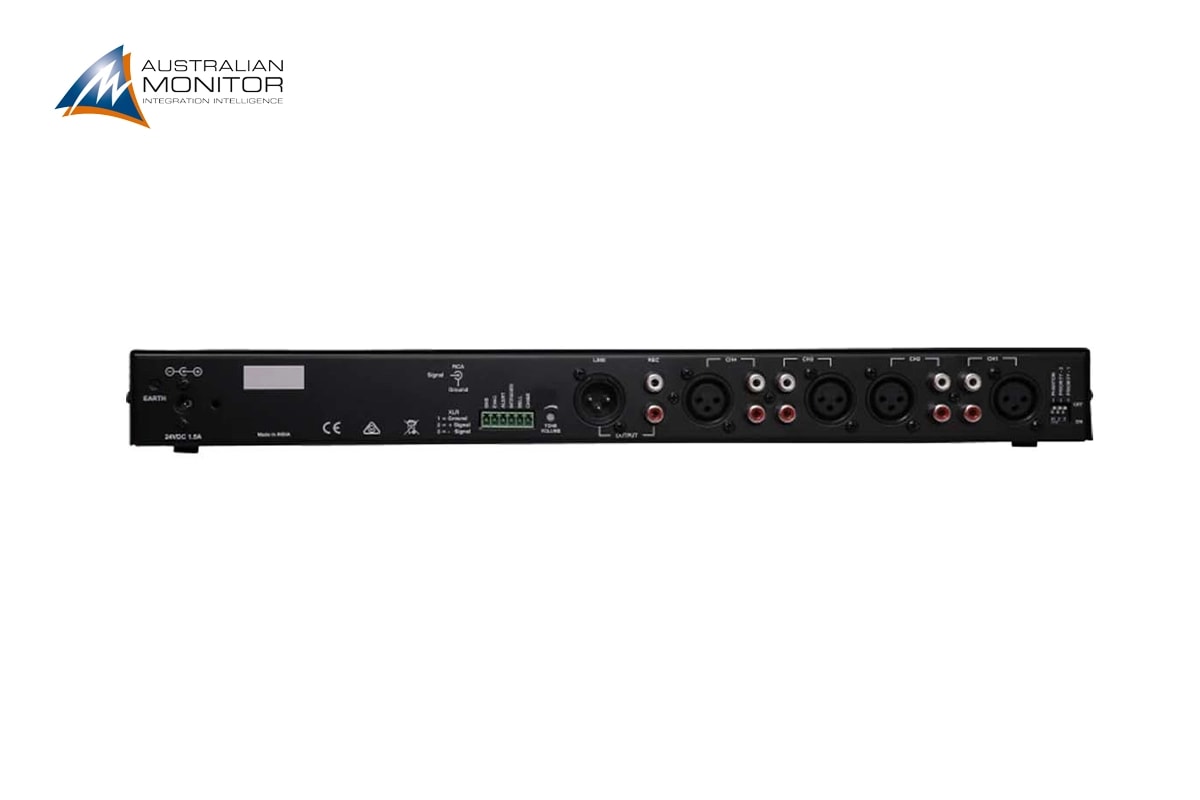

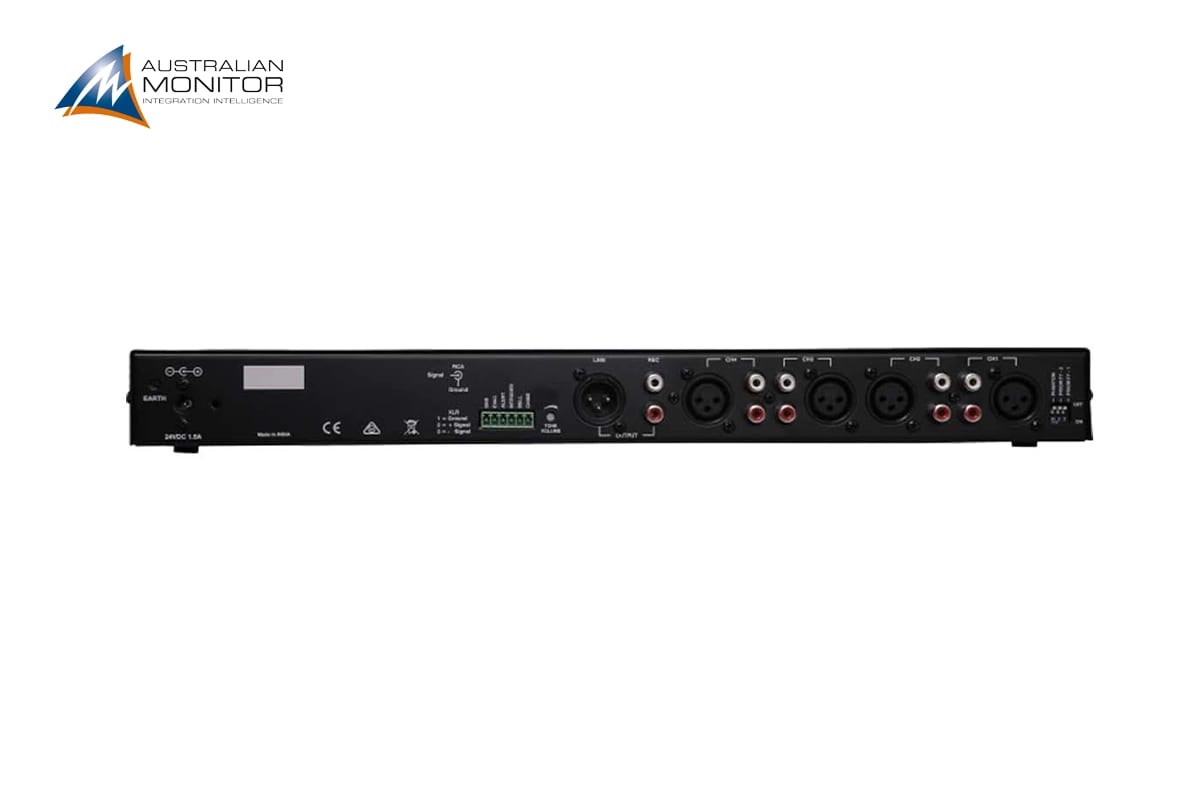

The mixer maintains the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs and 12V phantom power.

The ESMIX offers the latest features to meet projects requiring the most cost-effective solutions.

Warranty

2 Years

Configuration

4 MIC or Line Channel

Dimensions

192mm×182mm×44mm

  • 4 microphone/line input mono mixer

  • Master volume, treble and bass controls

  • Line and Record Level Outputs

  • Input 1,2 vox muting priority

  • Integrated tone generator.

  • Evac/Alert/Interuder/Bell/Chime tones

  • 12VDC phantom power

  • 1 RU rack mountable chassis

DESCRIPTION
4 channel mono mixer
INPUT
4
FREQUENCY RESPONSE
20Hz - 20kHz
CHANNEL
4 MIC or Line
OUTPUT
1 Mono
THD + NOISE
0.5%
SIGNAL TO NOISE RATIO
>84dB
INPUT SENSITIVITY
MIC: 1.2mV / Line: 160mV
INPUT VOLTAGE
100-240Vac 50-60Hz
MOUNTING
1RU
DIMENSIONS (WxHxD)
182mm x 44mm x 192
NET WEIGHT
2.5kg

NOTE: Due to continuous improvements, all specifications are subject to change
