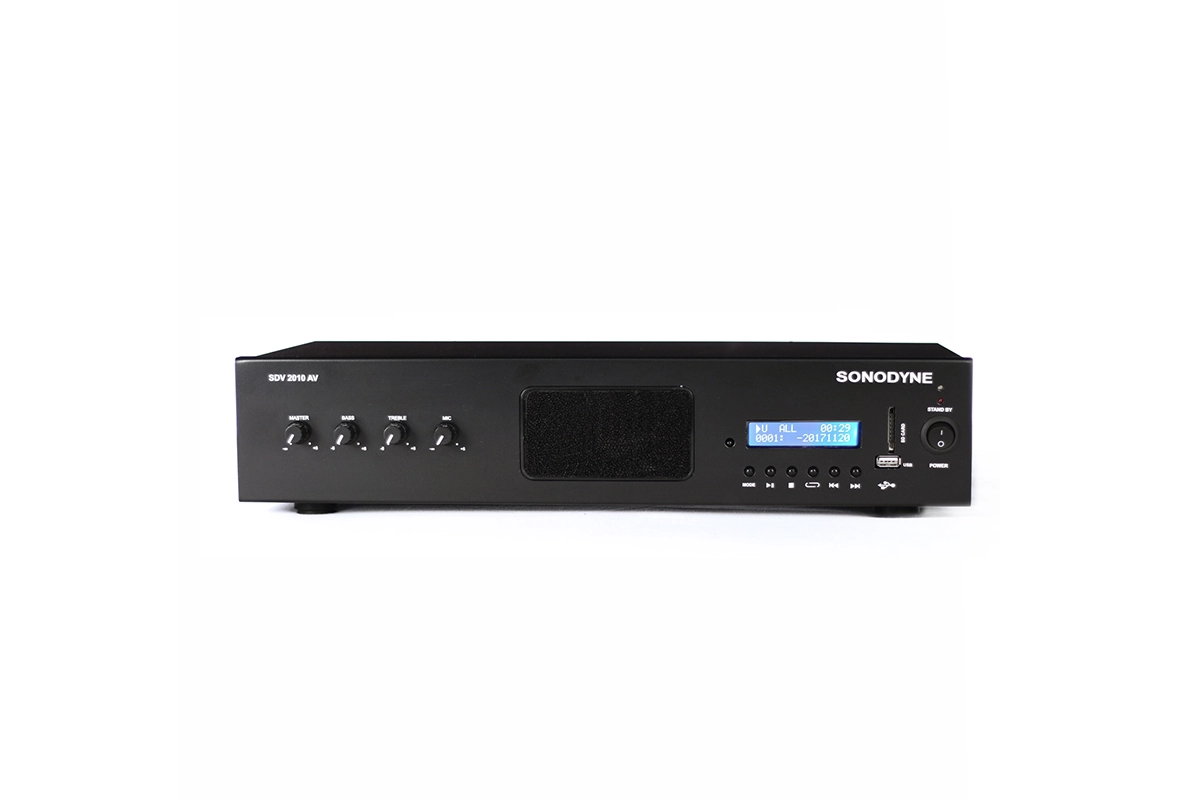

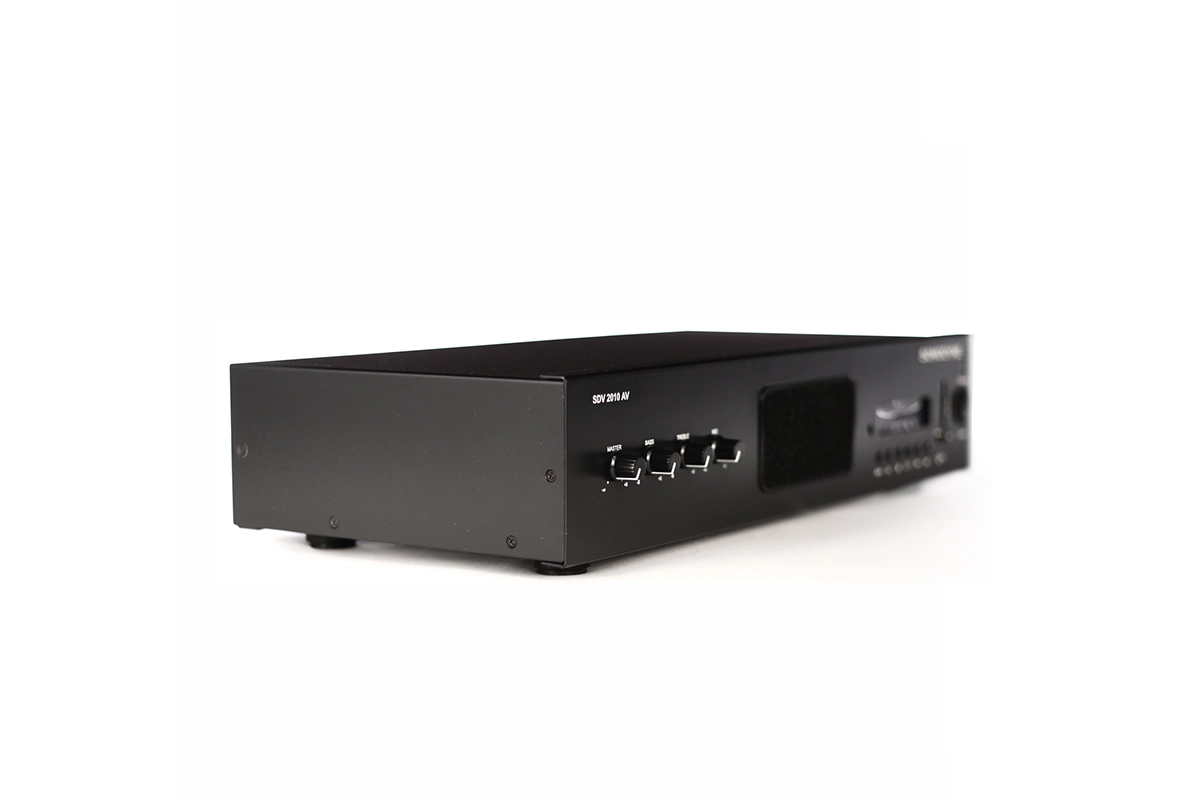

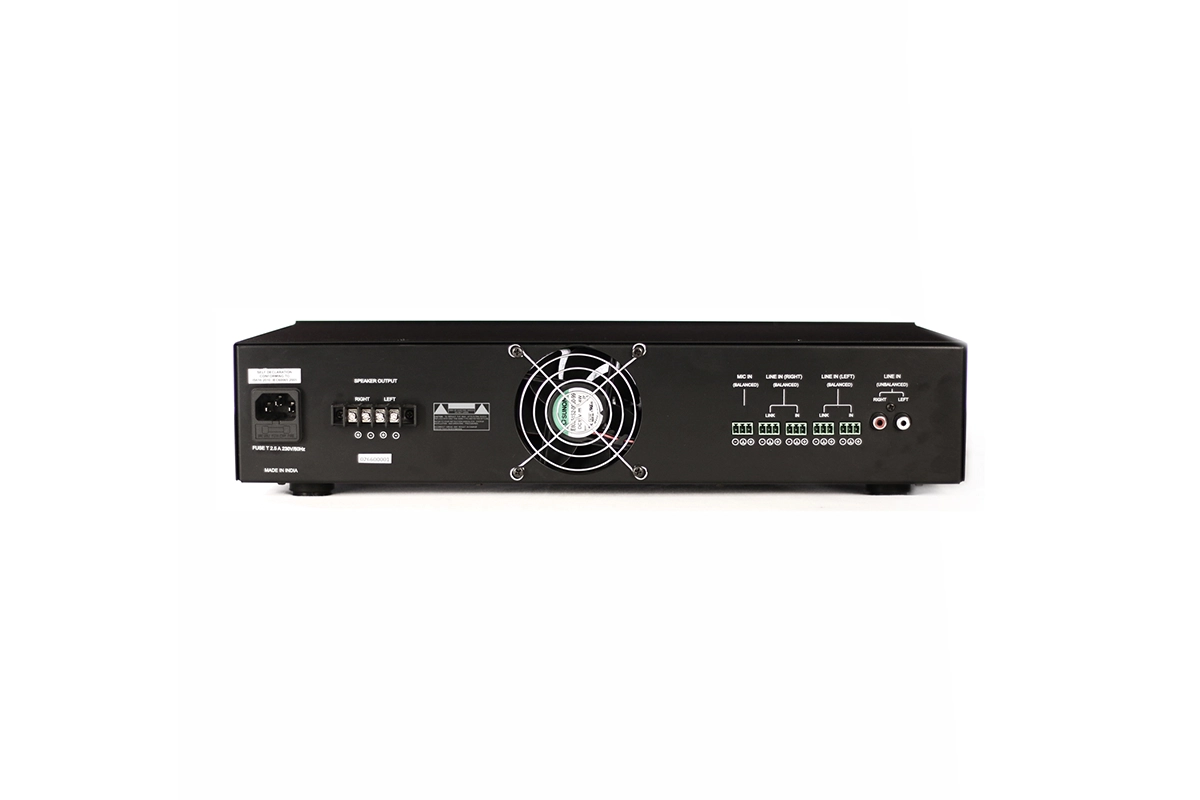

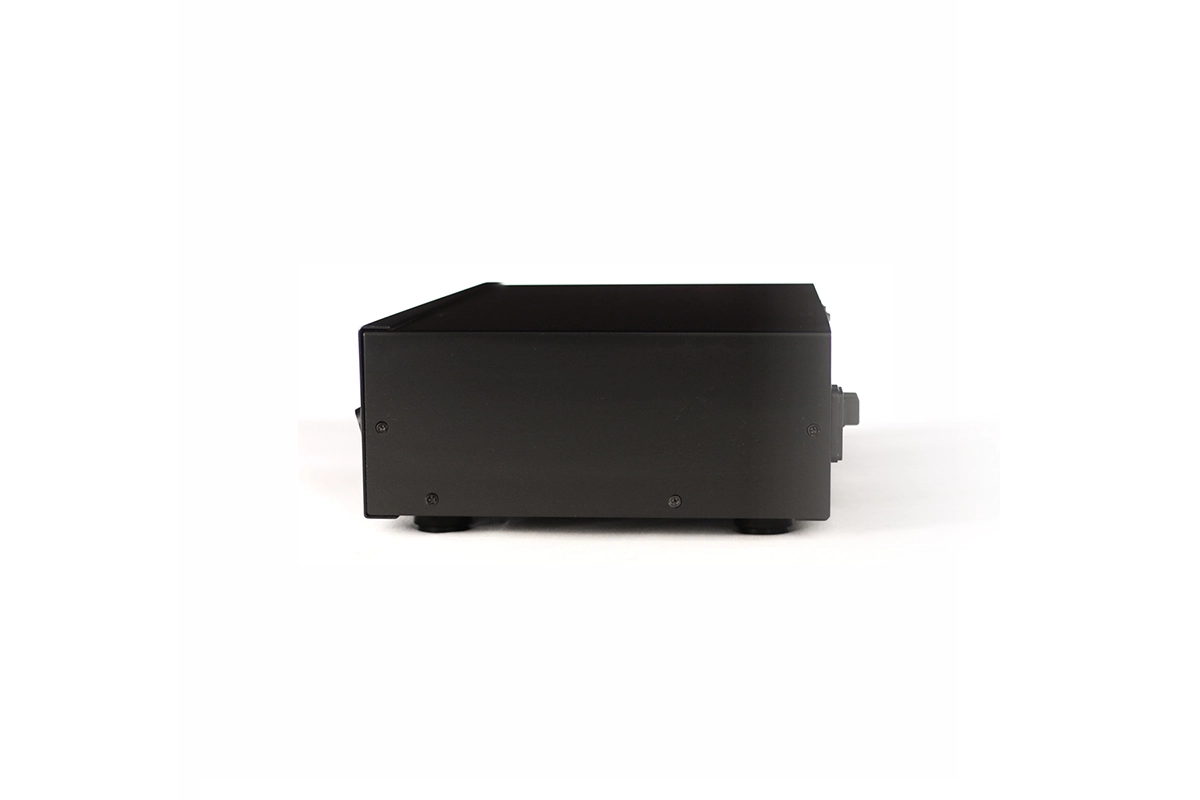

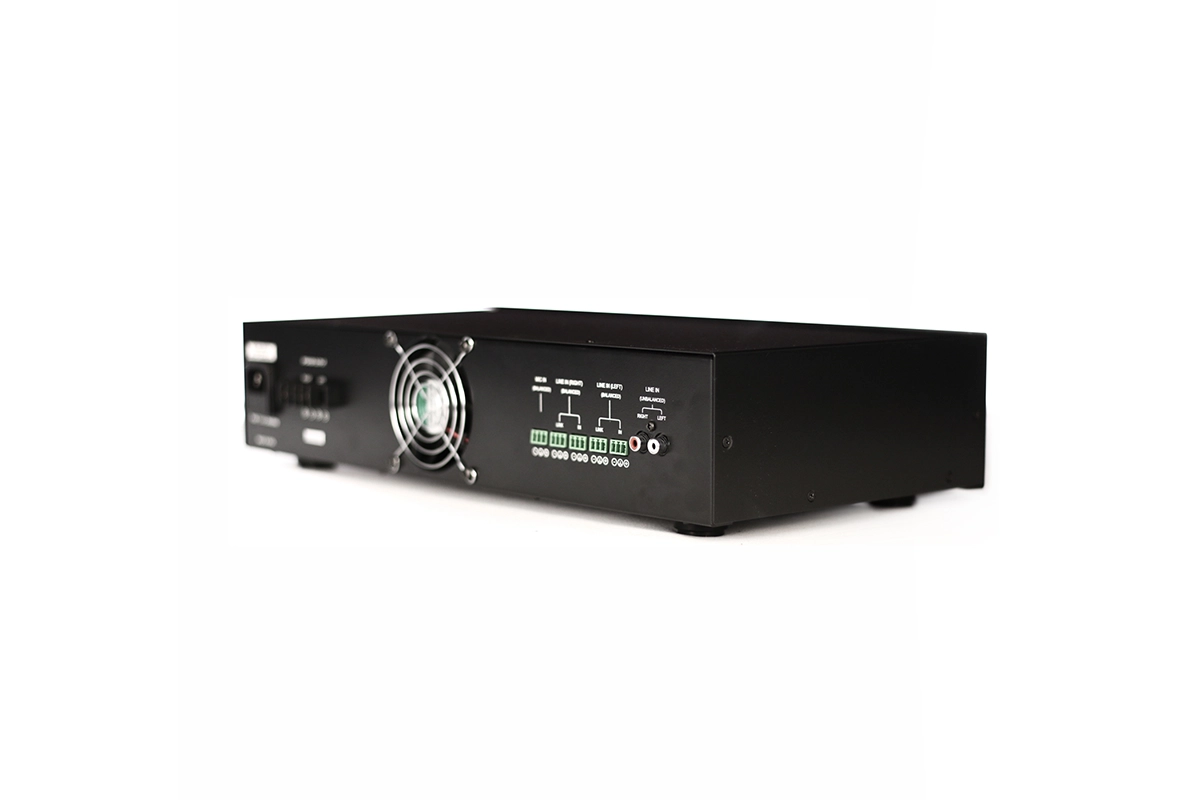

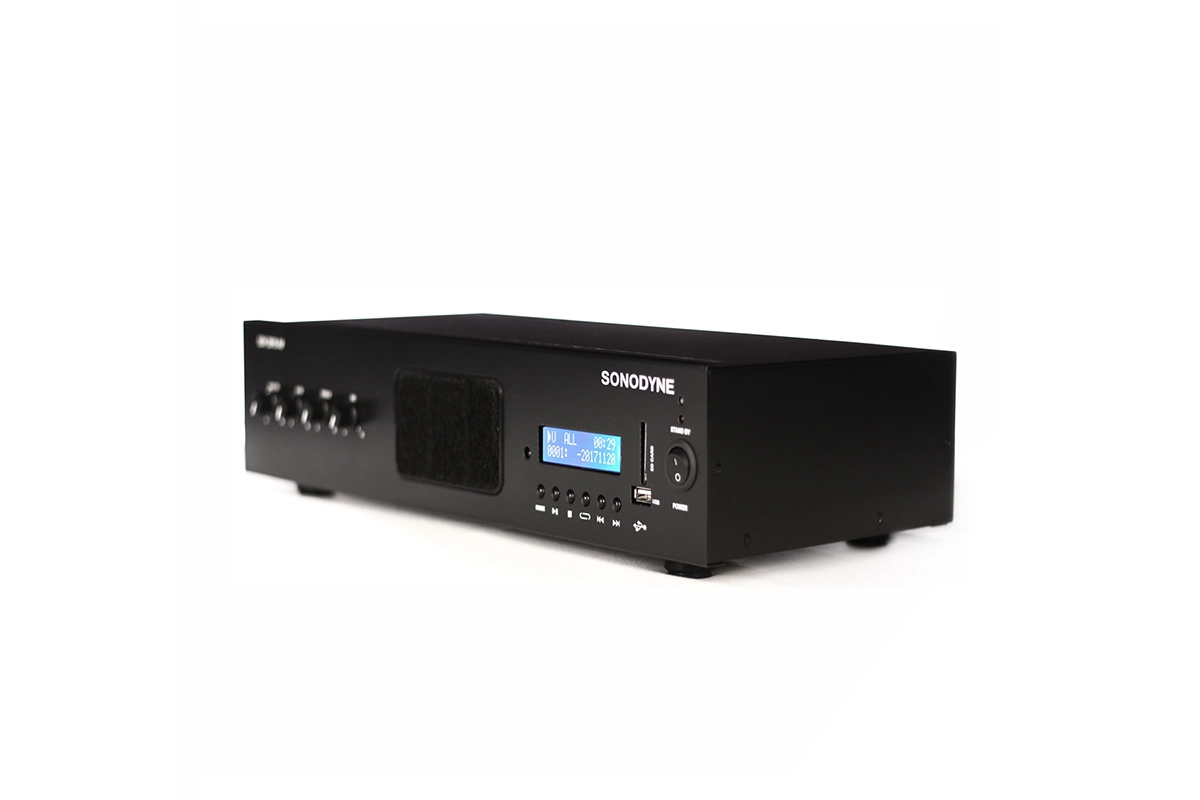

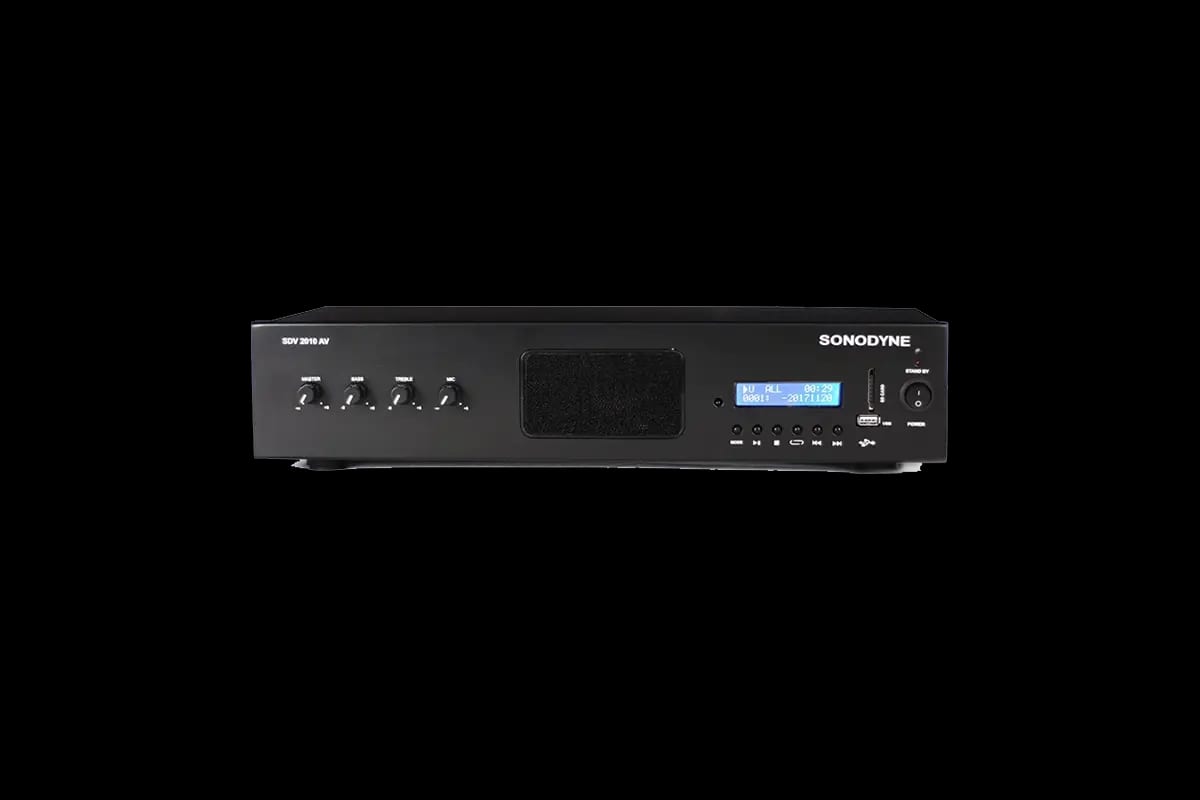

SDV 2010
Integrated amplifier
The SDV 2010 is a 2 x 100 watt integrated amplifier meant for fixed install applications. It has multiple inputs ( Mic, line, BT and USB ) and speaker and line level outputs. For high quality stereo sound, choose the SDV 2010
Warranty
2 Years
Dimensions
210mm×437mm×98mm
Class D stereo integrated amplifier 2 x 100 watt
Line, Mic, BT, USB inputs
Priority mic in
Power saving Standby mode
Extensive protection
DESCRIPTION
Stereo Integrated amplifier
INPUT
LINE: Stereo balanced input : 2 x 3 pin Euro Block connector Stereo unbalanced input: 2 x RCA MIC: Balanced input via 1 x 3 pin Euro Block connector USB, SD Card and BT
LINK
Line level output via 2 x 3 pin Euro Block connector
SPEAKER OUTPUT
Stereo output via 1 x 4 pin barrier strip
CONTROLS
.
MASTER VOLUME CONTROL RANGE
− ∞ TO +6dB
MIC VOLUME CONTROL RANGE
− ∞ TO +6dB
BASS
− 6dB TO +6dB
TREBLE
− 6dB TO +6dB
INDICATORS
Standby: RED: Amplifier in standby mode GREEN: Amplifier in active mode, High Mains Voltage Protection: Red
AMPLIFIER TYPE
Class D with SMPS
AMPLIFIER POWER BEFORE CLIPPING
2 x100 Watt @ 4Ω 2 X 50 Watt @ 8Ω
SIGNAL TO NOISE RATIO
> 90dB
AMPLIFIER THD @ RATED POWER
< 0.2%
FREQUENCY RESPONSE
20Hz ~ 23kHz
INPUT IMPEDANCE
22KOhms
AUTO STANDBY FUNCTION
Yes
PRIORITY
Yes. Mic over line
COOLING
Fan cooled
PROTECTION
Short circuit protection Thermal protection Overload protection High mains voltage protection > 265V AC
MAINS VOLTAGE
230VAC, 50Hz
FINISH
Black powder coated mild steel cabinet
DIMENSIONS (WxHxD)
437mm x 98mm x 210mm
NET WEIGHT
4.9kg
NOTE: Due to continuous improvements, all specifications are subject to change
- Owners ManualDownload
