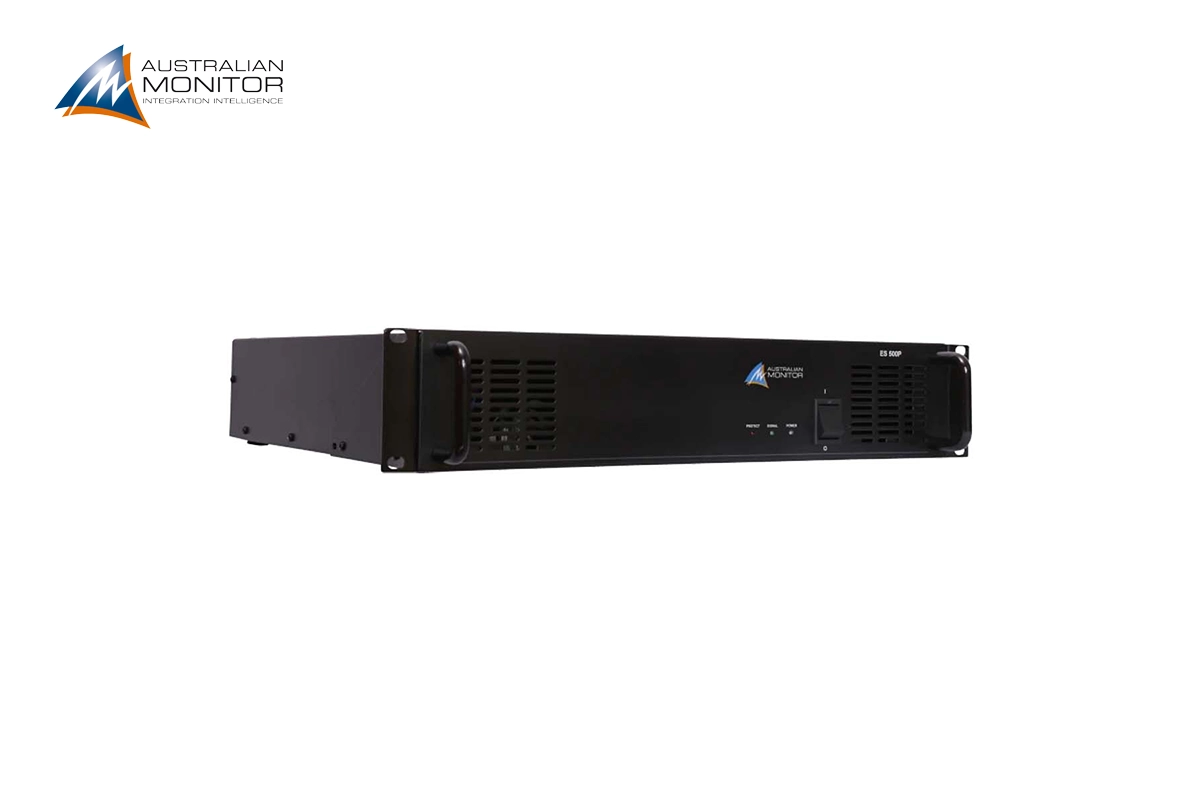

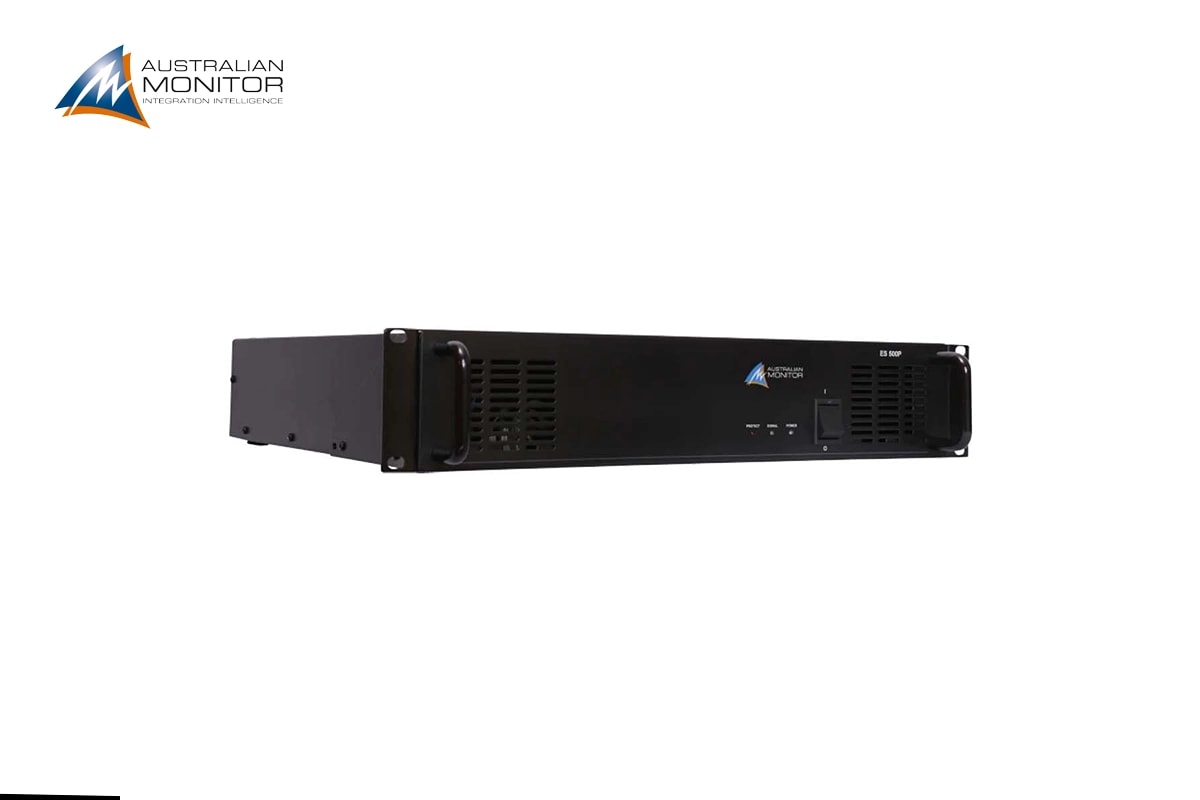

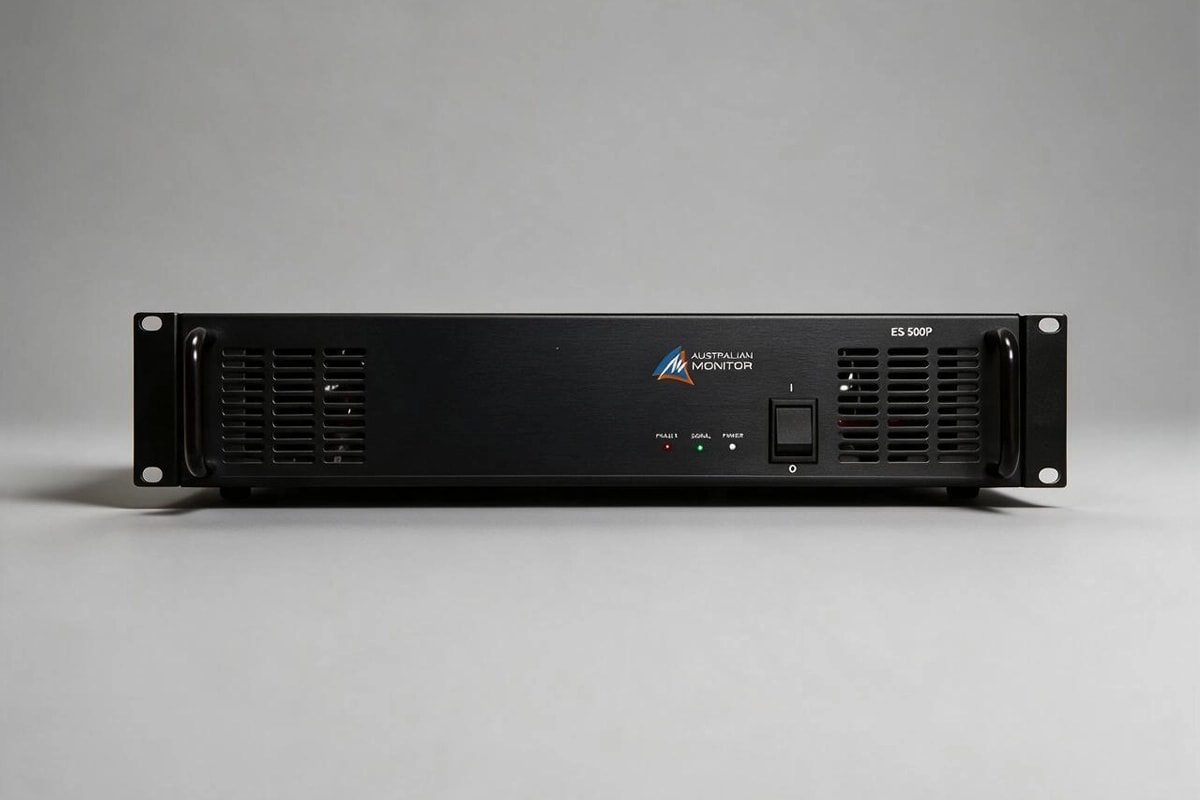

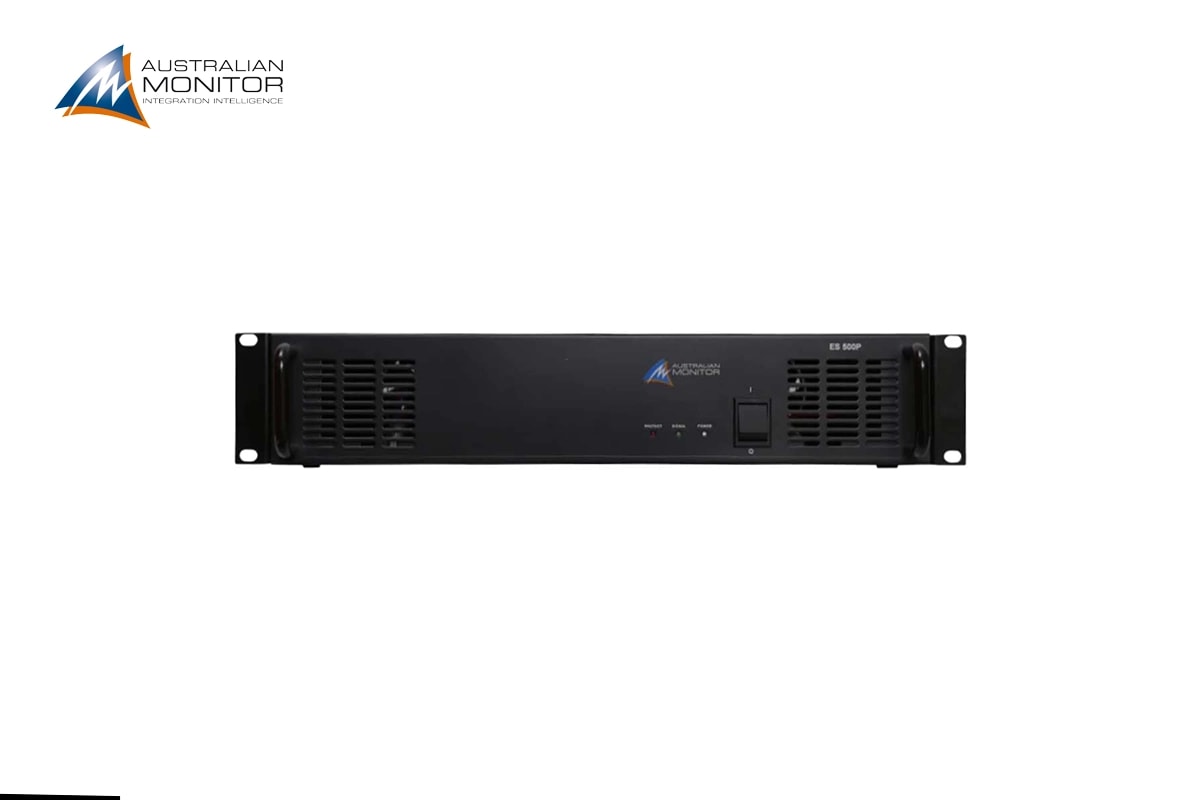

ES500P
500W booster amplifier
The ES500P power amplifier delivers 500 watts at 100 volt or 4 ohm in a 2 RU package.
The ES Series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement
Warranty
2 Years
Configuration
1 Channel
Dimensions
455mm×483mm×88mm
500W power amplfiier
4 ohm and 100 volt output options
Rear panel volume control

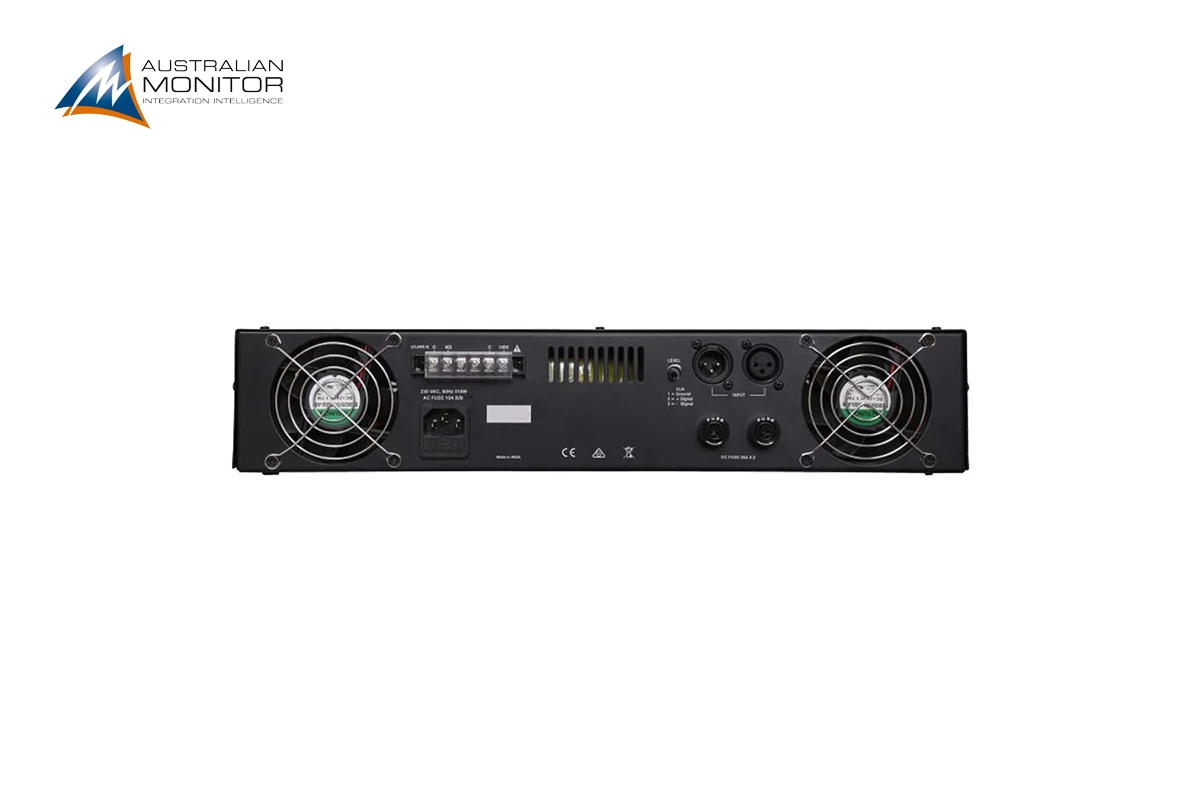

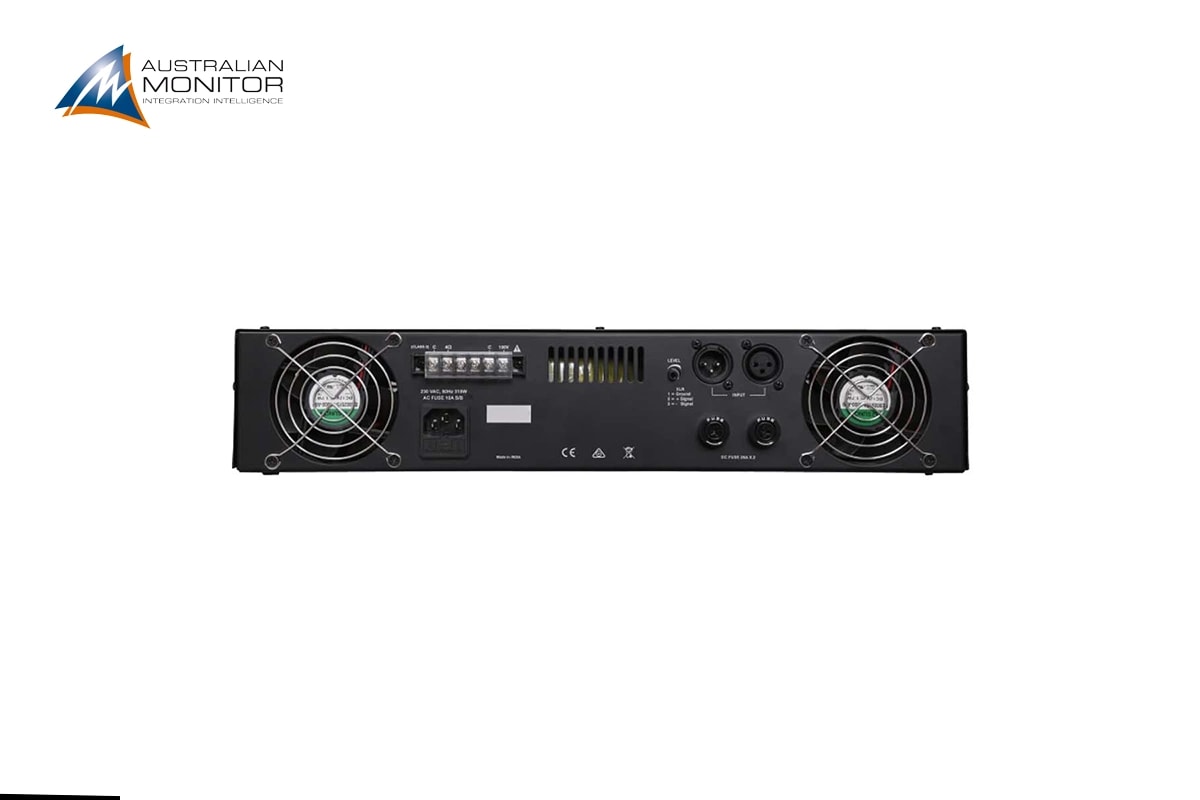

Balanced input and thru out
Fan cooled
2 RU
DESCRIPTION
500W booster amplifier
OUTPUT POWER
500W (per channel)
FREQUENCY RESPONSE
55Hz ~ 13.5kHz
CHANNEL
1
THD + NOISE
< 0.3% (-3dB)
OUTPUT MODE
4Ω-100V
SIGNAL TO NOISE RATIO
> 84dB
INPUT VOLTAGE
230Vac 50~60Hz
INPUT SENSITIVITY
1V rms
MOUNTING
2RU
COOLING
Fan-assisted
DIMENSIONS (WxHxD)
483mm x 88mm x 455mm
NET WEIGHT
17.2kg
NOTE: Due to continuous improvements, all specifications are subject to change
