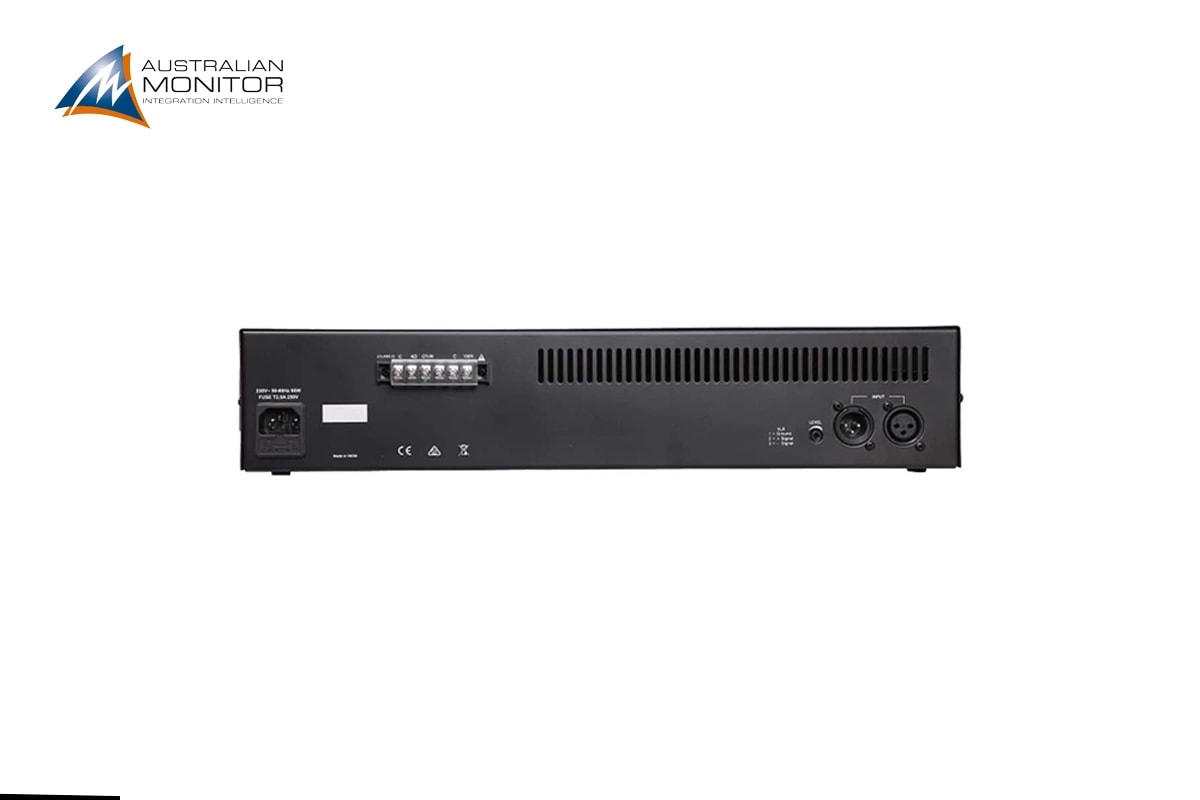

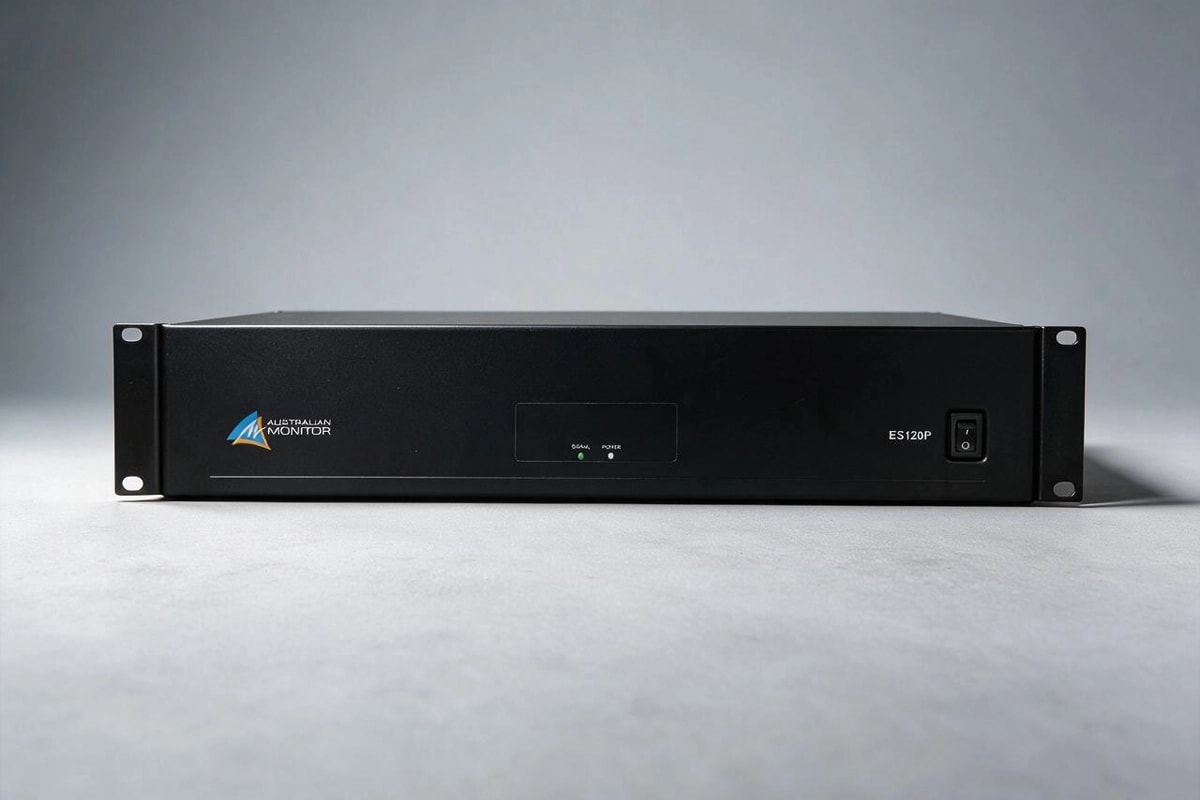

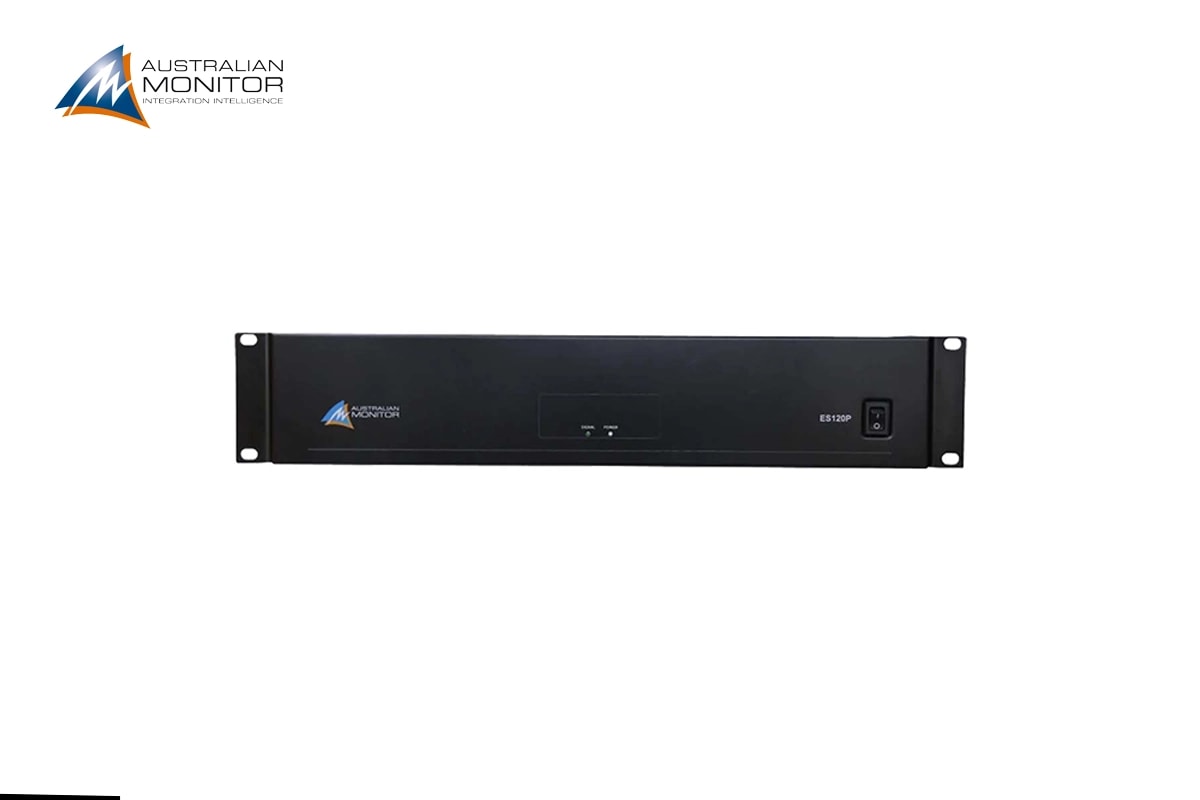

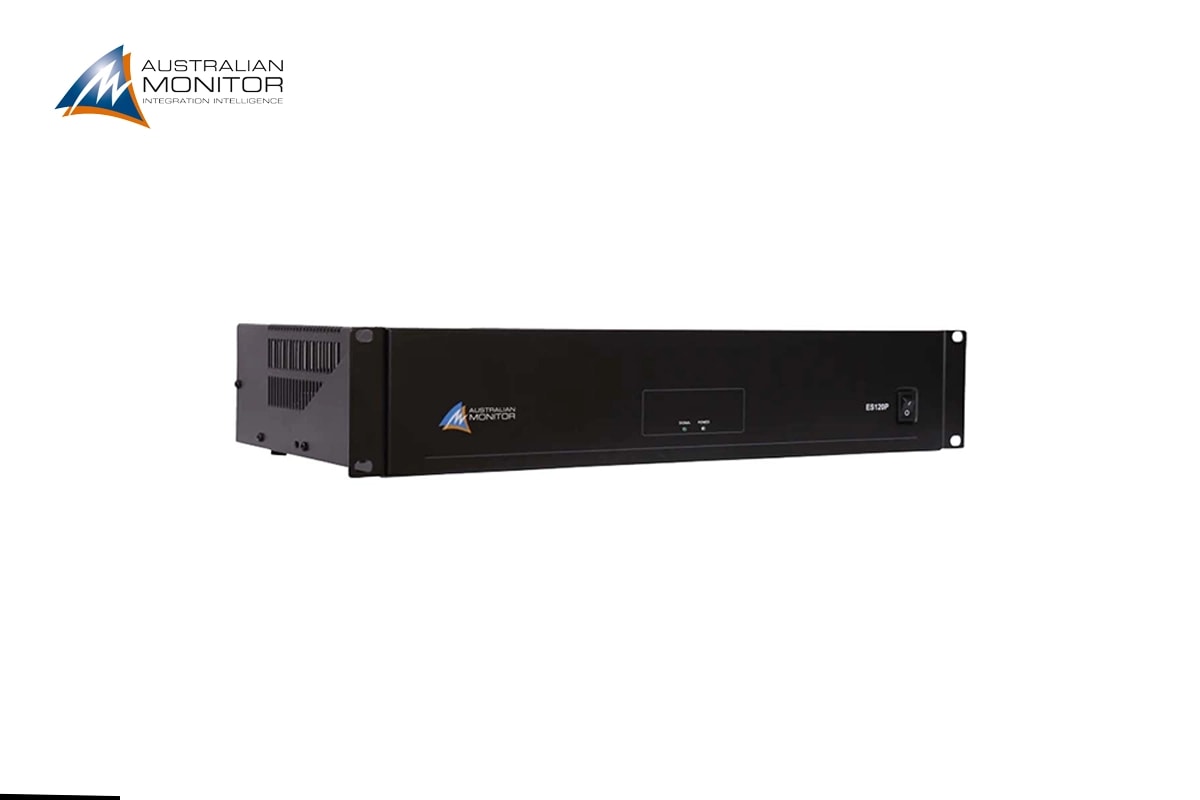

ES120P
120w booster amplifier
The ES120P power amplifier delivers 120 watts at 100 volt or 4 ohm in a 2 RU package.
The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.
Warranty
2 Years
Configuration
1 Channel
Dimensions
293mm×483mm×88mm
120W power amplifier
4 ohm and 100 volt output options
Rear panel volume control
Balanced input and thru out
Fan cooled
2 RU
DESCRIPTION
120w booster amplifier
OUTPUT POWER
120W (per channel)
FREQUENCY RESPONSE
55Hz ~ 20kHz
CHANNEL
1
THD + NOISE
< 0.2% (-3dB)
OUTPUT MODE
4Ω-100V
SIGNAL TO NOISE RATIO
> 85dB
INPUT VOLTAGE
230Vac 50~60Hz
INPUT SENSITIVITY
160mV rms
MOUNTING
2RU
COOLING
Fan-assisted
DIMENSIONS (WxHxD)
483mm x 88mm x 293mm
NET WEIGHT
6.8kg
NOTE: Due to continuous improvements, all specifications are subject to change
