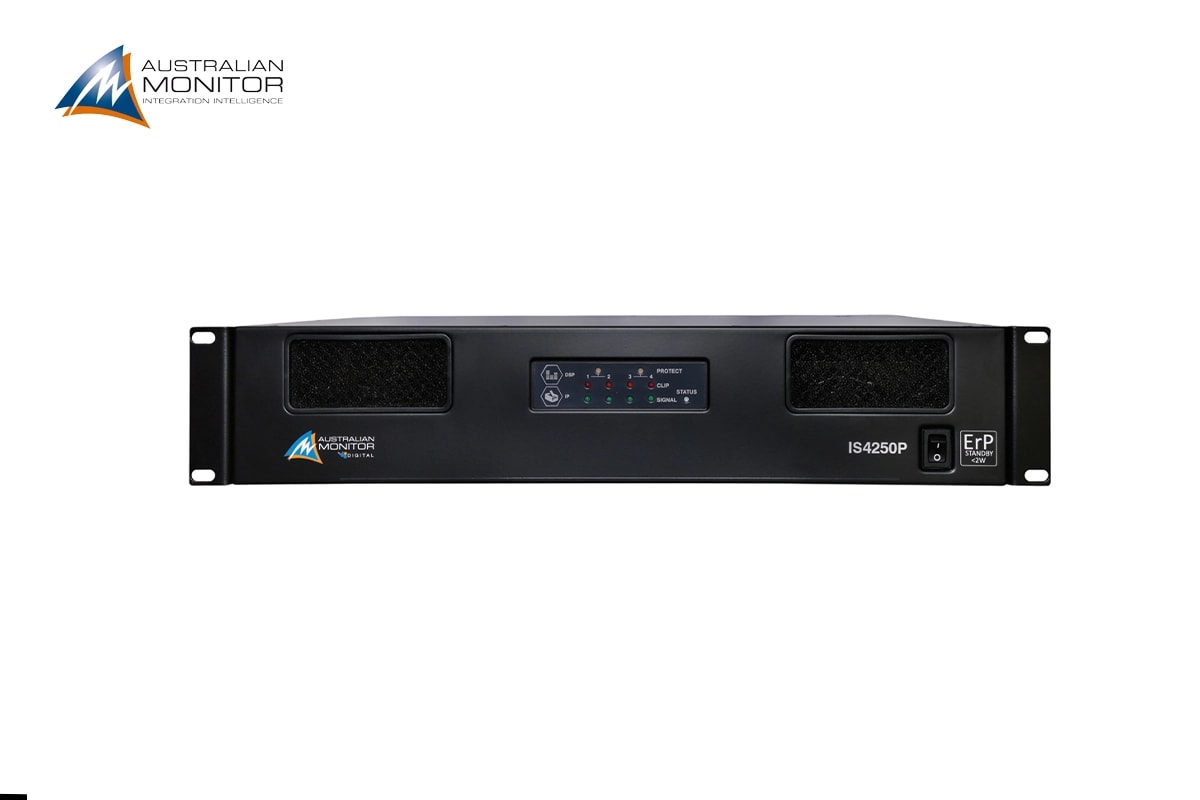

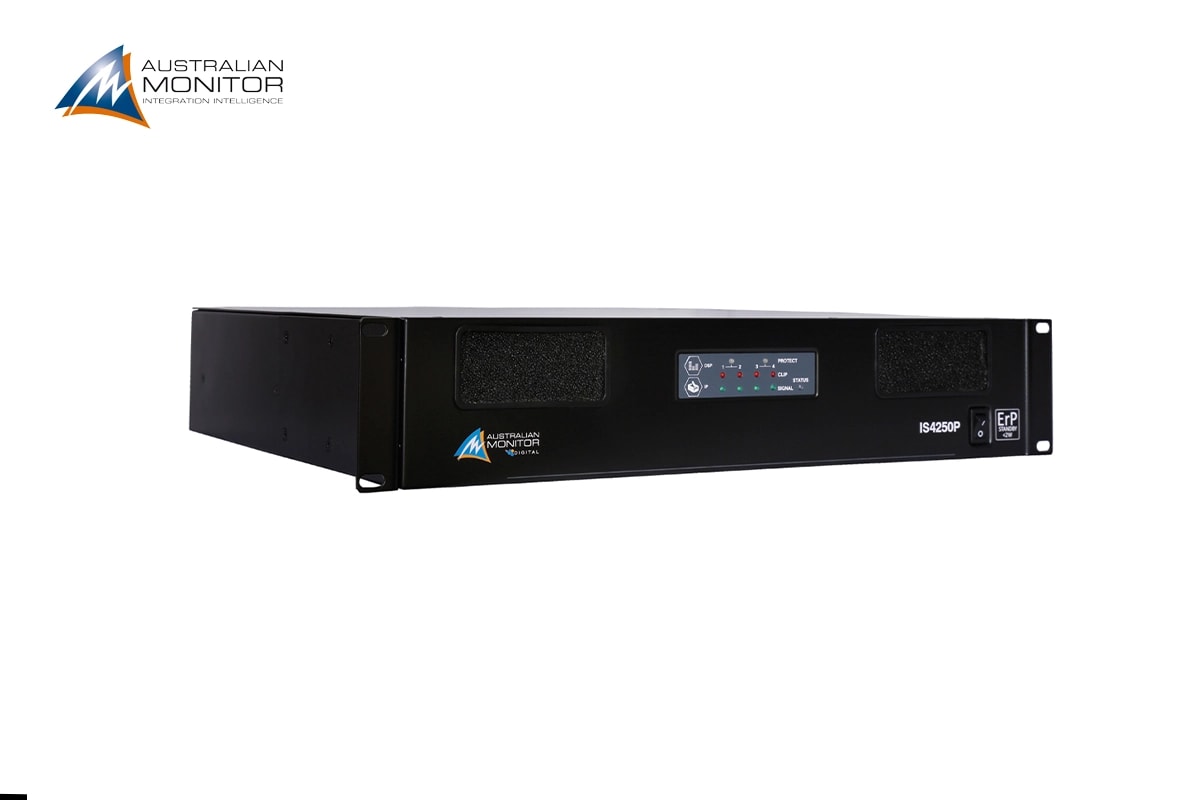

4 x 250W power amplifier

The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.

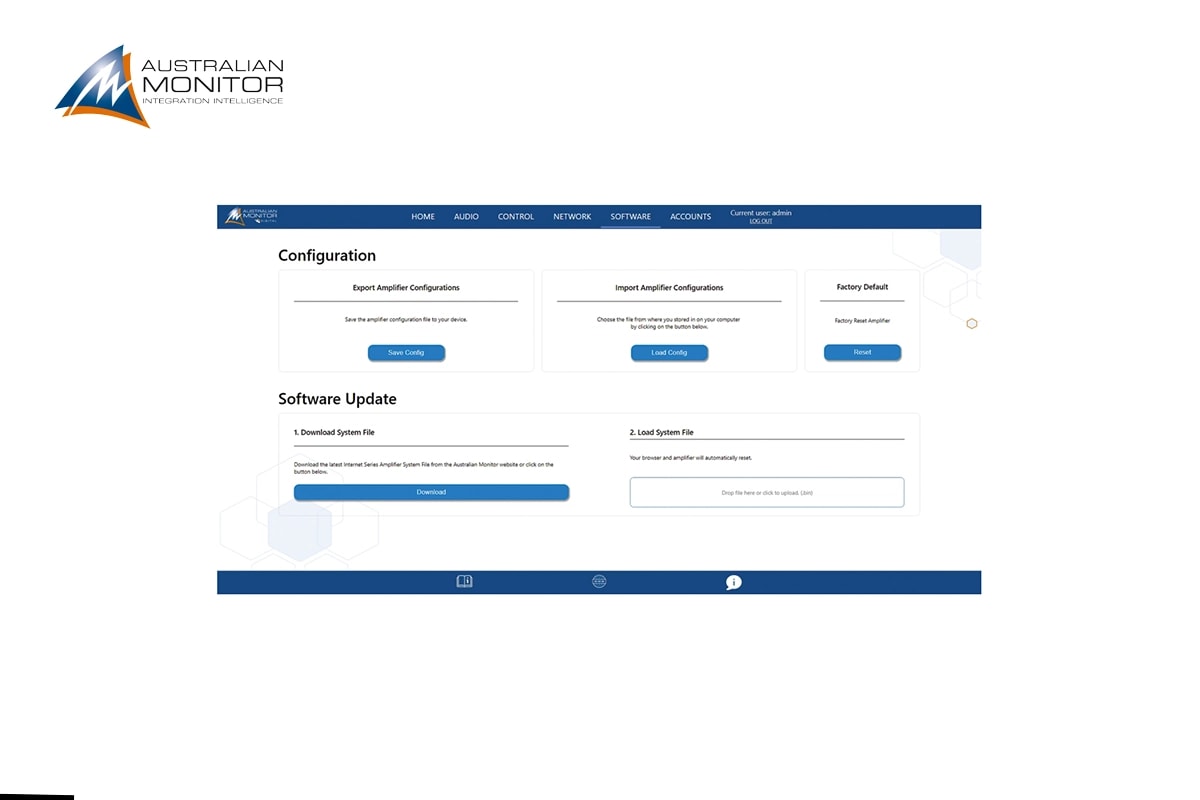

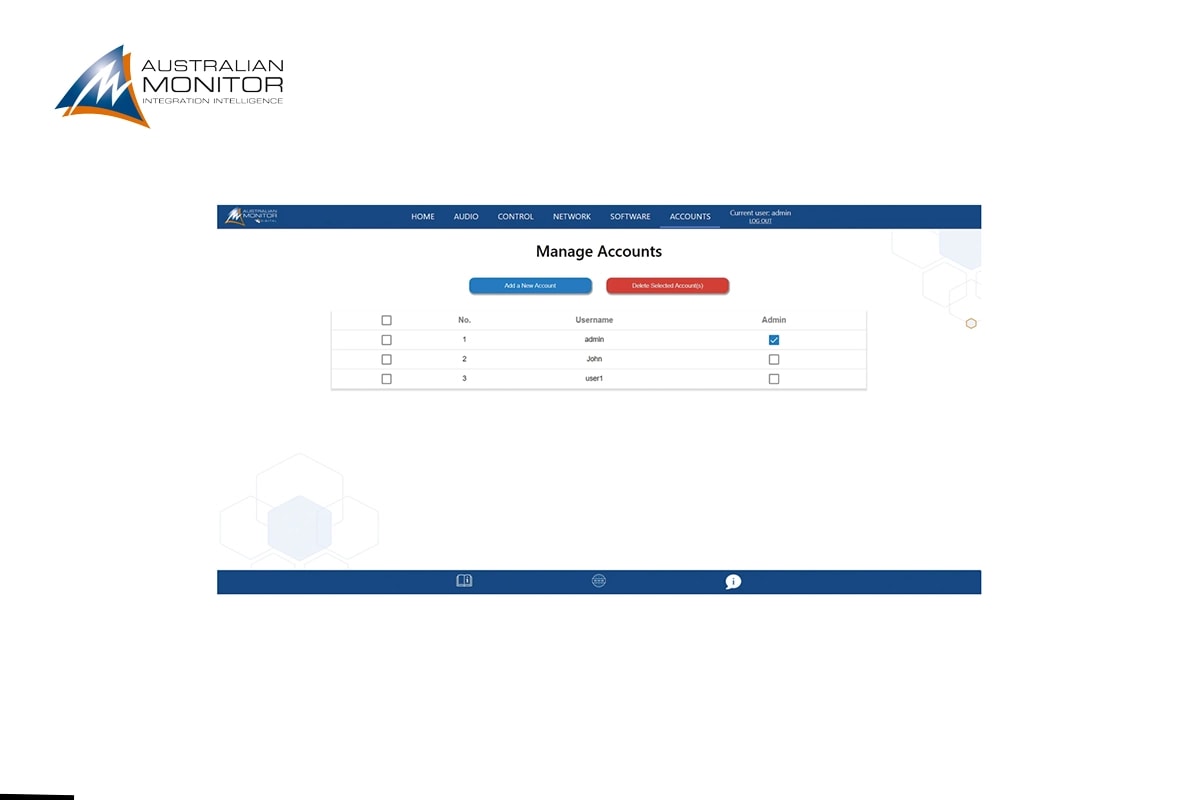

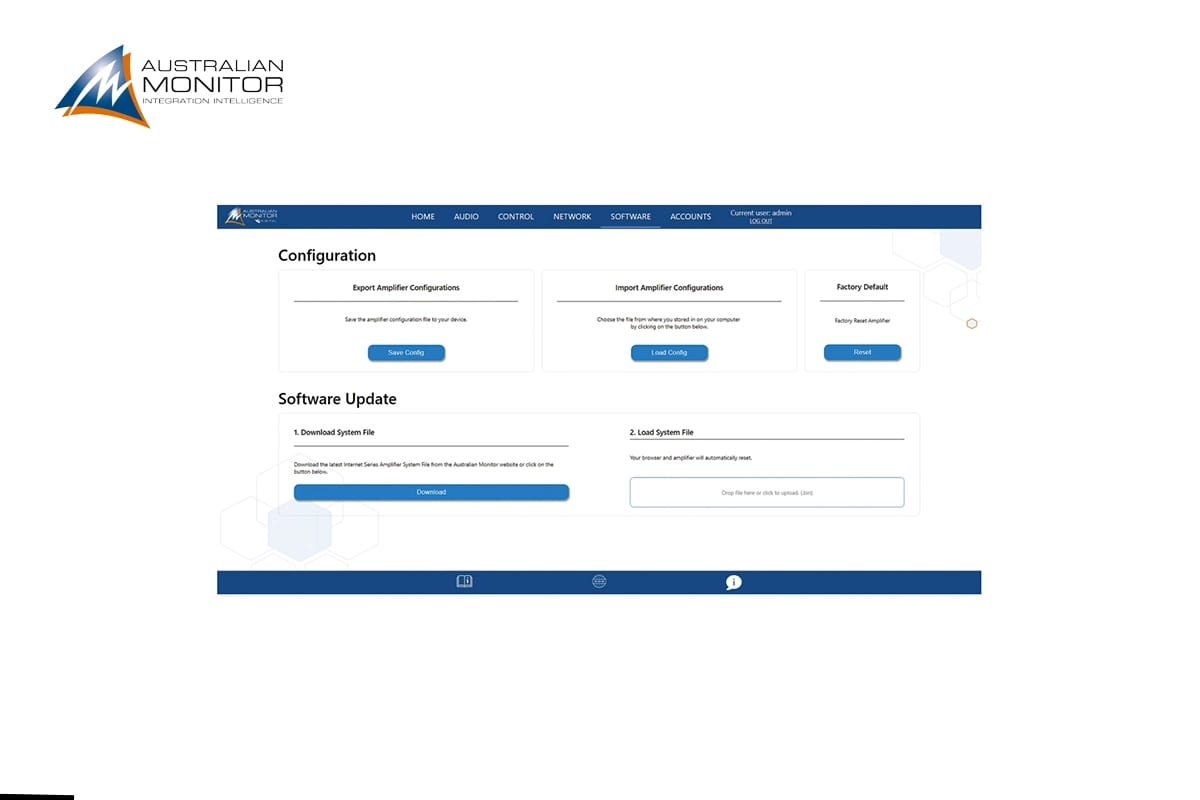

The ISP also features ALMA Control Software which allows you to connect, configure and control the product from any device supporting an HTML5 compliant web browser.

Warranty

2 Years

Configuration

4 Channel

Dimensions

325mm×435mm×44mm

  • 4 x 250W power amplifier

  • 4 ohm, 70V and 100V output options

  • Class D topology

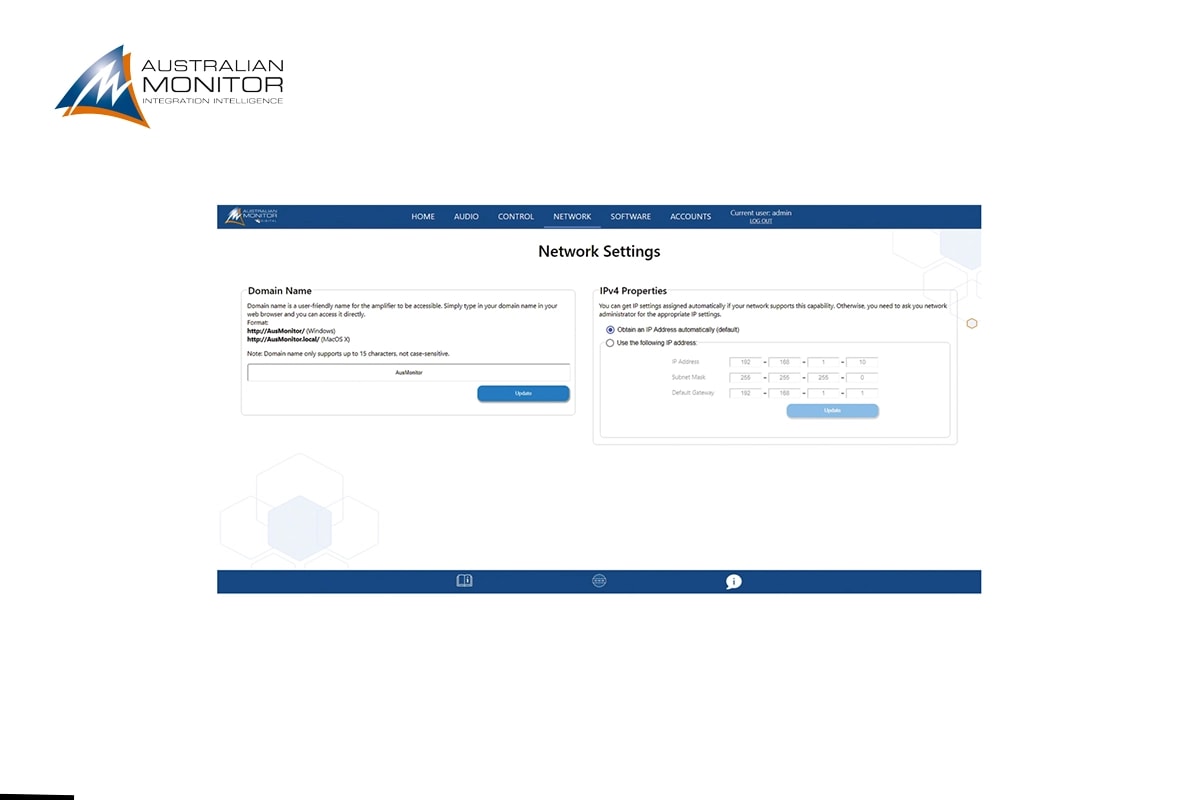

  • Ethernet Control

  • Embedded ALMA Control Software accessible using any HTML5 web browser

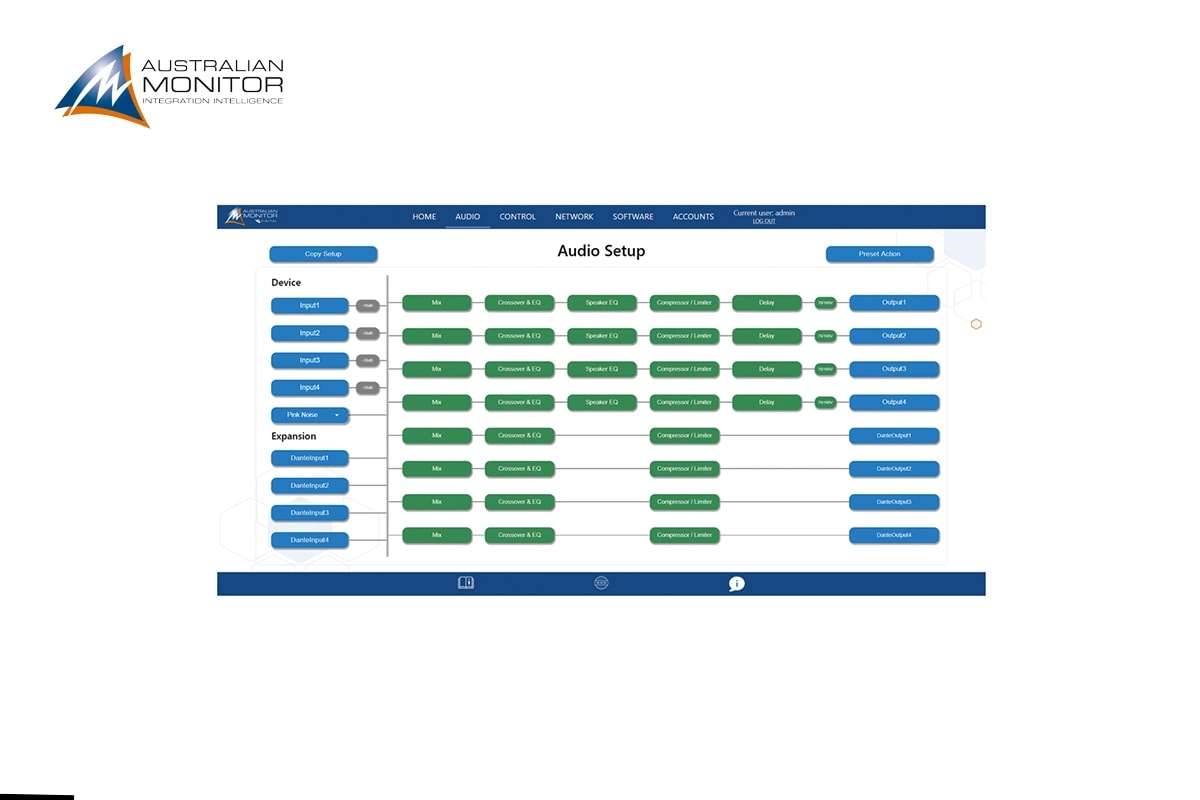

  • Full DSP - Input Matrix, Filters, Parametric Eq, Compressor / limiter, Delay, Mute, Inversion

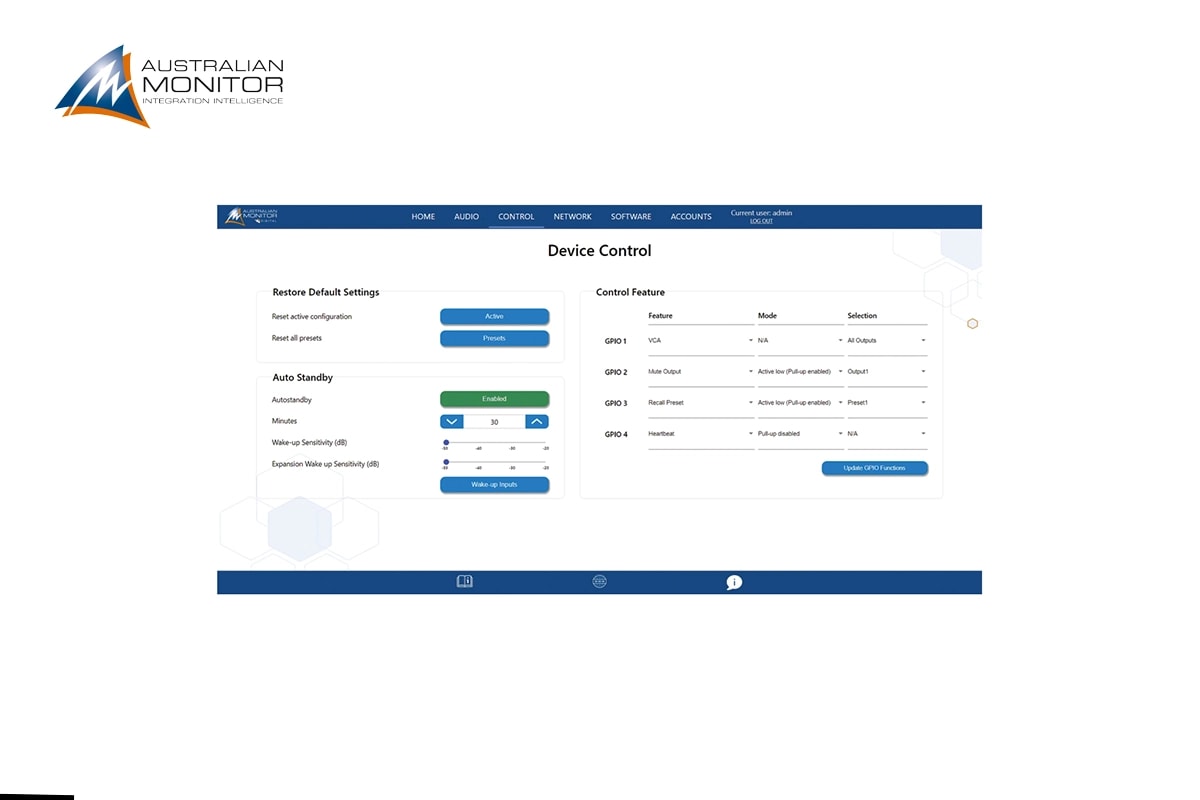

  • 4 software configurable general purposes input/outputs

  • ErP(1275/2008/EC) Low Power Standby (<2W)

  • 4 Input, 4 Output Dante® support using expansion card DM4x4

  • Additional 4 Analogue line inputs using expansion card ANALOGUE4

DESCRIPTION
4 x 250W power amplifier
OUTPUT POWER
250W (per channel)
CHANNEL
4
OUTPUT MODE
4Ω-70V-100V
INPUT VOLTAGE
100-240Vac 50-60Hz
FREQUENCY RESPONSE
75Hz - 16kHz
THD + NOISE
4Ω, 1kHz: < 0.05% , 100V, 1kHz: < 0.08%
SIGNAL TO NOISE RATIO
> 100dB
INPUT SENSITIVITY
1Vrms
ADDITIONAL FEATURES
4 general purpose input/outputs. Software configurable. Dedicated standby contact closure input
USER INTERFACE
Embedded User interface accessed via web browser
ETHERNET
RJ45, 100BASE-T with Auto MDI-X
DM4X4
4 input, 4 output Dante tranceiver card
ANALOGUE4
4 input analogue input card
COOLING
Fan-assisted
MOUNTING
2RU
DIMENSIONS (WxHxD)
435mm x 89mm x 325mm
NET WEIGHT
16kg

NOTE: Due to continuous improvements, all specifications are subject to change
