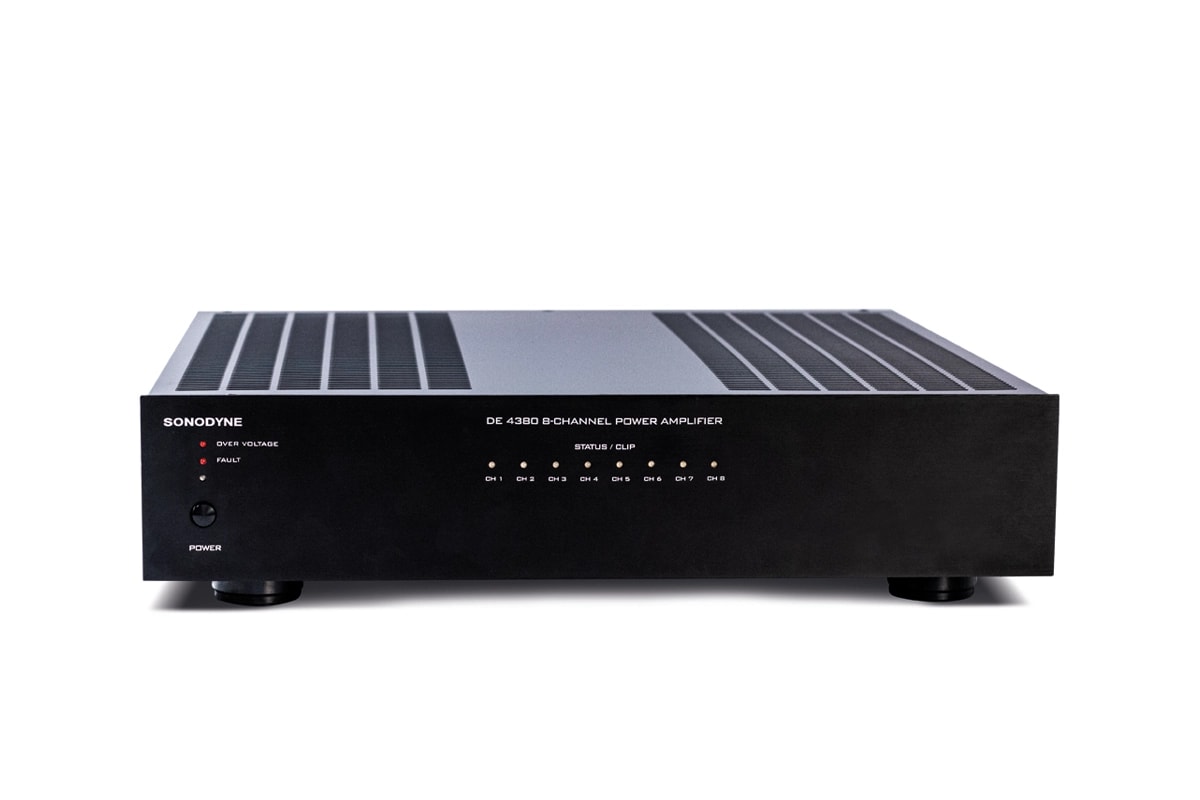

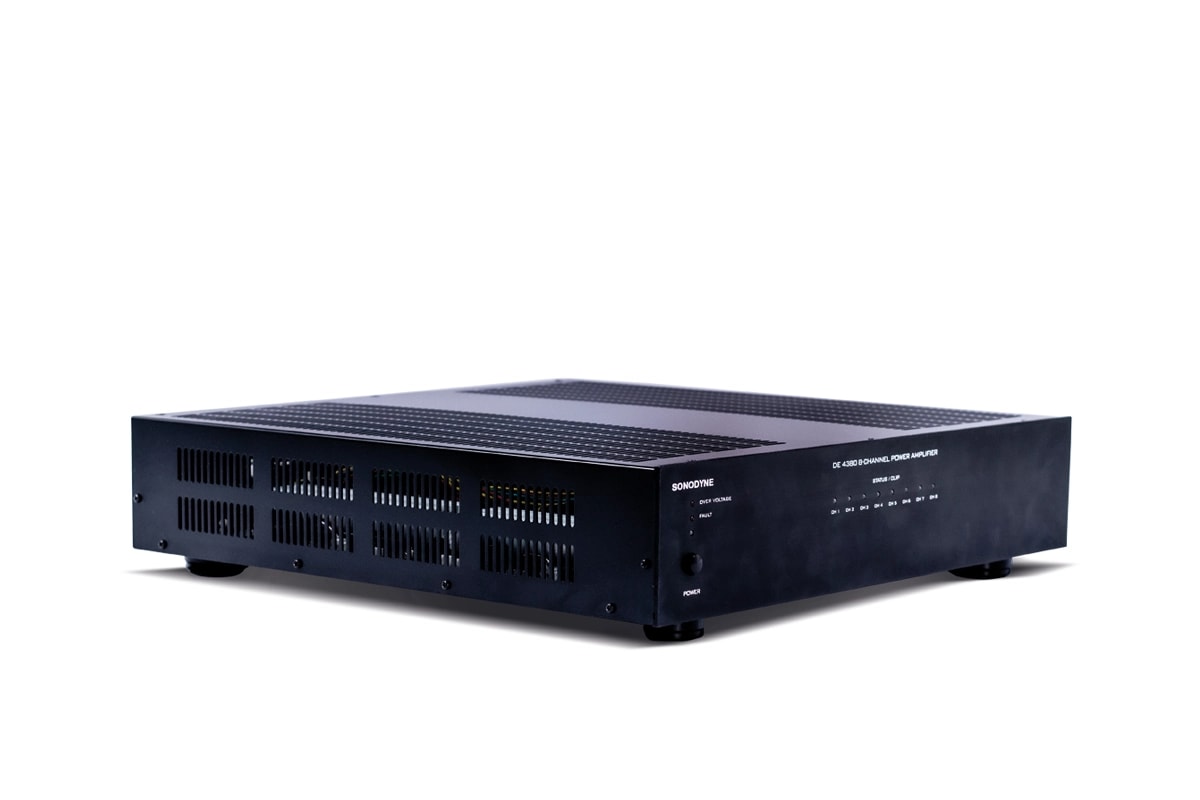

DE 4380
8 channel power amplifier
The DE 4380 is a 8 channel power amplifier that delivers 100 watt per channel at less than 0.5% THD. A compact and fanless D Class design, it runs cool and efficient. It accepts both unbalanced RCA as well as balanced XLR inputs and outputs are rugged binding posts. Both table-top and rack mountable, it is ideal for home theatre and commercial installation application
Warranty
2 Years
Dimensions
433mm×430mm×100mm
Features

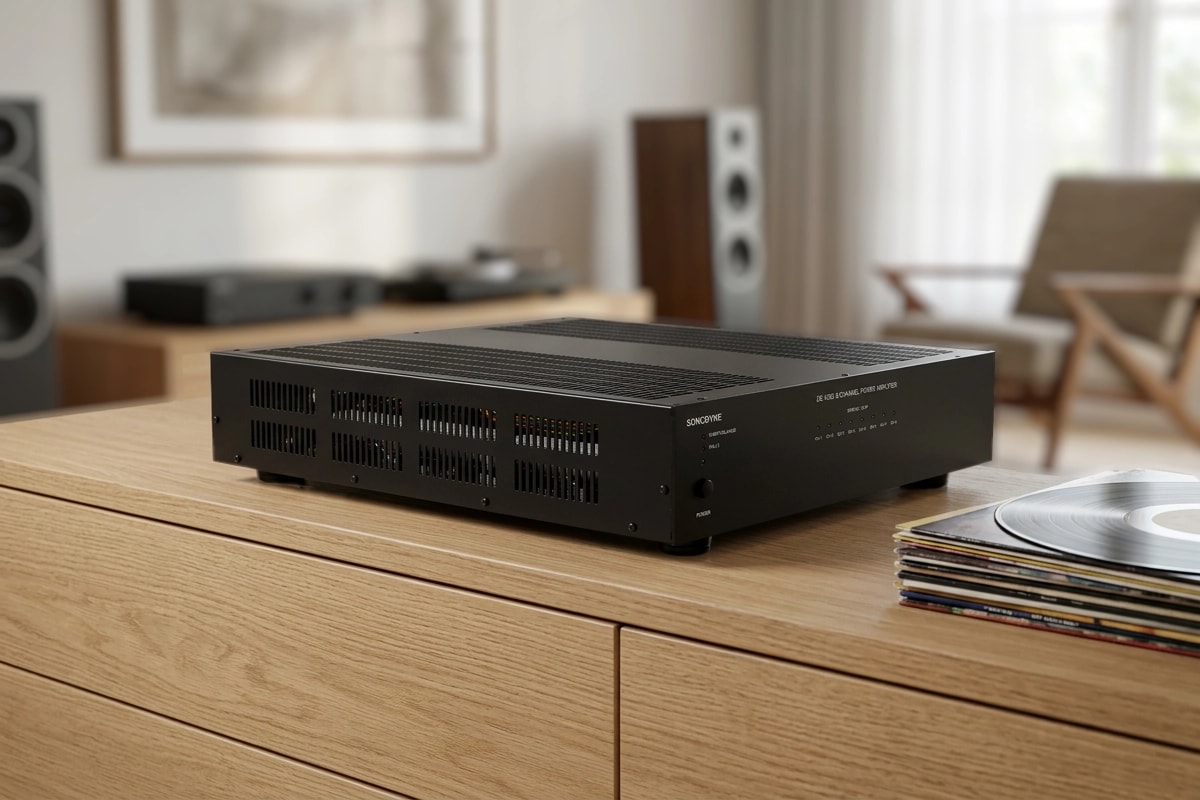

High Power

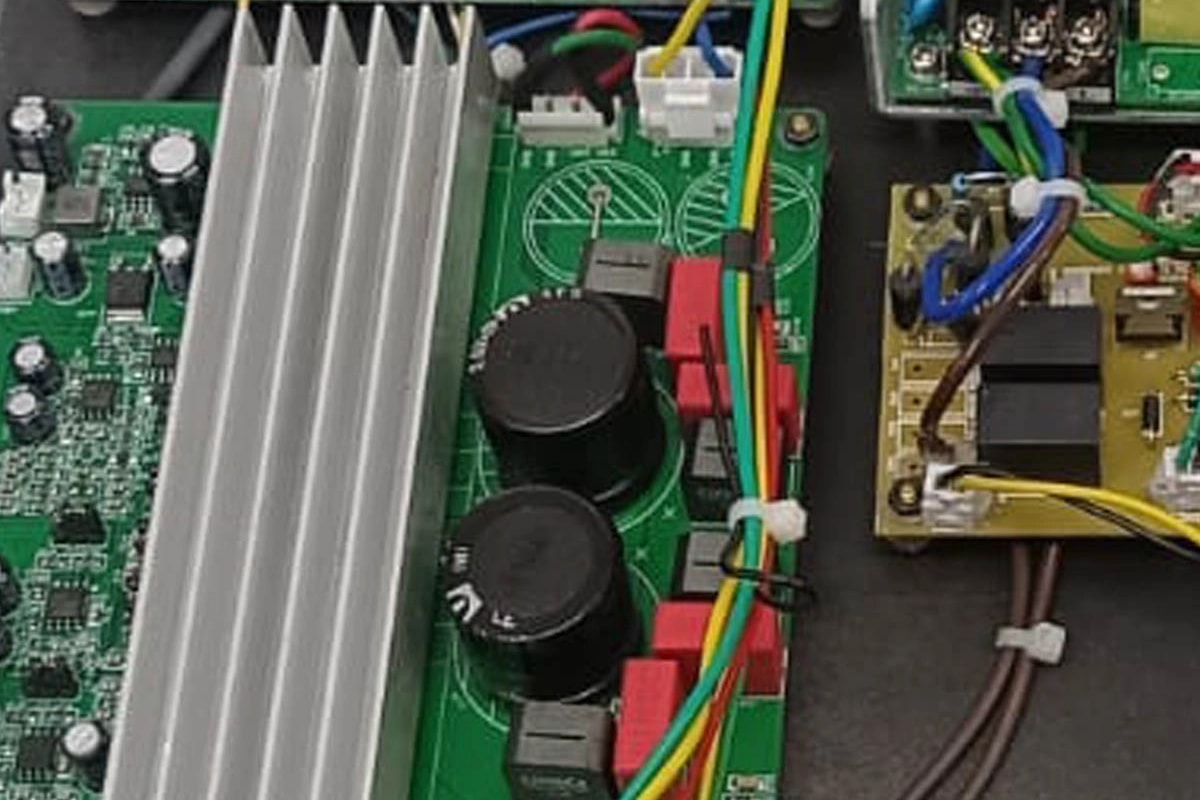

Class D Amplifier

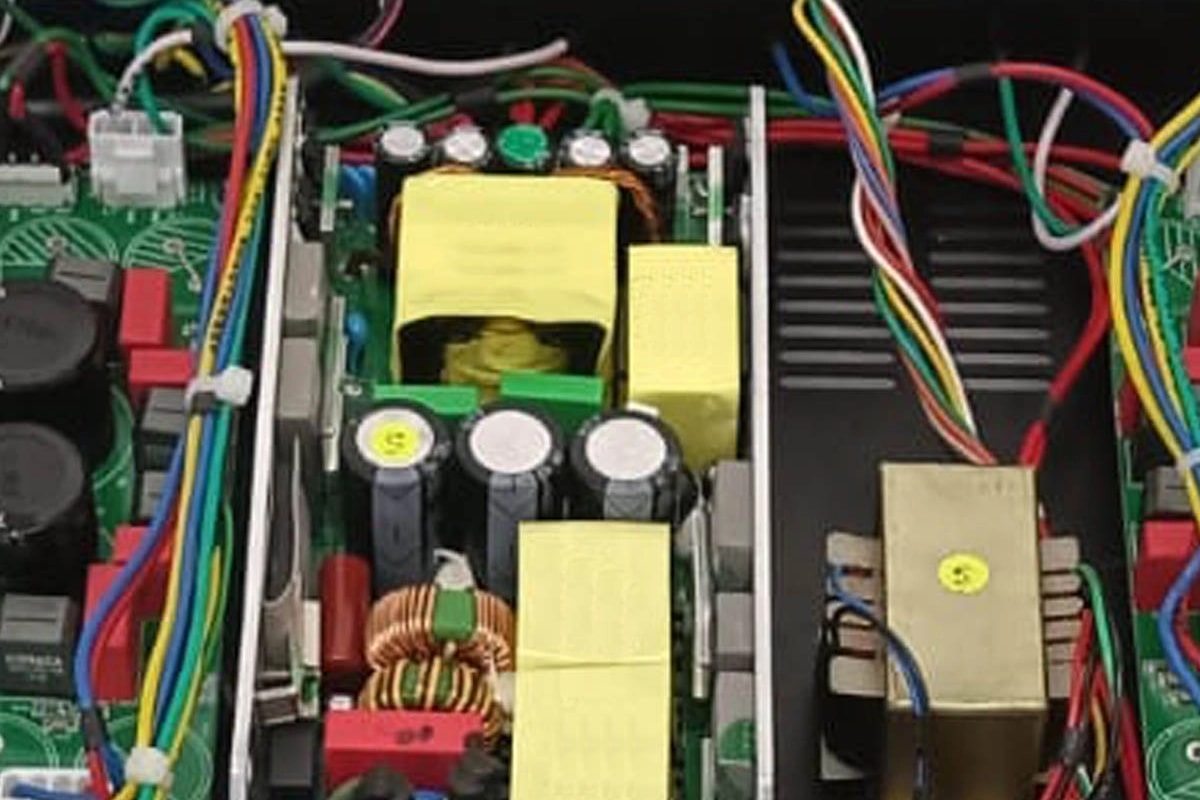

SMPS

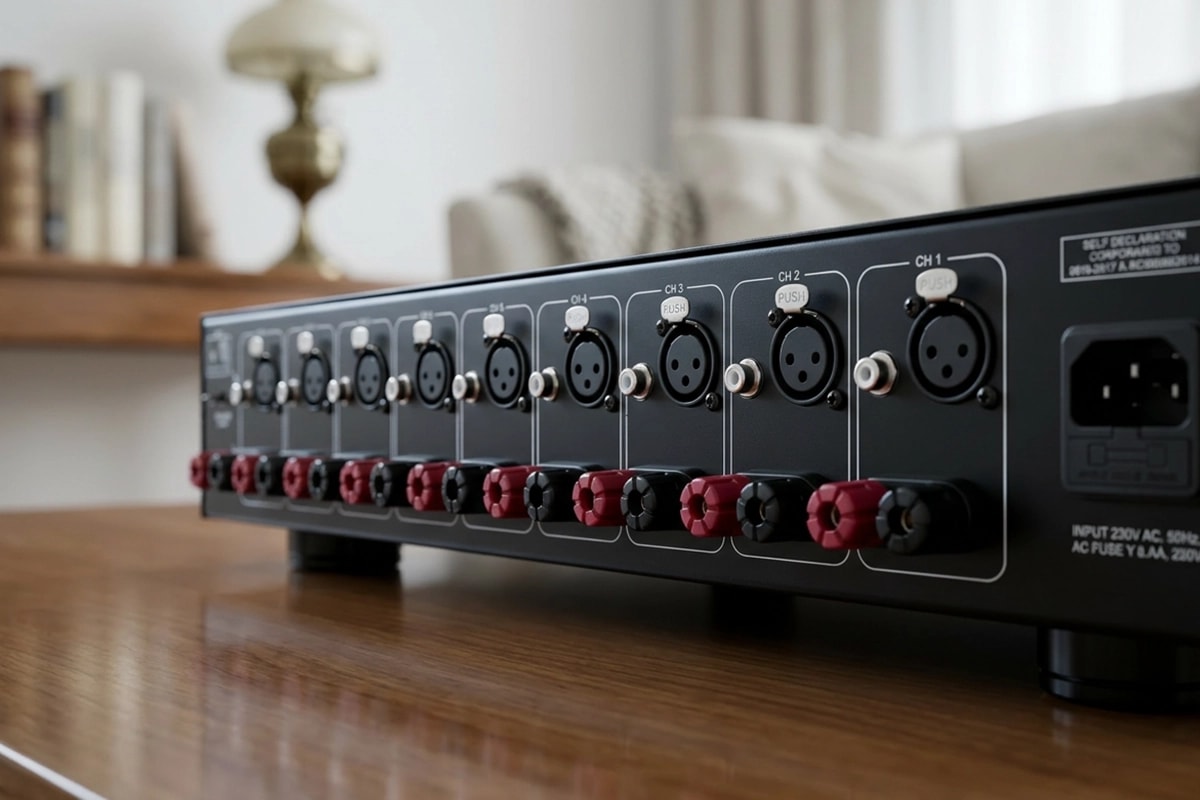

Exhaustive Protection

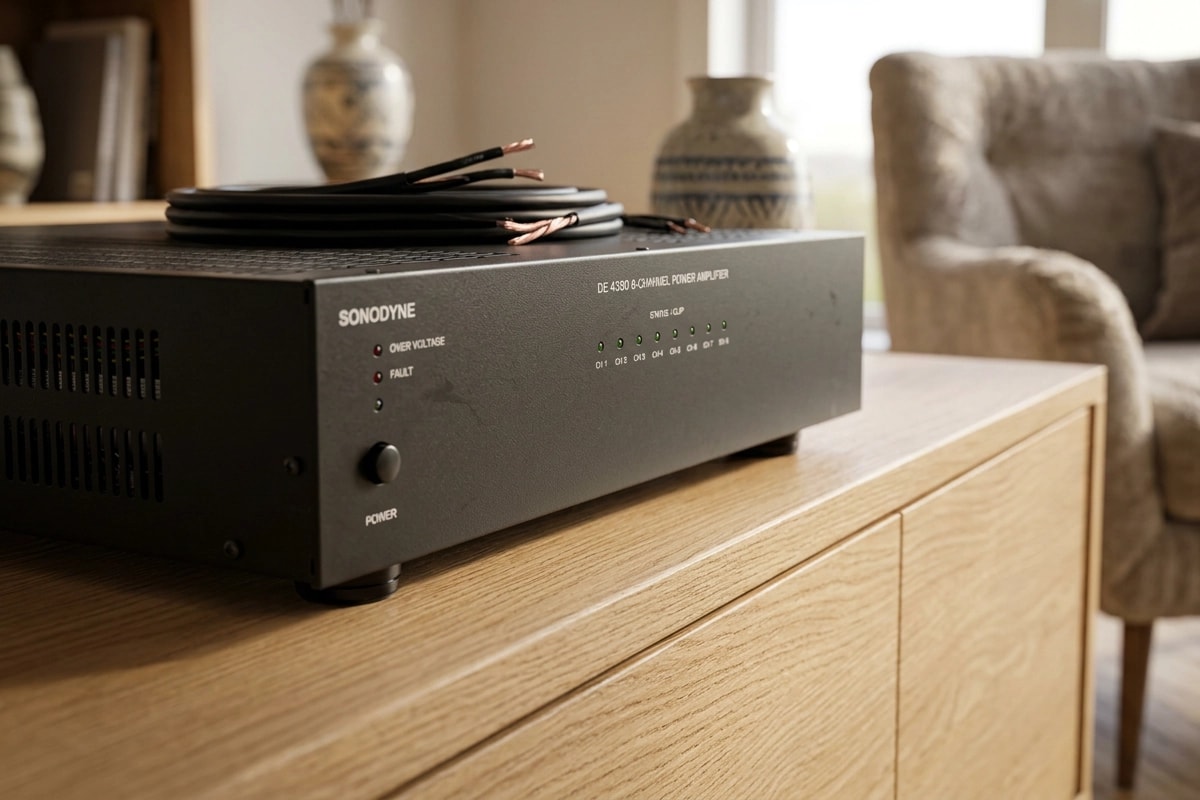

Auto Power On Off

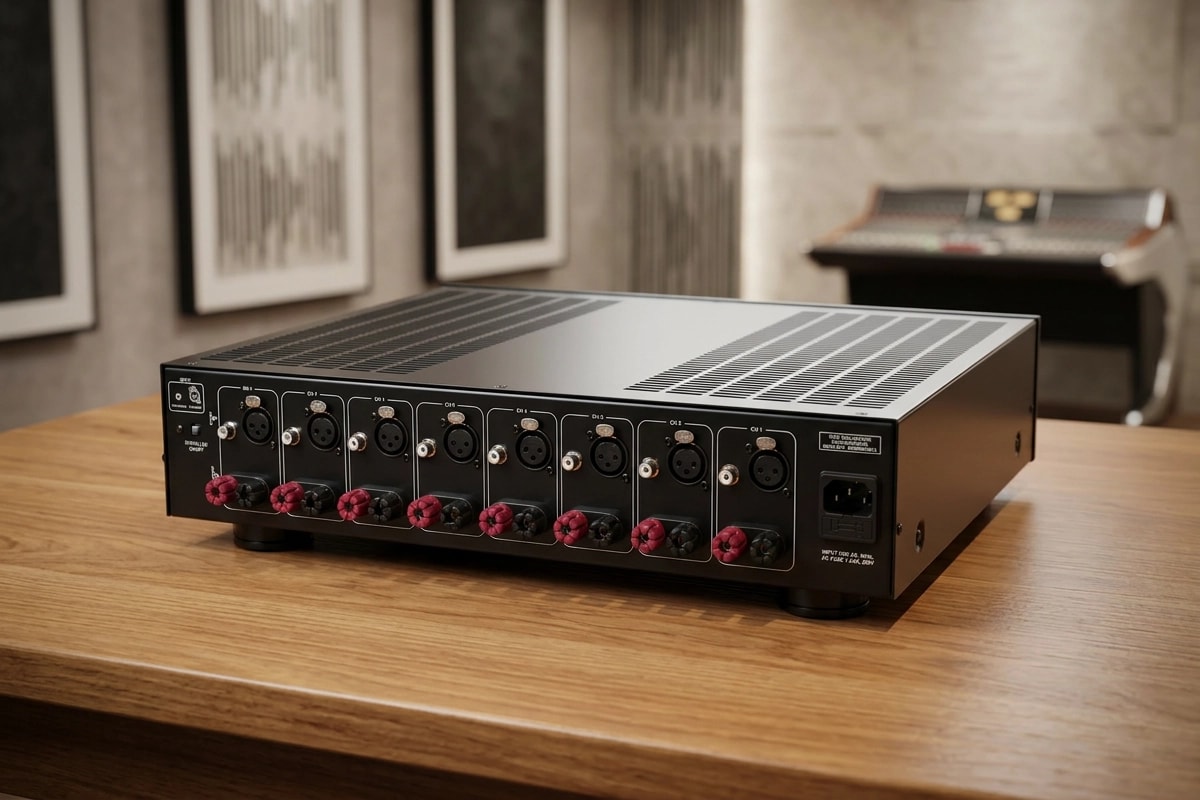

Balanced and Unbalanced Inputs

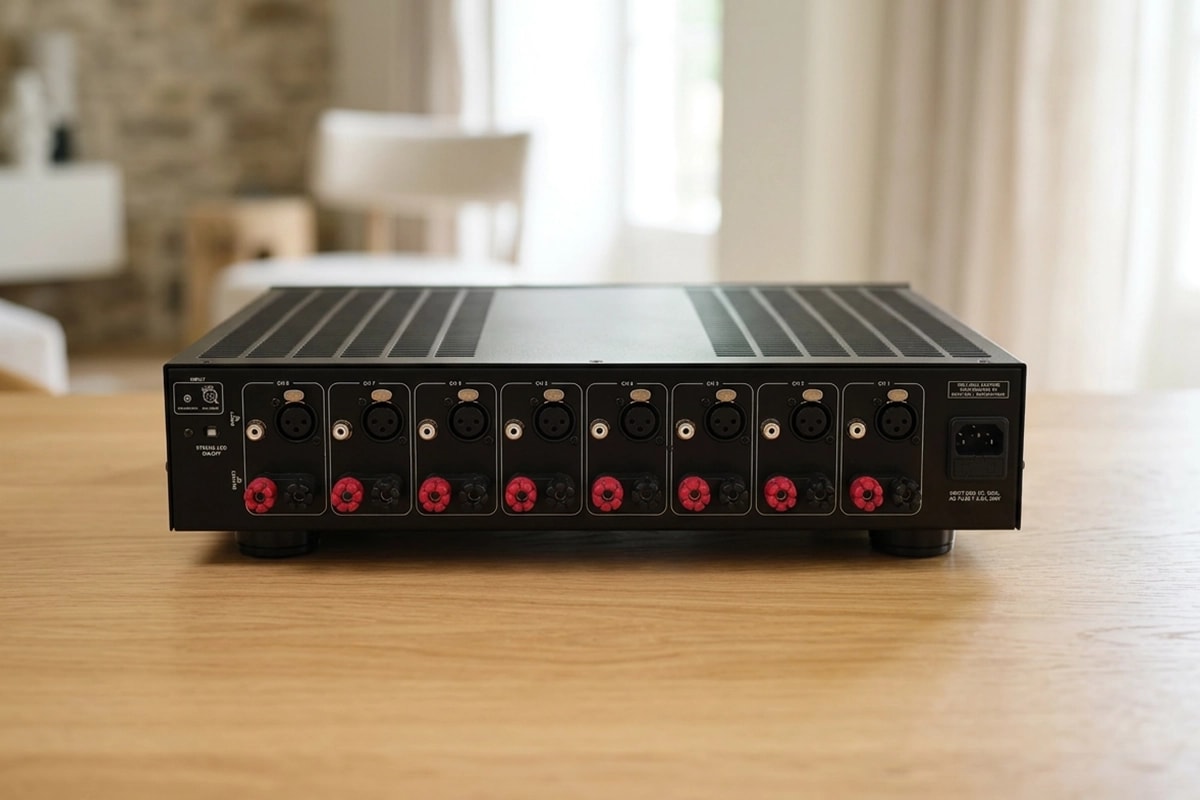

Indicators
Tech Specifications
Description
8 channel power amplifier
Amplifier Type
Class D
Input
8 x Balanced LINE input via XLR socket, 8 x Unbalanced LINE input via RCA socket
Switches
Power switch and status indicator on/off on front panel
Indicators
Power on and Auto power indicator, Status indicator , Clip indicator, Fault indicator, Mains over voltage protection

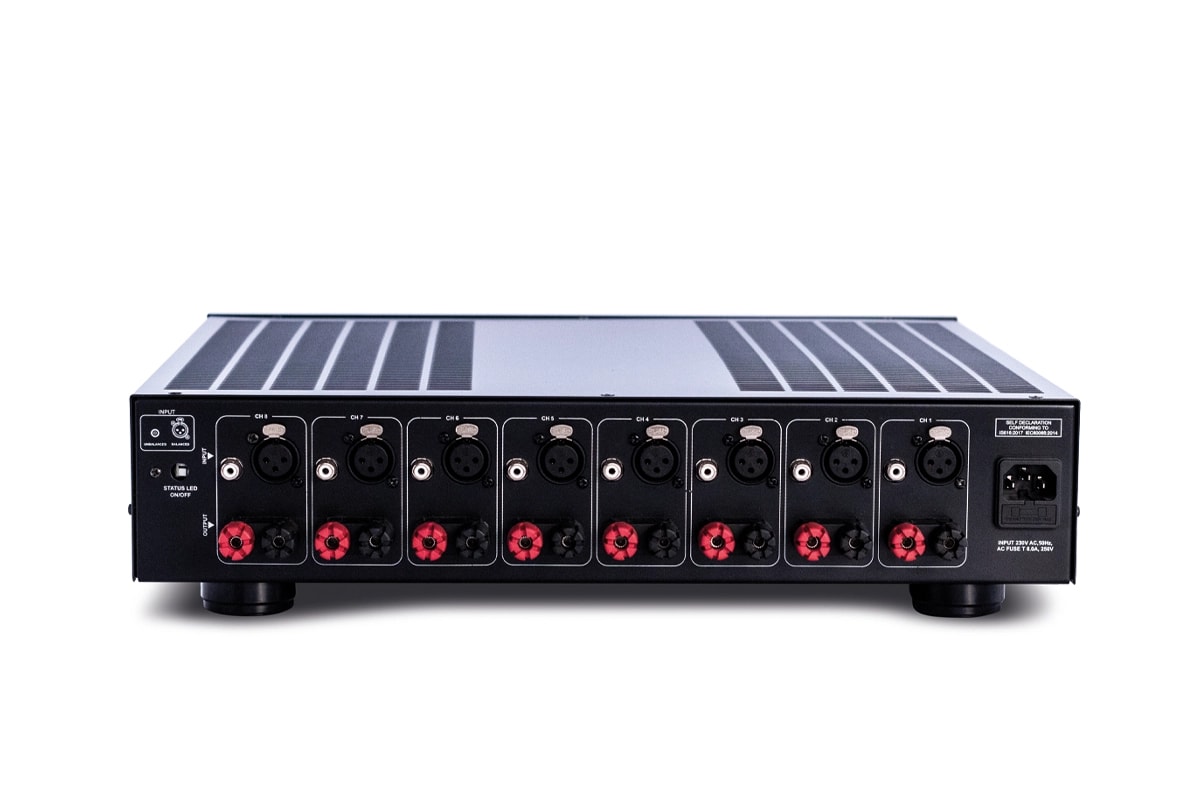

Output
Speaker output for 8 channels via touch-proof binding posts
Input Sensitivity
700mV
Input Impedance
22kOhm
Frequency Response
20Hz ~ 20kHz, ± 3dB
Signal To Noise Ratio
>90dB
THD
less than 0.5 (1kHz)
Continuous Power
100 Watt into 4Ω per channel, 60W into 8Ω per channel
