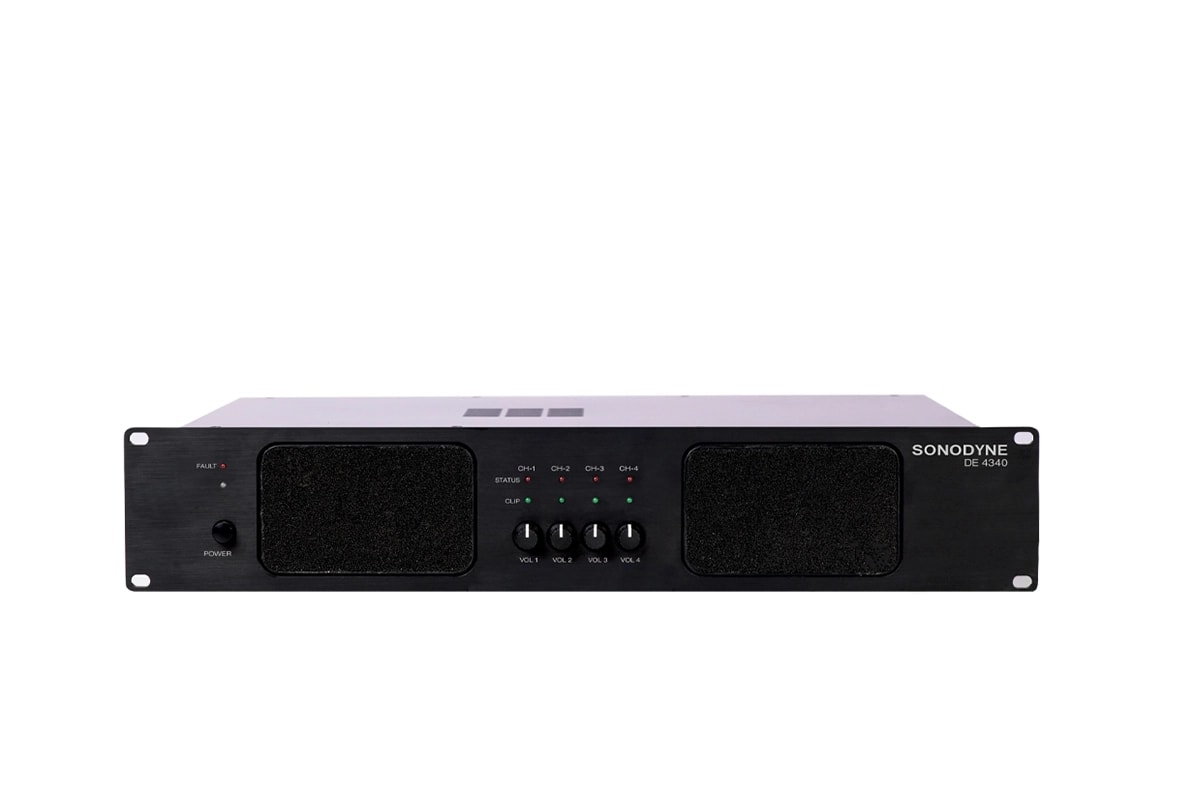

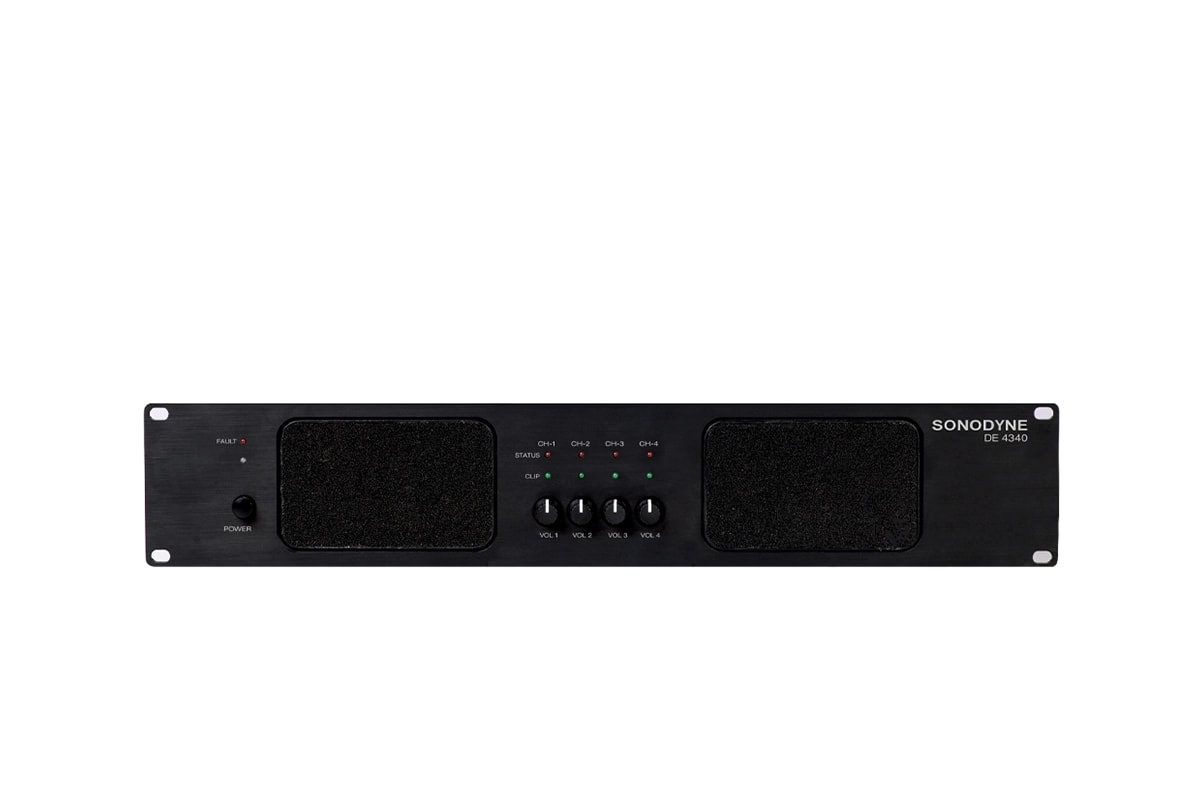

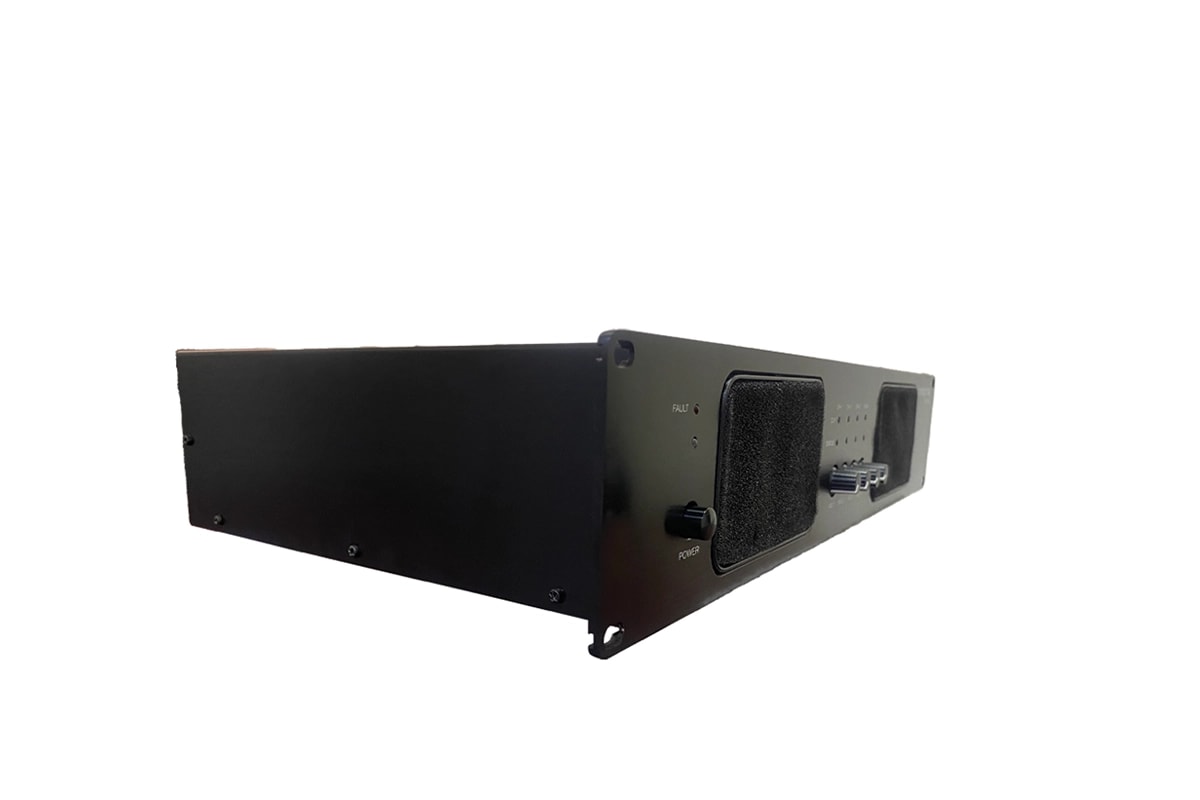

DE 4340
4 channel power amplifier
The DE 4340 is a 4 channel power amplifier that delivers 200 watt per channel at less than 0.5% THD. A compact D Class design with temperature controlled variable speed fan for cooling. It accepts balanced XLR inputs and outputs are Twist lock connector. With individul level controls, and 2 RU Rack mountable, it is ideal for home theatre and commercial installation application
Warranty
2 Years
Dimensions
264mm×483mm×88mm
Features

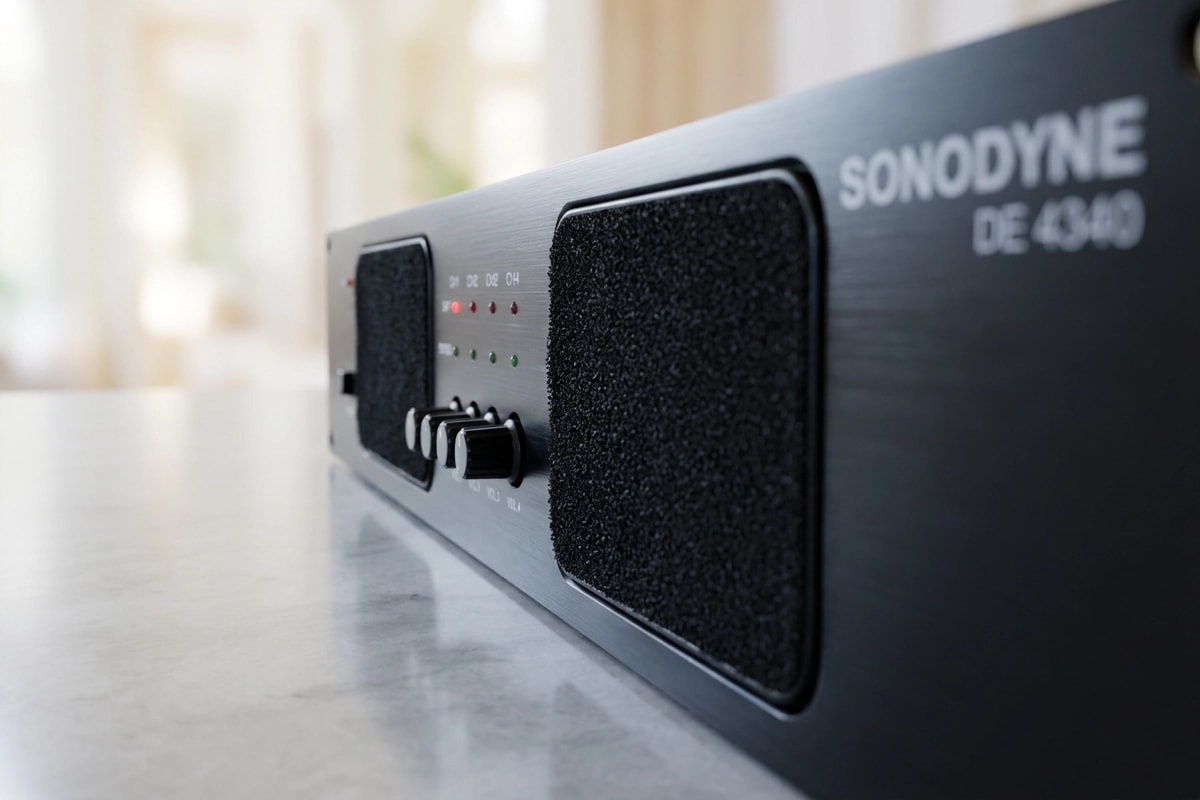

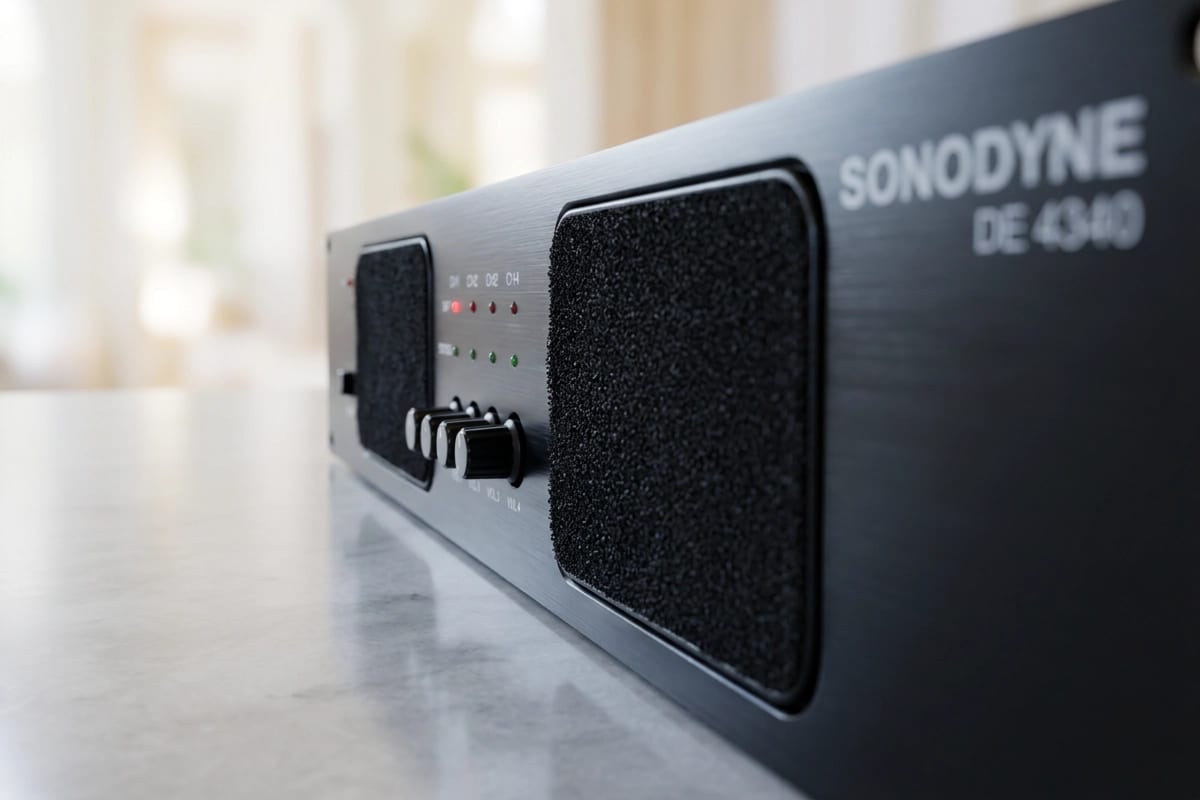

High Power

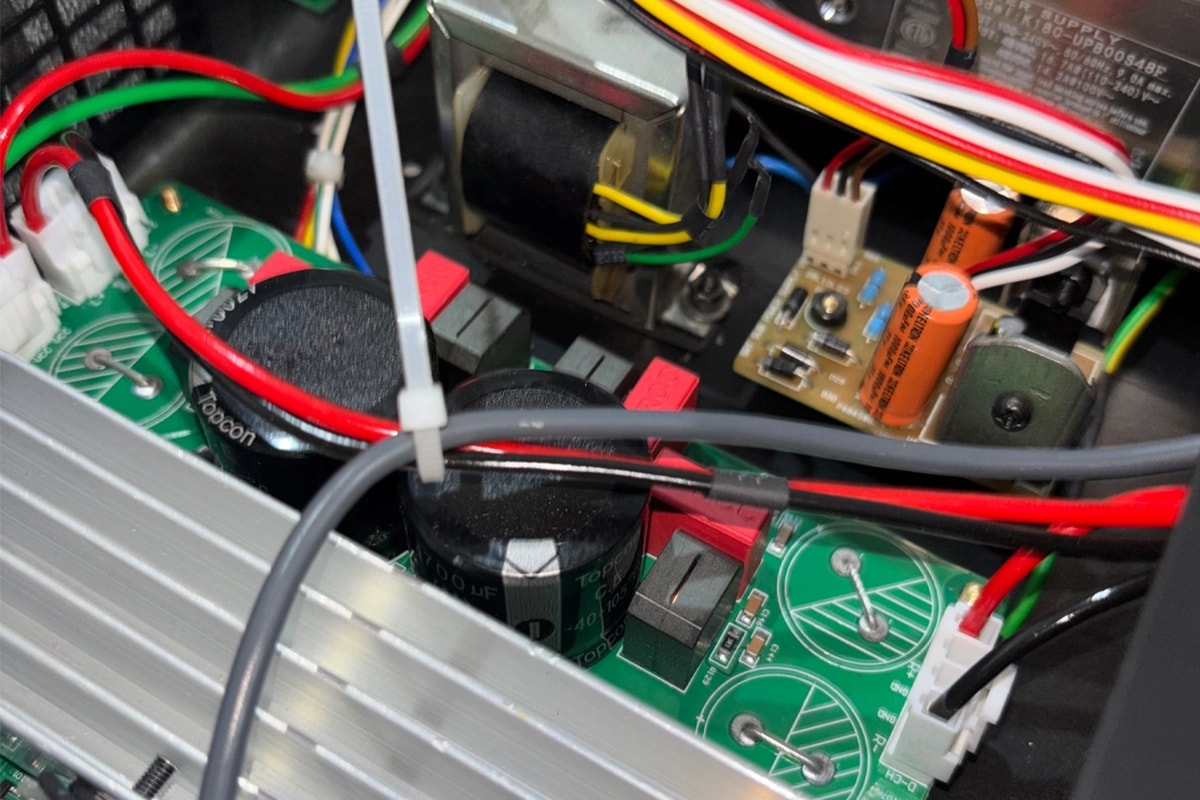

Class D Amplifier

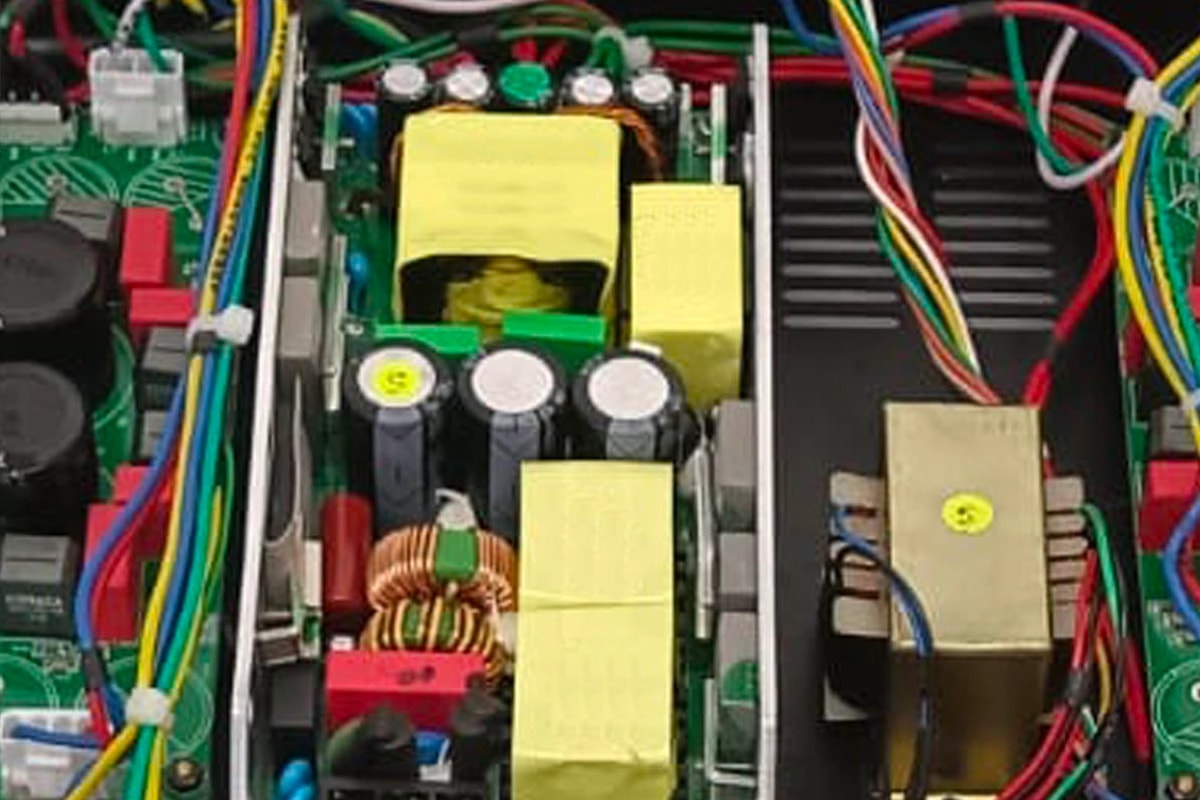

SMPS

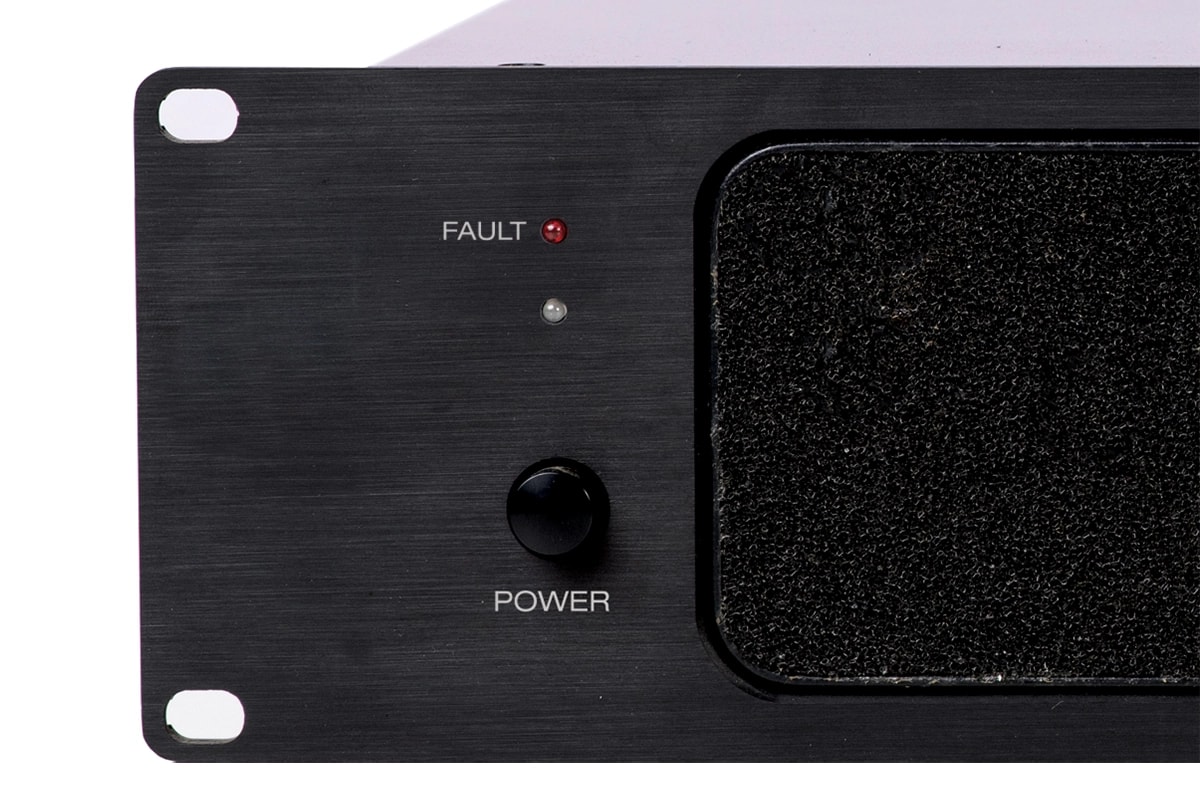

Exhaustive Protection

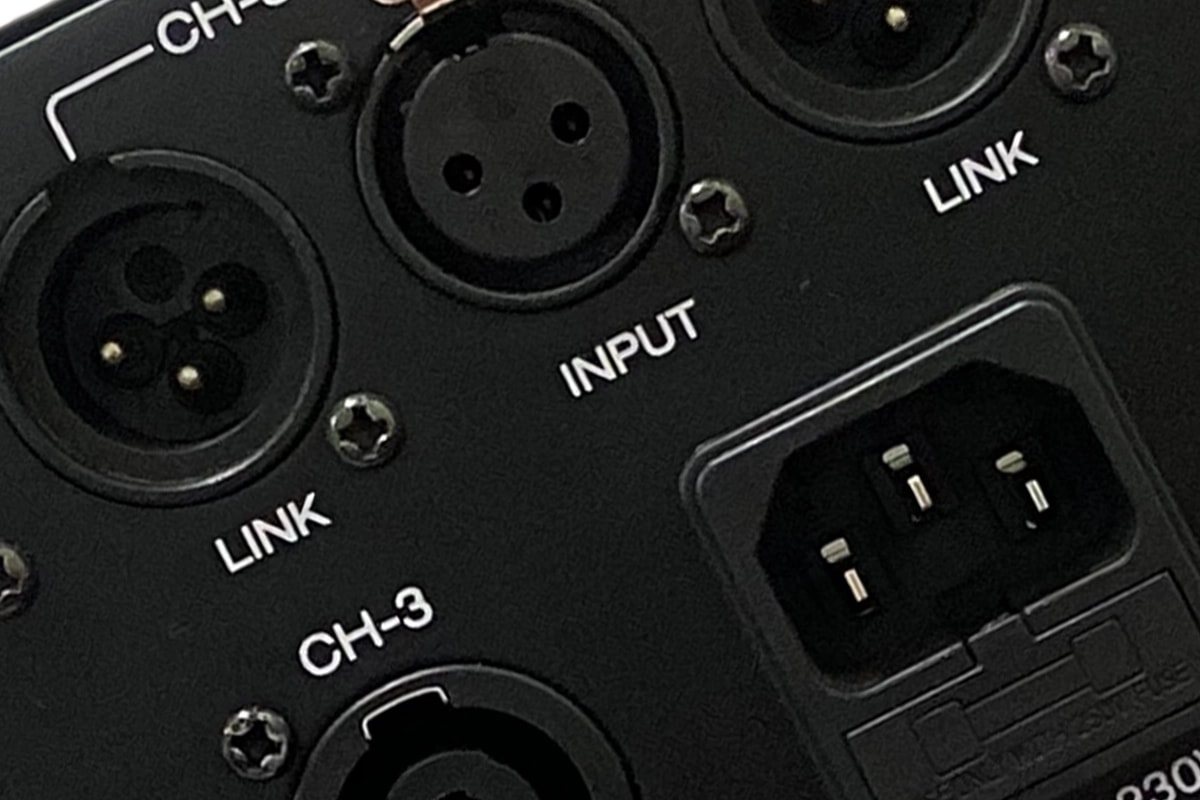

Balanced and Unbalanced Inputs

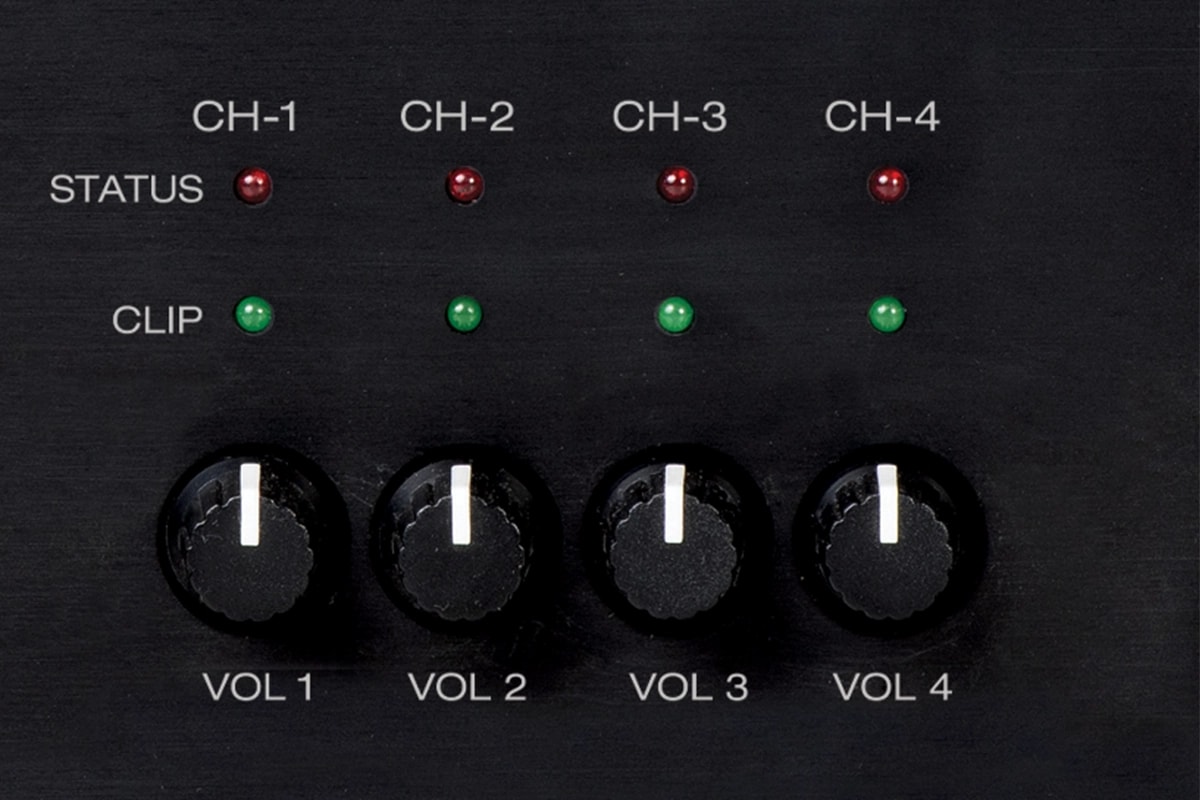

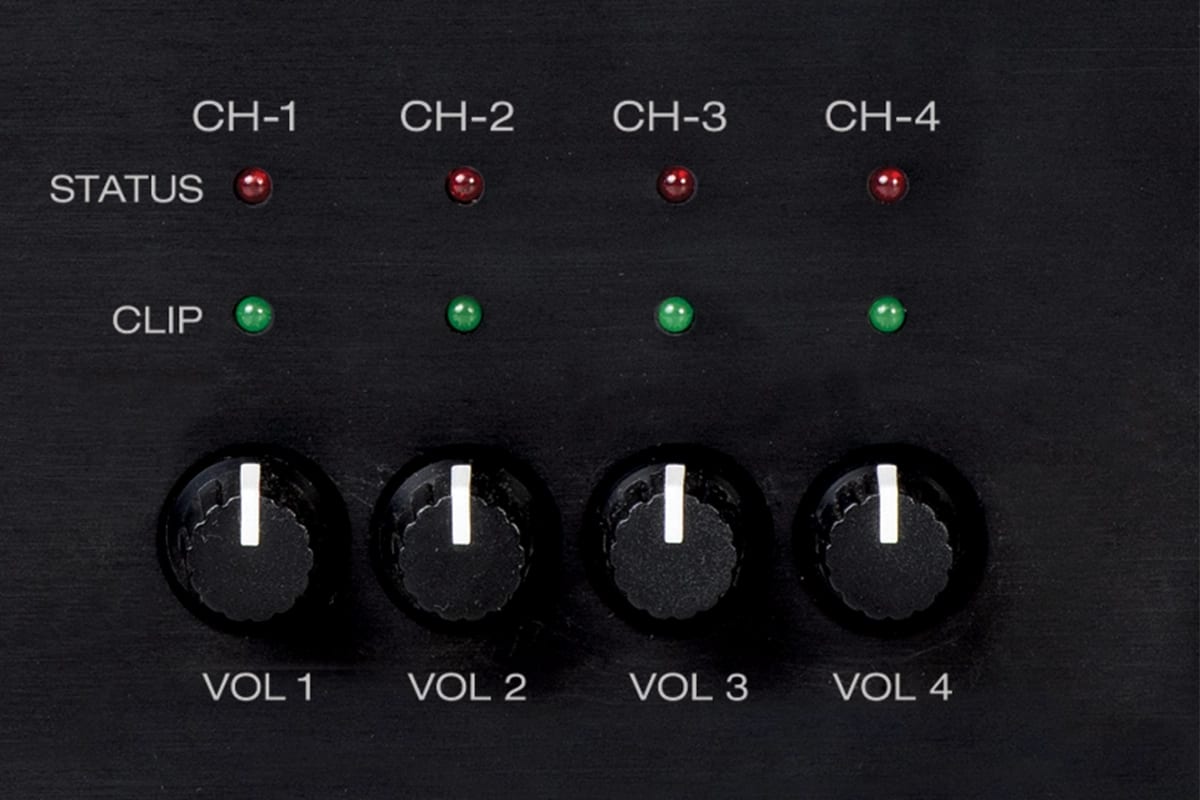

Indicators

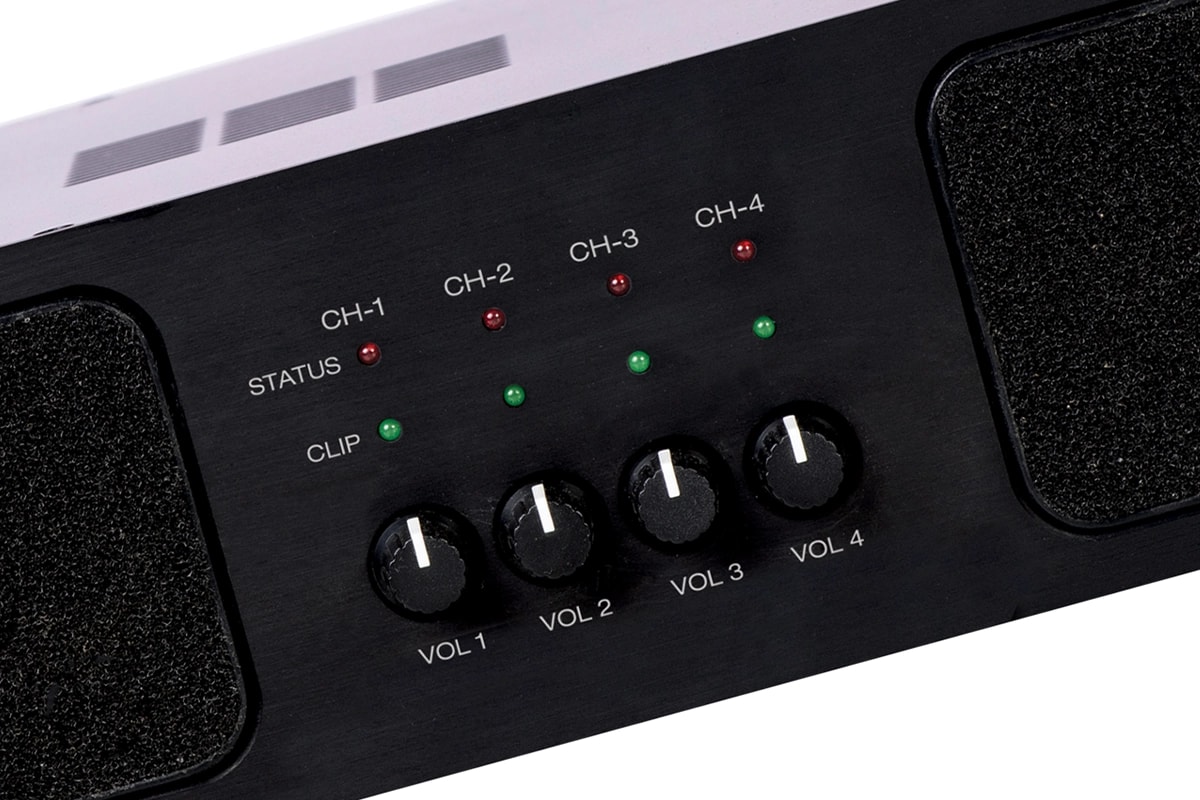

Level Control
Tech Specifications
Description
4 channel power amplifier
Amplifier Type
Class D
Continuous Power
200 watt into 4Ω per channel, 100 watt into 8Ω per channel
Input
4 x Balanced LINE input via XLR socket, 4 Balanced LINK
Switches
Power switch on front panel
Indicators
Power on and Auto power indicator, Status indicator, Clip indicator, Fault indicator
Controls
4 x volume controls on front dial
Output

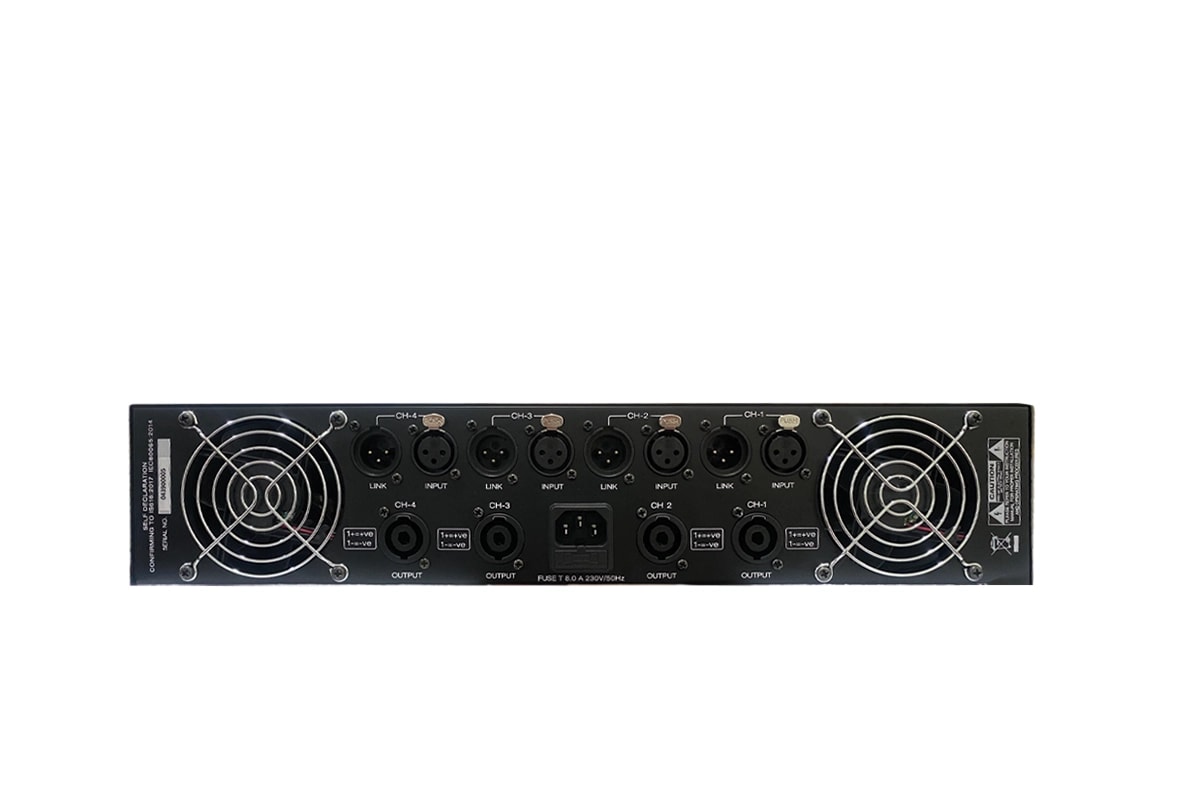

Speaker output for 4 channels via twist-lock connector
Input Sensitivity
700mV
Input Impedance
22kOhm
Frequency Response
20Hz ~ 20kHz, ± 3dB
Signal To Noise Ratio
>90dB
THD
less than 0.5 (1kHz)
