SIC SERIES
SIC 3280

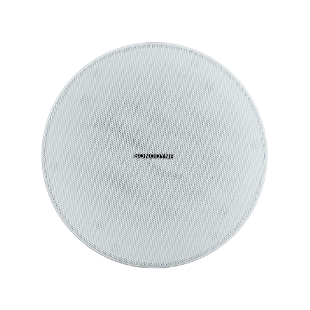

SIC 3280 ceiling speaker
SIC 3280 is a 2 way dual concentric ceiling speaker with wide coverage and magnetic grill
Tech Specifications
highlights
- 2 way dual concentric transducers
- High resolution crossover
- Rimless magnetic grill
- Both LMT, direct modes
- High sonic performance for music
- Twist lock fixing
Specifications
DESCRIPTION | 2 way in-ceiling speaker with magnetic grill |
---|---|
TRANSDUCER COMPLEMENTS | 1 x 8" coaxial speaker |
SPL @ RATED POWER | 106 dB @ 30 W |
NOMINAL IMPEDANCE | 8 Ohm |
SENSITIVITY (1 w 1m) | 92 dB (half space) |
FREQUENCY RESPONSE | 55 Hz ~ 20 kHz (-3 dB) |
FREQUENCY RANGE | 45 Hz ~ 21 kHz (-10 dB) |
POWER HANDLING DIRECT MODE | 60 W |
POWER TAPS @ 70V | 1.9, 3.75, 7.5, 15 W |
POWER TAPS @ 100V | 3.8, 7.5, 15, 30 W |
COLOURS | White |
OUTER DIMENSIONS (depth x dia) | 142 x 280 mm |
WALL/CEILING CUT-OUT | 245 mm |
NET WEIGHT | 3.3 kg |
MOUNTING OPTIONS | Ceiling mount |
